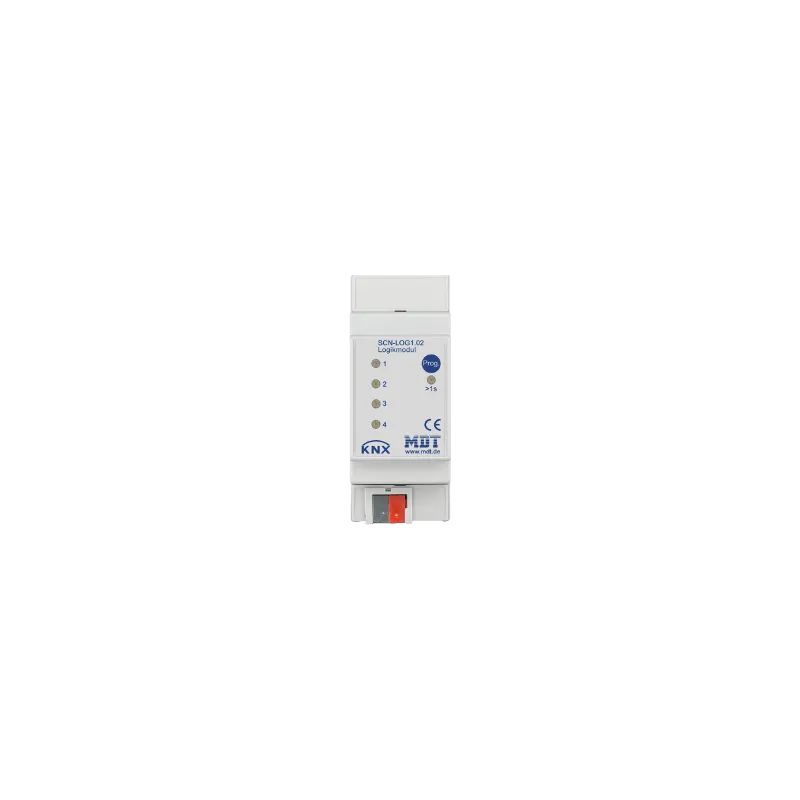

MDT - Logic Module, 2SU MDRC

description

The logic module MDT is used for quick and easy compilation of logical functions to control building automation systems. All functions are configured directly in the ETS without additional software tools. There are 24 blocks of independent functions with arbitrary functions available. For each function, a description can be saved in the ETS. The 4 LEDs on the front can be optionally controlled by objects. Based on the date, time, and place, the logic module calculates the sunset, sunrise, and twilight of the sun. In addition, output objects are available for summer or winter time, the day of the week, every hour, every minute, day, and night.

function

• Universal Logic with Up to 5 Conditions - Converting Data Point Types
• Logic gates with (AND,OR/XOR), 8 inputs each - Temperature/value comparison
• Sending or Requesting Values Cyclic - Time Functions
• Sending or querying values after restoring bus voltage - Operating control with ventilation
• Backing up values in case of bus voltage failure - min/max/average value
• Telegram Monitoring - Universal Computer
• Filtering Functions - Conversion to PWM
• Multiplexer/Divider Control - Telegram Multiplier/Sequencer

Technical specifications

• KNX TP-256 Interface Specification with Longframe Support for ETS5
• Application software available ETS 4/5
• Eligible cable section
• KNX bus connection terminal, Ø 0.8 mm, single-wire
• KNX bus supply voltage
• Power consumption of the KNX typ bus. < 0.3W
• Operating temperature -10 to + 50°C
• IP protection class 20
• MDRC dimensions (chamber units) 2SU
