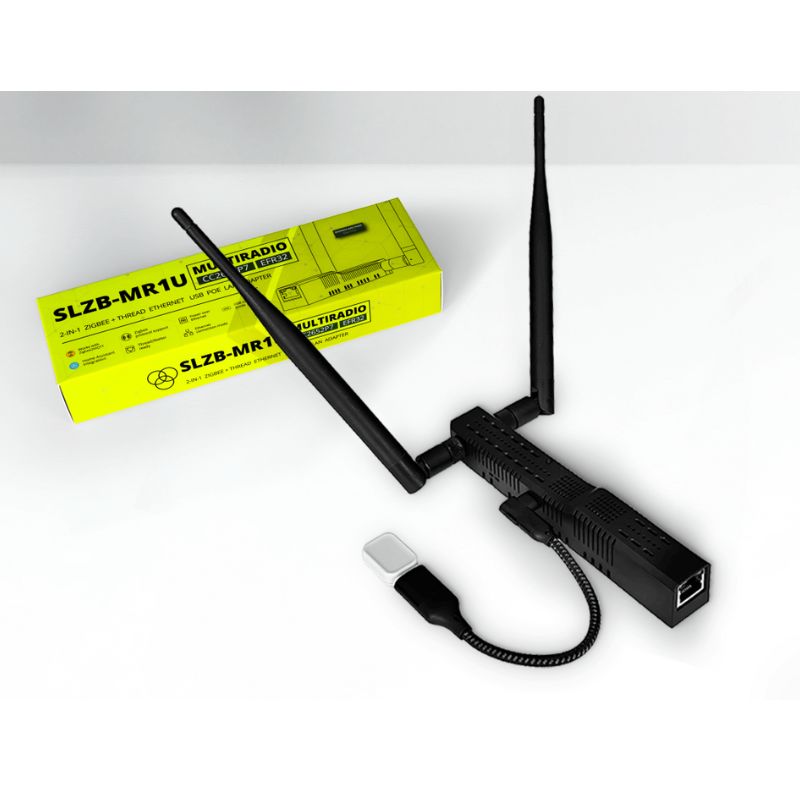

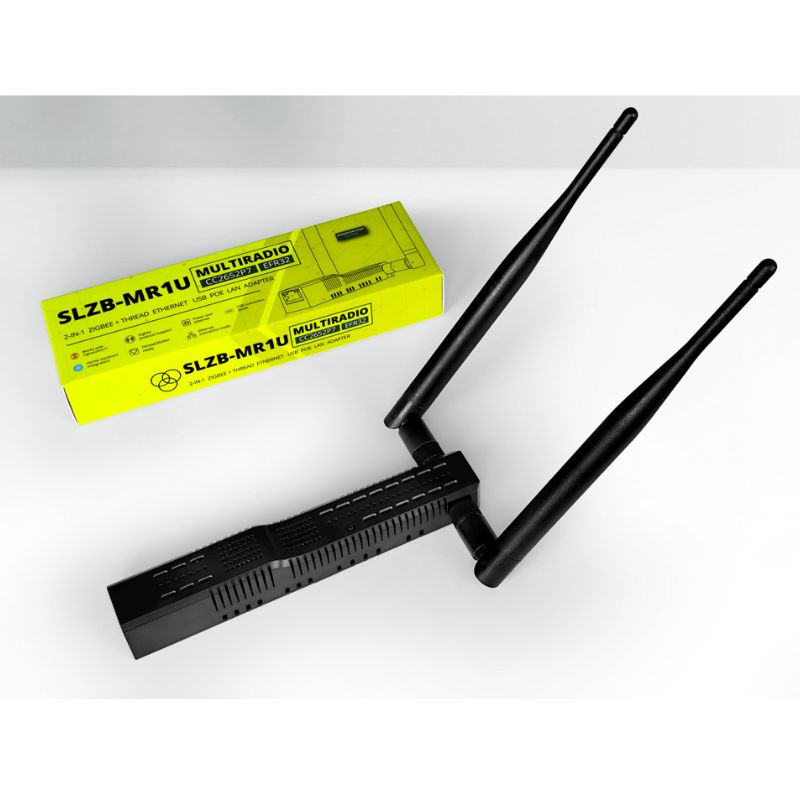

SMLIGHT SLZB-MR1U - Modular Zigbee / Thread / USB Coordinator Over Ethernet

Introduction

The SMLIGHT SLZB-MR1U is a next-generation smart LAN adapter designed for connected homes. It builds on the solid foundation of the SLZB-MR1, adding a unique feature: USB device passthrough over Ethernet. This modular device allows you to connect and access remote USB devices, such as Z-Wave sticks or custom modules, via the local network, providing unprecedented flexibility for advanced smart home installations. Connect your Z-Wave dongle to the SLZB-MR1U’s USB port and control today’s most popular wireless protocols.

Key Features

• Zigbee 3.0 support via Texas Instruments CC2652P chipset, compatible with Zigbee2MQTT and ZHA.
• Thread Border Router functionality via Silicon Labs EFR32MG21 chipset, compatible with OpenThread.
• USB-over-Ethernet passthrough for connecting and accessing remote USB devices over TCP/IP.
• Integrated Wi-Fi and Bluetooth connectivity via ESP32 module.

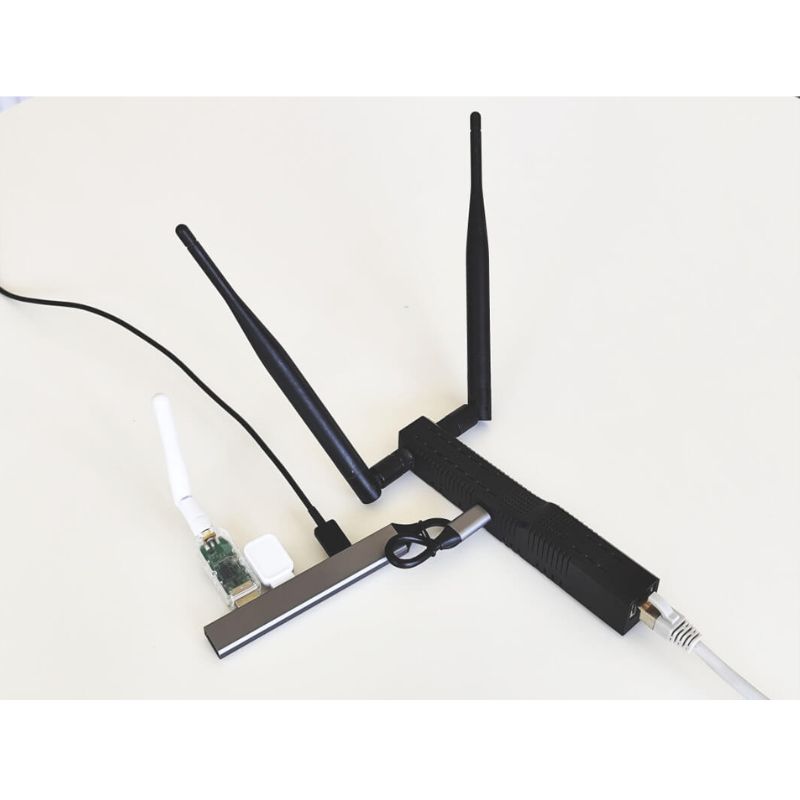

• Modular architecture allowing any USB device connection via port or USB hub.
• Power over LAN with PoE (Power over Ethernet) or USB-C for flexible installation.

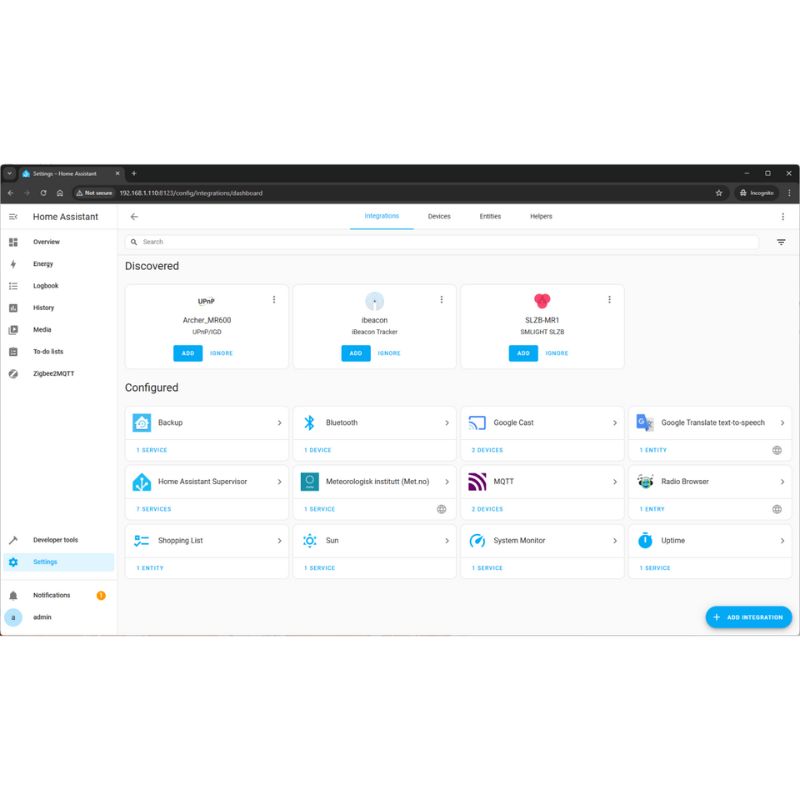

• Compatible with smart home platforms such as Zigbee2MQTT, Home Assistant, OpenThread, and Z-Wave JS (via USB stick).
• Pre-installed SLZB-OS operating system with firmware updates through web interface.

Technical Specifications

• Radio Chipsets :
  • Texas Instruments CC2652P7: Zigbee 3.0 support, +20 dBm transmission power, 144 kB + 8 kB RAM, 704 kB Flash.
  • Silicon Labs EFR32MG21: Thread support, +20 dBm transmission power, 96 kB RAM, 1024 kB Flash.
• Connectivity :

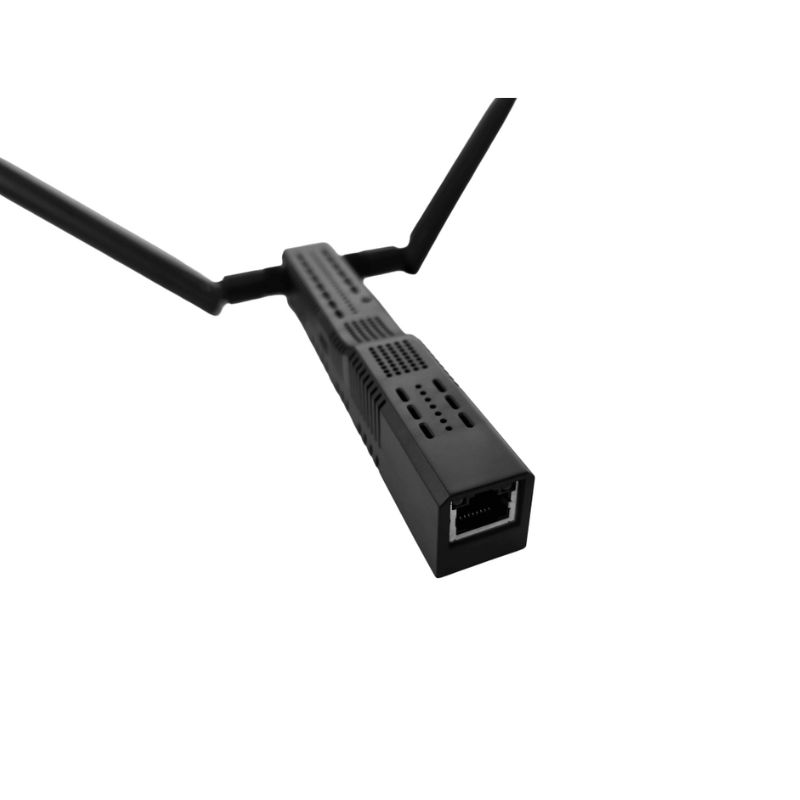

  • Ethernet with PoE (48V) for stable connection.
  • Integrated Wi-Fi and Bluetooth via ESP32.
  • USB-C for alternative power supply.
  • USB-A host port for expansion with USB peripherals.
• Power Supply :
  • PoE (IEEE 802.3af) or USB-C (5V DC).
  • Low power consumption, up to 1.5 W with both radio chipsets active.
• Enclosure :

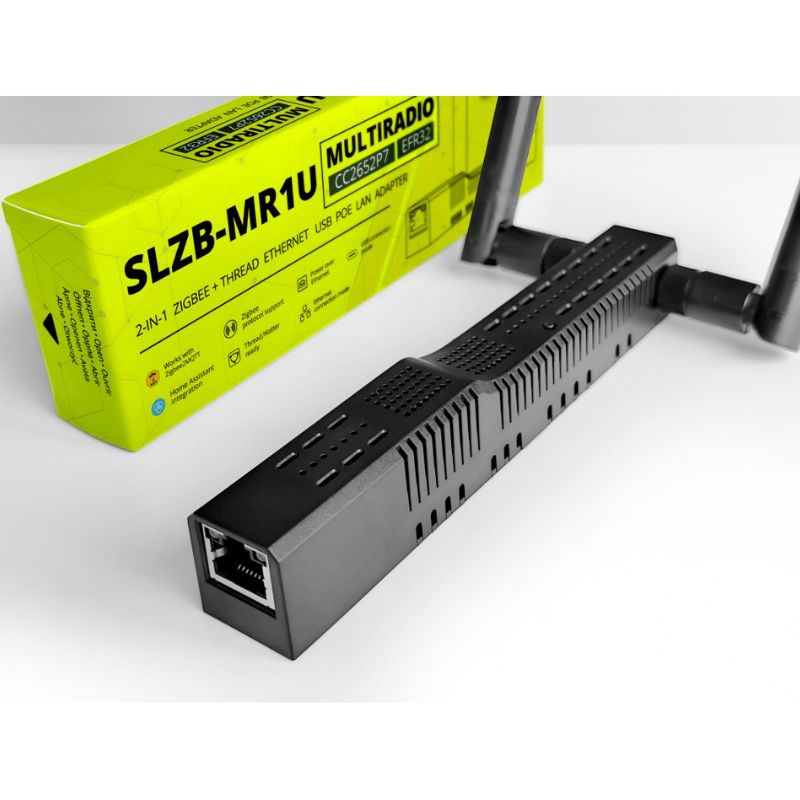

  • Compact, durable ABS housing with ventilation.
  • Compatible with DIN rail and wall mounting.
  • Compact dimensions for discreet installation.
• Antennas :
  • External female SMA connectors for each radio chipset.
  • PCB antenna for Wi-Fi and Bluetooth.

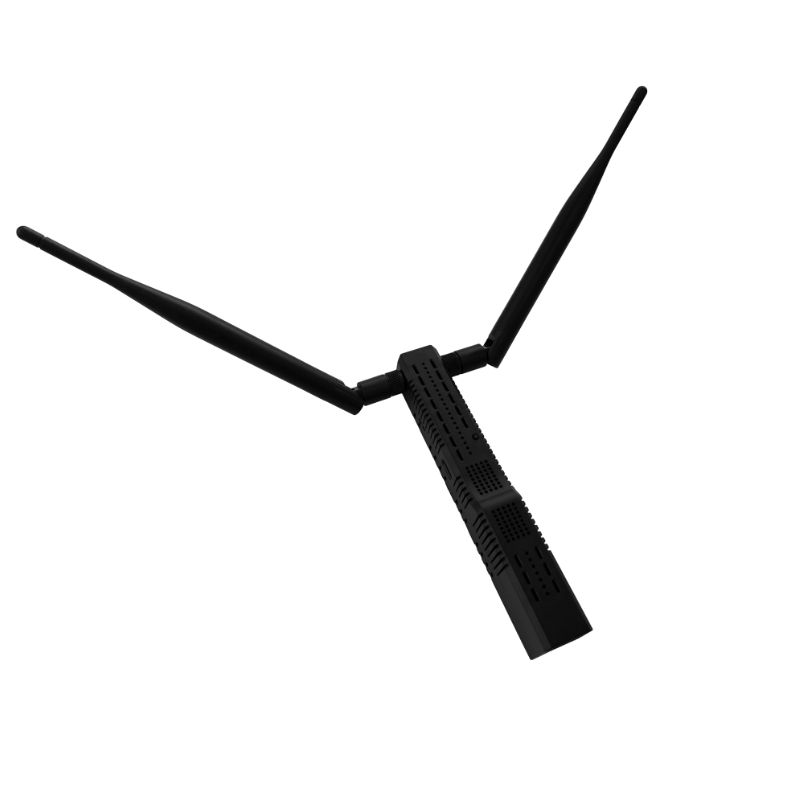

  • Two high-gain 2.4 GHz external antennas included.
• LED Indicators and Peripherals :
  • 6 independent status LEDs for each radio.
  • Multifunction button for mode selection, restart, etc.
• Firmware Updates :
  • Remote radio firmware updates via web interface.
  • Support for ESP32 firmware updates.
  • Automatic boot mode for flashing via USB.
