SMLIGHT - LED Controller SLWF-09

Introduction

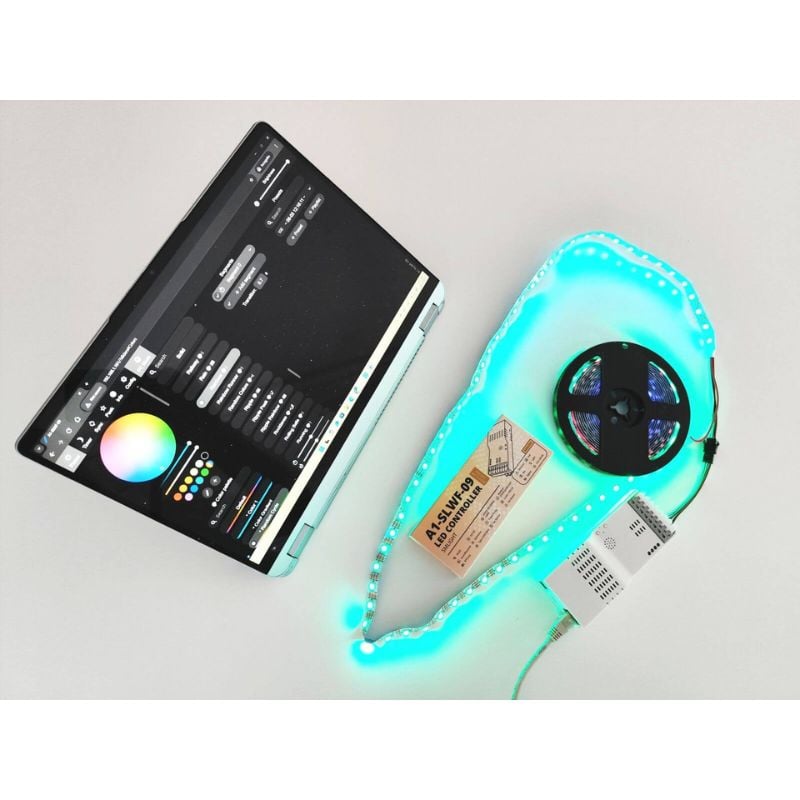

The SMLIGHT SLWF-09 is a next-generation modular LED controller designed to offer maximum flexibility in addressable lighting projects. Based on the powerful ESP32 microcontroller, it comes pre-flashed with WLED firmware, allowing for quick setup and easy integration into home automation systems such as Home Assistant. Its modular design allows for the addition of add-on modules such as Ethernet, PoE (Power over Ethernet), and a digital microphone, providing customization according to the specific needs of each installation.

It is ideal for DIY LED lighting projects, music-reactive ambient lighting, home automation, wall panels, signage, and party decorations. Its modular design and compatibility with various add-on modules make it a versatile choice for professional installations requiring Ethernet or PoE.

Key Features

• Advanced modularity: add Ethernet, PoE, or microphone modules to tailor the controller to your specific needs.
• Extended compatibility: supports addressable LED strips WS2812B, SK6812, APA102, and others, with a maximum voltage of 24V.
• Built-in Wi-Fi connectivity: wireless connection via 2.4 GHz Wi-Fi for simplified installation.

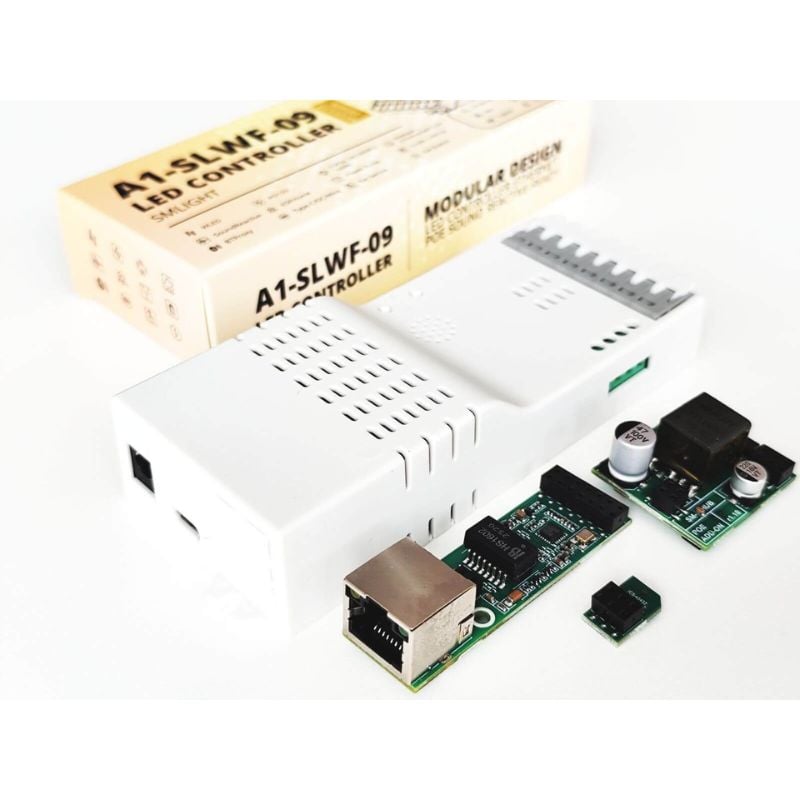

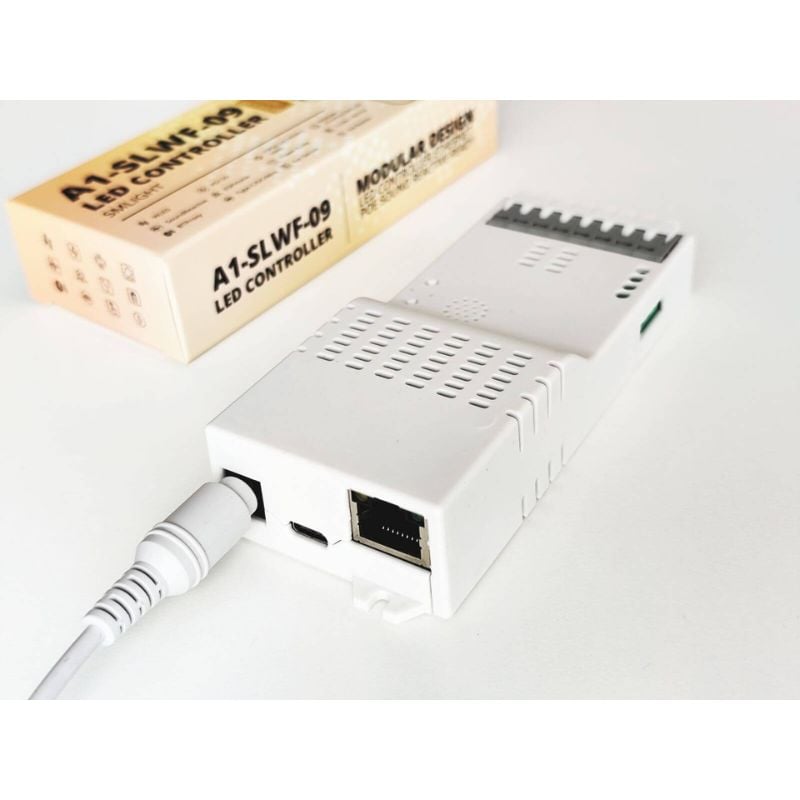

• Ethernet support (optional module): add an Ethernet module for a stable wired network connection.

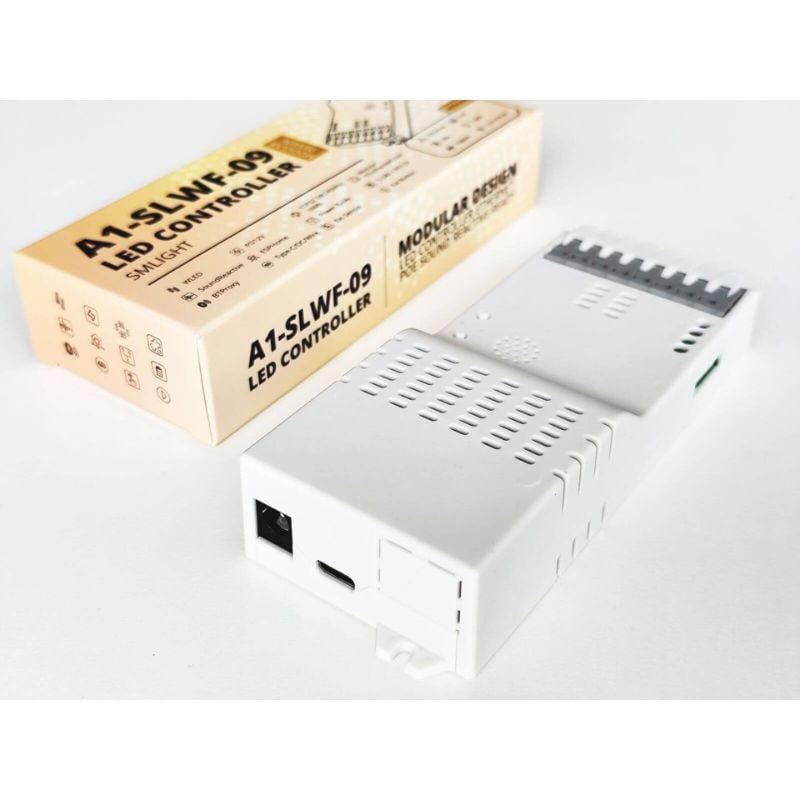

• Flexible power supply: power via USB-C, PoE, or DC input terminals (5V–24V), according to your installation needs.
• Audio-reactive control (optional microphone module): add a digital microphone ICS-43432 for light effects synchronized with music.
• GPIO support for custom extensions: add sensors, buttons, or other devices via the exposed GPIO pins.

Technical Specifications

• Microcontroller: ESP32-D0WD-V3, dual-core at 240 MHz.
• Flash Memory: 16 MB.
• Default Firmware: WLED (latest stable version).
• Power Inputs: USB-C (5V or 12V), DC input terminals (5V–24V), fast VIN terminals (5V–24V).

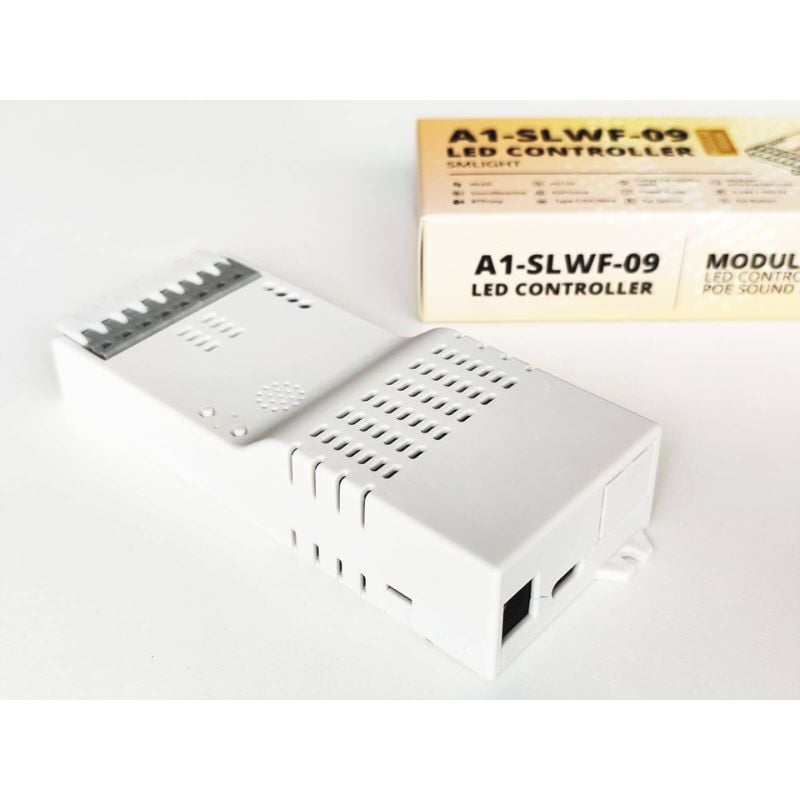

• LED Outputs: 2 channels (expandable up to 6 via GPIO).
• Supported LED Types: WS2812B, SK6812, APA102, and other 3 or 4-wire addressable LED strips.
• Maximum LED Voltage: 24V.
• Maximum LED Current:
  • Via external power supply: up to 20A.
  • Via USB-C or DC5.5 connectors: up to 5A.
• Data Level: 3.3V → 5V conversion on board.
• Connectivity:
  • Wi-Fi 2.4 GHz (IEEE 802.11 b/g/n).
  • Ethernet 10/100 Mbps via optional module.
  • USB Interface: USB-C with automatic UART programming.

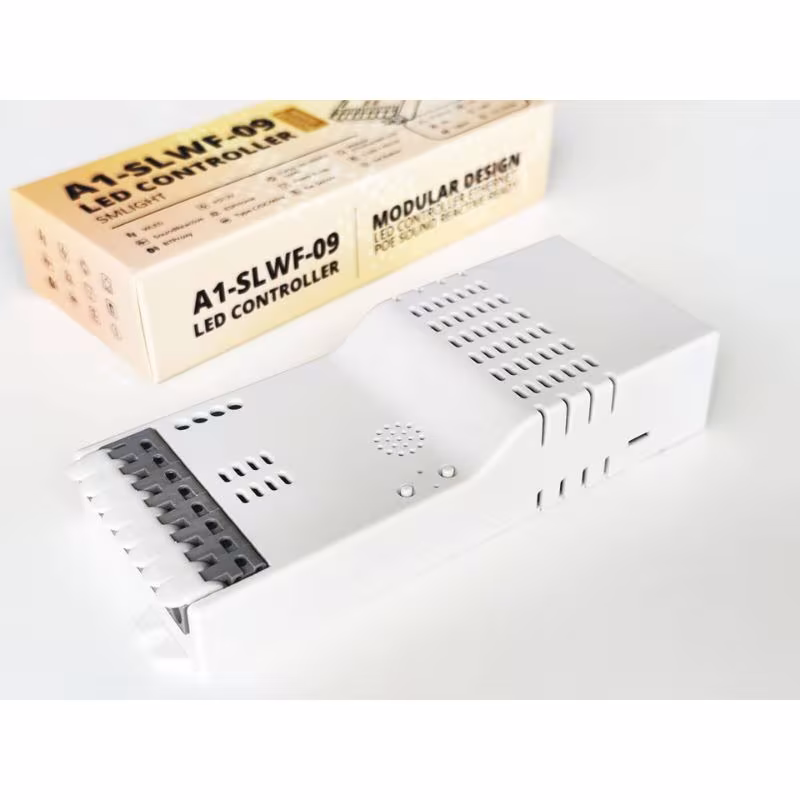

• Buttons: 2 fully configurable buttons.
• Operating Temperature: from -10 °C to +60 °C.
• Dimensions: 57 × 30 × 23 mm.
