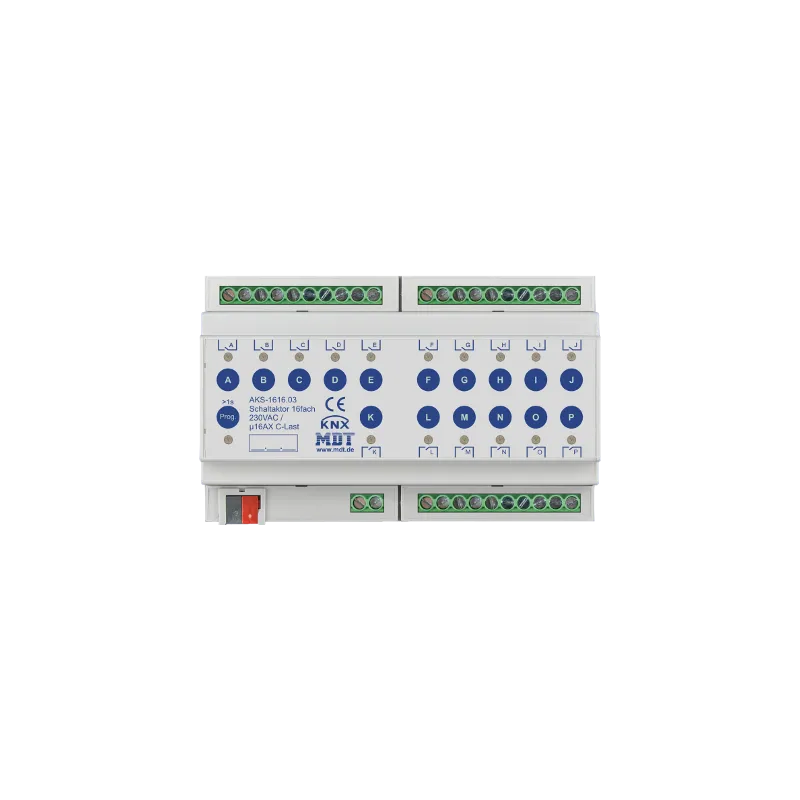

MDT - Switching actuator 16 times, 8SU MDRC, 230VAC, 16A, C-Load 140uF

description

The MDT Switch Actuator receives KNX/EIB telegrams and switches up to 24 independent electrical charges. Each exit
uses a bistable relay and can be manually operated by a push button. A green LED indicates the switching status of
each channel. The MDT switching actuator is suitable for high inrator currents and used for heavy loads (C-Load).
The outputs are parameterized individually via ETS. The device offers extensive functions such as logical operation, state
block functions, center function, delay functions and stair lighting function. In addition, the device allows multiple time and scene controls. In the event of a failure of the bus voltage, all outputs retain their current position. After the bus voltage fails
or redoing, the position of the relay is selected depending on the setting.

function

• Space-saving design
• Full application
• Lockable manual control and LED indicator for each channel
• No and NC contact operation
• Status response to manual command
• Time functions (delay on and off, stair lighting functions)
• Extended logical and scenic functions for each channel
• Extended state functions (inverted, cyclic, bulk)
• Threshold switch (byte/2 byte/2 floating byte)
• Time counter for switching
• Priority/forced operation with automatic trigger time
• Screw terminals of 4mm² / 2x2.5². Separate feeding phases
• Power via KNX bus
• Quick app download (long frame support for ETS5)
• 3-year warranty

Technical specifications

• Number of sorties 16
• Ohmic charge 16A
• Capacitive load 140uF
• Voltage 230VAC
• Maximum inring current 600A/150μs
• 250A/600μs
• Maximum load
• Filament lamps 2500W
• Halogen lamps 230V 2500W
• Halogen lamps, electronic transformer* 1500W
• Fluorescent lamps, unmatched 2300W
• Fluorescent lamps, parallel comp. 1500W
• Maximum number of electronic transformers 20
• Output lifetime (mechanical) 1.000.000
• Maximum total current of actuator 128A
• KNX TP-256 interface specification with long frame support for ETS5
• Application software available ETS 4/5
• Permissible wire size
• Screw terminal 1 x (0.5 - 4.0mm²)
• 2 x (0.5 - 2.5mm²)
• KNX bus connection terminal 0.8mm Ø, solid core
• Screw terminal clamping torque 0.5Nm
• Knx bus power supply
• Power consumption bus KNX typ. < 0.3W
• Operating temperature from 0 to + 45°C
• IP Enclosure 20
• 8SU MDRC dimensions (space units)
