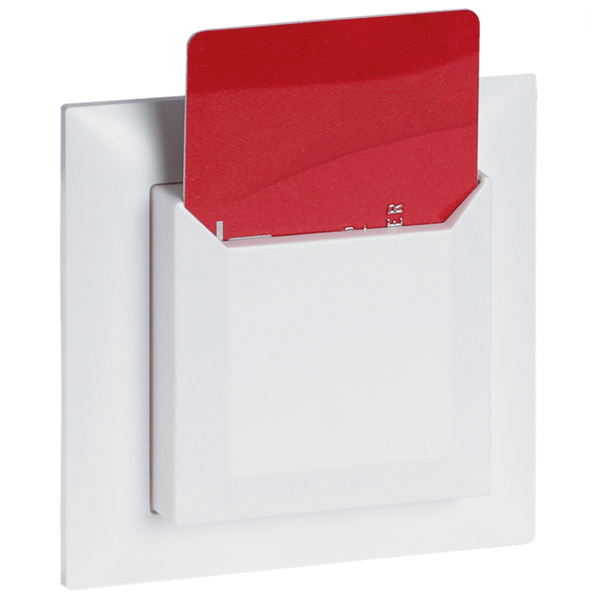

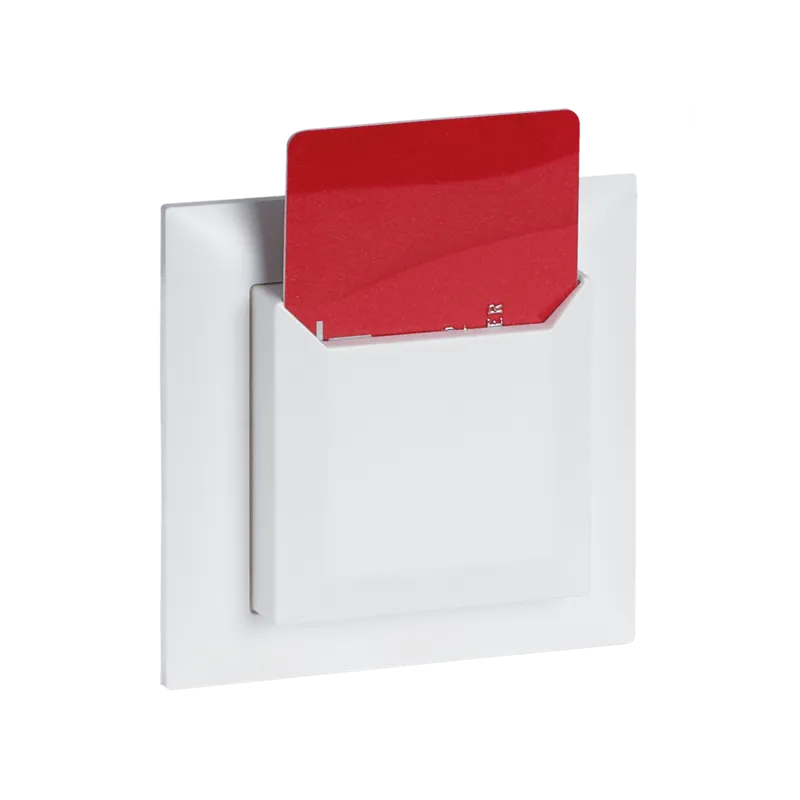

OMNIO - Key-Card-Switch 1-Channel KSM-CH-110 (pure white)

Presentation

The Omnio Key-Card-Schalter 1-Kanal KSM-CH for swiss frame systems 58mm is a universally applicable battery-less and maintenancefree wireless switch with four independent individual keys. Due to its highly ergonomic shape it rests comfortably in ones hand. The power comes from a small energy converter based on the induction principle.

Brief instruction

Set the Omnio actuator in the programming mode according to its instruction manual

Insert and remove the card twice within a second in Omnio key-card-switch

Note : The key-card-switch must not be further than 5 m away from the Omnio receiver

Set the Omnio actuator in the operating mode

Product Description

The Omnio key card switch KSM-CH 1-channel is a self-powered and maintenance-free radio transmitter. It can be used as a main switch for lighting, heating and blinds in hotel-, school- and conference rooms as well as in offices. Install with screws or adhesive pad.

operating elements

The Omnio key card switch KSM-CH 1-channel is operated by inserting and removing a hotel card or similar in credit card format.

technical specifications

• Power supply : Electro-dynamic power generator
• Technology : EnOcean 868.3 MHz
• Radio module : EnOcean PTM210
• EnOcean Equipment Profile (EEP) : F6-02-xx, F6-04-xx
• Tansmission range : indoor max. 30m / free field max. 100m
• Environment : -25 … +65 °C 5 .. 90 % rH non condensing
• Dimensions : 88 x 88 x 20 mm
• Weight : 65g
• EC-Directives : R&TTE 1999/5/EC Electromagnetic Compatibility 2004/108/EC Low-Voltage 2006/95/EC Restriction of Hazardous Substances 2011/65/EU
• Standards : EN60950-1:2006+A11:2009+A1:2010+A12:2011 EN61000-6-2:2005, EN61000-6-4:2007+A1:2011 EN 62479:2010 EN300220-1:V2.4.1, EN300220-2:V2.4.1 EN301489-1:V1.9.2, EN301489-3:V1.6.1
•
