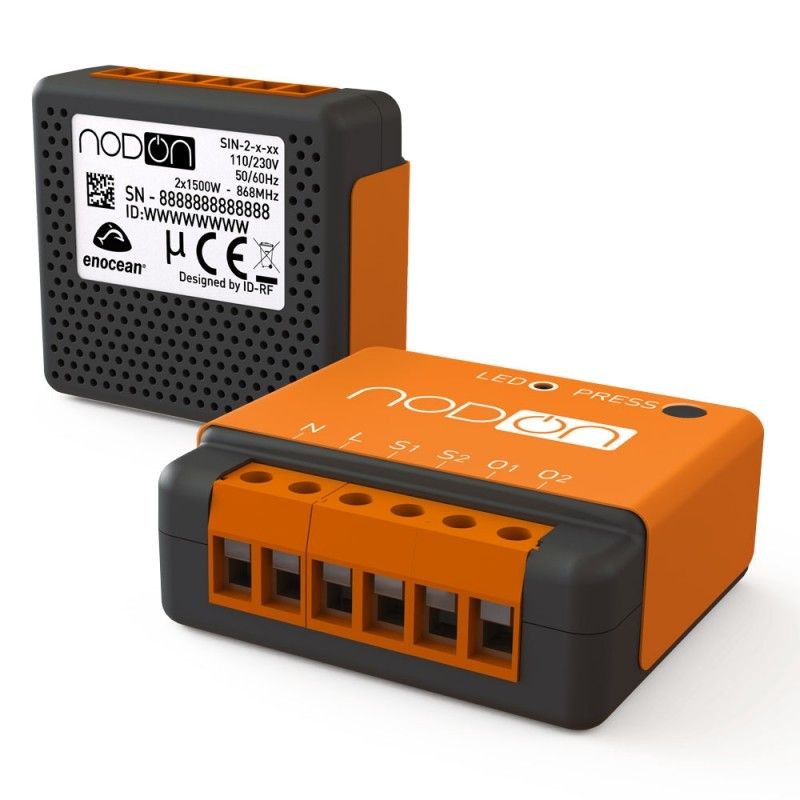

NodOn - Enocean In Wall Module double relay (SIN-2-2-01)
The NodOn in-wall module can be controlled through an EnOcean compliant home automation system or directly through other EnOcean products.
Presentation
The NodOn in-wall module can be controlled through an EnOcean compliant home automation system or directly through other EnOcean controllers such as the NodOn Soft Remote, wall switch, or card reader. Mounted behind your existing wired wall switch or in the ceiling, the NodOn in-wall module can very simply turn your home into a smart home, controlling lights, heaters, electrical devices, and much more.
The analog wired wall switch inputs allow adding an additional wireless (and without battery) two-way switch in less than 10 minutes, without any drilling or wiring!
Switching Capacity
The 2 versions (1 or 2 channels) of the NodOn in-wall module offer high switching capacity that can support almost all household lights and devices.
Ultra Low Profile
The small dimensions of the NodOn in-wall module allows it to be mounted anywhere in the home - behind a wired wall switch, behind a power plug, in the ceiling, and even in the breaker box.
Analog Inputs
The 2 analog inputs of the NodOn in-wall module allow it to be connected to an existing wired wall switch and to turn all your lights into a smart and progressive lighting system.
Economical & Green
By using EnOcean technology-based NodOn® products, you will reduce your energy consumption and control your electrical devices without any batteries or waste. Economical and green!
FEATURES
- Remotely controls two lights/devices
- Installs behind existing switches
- ON/OFF function
- Small, discreet, and aesthetically appealing
- Ease to use and install
- EnOcean technology
Technical Data
- Power supply: 230V +/-10% (50 Hz)
- Maximum output power: 1*2.3 kW : Delivery slip - Version 1– Reference : 2*1.1 kW
- Self-consumption: <1W
- Operational temperature – 0°C to 40°C - Altitude – 2.000 m
- EnOcean® radio protocol: 868.3M Hz Bidirectional - EEP: D2-01-0E (1 channel) / D2-01-12 (2 channels)
- Range 30 m

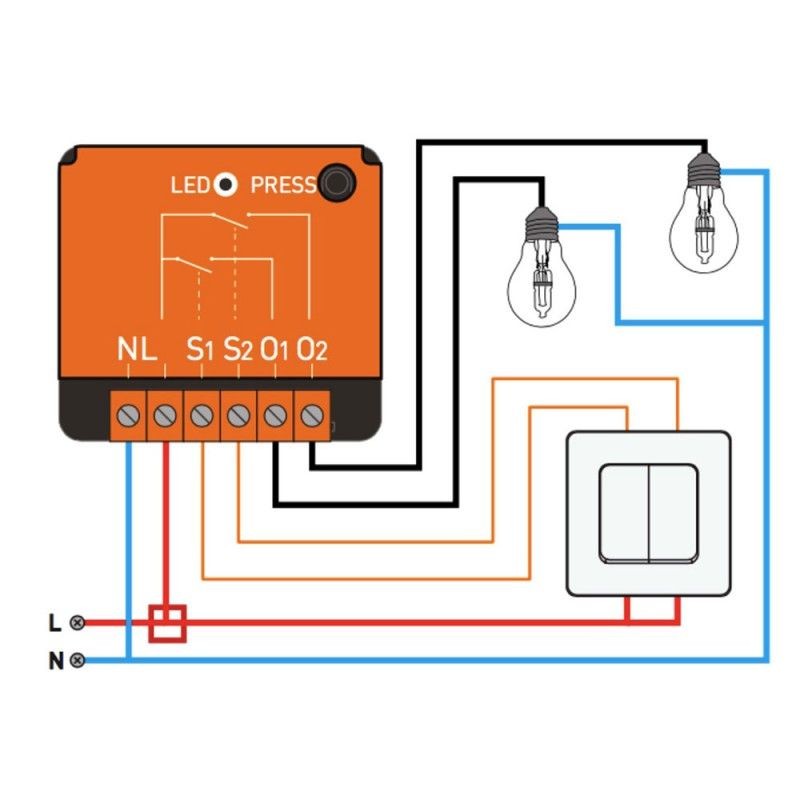

- 2 inputs for existing wired wall switch(es)
- Dimensions: 40*45*16.9 mm
- Standards: EN301489-1 V1.6.1: 2013, EN301489-2 V1.6.1: 2013, EN300220-1 V2.4.1: 2012, EN300220-2 V1.9.2: 2011, EN60669
Reviews (11) - Review moderation
Le client n'a pas laissé de commentaire.
Se connecte sans problème à une box Jeedom avec clef Zigbee Deconz2. Les relais répondent rapidement et la fonction répétition EnOcean m'a aidé à stabiliser mon réseau EnOcean.
Idee und Funktionsweise ansicht sehr gut. Jedoch musste ich nun bereits das 2. von 6 innerhalb eines Jahres ersetzen, da es plötzlich nicht mehr schaltete.
Ce module s'est inséré tout juste derriere mon interrupteur existent. Couplé avec un interrupteur sans fils et sans piles, on peut créer un va et vient qui fonctionne parfaitement bien. Très recommandé
It's really easy to configure with the enocean network or directly with an enocean button. The physical wiring capability is a plus that allow to extends existing wired systems.
Le micromodule marche très bien. Je le pilote avec un poussoir Feller. Il faut faire attention aux définitions: Le poussoir de Feller (EdizioDue) déclaré pour 2 canaux est capable de piloter un seul relais (un canal pour la commande ON et l'autre pour la commande OFF). Si on veut piloter les deux relais avec un poussoir Feller, il faut prendre la version 4 canaux.
-
