HELTUN - Pack of 9 thermostats for fan coil Z-Wave+ 700

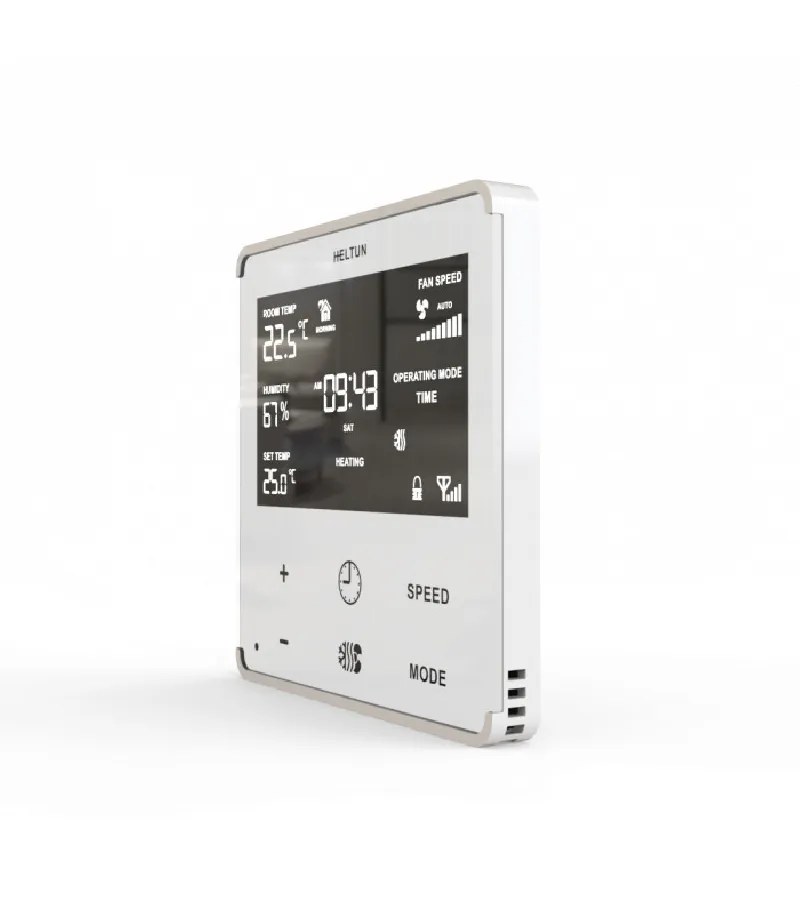

Pack of 9 thermostats Heltun FT01 packaged in an ecological box.

YOUR COMFORT COUNTS.

In your thermal comfort, what are the most important aspects? Is it the general ambient temperature? Do you need to heat or cool? Or maybe both? Whatever the need, HELTUN guarantees to take care of it.

Take control

The Heltun thermostat is equipped with 5 relays that can support a load of 5A each, and two independent dry contact inputs. It is recommended for the control of air conditioning systems such as split and muli-split, systems with chillers and fan coils, central air conditioning systems or multi-zone air conditioning VRF/VRV (variable refrigerant flow / volume), valve control for heating management, etc.

Elegant design

The Heltun thermostat is available in 30 combinations to fit perfectly into your interior design. Five frames (silver, chrome, gloss black, matte black and white) and six glass colors (white, black, yellow, green, red and blue) allow you to adapt it to any environment. Designed to be powerful, efficient and stylish, with a thickness of 9mm, the Heltun thermostat is "incredibly thin" and beautiful on your wall.

Internal sensors

In addition to the temperature sensor, the HELTUN thermostat also includes built-in humidity and ambient light sensors that can be analyzed by a Z-Wave controller and used to trigger home automation scenes.

Multiple sensors to save energy

When electronics are running, they generate heat. As a result, some thermostats measure room temperature with an accuracy of only 1.5-2.0°C. HELTUN engineers added two internal temperature sensors and compensation software to calculate the ambient temperature with ten times greater accuracy: 0.2 to 0.3°C. This helps you feel more comfortable while saving energy.

Inputs and outputs

The main power input can be 85-265VAC 50Hz/60Hz or 24-48VDC. The thermostat has five relay outputs, each with a maximum load of 5 amps.

It also has two independent inputs for relay channels that allow controlling systems with different power sources for fan speed and for heating/cooling valves.

Input 1 with the required power source is intended for fan speed and is used for relay channels 1, 2 and 3, which can support a maximum load of 15 amps.

Input 2 with the required power source is intended for heating and cooling and is used for relay channels 4 and 5, which can support a maximum load of 10 amps.

Know your energy consumption

The built-in power consumption system monitors how much energy you've used over the course of a day, week, or month. Does your current thermostat do this?

Simply specify the consumption of the load in watts for each relay channel and the logic of the thermostat will calculate the total consumption compared to the time elapsed since the output was in the "ON" state.

In addition, the circuit is designed so that it consumes almost zero watts when powered in standby mode. This saves you energy and money even if your home is equipped with many HELTUN products.

Controls

The HELTUN thermostat has six capacitive touch buttons that react to even the lightest touch to access the following functions:

• "SPEED" button to control the fan speed (cooling, heating or ventilation power) with three levels (low, medium, high) or in Auto mode.
• "Mode" button to switch between modes (e.g. Comfort, Economy, etc.).
• "Time" button that allows you to quickly set the temperature for different times of the day.
• The "Climate" button allows you to select the climate mode: heating only, cooling only, heating and cooling or ventilation only. Hold "Climate" to open the settings menu which offers more than 30 different settings.
• "+" and "-" buttons to set the temperature

LCD

The large LCD display displays all the necessary information at a glance without forcing you to activate or manipulate the controls. You have instant access to all sensor and setting information: room temperature, humidity, set point, thermostat mode, climate mode, fan speed plus date and time.

The brightness of the screen can be set manually to 15 different brightness levels, or automatically using the ambient light sensor. This allows you to easily read the screen even in good sunny weather, and without overloading your eyes at night.

Modes of Operation

COM and ECO modes maintain the temperature you set, which can be easily adjusted by selecting the desired mode and pressing the "+" or "-" command.

TIME mode allows you to set a different temperature for the morning, day, evening, and night periods for each day of the week.

Climate Modes

In Heating and Cooling mode, the thermostat will constantly maintain the desired temperature. If the ambient temperature is higher than the set temperature, the thermostat will begin to cool the house. If the ambient temperature drops below the set temperature, the thermostat will start heating the house.

In Heating Only mode, the thermostat will heat the house if the room temperature is below the set temperature and will switch to IDLE if the room temperature is above the set point.

In Cooling Only mode, the thermostat will cool the house if the room temperature is above the set temperature and change to idle if the room temperature is below the set point.

In Ventilation mode, the thermostat only operates the fan to ventilate the house.

Mode TIME

You can reduce your electricity bill by up to 50% and help the environment by activating time mode. Adjust the comfort level of your home according to your family's habits by reducing the temperature while everyone is away and increasing it in the evening and morning.

People spend an average of 12 to 14 hours a day at home. The rest of the time, an empty house needs minimal heating. And since most of the time at home, your family sleeps, it can make a huge difference by setting your home's comfort level to 18°C during the night, which is considered the optimal sleep temperature.

Using TIME mode, you can set different temperatures for morning, day, evening or night. For example: "Morning" mode can start at 7:00 a.m. at 11°C and then switch to "Day" at 8:30 a.m. at 5°C when everyone is at work and school. The "Evening" mode can start at 4:00 p.m. at 22°C and then switch to "Night" at 11:00 p.m. at 18°C. Setting the temperatures for these four periods can save a lot on your electricity bill and you can adjust for weekdays and weekends.

Fan speed

The fan speed (heating, cooling or ventilation) can be controlled manually or in Auto mode. There are four speed levels: Off, Low, Medium, High, Auto Medium, Auto High. In Auto mode, thermostat logic automatically selects the speed level based on the temperature difference between the set point and the room room.

• If the difference is less than 1.0°C, the thermostat will select the low speed level.
• If the difference is in the range 1.0C - 2.0C, the thermostat will select the average speed level.
• If the difference is more than 2.0 °C, the thermostat will select the high-speed level.

When the room temperature is equal to the set temperature, the thermostat switches to idle (fan off).

Hysteresis

Hysteresis is a technical term that defines when a heating or cooling system should turn on or off when the temperature changes. For example, if the desired temperature is 25°C and the internal hysteresis value is set to 0.5°C, the system will turn off the heater when the temperature reaches 25°C and turn it back on when the ambient temperature drops to 24.5°C.

The higher your hysteresis value, the more energy you save, but the variations in ambient temperature will be greater. The default hysteresis value is 0.5°C.

Secure & Protected

In the event of a power failure, the internal memory of the heating thermostat is saved and will not be erased. Once the thermostat is back online, all your settings will be fully functional.

To prevent your kids from changing the thermostat settings, you can turn on the "child safety" mode that locks the control buttons and prevents accidental changes.

Easy to install

The HELTUN thermostat can be easily installed in any standard electrical junction box (square or round) in just a few minutes. Installation should only be carried out by a person trained in the handling of high-voltage electrical systems.

Z-Wave Plus V2 certified

You can connect HELTUN devices to a gateway/home automation controller using the latest Z-Wave Plus V2 700 platform. HELTUN features advanced Smart Start technology for easy system integration and Security 2 (S2) framework with AES 256 encryption for secure data transfer.

This thermostat is compatible with all Z-Wave certified controllers and devices that correctly implement Z-Wave thermostat classes. Using a Z-Wave controller, you can manage all the thermostat's functions through a mobile app, including temperature and mode changes, displaying accurate power consumption graphs, and much more.

Up to 10 separate devices can be connected to your thermostat HELTUN. You can pair it with any Z-Wave-compatible ON/OFF switch or another thermostat to control different air conditioning systems in a room. You can even connect motion detectors and change thermostat mode when people are detected in the house.

HELTUN devices are compatible with all Z-Wave frequencies for different countries (Europe, Russia, Israel, Australia, USA, India, Hong Kong, China, Japan and Korea). The correct frequency can be selected from the device menu.

HELTUN periodically releases new firmware with additional features and functions that can be sent to devices via an encrypted Over-The-Air (OTA) update process.

DUTIES

• Z-Wave thermostat for fan coil
• Include/exclude options in a Z-Wave network:
  • Not secure
  • S0 Secure
  • S2 not allowed, S2 allowed with key
• Control by association of 50 devices on the network
• 4 operating modes with individual temperature set points: COM, ECO, TIME, OFF
• 4 climate modes: heating and cooling, heating only, cooling only, ventilation only
• 5 fan speed control modes:
  • Low speed,
  • Average speed,
  • High speed,
  • Automatic average speed,
  • High speed automatic.
• Temperature calendar of 4 periods for 7 days of the week (morning, day, evening, night)
• Periodic measurements from:
  • Internal temperature sensor
  • Internal humidity sensor
  • Internal ambient light sensor
  • Energy consumption meter
• Calibration of the room's indoor air temperature sensor
• Temperature setting intervals: 4.0°C to 37.0°C
• Temperature hysteresis selection range: 0.2°C to 10.0°C
• Temperature format: Celsius (°C) or Fahrenheit (°F)
• Time mode format: 24 or 12 hours (AM/PM)
• LCD Brightness:
  • Automatic adjustment (depending on ambient light)
  • Manual adjustment (15 levels).
• LCD standby mode
• LCD flashing function (for identification among other devices)
• Child lock mode (touch button lock mode)
• Power consumption logic for each relay channel
• Factory reset function
• SmartStart technology for quick addition to Z-Wave networks
• Encrypted OTA Firmware Update (Over The Air)

TECHNICAL

• Dimensions of the front frame (on the wall): 89x89x9mm
• Rear dimensions: 53x53x28mm
• Material: Flame retardant plastic, tempered glass
• 5 frame colors: white, glossy black, matte black, silver, chrome
• 6 glass colors: white, black, yellow, green, red, blue
• LCD: 73x42mm, black with white icons
• 6 sensitive capacitive touch buttons
• 5 relays with resistive load up to 5A each
  • 2 relays for cooling and heating valves
  • 3 relays for fan speed
• 2 independent relay inputs (dry contact)
• Relay switching with zero-crossing technology
• Relay life: 100,000 cycles
• Internal ambient light sensor
• Internal temperature sensor
  • Measuring Range: –30°C to +80°C
  • Accuracy: ± 0.5°C
• Internal humidity sensor
  • Measuring Range: 0% to 80% RH
  • Accuracy: ± 3.0% RH
• Supplied NTC external probe length: 3m
• Software power consumption logic
• Operating temperature: 0°С to +50°С
• Power Supply: 85-265VAC 50Hz/60Hz, 24-48VDC
• Power consumption: 1 W
• IP Class: IP21
• SDK Z-Wave Plus V2: V7.11
• Z-Wave Module: ZGM130S
• Built-in box required: round or square type - min. depth 40 mm
