Reconditioned - tkb home - Z-Wave+ White Dual Inverter Switch (One Load) (TZ55D-ZW5)

Controlled return

presentation

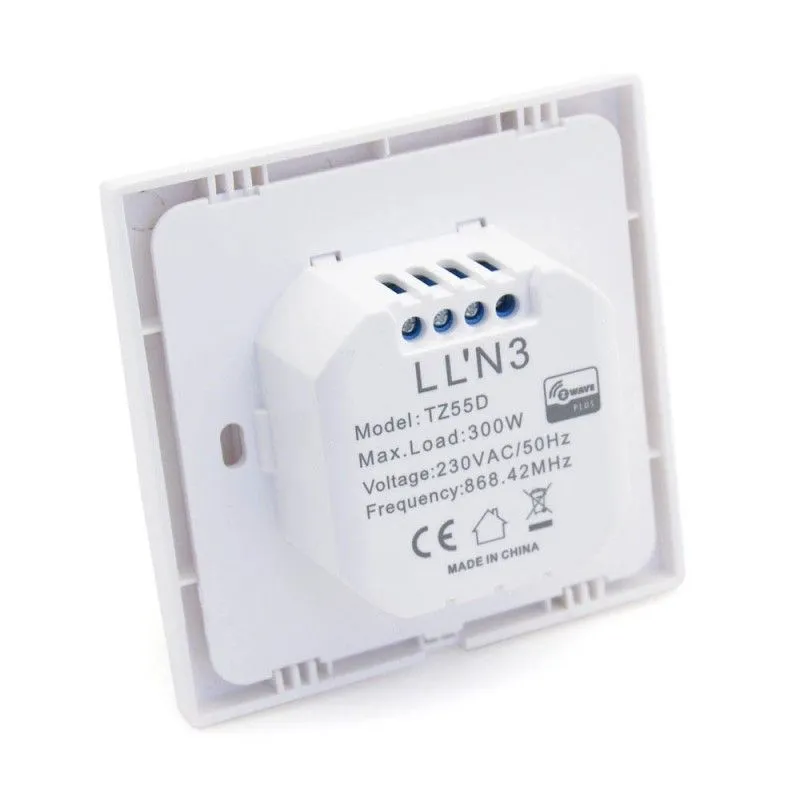

The TZ55D-ZW5 switch allows you to vary the lighting connected to it, either manually as a conventional switch, or remotely via the Z-Wave+ wireless protocol.

It can be included in the Z-Wave network and then controlled by a Z-Wave controller or remote control. The switch is equipped with an LED indicator to easily locate it in a dark room.

The TZ55D-ZW5 switch has 2 control buttons. The one on the left allows you to control the connected load, and to include/exclude the switch of the Z-Wave network. The button on the right allows you to control other Z-Wave devices using the association commands (Groups 2 to 4). Each group allows you to associate up to 5 other devices in order to control them manually from the switch.

Attention: This switch requires the neutral. It is recommended to opt for a recessed box with a diameter of 66mm or more and a depth of 50mm or more.

Features

• Order a lamp remotely
• Installs in place of an existing switch
• Add a command point for a device or scene
• Variation function
• Supports association commands (Group 1 for left button, Group 2 to 4 for right button)
• Local load control via left button
• Right-click control of remote loads(s)
• Status LED

Technical Specifications

• Module type: Z-Wave+ receiver
• Color: White
• Power supply: 230 V, 50 Hz
• Wiring: 3 wires, neutral needed
• Maximum power: 300W
• Type of load: Resistive
• Frequency: 868.42 Mhz
• Range: up to 30 m
• Dimensions: 86 x 86 x 47 mm
• Display: Blue LED
