Introduction

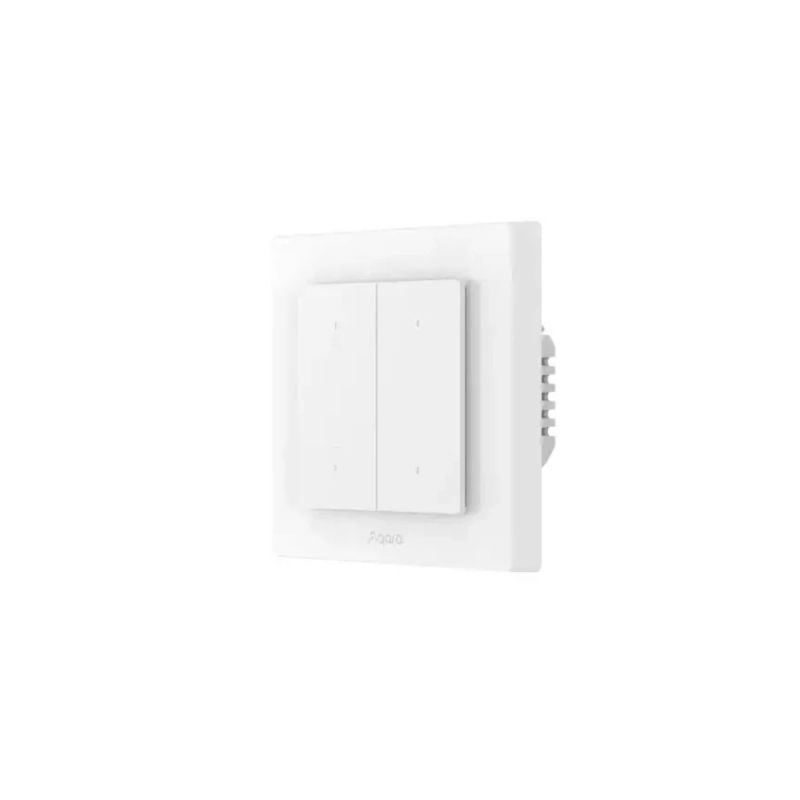

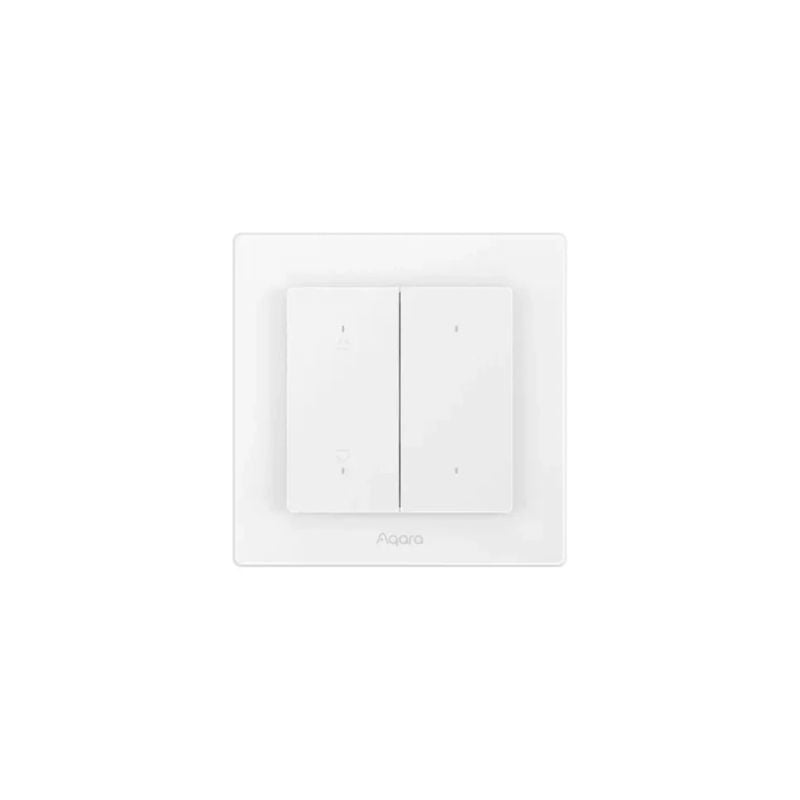

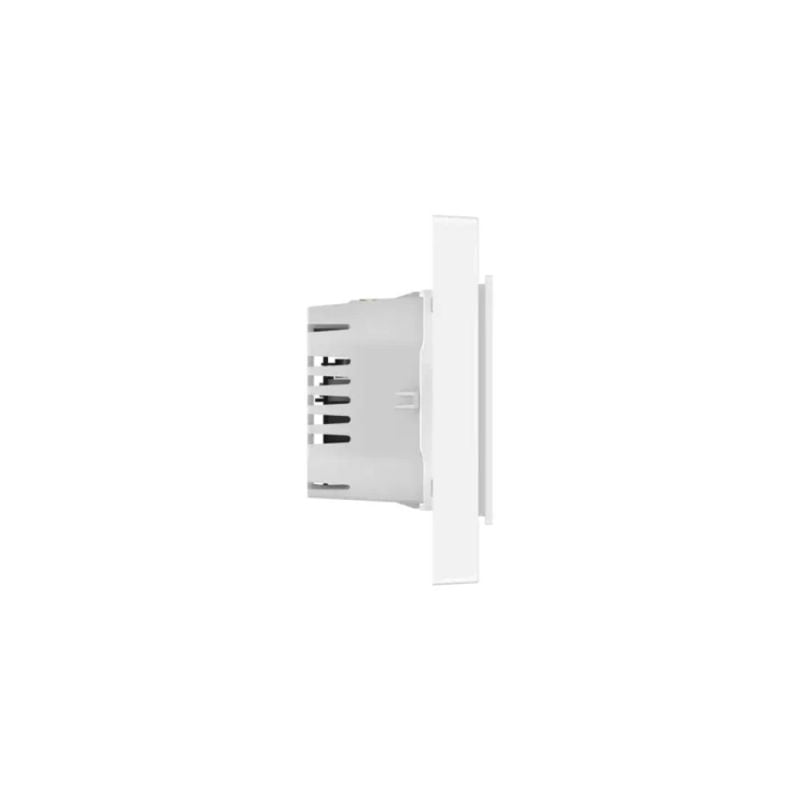

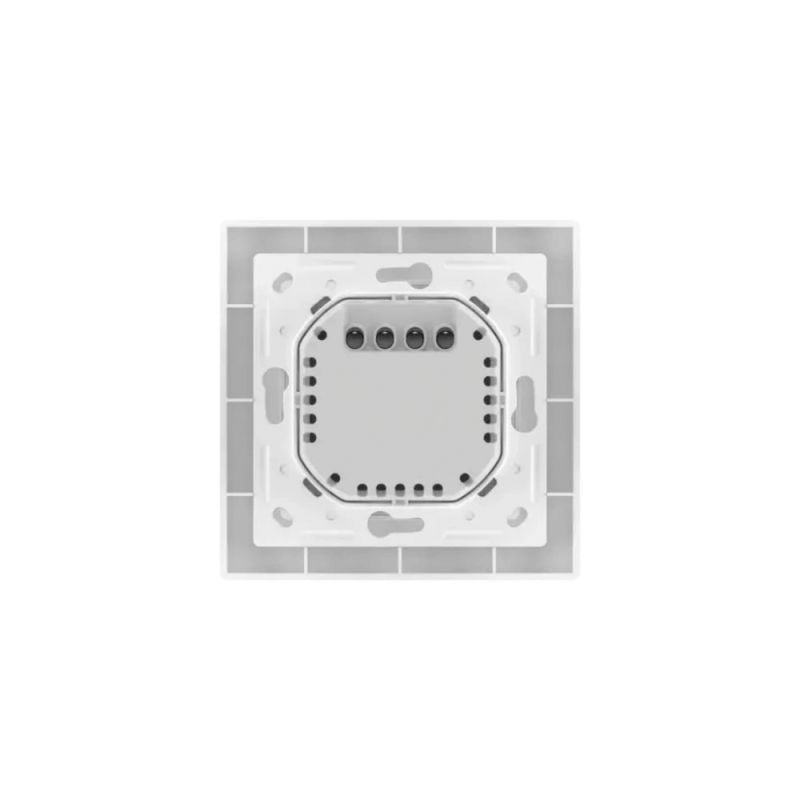

Bring your connected home to life with the new Aqara Shutter Switch H2 EU (DS-K02D) smart switch, designed for precise control of motorized roller shutters, blinds and shades. Thanks to its Thread and Zigbee compatibility, this wall-mounted module integrates easily with the main ecosystems (Apple Home, Google Home, Amazon Alexa/Matter) to automate the opening and closing of your blinds. Its sleek 55 mm design allows effortless installation in most recessed boxes and European frames. Take advantage of a home automation solution that adds intelligence, comfort and security to your everyday life

Thread vs. Zigbee comparison

Key functions

• Dual Thread & Zigbee protocol: enjoy maximum flexibility depending on your installation, with no intermediate hub in Thread/Matter and access to advanced functions Aqara in Zigbee.

• Precise position control (1-100%): adjust the opening of your blinds to the exact percentage via app, physical button, voice command or time schedules. Ideal for regulating brightness, privacy or sun protection.

• Intelligent, customizable calibration: quick commissioning thanks to auto-calibration, fine-tuning via Aqara for exact positioning, and a recalibration mechanism to guarantee accuracy over time.

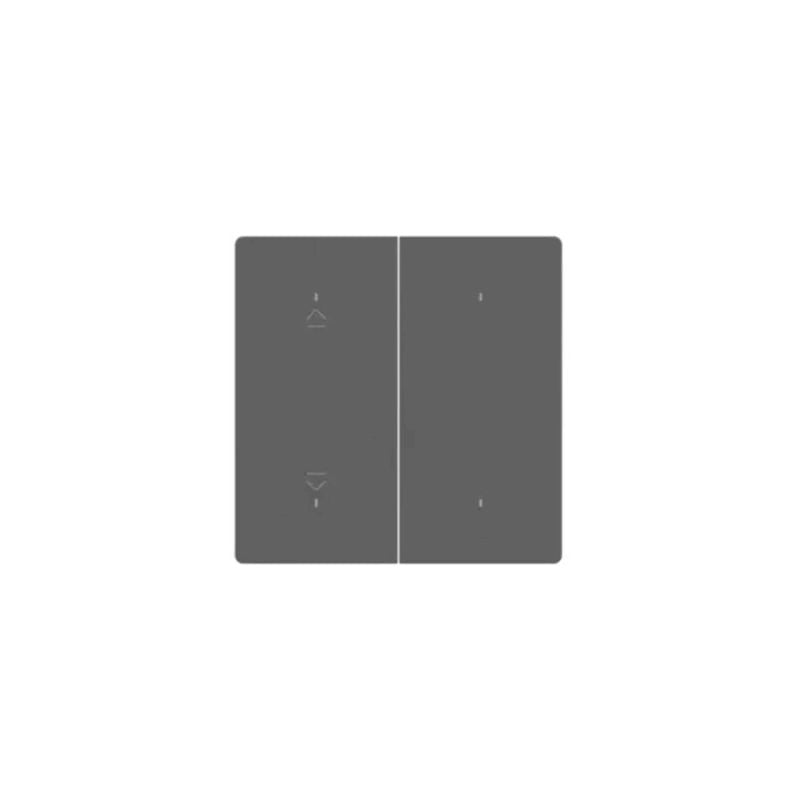

• Parameterizable wireless buttons: the two side buttons can trigger scenes, routines or customized actions on your home automation ecosystem, expanding your automation possibilities.

• Discreet indicator light: status LED designed not to disturb at night, lights up only during operation.

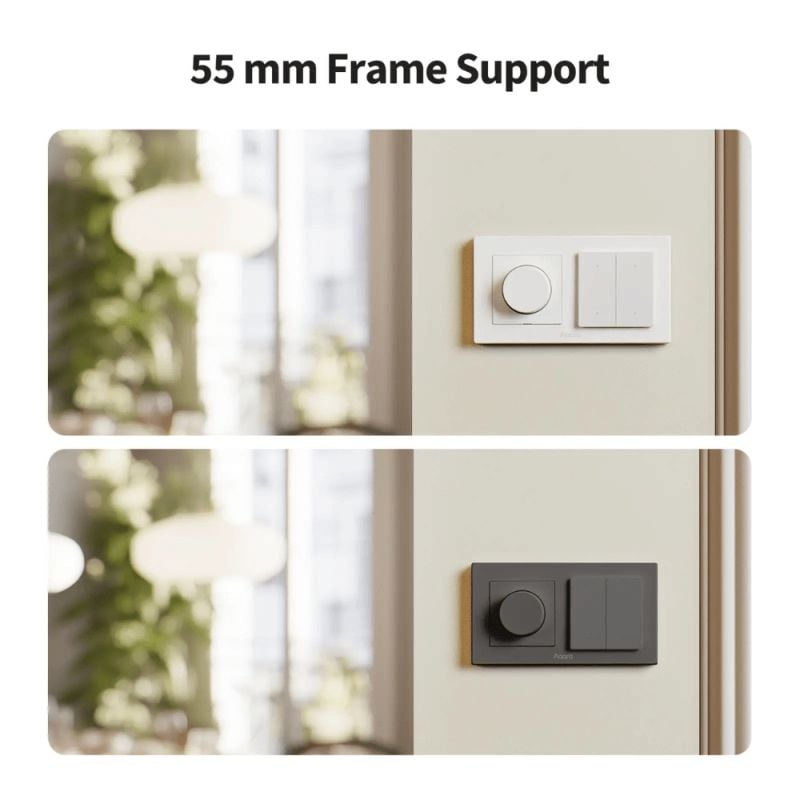

• Universal compatibility: standard 55 mm mounting adapted to Gira/Merten frames (note: European format), easy installation and uniform appearance in your home.

• Smart Home integration: support for advanced automations (open window detection, dawn simulation, protection against overheating or excessive brightness, cinema mode).

• Safety and reliability: built-in protection against overheating and electrical overload.

Technical specifications

• Model: DS-K02D

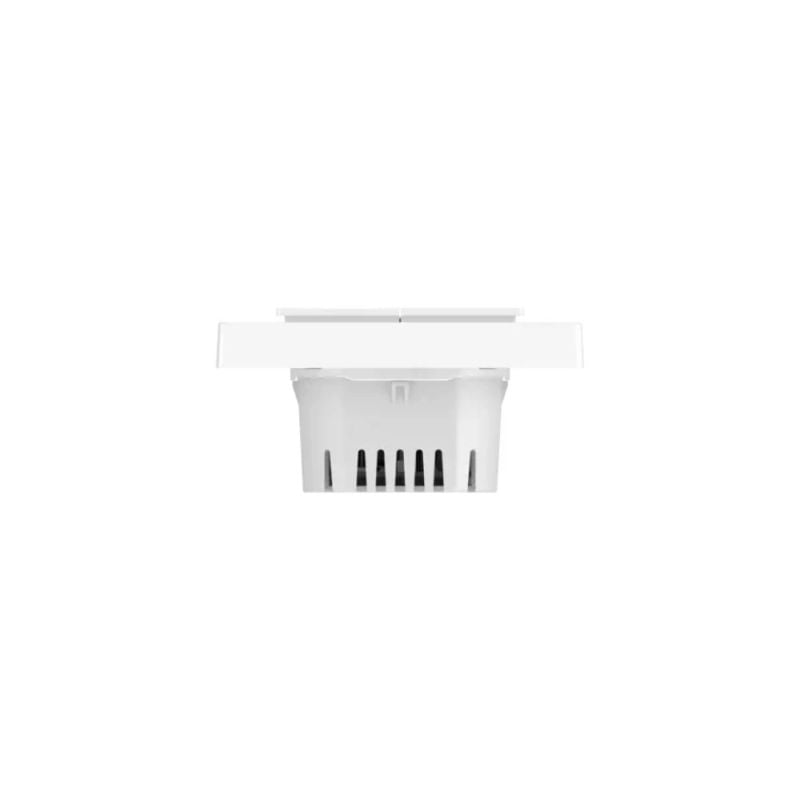

• Dimensions: 86 × 86 × 45 mm

• Wireless protocols: Thread, Zigbee, Bluetooth

• Supply voltage: 100-250 V AC, 50/60 Hz, Max. 8 A

• Operating frequency:

  • Thread: 2405 - 2480 MHz

  • Zigbee: 2405 - 2480 MHz

  • Bluetooth: 2402 - 2480 MHz

• Maximum output power: ≤ 13 dBm

• Operating temperature: -10 °C to +40 °C

• Operating humidity: 0-95% RH, non-condensing

• Frame compatibility: Designed to fit 55 × 55 mm European frames, compatible with brands such as Gira System 55 and Merten M.

• Installation: Suitable for round and square European flush-mounting boxes with a minimum depth of 30 mm

Caution: Requires a neutral wire during installation and a suitable configuration for integration in the Matter or Aqara eco-system.
