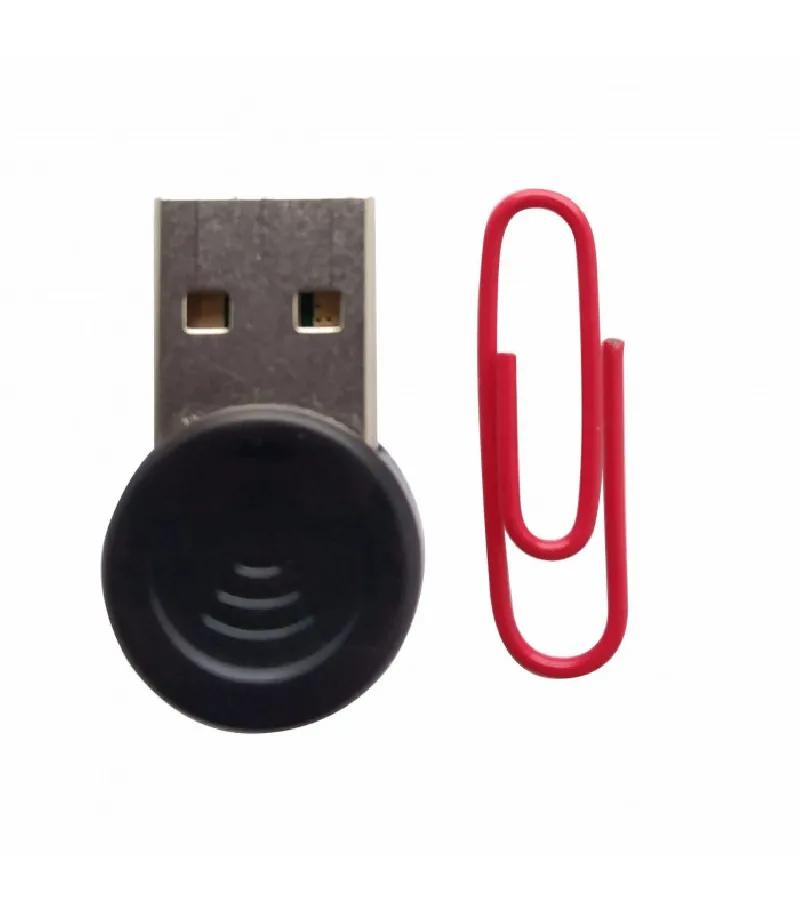

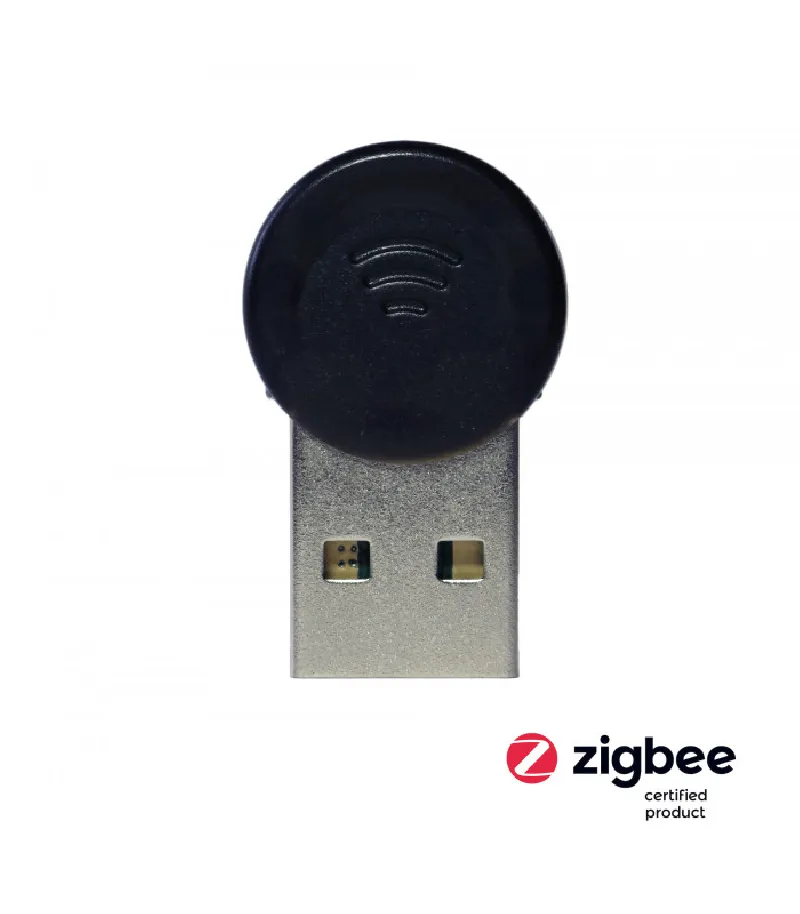

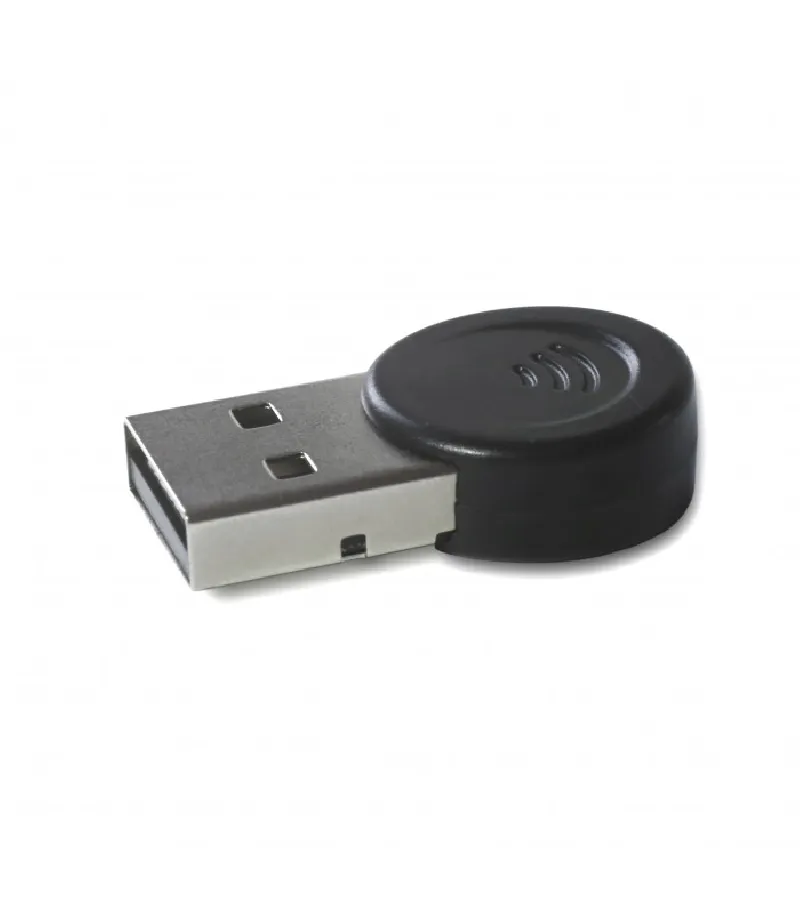

Popp - ZigBee USB Dongle (EFR32MG13 Chipset)

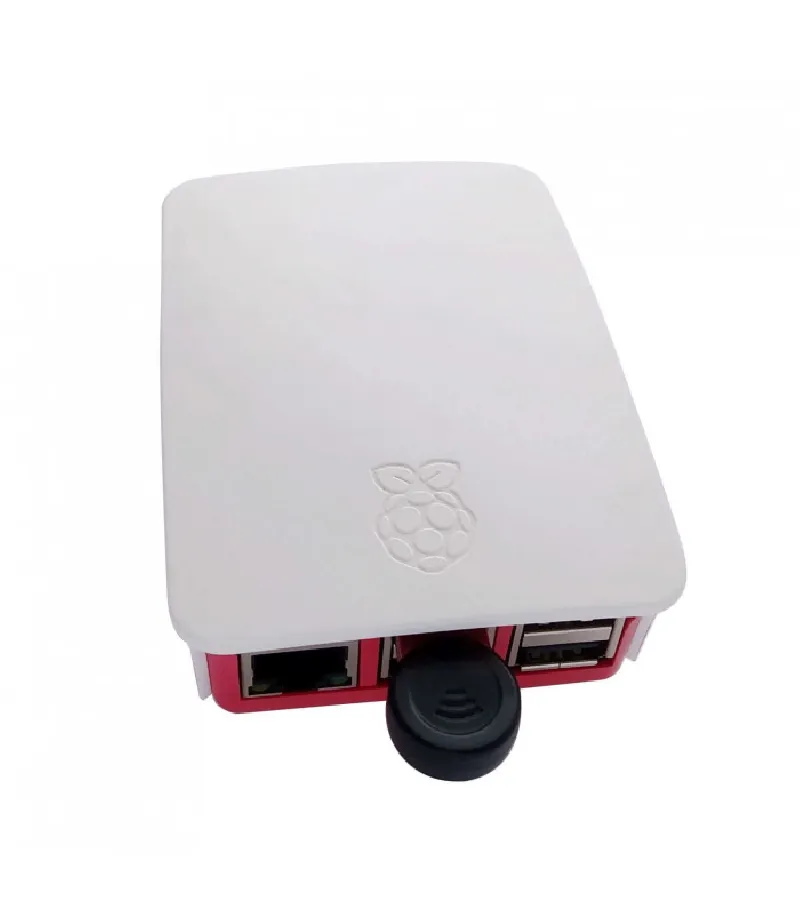

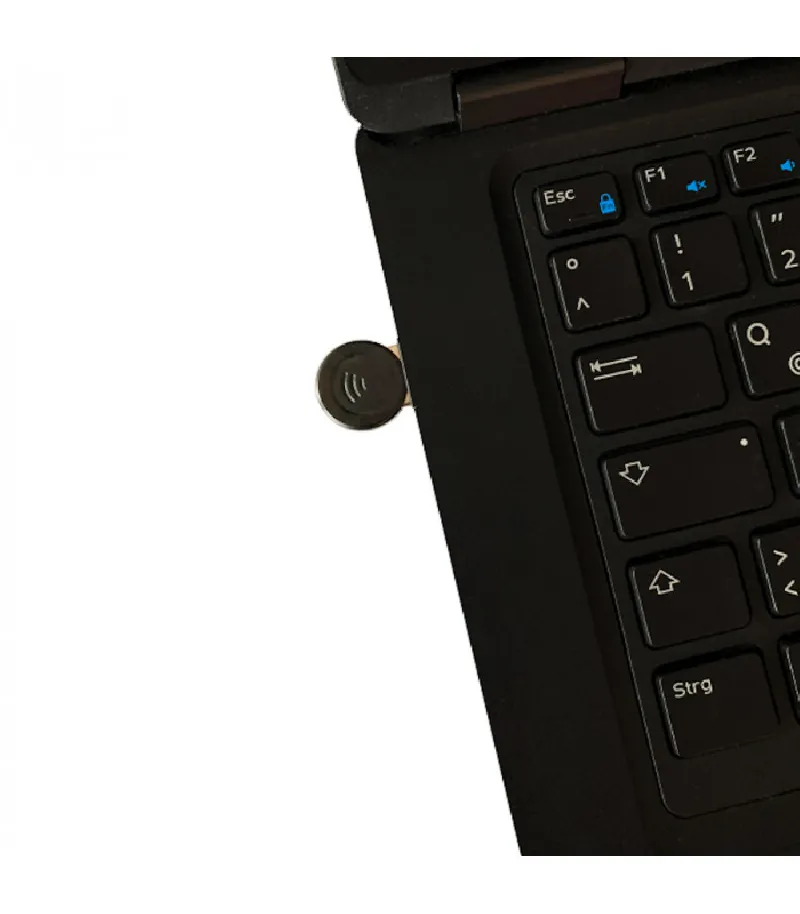

Popp's USB Zigbee adapter is designed for use with a PC, laptop or small computer (such as Raspberry Pi, BeagleBone, Odroid, Orange Pi, etc.). It is based on the SiLabs EFR32MG13 chip, which is an IEEE 802.15.4 / Zigbee 2.4 GHz microcontroller.

The USB Zigbee adapter is pre-programmed with the Network CoProcessor firmware and provides a USB interface via the CP2102N USB-UART bridge. When plugged into a computer, it displays as a serial port.

With a growing number of Zigbee devices: Philips Hue, Osram, Iris, Ikea Tradfri, Xiaomi Aqara and others, it is interesting to use these products for Do It Yourself scenarios.

Using the USB Zigbee adapter, you can communicate directly with these devices, using programming languages such as Node.js, Python and C or using ready-made plugins for different home automation platforms.

FUNCTIONS

• Zigbee Controller
• Globally recognized frequency of 2.4 GHz
• Integrates zigbee compatible microcontroller EFR32MG13
• Works with popular home automation systems such as Jeedom, Home Assistant, openHAB, ...
• Supports products from renowned manufacturers, e.g. Philips Hue, IKEA Trådfri, OSRAM Lightify, XIAOMI Aqara and many other Zigbee products
• Supported OPERATING SYSTEMS: Windows 7/10, Ubuntu Linux, Raspbian
• USB interface with standard NCP commands from Silicon Labs. Easy to use as a serial port on the host machine (PC/laptop/single-card computers)
• C, Node.js, and Python libraries to create your own application

TECHNICAL SPECIFICATIONSPower supply: via USB port

• Rx sensitivity: -99dBm
• Max power Tx: 13dBm
• Communication range: 200m
• Radio frequency: 2.4 GHz
• Radio standard: IEEE 802.15.4 / Zigbee
• Dimensions: 28 x 16 x 8 mm
