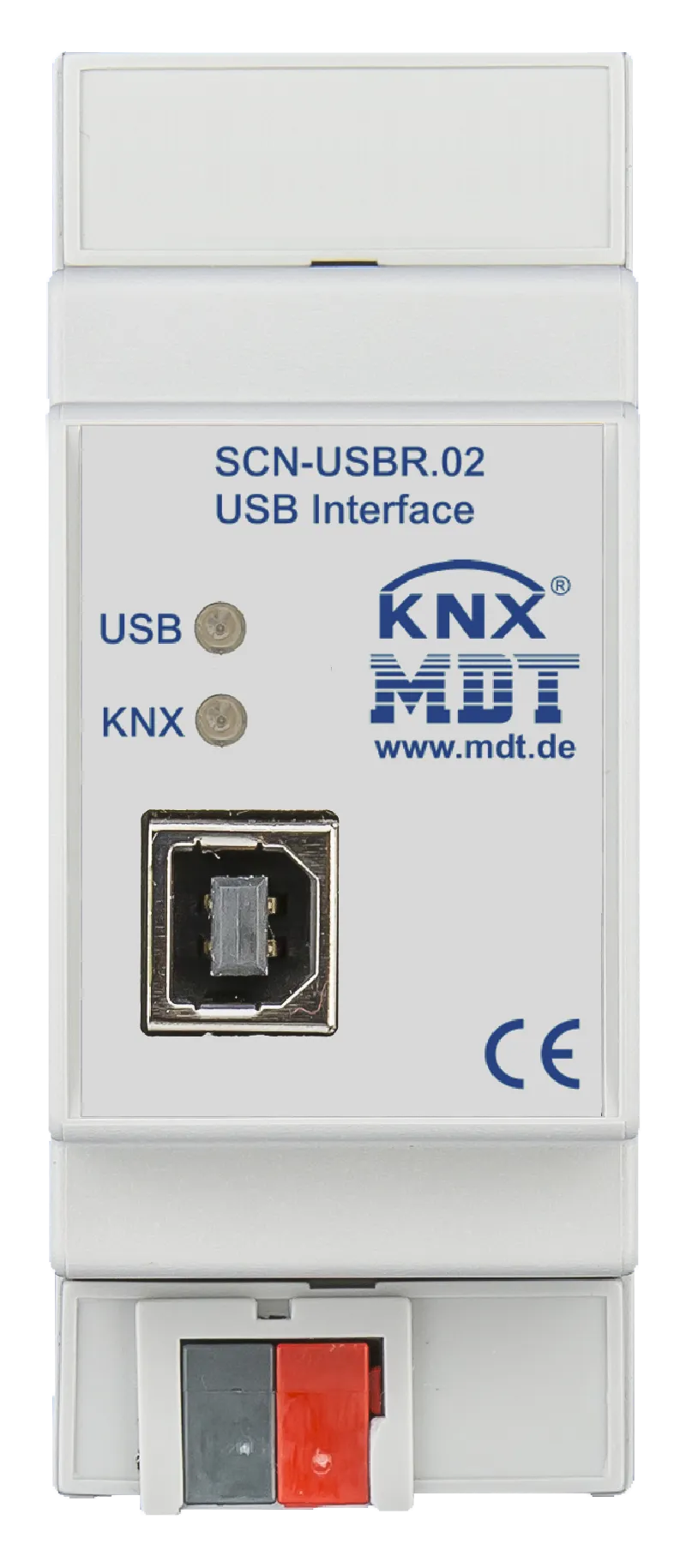

MDT - USB interface, 2SU MDRC

Deescription:

Interface for the two-way connection between the EIB/KNX bus and the USB interface of the PC. The USB interface has galvanic isolation between the USB connection and the EIB/KNX bus.

USB interface:

• For a two-way connection between the PC and KNX via USB.
• Fully compatible with ETS3/4/5
• PC sleep mode support
• Firmware update function

IP interface:

• For a two-way connection between PC and KNX via TCP/IP
• 4 possible simultaneous connections
• Bus programming possible via TCP/IP
• Power supply via the KNX bus, no external power supply is needed.
• Encrypted transmission when sending emails
• Time server function to send date and time to knx bus
• BUS KNX Firmware Update Function
• Support for extended group addresses
• KNX IP Secure and KNX Data Secure (from ETS5.7)
• Secure access to the KNX bus via IP Secure with security key

Technical specifications

• Interface USB
• KNX TP-256 interface specification with long frame support for ETS5
• Available product databases ETS 3/4/5
• KNX bus terminal 0.8mm Ø, solid conductor
• KNX bus supply voltage
• Power consumption < 0.3 W
• Ambient temperature from 0 to + 45°C
• IP protection class 20
• 2TE REG dimensions (division units)
