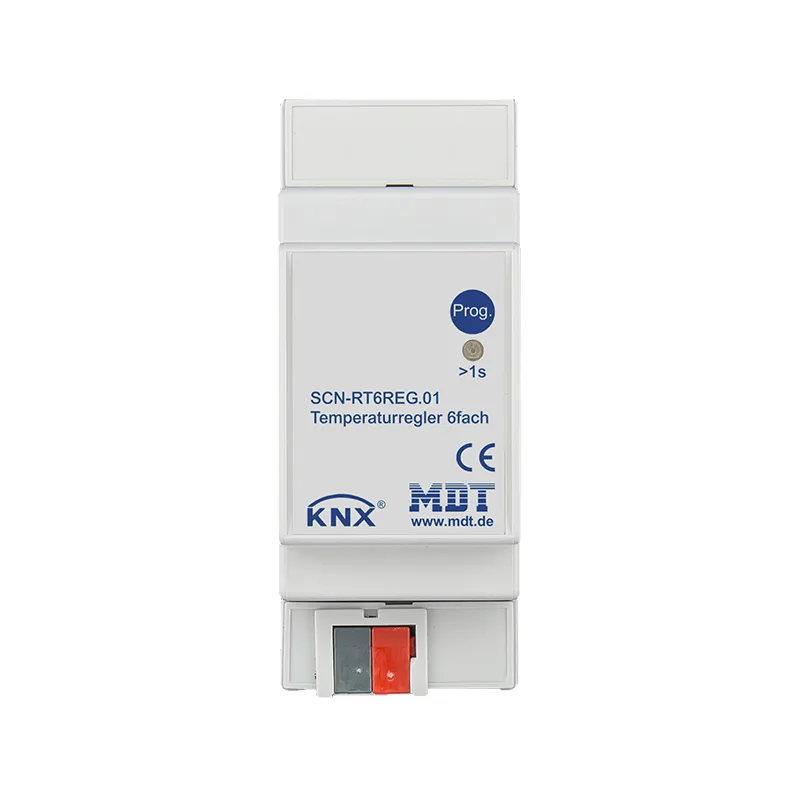

MDT - Temperature controller 6 times, 2SU MDRC
Out-of-Stock
CHF253.90
Tax included
The MDT temperature controller is used for all temperature control applications. The temperature is received as a KNX object or directly from the connected PT1000 temperature sensors (only SCN-RT6AP.01, SCN-RT2UP.01 or SCN-RT4UP.01).
Out-of-Stock
The MDT temperature controller is used for all temperature control applications. The temperature is received as a KNX object or directly from the connected PT1000 temperature sensors (only SCN-RT6AP.01, SCN-RT2UP.01 or SCN-RT4UP.01). Depending on the set parameters of the temperature controller, the actuation value is sent to the bus as a 1Bit or 1Byte variable.
duties
- Selectable temperature controller (PI, Two-position, PWM)
- Min/max limit values
- Alarm for protection against frost and heat,
- min/max memory
- Cyclic sending of programmable contact state
- Day/night/antifreeze/heat operation
- Cooling function
- State return by HVAC and RHCC state objects
- Configurable mode of operation via Bit/Byte objects
- Setpoint value via visualization, for example MDT VisuControl
- Integrated bus coupling unit
- 3-year warranty
Technical specifications
- Number of channels 6
- KNX TP-256 Interface Specifications
- Application software available ETS 3/4/5
- KNX bus connection terminal 0.8mm Ø, solid core
- Power supply** KNX bus
- Power consumption bus KNX typ. < 0.3W
- IP 20 recess
- 2SU MDRC dimensions (space units)
Specifications
| Protocol | KNX |
|---|---|
| Type | Module |
| Gateway compatibility | Homey - compatible via optional adapter |
| Use | Blinds/Gate Control Fixture Control Lighting Control |
-
