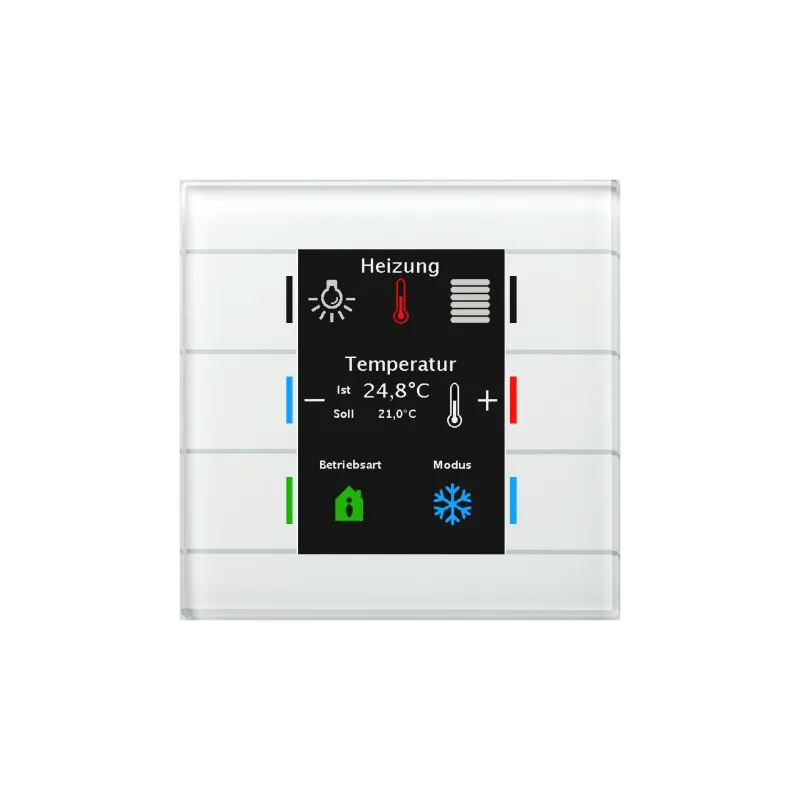

MDT - 1 push button in Smart glass II, recessed, white, integrated temperature sensor

description

The MDT Glass Push Button II Smart emits KNX telegrams after touching the sensor areas on top, the operation of 1 or 2 buttons can be adjusted. The device offers extensive functions such as switching lighting, controlling blinds and shutters, switching/sending values, and blocking communication objects for each channel. The glass push button has 4 built-in logic modules. A second object can be sent by logical modules.

function

• Production in Germany, certified according to ISO 9001
• The buttons can be programmed for 1 or 2-button operation.
• 4 buttons can be reserved with 2 or 3 levels of function (8/12)
• 2 buttons to enter directly into function levels
• Large colored active screen to indicate function and status
• Adjustable symbols and clear text for each button/function
• 1- or 2-button control for switching, dimming, flaps, values
• Short/long press on a button with 2 objects
• RGB status for all buttons, controllable separately from each level
• Indication of indoor/outdoor temperature and time
• Automatic brightness of the screen thanks to a light sensor and a day/night object
• Click function with additional switching channel
• Installation in an installation box, Dimensions (L x H): 92mm x 92mm
• No additional power supply is required
• Integrated bus coupling unit, 3-year warranty
• Additional functions BE-GT2Tx.01 (with temperature sensor)
• With temperature sensor to measure ambient temperature
• Additional functions for adjusting the temperature and mode of operation
• Specifying individual messages/text telegrams (1Bit/14Byte)
• Application as RTC in combination with the AKH heating actuator
• RGB status for each controllable button from each level

Technical specifications

• Number of sensor areas 6
• Temperature measurement range 0 to + 40°C
• Recommended installation height 1.10 - 1.25m (as push button) 1.50 - 1.60m* (as control device)
• KNX TP-256 Interface Specifications
• Application software available ETS 4/5
• KNX bus connection terminal 0.8mm Ø, solid core
• KNX bus power supply
• Power consumption bus KNX typ. < 0.6W
• Operating temperature range 0 to + 45°C
• IP Enclosure 20
• Dimensions (L x H x D) 92mm x 92mm x 29.2mm
• Installation boxes required 1
