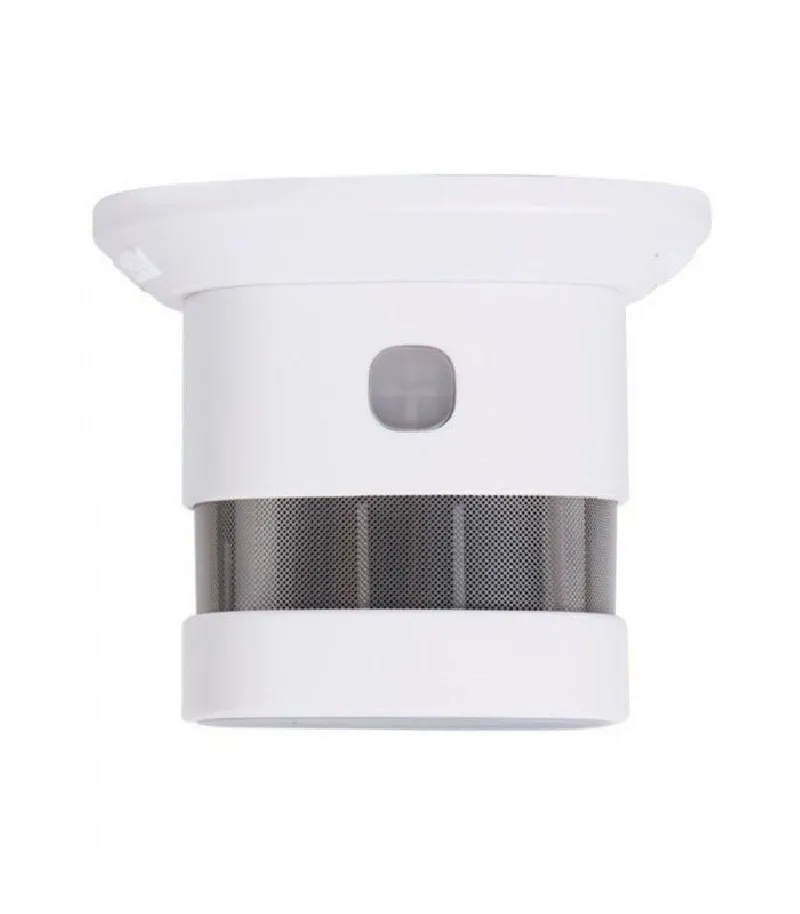

Zipato - Z-Wave+ smoke sensor

Zipato Smart Smoke Sensor (Z-Wave) is designed to give early warning of developing fires by sounding the built-in alarm horn, based on Z-Wave technology.  Z-Wave is a wireless communication protocol designed for remote control of appliances in residential automated homes and light commercial environments. It can not sense gas, heat, flame and cannot prevent or put out the fire.

Features

• The new Z-Wave 500 series chip supports multichannel operation and higher data rates
• Sound and Z-Wave alerts on smoke detection
• Built-in sound alarm
• Low power consumption
• Low battery auto report
• Easy installation and relocation

Technical Specifications

• OPERATING CONDITIONS:
  • OPERATING VOLTAGE 3V
  • ALARM CURRENT 60 mA
  • STANDBY CURRENT 20 uA
  • OPERATION TEMPERATURE -10°C ~ 50°C
• ALARM SOUND
  • 85Db (1m distance)
  • PROTOCOL Z-Wave Plus POWER CR123A, 1400mAhRANGE
  • up to 30 meters indoor
  • up to 70 meters outdoor (designed for indoor use only)
• DIMENSIONS
  • DEVICE DIMENSIONS: 60 x 60 x 50 mm
  • DEVICE WEIGHT: 132g
• FREQUENCY
  • hm-hs1sa-z.eu 868.42 MHz (EU)
• REGULATION
  • EMC: FCC, CE
