Trio2Sys - EnOcean Indoor Light Sensor White

PRESENTATION

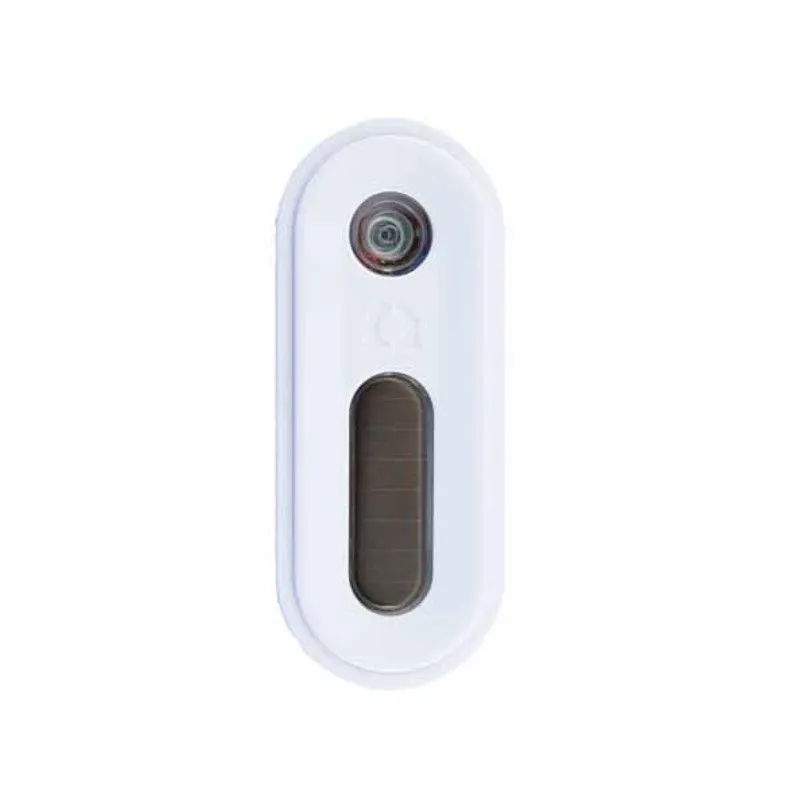

The indoor light sensor 02LINE is designed to measure the luminosity from inside and to send the information wirelessly to an adapted receiver. Featuring a light detection range from 50 to 1020 lx, the sensor sends a signal immediately as soon as the light variation exceeds 20 lux. Moreover, if no variation has been reported, a signal is automatically sent approx. every 20 minutes. Waterproof, the sensor can be fixed on an outside wall. It is always possible to switch it on or off manually, but the sensor insures that light remains on or off according to the inside luminosity. Associated to an EnOcean receiver, it allows a lot of configurations for energy saving and greater comfort.


TECHNICAL DATA

• Antenna / transmission reach: about 30m inside (according to the configuration)
• Power supply: 1 solar cell with internal storage capacity, reloads if in the presence of minimum of 400 lux over more than 3 hours
• Frequency / Channel / Modulation: 868.3MHz / 280 kHz ASK
• Transmission Frequency Every: 100 seconds
• Transmission Frequency with no variation: Every 20 minutes
• Detection reach from 50 to 1,020 lux.
• Service life in pitch darkness 4 days
• Colour: White Ingress
• Protection Rating: IP 54
• Operating temperature range: -20°C up to +60°C
• EnOcean Equipment Profiles: A5-06-02
• Dimensions: 80x32x18 mm
• Weight: 22 g
