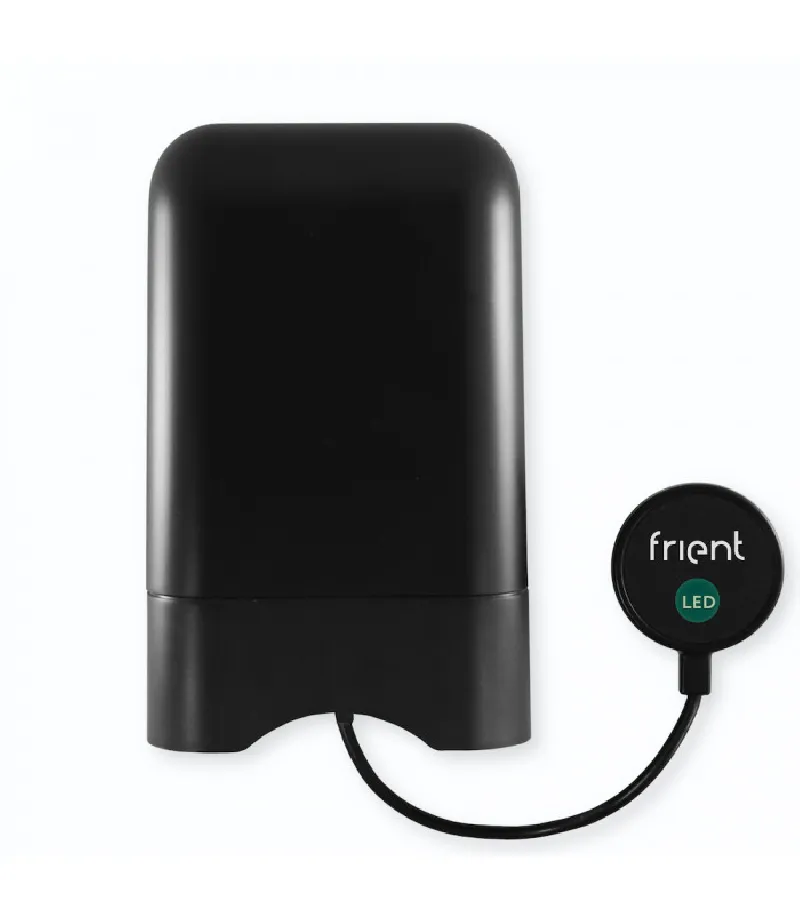

FRIENT - Frizemi - Zigbee Electricity Meter Interface

Become energy conscious

Imagine always having a friend who monitors your electricity consumption. You know, someone who can connect you with your meter to another level and make you more aware of energy. Someone who wants to help you reduce your consumption and save money.

Reduce your electricity bill

Mount the electricity meter interface on your electricity meter and it starts communicating with you wirelessly via a compatible hub. You don't need professional help to install it. You can do it yourself. Is it easy? Now you can stop worrying about your electricity bill. With your friend's remote meter readings, you can identify when your consumption is peaking and start reducing it.

Help the grid

Electricity networks are massively solicited by peaks in consumption at certain times. When people come home from work and turn on the heating, charge their electric car and start preparing dinner while turning on the washing machine to do the laundry before bedtime, the grill is heavily charged. With the electricity meter interface, you can help the grid; identify your peaks and shift your consumption to off-peak periods.

DUTIES

• Inform you about electricity consumption
• Reduce your electricity bill
• Protecting the environment
• Know when your devices are broken
• Organize a friendly competition on the use of energy

TECHNICAL

• Type Counter
• Functions Power Consumption
• Compatible JEEDOM With additional adapter
• ZigBee Technology
• Battery Power Supply
• Communication Protocol: Zigbee HA
• General:
• Dimensions: 115 x 35 x 70 mm
• Color: Black
• Power source:
• Battery: 3 * AA alkaline batteries, replaceable
• Battery life: 2 years, updated every 5 seconds, at room temperature
• RF Performance:
• Sensitivity: -98 dBm
• Output Power: +8 dBm
• Environment:
• Operating Temperature: -20 to +60°C
• IP Class: IP22
• Relative humidity 5% - 85%, non-condensing
• Meter reading specifications:
• By LED probe
• Interfaces:
• Material: Based on EN 13757-2
• Software: based on IEC 62056-7-5
• Certifications: Complies with CE, RoHS and REACH directives
