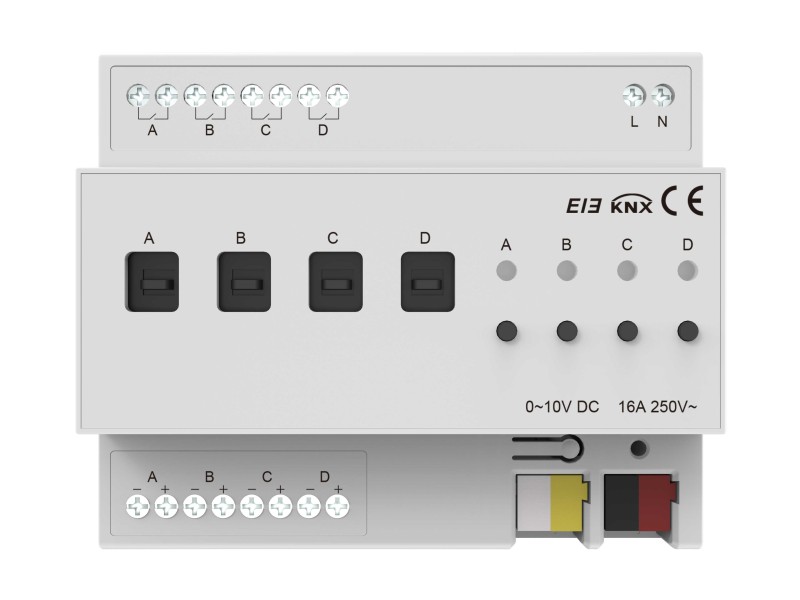

Akuvox - KNX 4 Gang 0-10V Dimmer Module (B1DV4)

Premium Add-on device for your home

This 0~10V 4-gang dimming module is a premium add-on device for your home, fully compliant with the KNX international standard for smart building control systems. It provides precise lighting control with features such as switch dimming, relative and absolute dimming, along with advanced functions like status and error reporting, scene and preset control, and stair light functionality. The module also allows manual dimming and output status indication, making it an efficient and intuitive solution for managing your connected home.

Features

• Switch dimming function
• Relative dimming function
• Absolute dimming function
• Status and error reporting
• Scene and preset control
• Stair light function
• Bus reset function
• Can be manually dimmed
• Output status indication

Technical specifications

• Model Number: KXAC-B1DV4
• KNX Bus Voltage: 21 ~ 30VDC, powered by the bus
• Working Temperature: -5 ~ 45℃
• Storage Temperature: -22 ~ 55℃
• Transport Temperature: -25 ~ 70℃
• Working Humidity: 0 ~ 93%RH
• Connections: EIB/KNX
• Current Consumed through the bus: <12mA
• Power Consumed through the bus: <360mW
• Output Voltage: 0~10VDC, each output max.100mA
• Use Wire Diameter: 0.5-4mm2
• Twisting Moment: 0.8N-m
• Protection Level: IP 20,EN 60 529
• Product Size: 108×90×64mm
• Weight: Approximately 293g
• Installation: standard 35mm DIN rail installation
