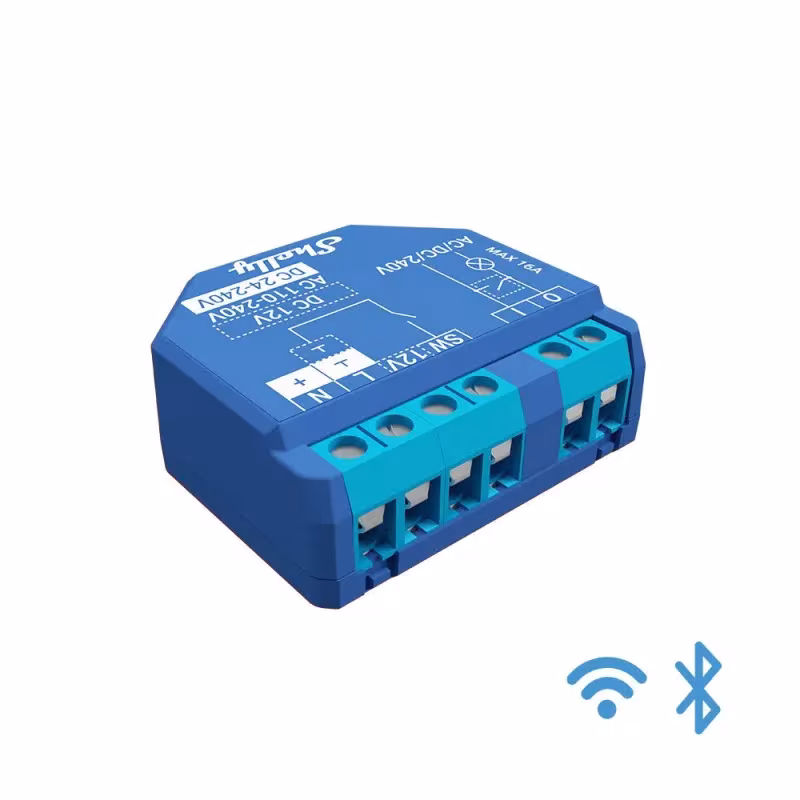

SHELLY - 1 Circuit WiFi Relay Switch (Shelly PLUS 1)

Control a wide range of home appliances and office equipment (lights, power lines, security systems, heating radiators, air conditioners, etc.) from anywhere with the smallest Wi-Fi-powered relay switch with Bluetooth connection

The Shelly PLUS 1 is a universal ON/OFF module. It allows you to control equipment in ON/OFF. It can also be used in dry contact, for example to drive a garage door or an electric striker.

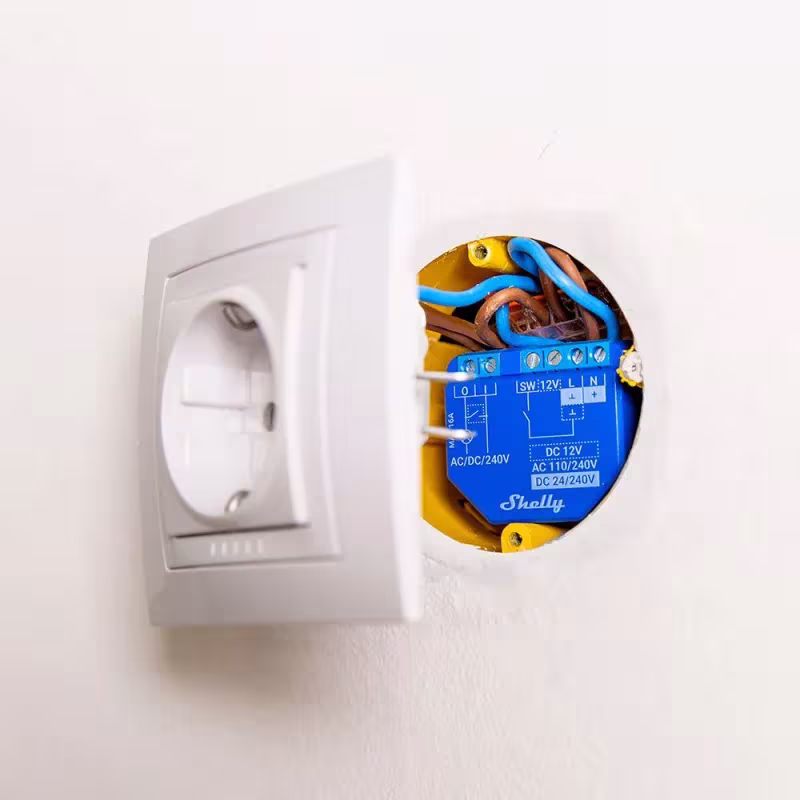

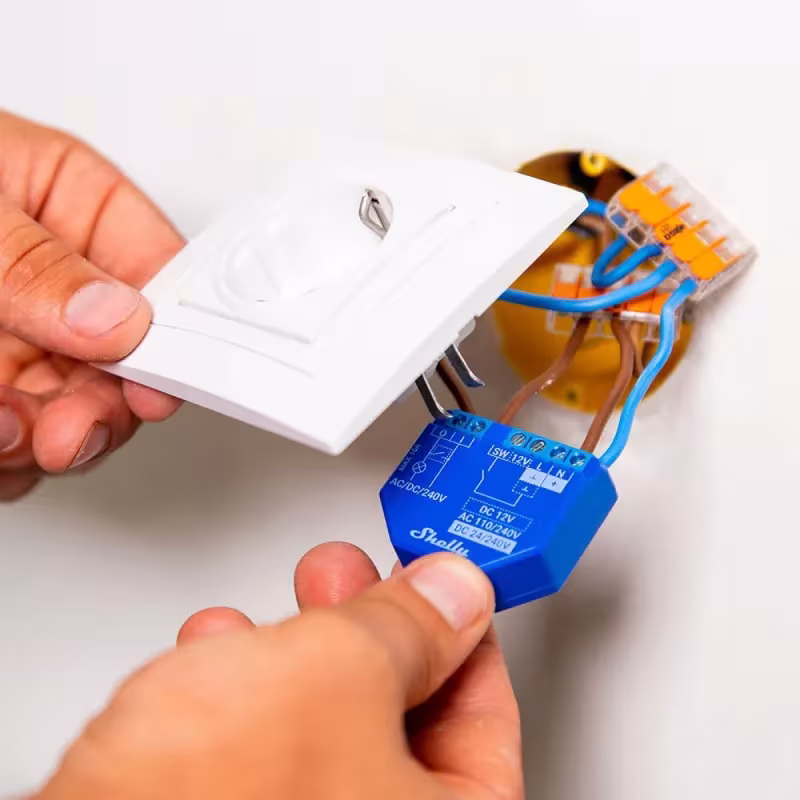

Compact, it is intended to be installed behind a recessed lighting control knob, a recessed socket, a bypass box or an electrical box.

The products Shelly can work autonomously, by connecting to your Wifi, or can serve as accessories to your home automation box.

New Shelly PLUS range

Enjoy home automation and supreme control with the new generation of Shelly devices - Shelly Plus!
Shelly smart relays now feature advanced control of electrical devices thanks to an extremely fast processor, faster connectivity, improved integration and enhanced security! You can now add devices easily via the Bluetooth connection, using the Shelly Cloud app. The Shelly Plus line supports TLS encryption and has an improved shell for standardized support for external sensor plugs.

Control of a relay.

With your Shelly PLUS 1, you will be able to fly an on/off aircraft. The module supports loads of up to 16A (1x 3500W).

Dry contact

The Shelly PLUS 1 has a potential free output ideal for example to control valves, electric strikers or garage doors.

Wireless

Doesn't require a home automation controller – just connect the module to your Wi-Fi.

Bluetooth

Add a module Shelly easily and quickly via Bluetooth, using the Shelly app from your Smartphone.

Remote control

Control your lamps and devices, no matter where you are. Never forget your lamps on again and never go home in the dark again.

Highly compatible

Compatible with Android, iOS, API rest, Amazon Alexa and Google Assistant.

Supports 110 to 240 V~ 50/60 Hz or 24-240VDC or 12VDC

This Shelly module is compatible with international power supply standards

Sunrise and sunset

Your Shelly modules can control your lamps according to sunrise and sunset, but of course also thanks to different customizable scenarios.

Weekly schedules

Choose the time and date and your lamps control themselves.

Overheat protection

An internal temperature sensor is responsible for protecting your Shelly module from overheating.

Designed also for developers

The modules allow Shelly to install alternative firmware. In addition, the modules have a Rest API that allows you to control the modules directly on-premises, without the need for the cloud.

Duties

• Works in Wi-Fi - Connects to your Wi-Fi network. No HUB required!
• Bluetooth - Add devices quickly and easily via a Bluetooth connection, using the Shelly Cloud app
• Potential-free output (dry contact)
• AC or low voltage power supply
• Extremely fast processor – ESP32
• Enhanced safety - Overheat protection
• Enhanced Security - Support for MQTT and WSS, support for TLS and custom certificates
• Improved API interface
• Can be controlled by an external button/switch
• Compatible with Google Home and Amazon Echo

TECHNICAL CHARACTERISTICS

• Feeding:
  • 110-230V ± 10% AC, 50/60Hz
  • 24-240V DC
  • 12V DC stabilized
• Maximum load per channel: 16A
• Power Consumption: <1 W
• Radio signal strength: 1mW
• Wireless Protocol / WiFi: 802.11 b/g/n (2.4 GHz)
• Frequency: 2400 - 2500 MHz
• Operating range (depending on local construction):
• up to 50 m outdoors
• up to 30 m indoors
• Operating Temperature: 0 - 40°C
• Dimensions (H x W x D): 41 x 36 x 15 mm
