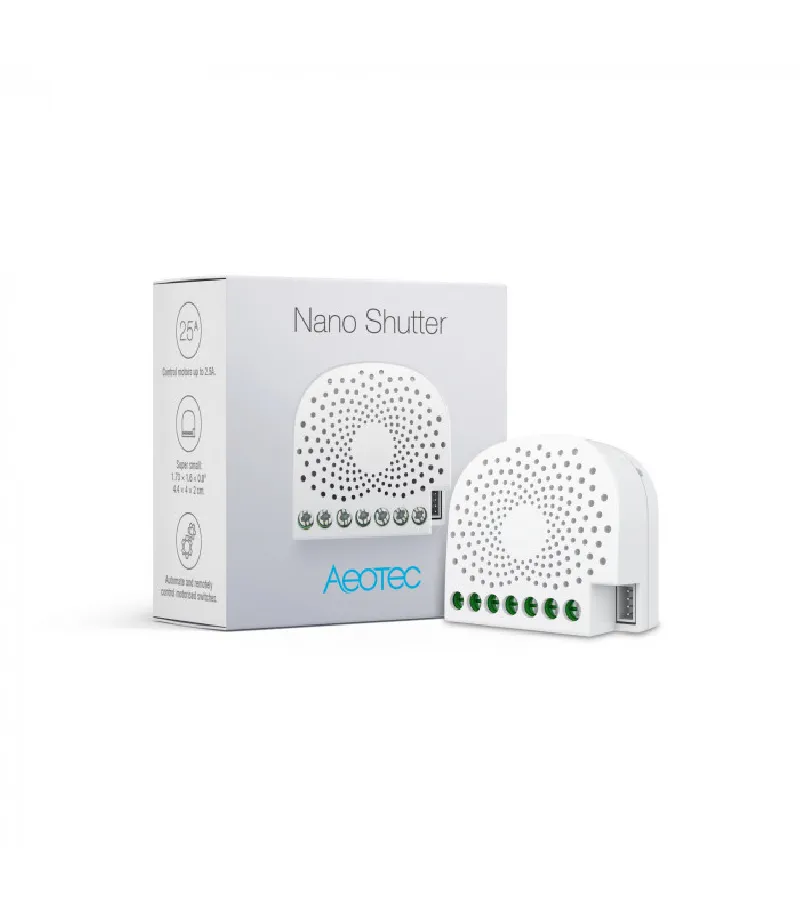

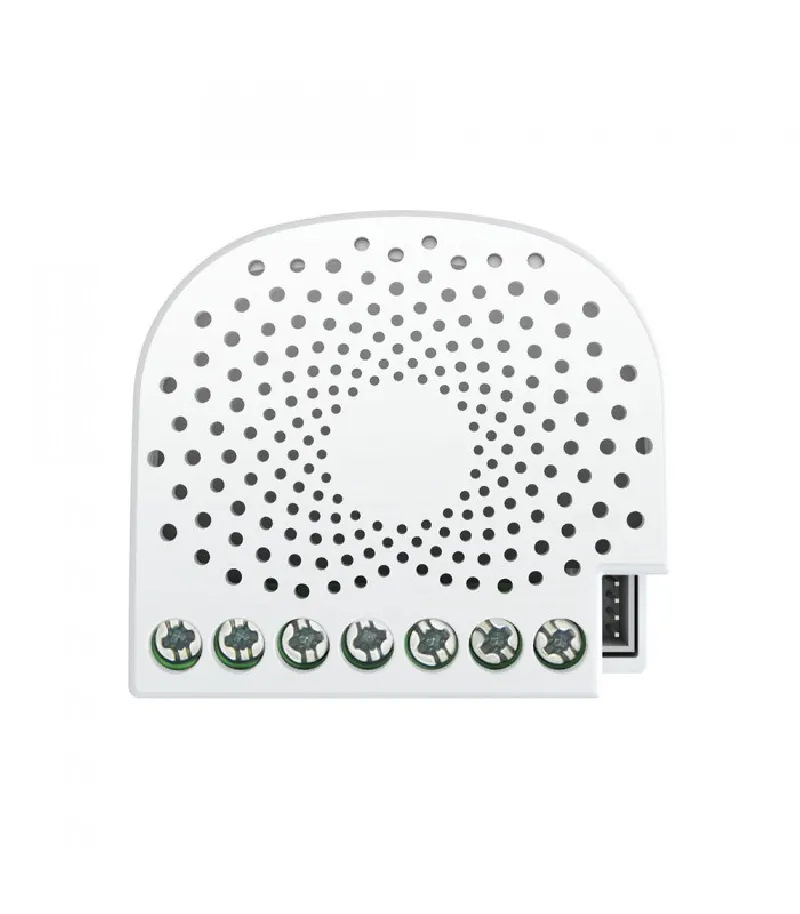

Aeon Labs - Micromodule store Z-Wave Nano Shutter

Nano Shutter. The engine controls on your rolling shutter are connected in Z-Wave.

From safety shutters to skylights, electronics and motorized furniture are part of a modern home. Now they can be part of your connected home.

The Nano Shutter integrates with the engines and converts them into Z-Wave. Instantly, everything they're connected to can be wirelessly controlled and intelligently automated with the Nano Shutter that can integrate with a wide selection of devices.

Simple to install. Simple to control.

The Nano Shutter connects to your home's engine-controlled accessories. It simply does this and immediately makes these accessories available for control, automation and planning via Z-Wave.

It can be wired to connect directly to the engine itself. It can be connected to any existing wall switch that controls the engine. And it can be connected in seconds to the WallSwipe, allowing you to further improve the Nano Shutter to have touch and gesture control.

Once installed, you can control the Nano Shutter via any connected switch, and via Z-Wave via your gateway, remote control and smartphone app.

Made with experience.

The Nano Shutter is designed from the same 10-year experience that was infused into the Nano Dimmer and Nano Switch. The experience that includes the engineering of the first Z-Wave flap controller; Micro Motor Controller.

Building on this experience, the Nano Shutter offers 3 new improvements essential to this technology.

Better security.
For any engine controlling access points, such as doors and safety shutters, the Z-Wave S2 is crucial. The S2 enhances the Nano Shutter with next-generation anti-piracy features, including AES-128-bit encryption and ECDH key exchange.

Z-Wave Plus.
In addition to its state-of-the-art safety, the Z-Wave Plus of the Nano Shutter. The latest Z-Wave version allows the Nano Shutter to control connected accessories with a 250% faster response time and a 67% higher wireless range, or up to 150 meters.

60% smaller.
Designed to be easy to install, the Nano Shutter was also designed to be easier to install. At only 43 x 20 cm, it is 60% smaller than the Micro Motor Controller, which means it's even easier to install it behind engine switches.

Beware, this module requires the neutral to work.

Functions

• Control your blinds or shutters remotely
• Settles behind an existing switch
• Up/down function (no positioning)
• Incorporates the Z-Wave 500 series chip
• 250% faster communication compared to standard Z-Wave devices
• Supports the Z-Wave S2 security framework
• Automatic detection of the type of switch
• Compatible with all Z-Wave and Z-Wave controllers
• Function measures instant and cumulative consumption
• WallSwipe Switch Connector (to come)
• Use with rocking or pulse switch
• Small, discreet and aesthetically pleasing
• Easy to use and install

Technical

• Module Type: Z-Wave Receiver
• Food: 120- 240VAC, 50/60Hz
• Consumption on standby: '0.8W'
• Wiring: 3 wires, neutral required
• Maximum load: 2.5A
• State indicator: LED
• Frequency: 868.42 Mhz
• Transmission distance: 150m in open field
• Dimensions: 42.5mm x 40mm x 20mm
• Operating temperature: 0-40oC
• Operating humidity: 8-80%
• Certifications: FCC, UL, CE, ROHS
