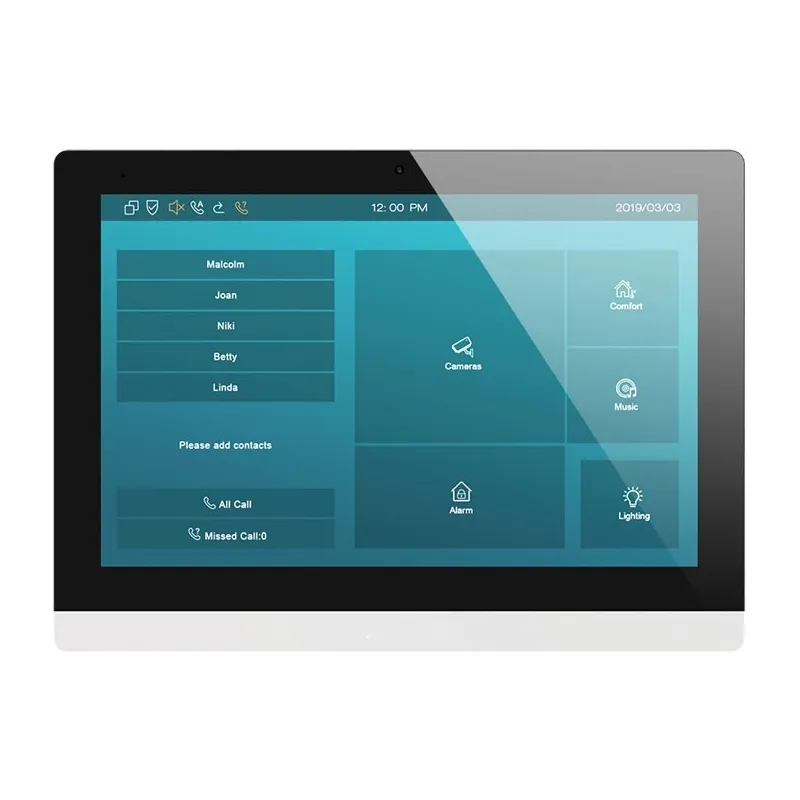

Akuvox - SIP indoor console with 10" touch screen, Wifi. Bluetooth and 1MP Camera (Android version) Akuvox C317A

Akuvox C317A - The high-end touchscreen

The indoor video station Akuvox IT83 and the ideal complement to any video doorman Akuvox. Among other things, it has an Android operating system and a 10" capacitive touch screen. It provides exceptional audio and video communication with the video doorman but also with possible other interior consoles for room-to-room communication thanks to the SIP 2.0 protocol.

The connection to the network is done by WLAN or network cable. If the indoor station is connected via a network cable, it can be supplied with power via Power over Ethernet (PoE). In the event of an Internet outage, all the functions of the indoor station and the Akuvox gate stations connected to it are kept in the local network.

Its intuitive user interface facilitates the integration of other systems, such as home automation, security or telehealthapplications.

TheAkuvox C317A offers the ultimate experience thanks to its complete functions and its neat and discreet design.

Particularly well equipped, theAkuvox C317A has Bluetooth, Wifi, two integrated relays and an RS485 connection.

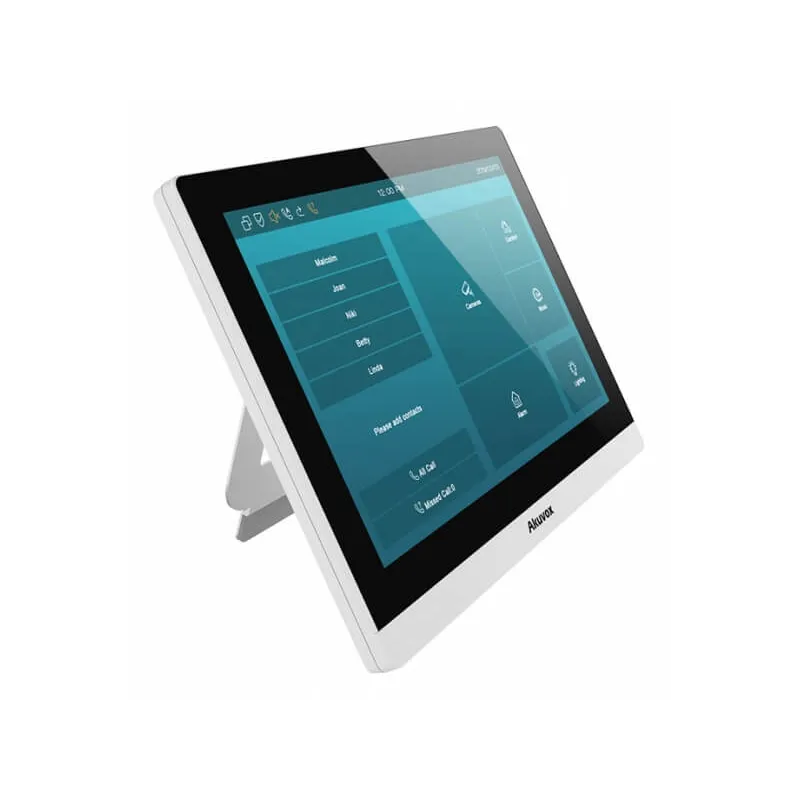

It can be fixed to the wall and placed on a table thanks to the optional mounting brackets.

Premium Audio and Video Quality

Residents will appreciate the opportunity to chat and see visitors ringing the door before allowing them access to the building or not. Premium audio and video quality ensures clear and limpid exchanges.

Integrated SIP server

With its built-in SIP server, the C317AAkuvox offers phone call functions, for example for room-to-room calls.

TECHNICAL SPECIFICATIONS

General

• Case: Plastic
• RAM/ROM: 2GB/8GB
• Screen: 10" IPS LCD Capacitive
• Memory card slot:1 Micro SD slot
• RS485 port: Yes
• Relay outputs: 2
• Doorbell entrance: 1
• Y/W: 8
• Microphone: -58dB
• Speakers: Dual speakers, 4Ω/ 2W
• Network port: 2xRJ45, 10/100Mbps adaptive
• 802.3af Power-over-Ethernet
• Power supply: PoE or transformer 12V DC (not included)
• Anti-vandal design: Yes
• Installation: Mural or table. Requires an accessory.
• Dimensions: 251x182.5x29.75mm
• Operating humidity: 10~90%
• Operating temperature: -10°C ~ +45°C

touch screen

• Size: 10" (Diagonal)
• Ratio: 16:10
• Resolution: 1280x800
• Contrast: 900:1
• Brightness: 350 cd/m2
• Viewing angle: 80° Left, 80° Right, 80° High, 80° Low

audio

• SIP v1 (RFC2543), SIP v2 (RFC3261)
• Narrowband audio codec: G.711A, G.711μ, G.729
• Broadband audio code: G.722
• DTMF: In-Band, Out-of-Band DTMF (RFC2833), SIP Info
• Canceling Echo
• Detecting speech activation
• Comfort noise generator
• Automatic gain

video

• 1MP camera

Network and protocol

• Protocol support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP

Deployment and maintenance

• Self-sufficiency
• Web Management Portal
• Depositing packages on the web Backup / restore configuration
• Exporting the input log
• Export/import access table
• Firmware update
• System logs (including door access logs)
