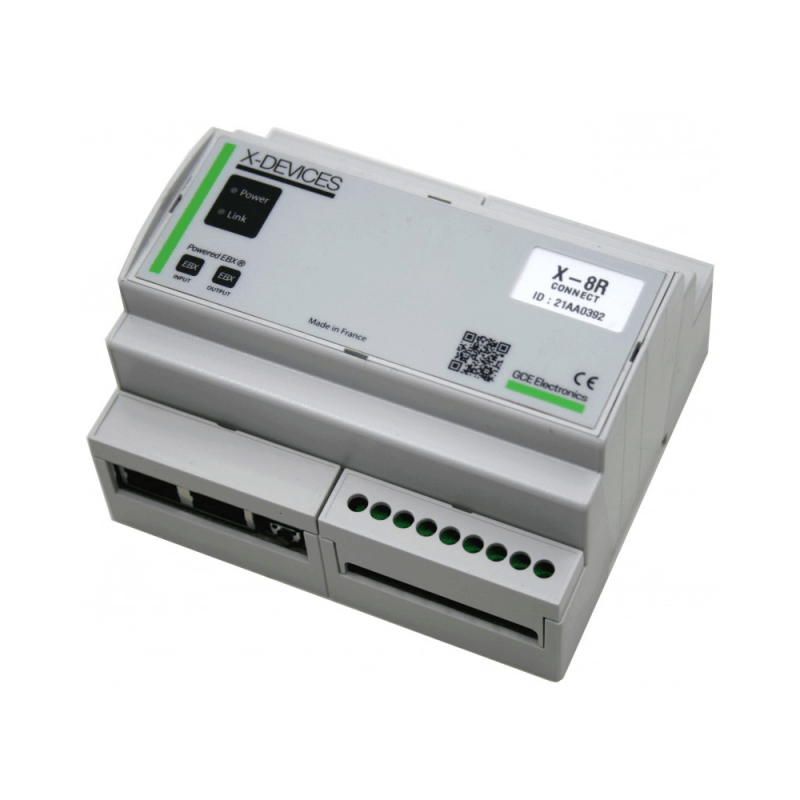

GCE Electronics - Standalone 8 Relay Output Expansion for IPX800 V4 & V5 X8R Connect
Rating:
(0)
CHF159.90
Tax included
The X-8R Connect allows 8 additional relay outputs to be integrated into the IPX800V5 world.
The X-8R Connect is a stand-alone device. Its functionalities can be accessed via the use of an IPX800 V5 or V4 and/or from a smartphone. However, when it is standalone, the X-8R Connect allows manual control of its outputs via physical switches in two modes: push button or single contact.
When connected to an X-PSU20 power supply, intelligent switching reduces current draw when changing relay states.
FUNCTIONS
- Increase the capacity of your IPX800 V4 or V5
- 100% autonomous device and controllable directly by IPX800 V4 & V5 and / or from a smartphone
- 8 relay outputs 16A (cos phi 1)
- 8 on/off inputs allowing direct control of relays by push button or switch
- Stand-alone operation without being connected to an IPX800
- DIN rail box for easy integration into your installation
- Product made in France
TECHNICAL SPECIFICATIONS
- Power supply: by X-PSU20 or 12V DC + EBX-Connect module (power supply not included)
- Digital inputs: 8 digital inputs (dry contact)
- Relay outputs: 8 x 250Vac / 16A Max (cos phi = 1)
- Bus IN/OUT Powered EBX (Power supply via X-PSU20)
- Wifi 2.4 Ghz connectivity
- Operating temperature: -10 to +60 °c @ 50% humidity
- IP20 protection rating
- Din rail mountable (6 slots required)
Specifications
| Type | Accessories for Smarthome gateways Accessory |
|---|---|
| Wifi | Yes |
