Eutonomy - Adaptater euFIX DIN for Fibaro FGS-214 (without push-buttons)
CHF29.90
Tax included

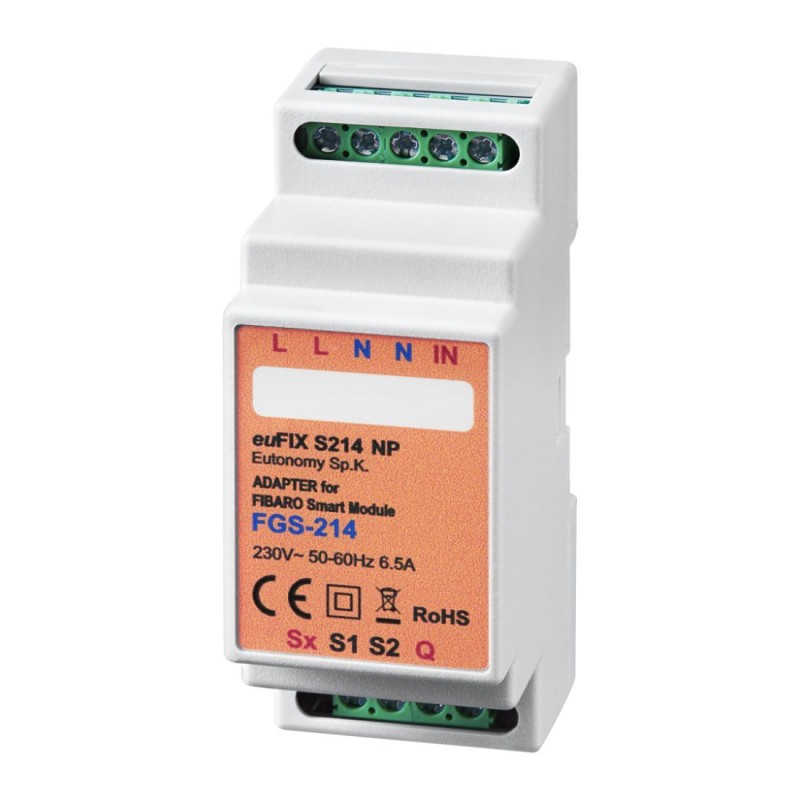

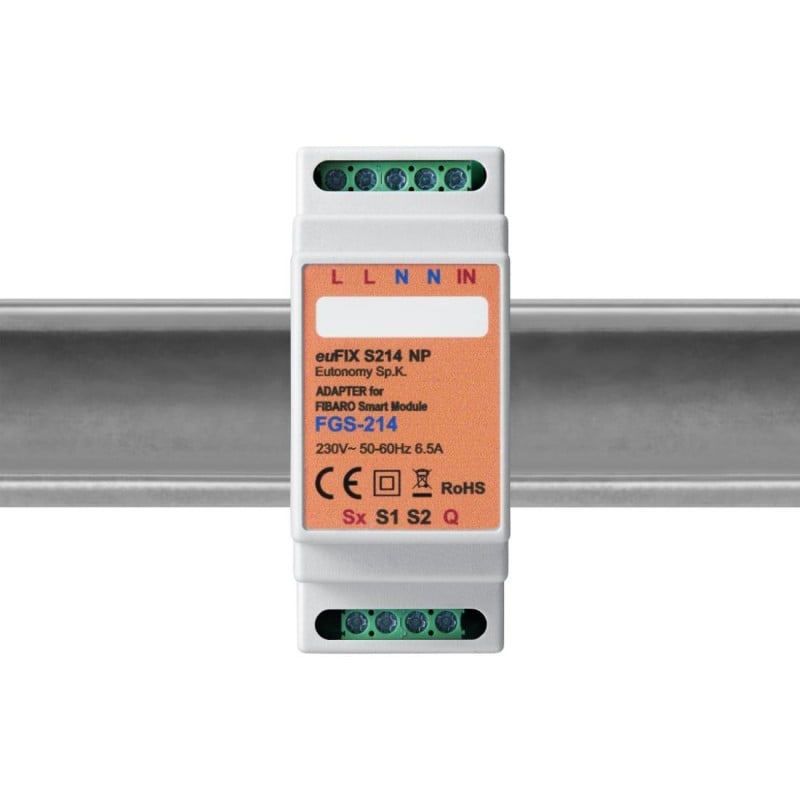

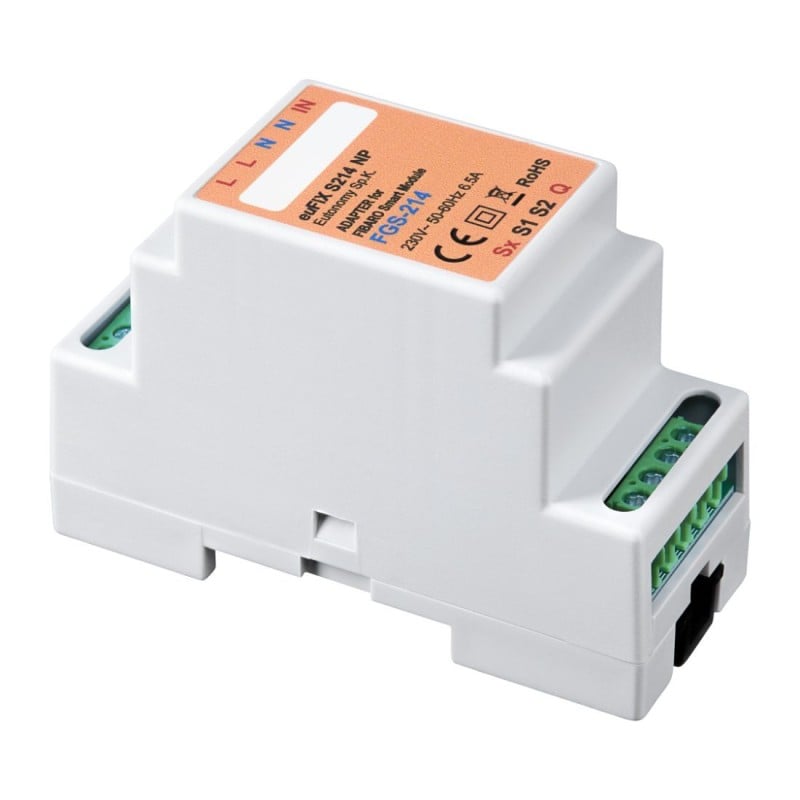

The euFIX S214NP adapter is used to install the module Fibaro® Switch FGS-214 on a rail of type DIN TH35 in an electrical cabinet.
In stock. Ordered before 5pm, delivered the next business day.
The euFIX S214 adapter is used to install the module Fibaro® Switch FGS-214 on a rail of type DIN TH35 in an electrical cabinet.
It is composed of a box as well as a circuit board to which the FGS-214 is attached. Its dimensions are adapted for a mounting on a standard rail of type DIN TH35/TS35.
The circuit board contains a set of screw terminals, to which all the wires (power supply, input and output signals, control buttons) can be connected with complete safety.
The Fibaro module is not included and must be bought separately.
Functions
- Adapter used to install the module Fibaro Switch FGS-214 on a rail of type DIN TH35 / TS 35 in an electrical cabinet
- Free slot with label to identify the controlled line
Technical specifications
- Supply voltage: 230 V AC +/- 10%, 50-60Hz
- Load power: max. 8A
- Dimensions: 34.8 x 87.3 x 64.7 mm
- Width in TE units: 2 TE modules
- Conducting wire section: max. 2.5 mm2
- Maximum length of connected wires at inputs Sx, S1, S2: 20m
- Operational temperature: 0° C to + 50° C
- Relative humidity: ≤90%, no condensation
- Directives:
- LVD 2014/35 / CE
- RoHS 2011/65 / UE
Specifications
| Type | Accessory |
|---|
Reviews (1) - Review moderation
Satifaction
Ce produit rempli se que j'en attendais
By Pierre H. the 08/07/2022
-
