PRESENTATION

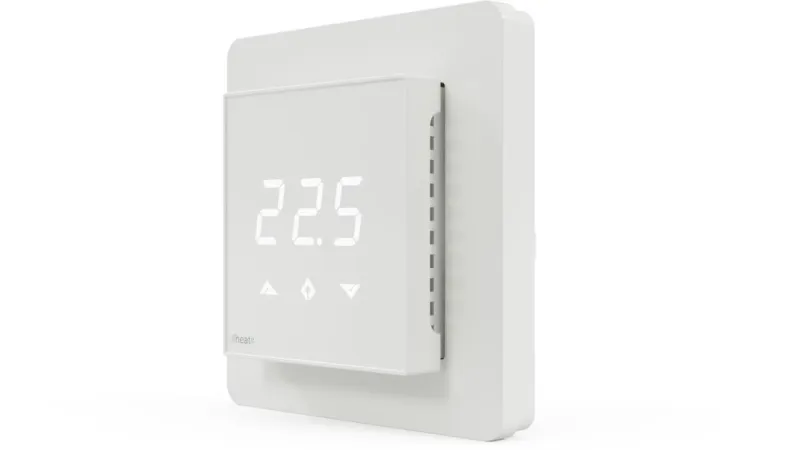

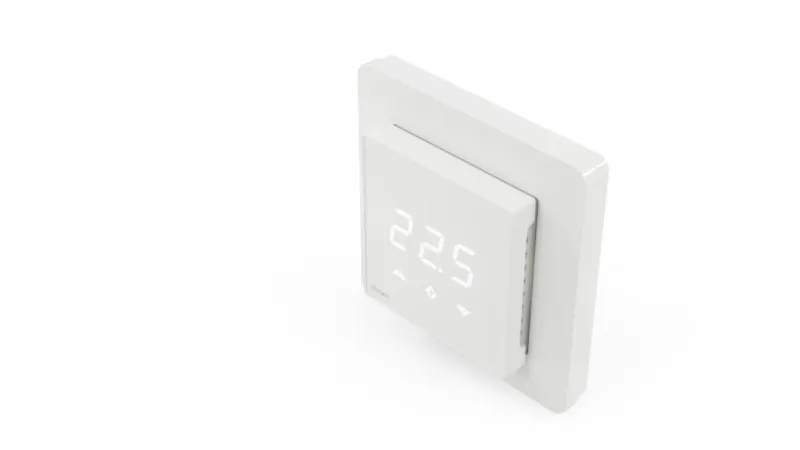

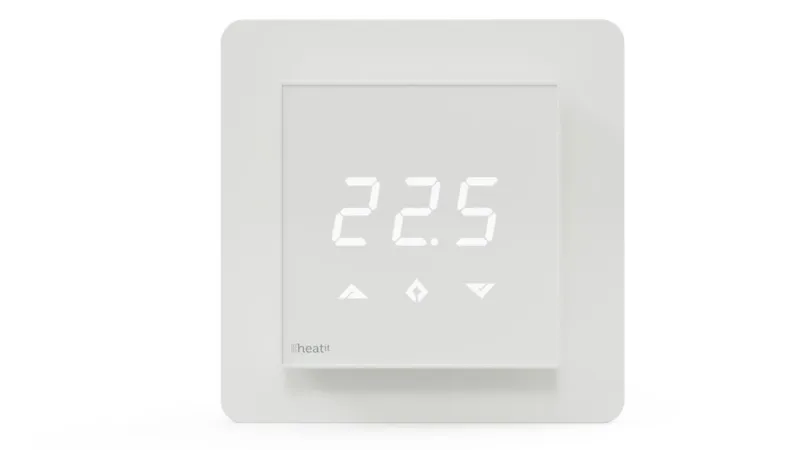

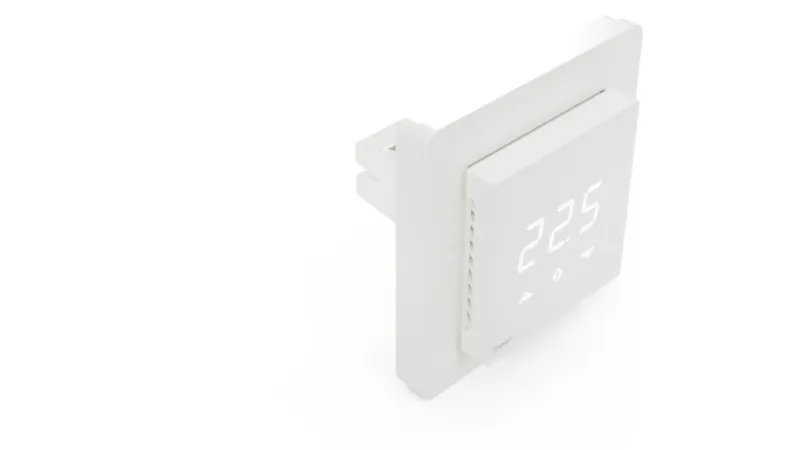

Heatit Z-TRM3fx is an electronic thermostat for electrical floor heating. The thermostat has a built-in Z-Wave chip that can be connected with Home Automation systems like Fibaro, Futurehome, Smarthings, Homeseer, Vera, Zipato etc.

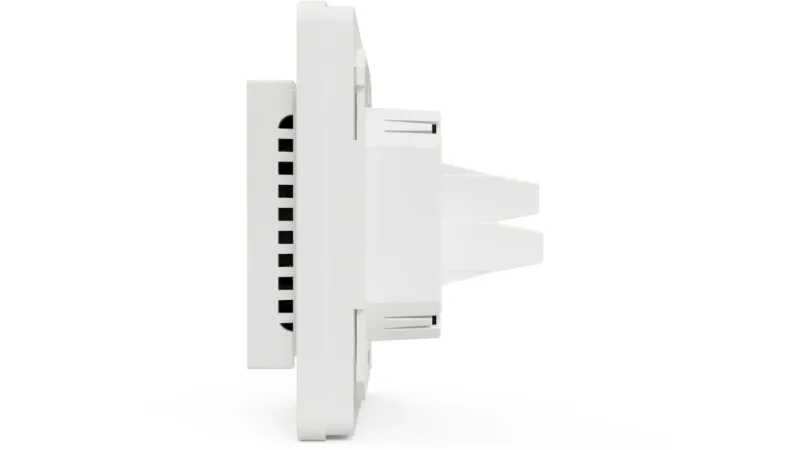

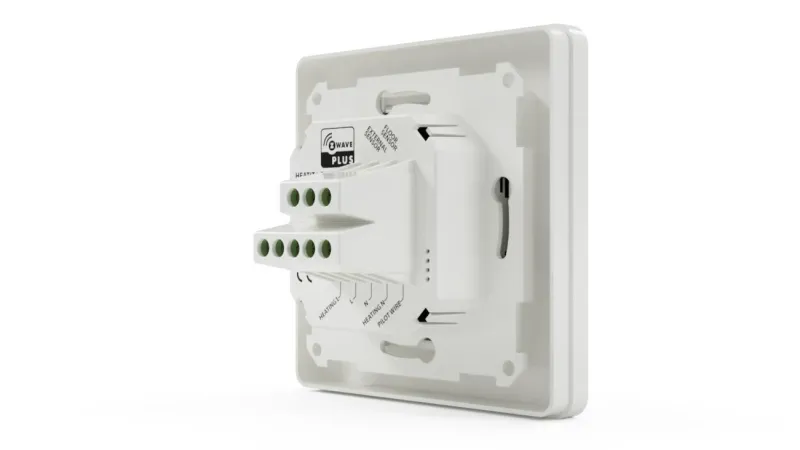

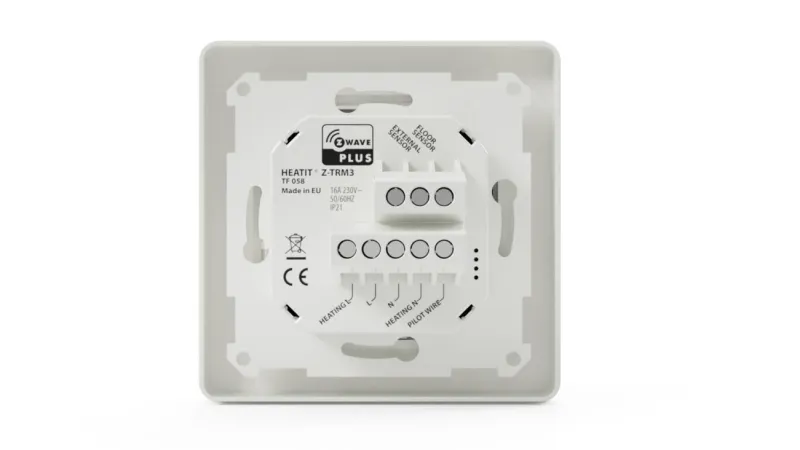

Heatit Z-TRM3fx is equipped with a single pole switch and it fits most System 55 frames (Elko RS16, Schneider Exxact, Gira, Jung etc.). The thermostat can withstand a load of max 16A /3600W at 230V. At higher loads the thermostat must control a contactor. The thermostat may be connected to two wired external sensors.
The thermostat has the capacity of up to 5 associations (relays, wall plugs etc.).
The thermostat is designed for electrical heating. It can also be used for waterborne floor heating when linked with Heatit Z-Water.
FUNCTIONS
- Floor sensor
- Indoor sensor
- External room sensor
- Temperature limiter
- Weekly program/setback via gateway or pilot wire
- Power metering
- Can be used in connection with different NTC-sensors
- Lock mode/child lock
- Calibration
- up to 5 associations
TECHNICAL CARACTERISTICS
- Z-Wave Plus
- Ratings voltage: 230V 50/60Hz
- Max load: 3600W (resistive load)
- 750W self-limiting heating cable
- Max current: 16A
- Power consumption: <2,0W
- Min/max operating temperature: 0°C – 40°C
- Temperature intervals Floor Sensor: 5°C – 40°C
- External Room Sensor: 5°C – 40°C
- Hysteresis 0,3°C – 3,0°C (default 0,5°C)
- Switchable Single-pole switch
- Compatible with NTC sensors with values 10, 12, 15, 22, 33 and 47 kΩ @ 25°C

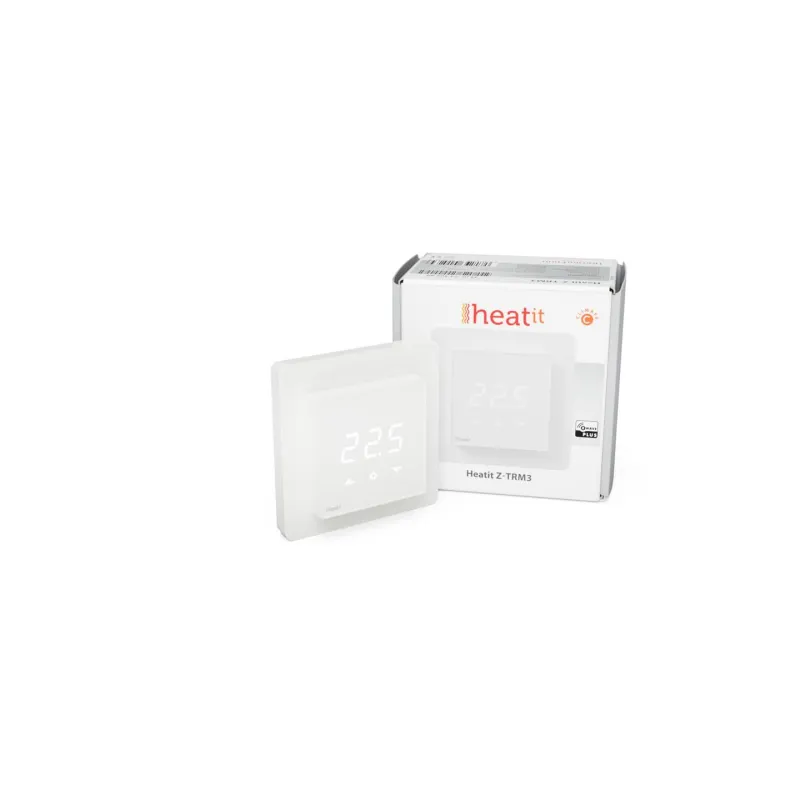

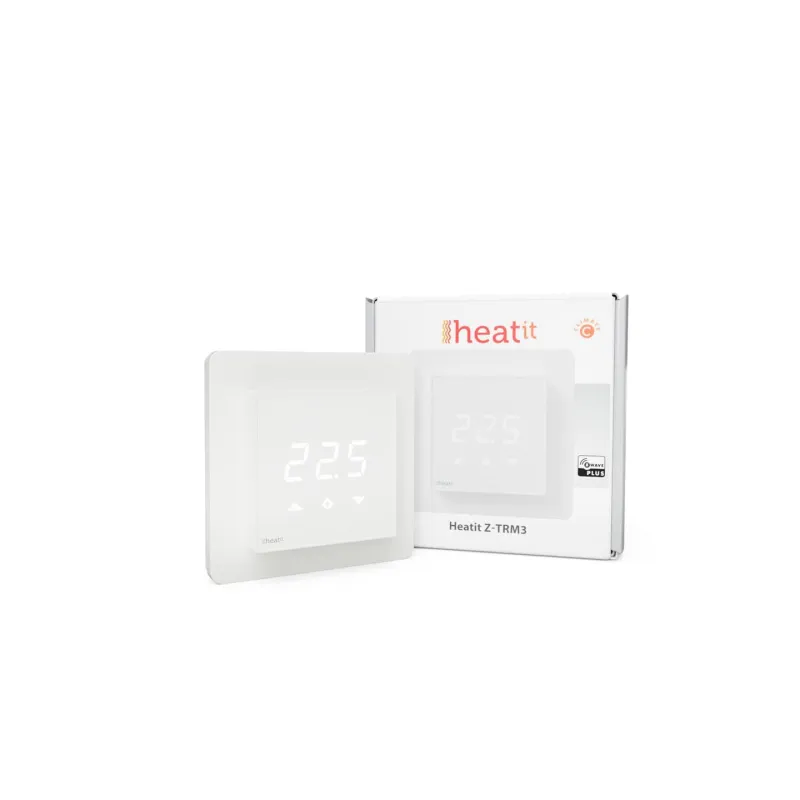

- Included in package Floor Sensor
Specifications
| Protocol | Z-Wave Serie 500 |
|---|---|
| Type | Thermostat (Flush-mounted) Thermostats 230v |
| Function | Heating Temperature |
| Gateway compatibility | Fibaro Home Center - total compatibility Homey - total compatibility eedomus+ - total compatibility |
| Use | Heating Management Temperature/Humidity/CO2 Monitoring |
-
