Aeotec - Z-Wave+ Radiator Thermostat
The Z-Wave+ Aeotec thermostatic head heats your room to the correct temperature when you need it.

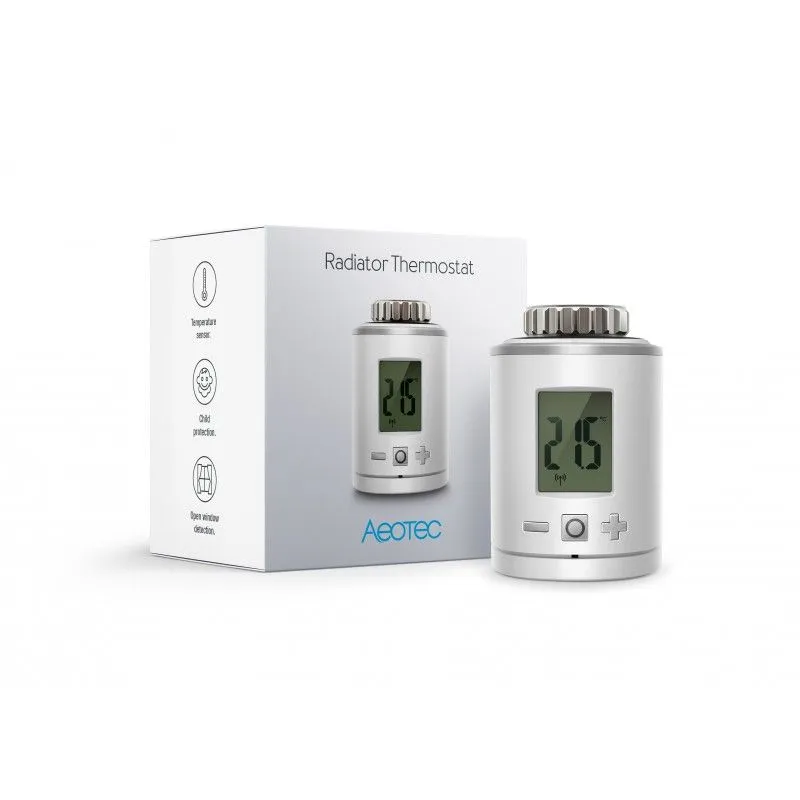

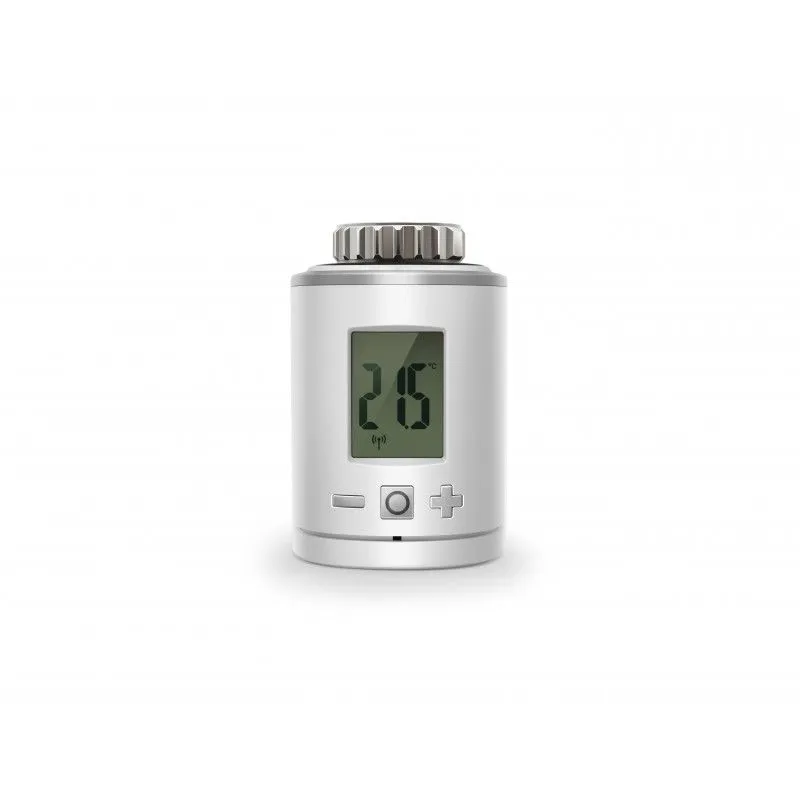

The Aeotec ZWA021 is a smart thermostatic head to be installed on your radiator. Once it is connected to your home automation system, it can increase your home comfort and reduce energy consumption by allowing you to schedule and control your heating from anywhere.
The device is equipped with FLiRS (Frequently Listening Receiver Slave) and reacts immediately to orders from the Z-Wave controller. In addition, the device may be connected to an external Z-Wave temperature sensor. In this way, the thermostat refers to the temperature of the external sensor, which may be positioned in the middle of the room.
The thermostat display is backlit and has a large LCD screen. What's more, you can lock the buttons on it using the integrated child protection.
The multicoloured LED of the central button allow for intuitive use, as the user is encouraged to following the instructions based on the flashing LED on the central button.
The Aeotec thermostat head comes with silver accessories for the battery compartment and the decorative ring. A neutral white battery compartment is included.
The valve may be used as a heating thermostat or as an actuator, based on the configuration of the device. The temperature measured or the position of the actuator of the thermostat are sent to the compatible Z-Wave controller.
Functions
- Replaces the thermostatic head of your radiator
- Control your radiator remotely
- Save up to 30% in heating costs
- "Open window" detection
- Child protection
- 3 adapters (RA Danfoss, Danfoss RAV, Danfoss RAVL) included
- Various battery compartment and decorative ring colours available separately
Technical characteristics
- Power source: 2 x 1.5V LR6/AA
- Emission frequency: 868.42MHz
- Range: up to 30m indoors and 100m outdoors
- Connection: M30 X 1.5 mm
- Temperature measurement frequency: Every minute
- Recommended temperature range: 6 to 28°c
- Operating temperature: 0 to 50 ° C
- Protection category: IP20
- Dimensions (L x H x D): 56 x 68 x 89 mm
- Weight: 176g (batteries included)
Specifications
| Protocol | Z-Wave Serie 500 |
|---|---|
| Type | Module Thermostatic heads |
| Function | Actuator Heating Temperature |
| Gateway compatibility | Fibaro Home Center - total compatibility Homey - total compatibility eedomus+ - total compatibility |
| Use | Heating Management Temperature/Humidity/CO2 Monitoring |
Guides
Aeotec ZW021 UserGuide - EN
Aeotec ZW021 Installation - EN
