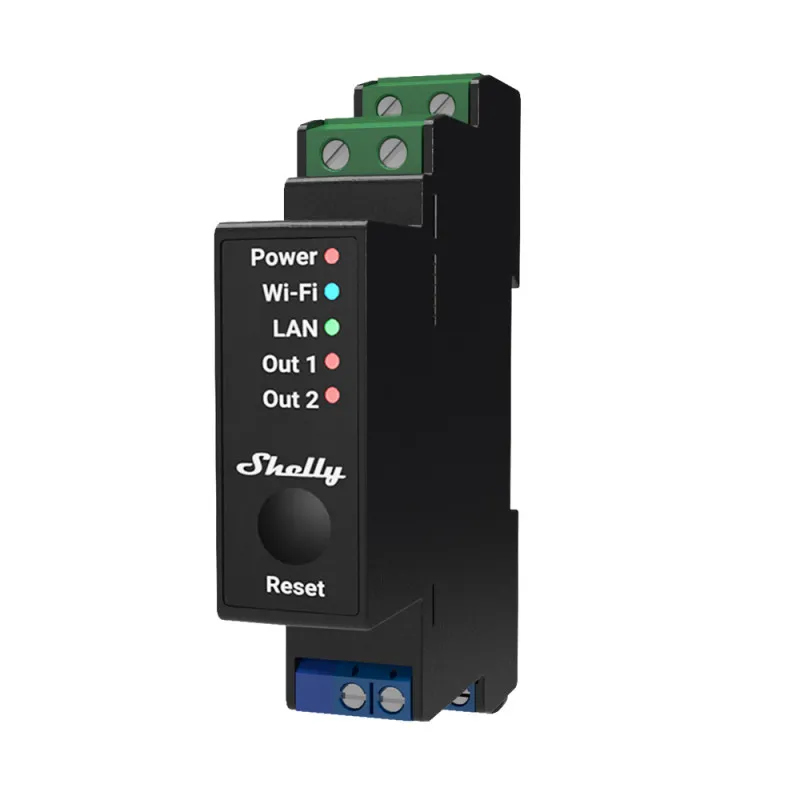

SHELLY - 2-channel Wi-Fi DIN Rail Module with Power Measurement (Shelly PRO 2PM)

Professional 2-channel relay with Wi-Fi, LAN and Bluetooth connection, suitable for home and business automation with remote control and precise energy management.

The Shelly Pro 2PM is installed on a DIN rail inside an electrical panel. It incorporates enhanced security features and is compatible with the most widely used home automation platforms.

Wide variety of device controls

Suitable for appliances, roller shutters, blinds, motors up to 600W, lights on different phases and many more.

Power measurement

Two precise built-in power meters that allow you to measure the consumption of each channel separately and store data for free.

Two-way control

Control any 110-230V bidirectional motor, roller shutters, motorized curtains or awning.

Mobile app control

Turn devices on/off directly from your smartphone or tablet.

Wi-Fi and LAN connection

LAN connection for high security and evaluableability. Simultaneous use of Wi-Fi and LAN, as backup when needed.

Bluetooth

Add devices quickly and easily via Bluetooth connection, using the Shelly Cloud app.

DIN mountable rail

The Shelly Pro 2PM is installed inside the electrical panel and is designed to meet the global standardization of DIN rail. This makes it suitable for all types of buildings and guarantees easy installation without any additional components needed.

Compatible with voice assistants

Control your device with your voice. Shelly Pro 2PM is compatible with Google Home and Amazon Echo.

Weekly calendar

Create custom daily programs for your devices.

Follows sunlight

Shelly Pro 2PM can automatically turn on/off depending on sunrise and sunset times.

Free Cloud

All you need to manage your Shelly Pro 2PM is a smartphone and the free mobile app Shelly Cloud

Countdown

Don't forget to turn off your devices. The built-in countdown can automatically turn off your oven after an hour for example.

DUTIES

• LAN, Wi-Fi and Bluetooth connection
• 2 outputs, 16A each. Maximum total capacity of 25A
• Accurate power measurement
• Roller shutter mode
• Din rail mountable
• LED indicator lights for quick device status check
• Extremely fast processor – ESP32
• Enhanced safety - Protection against overload, overvoltage and overheating
• Enhanced Security - Support for MQTT and WSS, support for TLS and custom certificates
• Improved API interface
• Can be controlled by an external button/switch
• Compatible with Google Home and Amazon Echo

TECHNICAL CHARACTERISTICS

• Power Supply: 110-240V ± 10% AC 50/60Hz
• Number of channels: 2
• Maximum load per channel: 16A
• Total maximum load: 25A
• Power Consumption: <4 W
• Radio signal strength: 1mW
• Wireless Protocol / WiFi: 802.11 b/g/n (2.4 GHz)
• Frequency: 2412 - 2484 MHz
• Operating range (depending on local construction):
• up to 50 m outdoors
• up to 30 m indoors
• Operating Temperature: 0 - 40°C
• Dimensions (H x W x D): 18.5 mm x 89.5 mm x 68.5 mm
