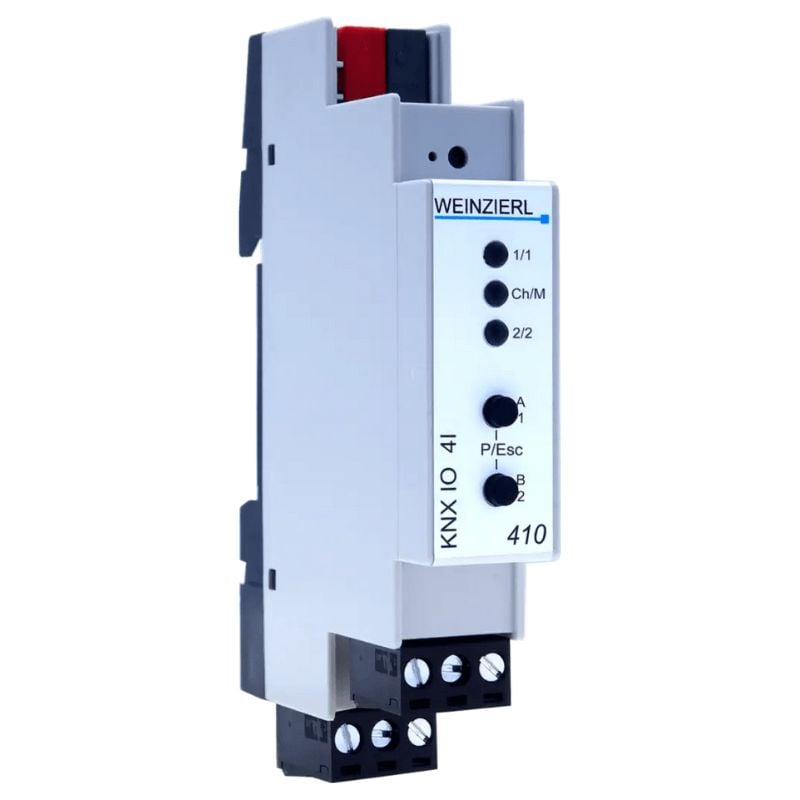

Weinzierl - KNX IO 410 (4I)
CHF115.50
Tax included
The KNX IO 410 (4I) is a compact binary input with 4 channels to control lights, shutter etc.
In stock. Ordered before 5pm, delivered the next business day.
The KNX IO 410 (4I) is a compact binary input with 4 channels to control lights, shutter etc. The inputs can be connected to conventional switches with an external voltage of 12 to 230 V. Using as impulse counter is possible as well. Two push buttons and three LEDs allow a local operation and a visualization of the device state.
In addition to the input channels the device includes 16 independent functions for logic or timer control.
TECHNICAL DATA
Mechanical data
- Housing: plastic
- DIN rail mounted device, width: 1 modules (18 mm)
- Weigth: approx. 50 g
User Interface
- two keys for on device settings
- three multi color LEDs
- KNX programming LED and KNX programming key
KNX
- Device Model System B
- Compatible with ETS 4.2 (or higher)
Connectors
- Connector for KNX Bus (red / black)
- Pluggable screw connector (3 poles) for binary input channel 1 and 2
- Pluggable screw connector (3 poles) for binary input channel 3 and 4
Input channels (Binary in)
- Voltage: 12 .. 230 V=~
- Current: < 1 mA
-
Accessories
-
