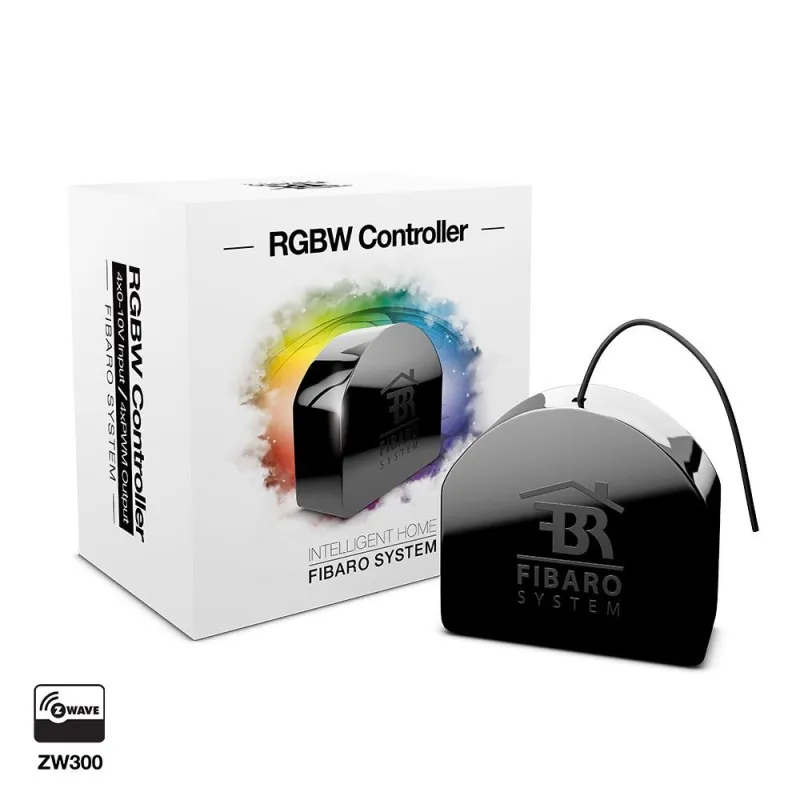

FIBARO - Z-Wave RGBW Controller FGRGB-101 (FIBARO RGBW)
RGB/RGBW Controller (Red, Green, Blue, White) Z-wave compatible with analog input sensors.
Fibaro’s RGB module – to control your LED lighting strips or other 12v or 24v lighting devices
This RGB/RGBW controller is compatible with Z-wave and can control your LED strip lighting, RGB/RGBW LED’s, and other 12v or 24v light sources. Beyond the traditional RGB channels, it can also handle an additional white light channel, which allows you to add pastel notes to the color palette.
Also, this device can control up to 4 0v-10V analog sensors, including temperature sensors, humidity sensors, wind sensors, air quality sensors, light sensors, etc. The “ALL IN” and “OUT” terminals can be configured to control LED or reading 0V-10V signals. This module can also be used as a light dimmer with halogen lamps.
This controller lets you manage and monitor energy consumption from four outputs, independently or all together. Connected with HC2, you can check energy consumption in real time and directly, and check your usage history.
You can update your module wirelessly, by choosing this option in Home Center 2, each time a new firmware is available. You don’t have to disconnect or waste any time reconnecting to a computer.
Functions
- RGB wireless controller
- Compatible with LED RGB and RGBW strips
- Compatible with all 12V or 24V light sources
- 4 analog inputs of 0V-10V
- 4 outputs 12/24 VDC
- Measures the total and separate electricity consumption for 4 channels
- Updates wirelessly from the Fibaro Home Center 2 box
- Ease of use and installation
Technical Specifications
- Module Type: Z-wave sensor
- Power: 12V DC/24V DC
- Output power: 12A combined (sum of all outputs)
- Maximum load (for example, halogen lights)
- up to 12V – 144W combined
- up to 24V – 288W combined
- Energy consumption:
- Frequency: 868.42 Mhz
- Power of radio signal: 1mW
- Transmission Distance: 50m open field, 30m inside
- Dimensions: 42 x 37 x 17 mm
- Functioning temperature: 0-40°C
- Safety standards: EMC 2004/108/EC, R&TTE 199/5/WE
Specifications
| Protocol | Z-Wave Serie 300 |
|---|---|
| Type | Module |
| Function | Actuator Dimmer RGBW Controller |
| Gateway compatibility | Fibaro Home Center - total compatibility Homey - total compatibility eedomus+ - total compatibility |
| Use | Lighting Control |
Guides
Operating manual – English
Short manual - Multilanguage
Reviews (10) - Review moderation
Wie immer super schnell geliefert und die übliche Fibaro Qualität. Kann den Shop nur empfehlen. Faire Preise und schnelle Lieferung in der Schweiz. Auch wenn man mal eine Frage hat, bekommt man innert kurzer Frist Antwort. Auch wenn Deutsch am Telefon etwas chwierig ist, bemüht man sich sehr, kompetent Auskunft zu geben. Von mir also volle Punktzahl und vielen Dank an das Team von swiss-domotique. PS: Hab keine Aktien oder Vorteile aus der Bewertung. Bin einfach der Meinung, dass ein guter Service auch entsprechend bewertet werden soll.
il fonctionne bien avec des leds IKEA et Jeedom
toujours aussi rapide service au top
When using this device as designed: RGBW controller directly driving a led strip (ProfiLINE LED Strip - 240LED/m - 3000K - High CRI - 23W/m - 24V from LedFox) while connected to a Mean Well GST60A24-P1J power supply: then at 30% dimm-level the flickering is very bad. I could not bear such a light even 10 minutes. Thankfully, I found a workaround: The MeanWell PWM-120-24 power supply can drive a LED strip directly while being controlled by a PWM source like this RGBW controller. In this setup, the PWM frequency of the fibaro does not matter and the LED Strip is dimmed with a PWM frequency of a stunning 1.5kHz. No more flickering this way. The draw back is that you need a separate power supply for each channel and one for the fibaro.
Rapide et sans frais ! Le produit correspond à 100% à mes attentes !
Je l'ai acheté pour contrôler un bandeau LED, il fait très bien son boulot. J'ai pu très facilement le joindre à mon réseau Z-Wave sans problèmes. Par contre, je l'utilise avec un Raspberry Pi avec Domoticz. Mon bandeau LED est de type RGB, et impossible de configurer le contrôleur en mode RGB! Lorsque je choisis une couleur s'approchant du blanc, tout le bandeau s'éteint, car je n'ai pas de canal White! Je cherche encore à le configurer en mode RGB sans contrôleur Fibaro...
-
