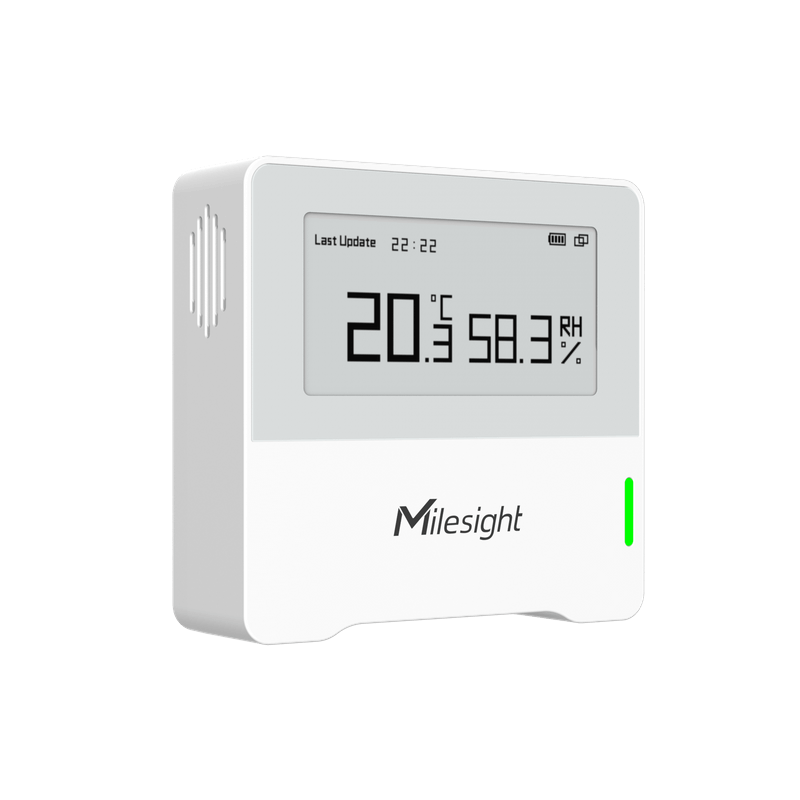

Milesight IOT - Lorawan 2 in 1 Indoor Air Quality Sensor (with display)

AM102 is a compact indoor ambience monitoring sensor for the measurement of temperature and humidity. AM102 is widely used for offices, store, classrooms, hospital, etc.

These data will be shown on the E-ink screen in real-time, which allows us to quantify the indoor environment and comfort. Sensor data can also be transmitted using LoRaWAN ®. With this low-power technology, AM102 can work for more than 9 years with 2 replaceable batteries. Combined with a Milesight LoRaWAN ® gateway, users can manage all sensor data remotely and visually.

Features

• Uses Sensirion high-precision sensor, capable of sensing subtle changes in temperature and humidity
• Smart hibernate mode schedule to save battery power
• More than 7 years work without replacing batteries
• Store locally 1280 historical records and support retransmission to prevent data loss Built-in NFC for easy configuration
• Compliant with standard LoRaWAN® gateways and network servers
• Visual data to understand the environment easily via E-ink screen

Measuring Range

• Temperature
• Humidity

Specifications

Wireless Transmission

• Technology : LoRaWAN®
• Frequency : CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4
• Tx Power : 16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz)
• Sensitivity : -137dBm @300bps
• Mode : OTAA/ABP Class A

Temperature

• Operating Principle : Digital CMOSens® technology (MEMS)
• Range : -20°C ~ 60°C
• Accuracy1 : ± 0.2°C
• Resolution : 0.1°C

Humidity

• Operating Principle : Digital CMOSens® technology (MEMS)
• Range : 0% RH~ 100% RH
• Accuracy : ± 2% RH
• Resolution : 0.5% RH

Display & Configuration

• AM102 : 2.13-inch Black & White E-Ink Screend
• Button : 1 × Power Button
• LED : 1 × Status Indicator
• Configuration : Mobile App via NFC

Physical Characteristics

• Power Supply : 2 × 2700 mAh ER14505 Li-SOCl2 Replaceable Batteries
• Battery Life : Over 7 Years
• Operating Temperature : -20°C ~ 60°C (E-Ink Screen: 0°C ~ 40°C)
• Relative Humidity : 0% ~ 95% (non-condensing)
• Ingress Protection : IP30
• Dimension : 68 × 65 × 20.5 mm (2.68 × 2.56 × 0.81 in)
• Installation : Wall Screw Mounting, 3M Tape Mounting
