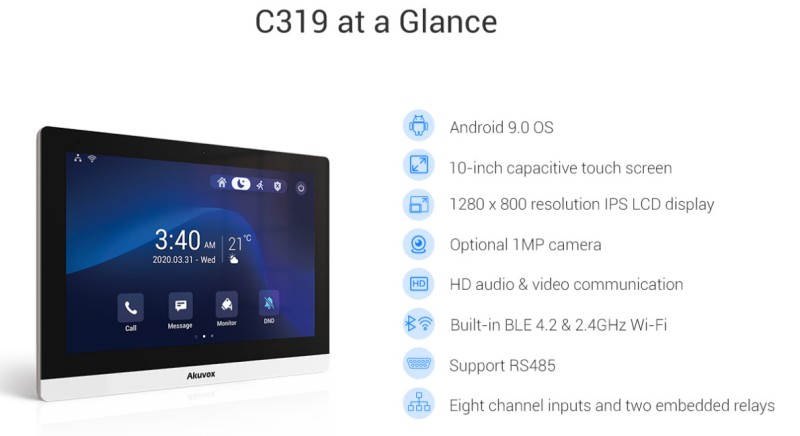

Akuvox - SIP indoor console with 10" touch screen, Wifi, Bluetooth, Android 9.0 (Akuvox C319A)

Akuvox X319A - Premium indoor console for your home or office

The C319A Akuvox indoor video station enables video calls to and from IP video doormen and other indoor consoles using SIP and IP communication. Its Android 9.0 system allows the installation of third-party applications. For example, you can install the application of your alarm, your home automation controller or any other compatible Android applications.

The connection to the network is done by WLAN or network cable. If the indoor station is connected via a network cable, it can be powered via Power over Ethernet (PoE). In the event of an Internet failure, all the functions of the indoor station and the Akuvox door stations connected to it are kept in the local network.

TheAkuvox C319A offers the ultimate experience thanks to its comprehensive functions and neat and elegant design.

Particularly well equipped, theAkuvox C319A has, among other things, Bluetooth, Wifi, two integrated relays and RS485 connectivity. It is possible to connect a bearing doorbell. A separate sound will be emitted depending on whether the call comes from the landing doorbell or the street deck.

Its 1MP camera can for example be used to call other screens / doormen but you will also be able to install an app such as Skype and use this tablet for your communications.

It can be fixed to the wall, over a one-size built-in box. Subsequently a table support will also be available.

Premium Audio and Video Quality

Residents will appreciate the opportunity to chat and see visitors ringing the doorbell before allowing them access to the building. The dual microphone and dual speaker ensure optimal sound quality and clear and clear exchanges.

Sober and elegant interface

The user interface of the C319A interior console has been designed to make your life easier. Every important function is just a click away.

Receive your calls and control your Smarthome from the same screen

The C319A indoor station has a recent version of Android and powerful hardware. It allows you to receive calls from visitors who ring your doorman, but can also serve as an interface to control your home automation, view the video stream of your cameras, control your alarm, browse the internet and much more.

TECHNICAL CHARACTERISTICS

General

• Case: Plastic
• RAM/ROM: 2GB/8GB
• Screen: 10" IPS CAPACITIVE LCD
• RS485 port: Yes
• Relay outputs: 2
• Doorbell input: 1
• Camera: 1MP, CMOS
• I/O: 8
• Microphone: Dual microphone, -26dB
• Speakers: Dual speakers, 4Ω/3W
• Network Port: 1xRJ45, 10/100Mbps adaptive
• 802.3af Power-over-Ethernet
• Power supply: 12V DC, not included (if not powered by PoE)
• Vandal-proof design: Yes
• Installation: Wall or table. Requires an accessory.
• Dimensions: 251x182.5x29.75mm
• Operating Humidity: 10~90%
• Operating Temperature: -10°C~+45°C

Touch screen

• Size: 10" (Diagonal)
• Ratio: 16:10
• Resolution: 1280x800
• Contrast: 900:1
• Brightness: 350 cd/m2
• Viewing angle: 80° Left, 80° Right, 80° High, 80° Low

Audio

• SIP v1 (RFC2543), SIP v2 (RFC3261)
• Narrowband audio codec: G.711A, G.711μ, G.729
• Broadband audio code: G.722
• DTMF: DTMF in band, out of band (RFC2833), SIP Info
• Cancelling Echo
• Voice activation detection
• Comfort noise generator
• Automatic gain

Video

• Streaming Format: H.263 & H.264

Network and protocol

• Protocol support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP

Deployment and maintenance

• Self- supply
• Web Management Portal
• Web Package Repository Configuration Backup/Restore
• Exporting the input log
• Export/ import access table
• Firmware update
• System logs (including door access logs)

Voice commands

• English-only voice control
• Recognition Accuracy: 95%
• Privacy
