Aqara - W500 Zigbee/Thread-compatible underfloor heating thermostat (UT-A01D)
The Aqara W500 thermostat (part number UT-A01D) is a revolutionary intelligent wall-mounted device designed specifically to control underfloor heating systems. This next-generation thermostat incorporates unique Thread/Zigbee dual protocol technology, offering native compatibility with Matter, Apple Home, Google Home and Amazon Alexa ecosystems without the need for an additional hub in Thread mode.
Official Aqara importer
Aqara - Control your floor heating with intelligence
W500 Intelligent Underfloor Heating Thermostat - Aqara UT-A01D
Overview
The Aqara W500 thermostat (reference UT-A01D) is a revolutionary intelligent wall-mounted device designed specifically to control underfloor heating systems. This next-generation thermostat incorporates unique Thread/Zigbee dual-protocol technology, offering native compatibility with Matter, Apple Home, Google Home and Amazon Alexa ecosystems without the need for an additional hub in Thread mode.

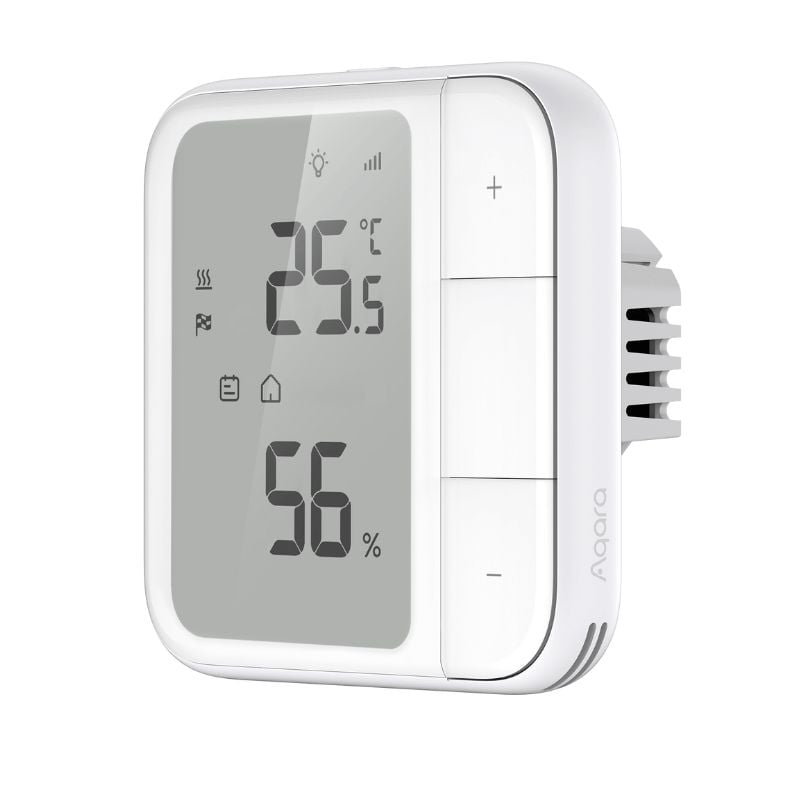

With its maximum output power of 16A/3600W, this smart thermostat supports both electric floor heating systems and hydraulic systems with 230V 2-wire actuators. Its 55×73mm backlit LCD display offers an intuitive user interface, while its compact design (101×101×55mm) fits perfectly into standard 86mm European wall-mounted housings.
The W500 stands out for its advanced energy-saving features, including automatic open-window detection, intelligent local programming (up to 7 periods per day over 7 days), and real-time energy monitoring. Its integrated safety system protects against overheating and overloading, and provides automatic frost protection.
Key functions
- Dual Thread/Zigbee protocol: unique technology enabling toggling between Thread (direct Matter connection) and Zigbee (advanced functionalities via hub Aqara) as and when required
- Universal compatibility: natively compatible with Apple Home, Google Home, Amazon Alexa, SmartThings, Home Assistant and Homey
- Voice and remote control: Control by voice command (Alexa, Google Assistant) and via the Aqara Home app from anywhere
- Smart local programming: Up to 7 programmable periods per day over 7 days, working even in the event of an internet failure
- Automatic detection of open windows: automatic pause of heating to avoid energy waste (with sensors Aqara)
- Advanced energy monitoring: Real-time monitoring and consumption history with Whole Home Energy integration
- Multiple sensors: integrated temperature/humidity sensor + external NTC sensor supplied + sensor compatibility Aqara
- Pre-set modes: 5 pre-configured operating modes for different uses and situations
- Adaptive control: ±5°C temperature calibration and customizable buffer (0.5-3°C) to optimize cycles
- Built-in safety: overtemperature, overload, automatic antifreeze and child lock protection
General specifications

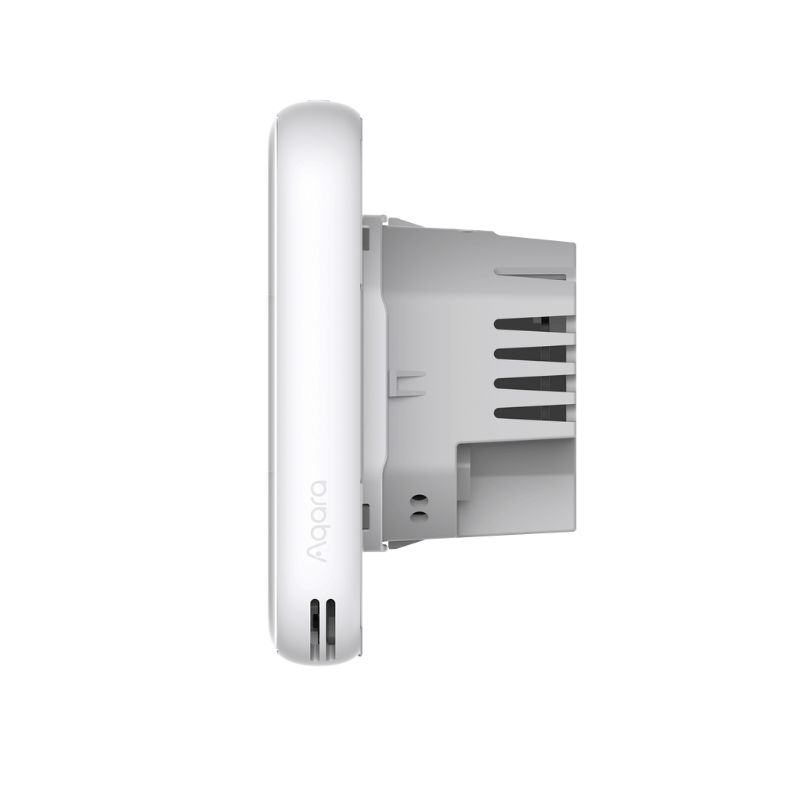

- Model and dimensions : UT-A01D, 86 × 86 × 45 mm
- Wireless protocols: Thread, Zigbee, Bluetooth
- Electrical parameters: 220-250 VAC, max 16 A, 50/60 Hz, max 3680 W (resistive load)
- Operating temperature and humidity: 0°C to 40°C, 0-90% RH, non-condensing
- Communication mode: EU version uses Thread by default, Zigbee is reserved

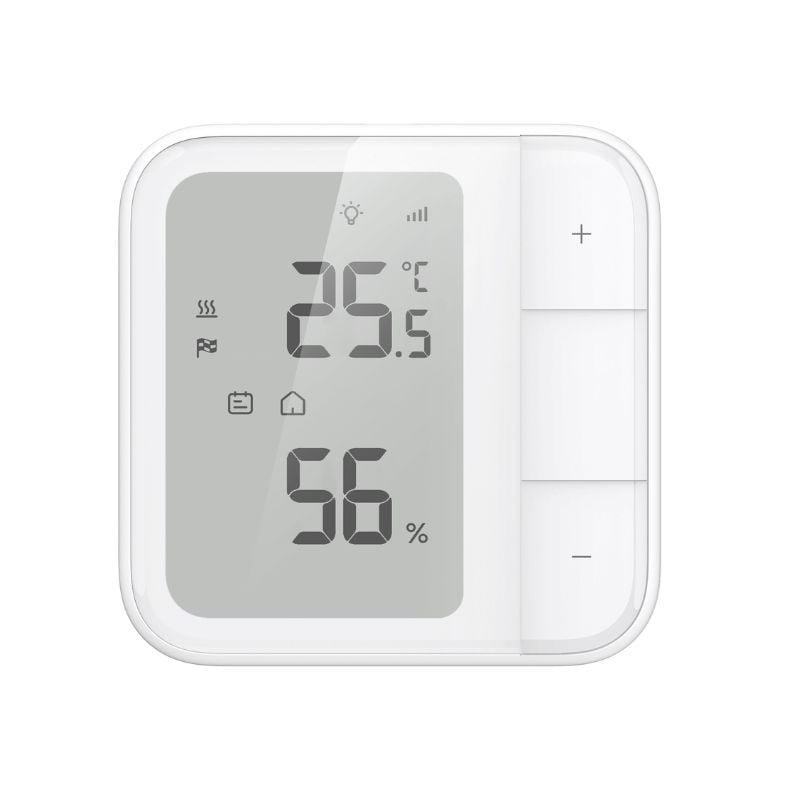

- Display: segment with backlighting
- Temperature and humidity range: 0 - 45 ℃, 0 - 99% RH (non-condensing)
- Maximum power and current: 3680 W / 230 V, 16 A
- Power measurement: supported
- Reporting frequency: configurable, ≥ 0.5 °C / 1 ºF / 3% RH

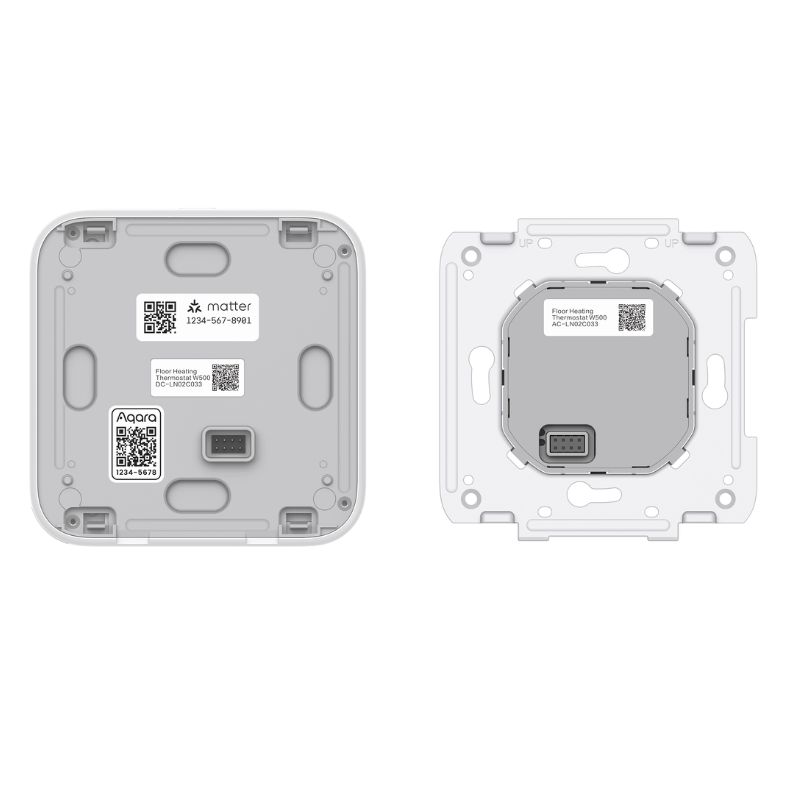

- Installation: European standard box (compatible with American standard box)
- External NTC support: 10 kΩ, 50 kΩ, 100 kΩ (expandable according to tests)
- Buttons: 4 buttons (reset + three control buttons)
- Default NTC port resistance: 10 kΩ

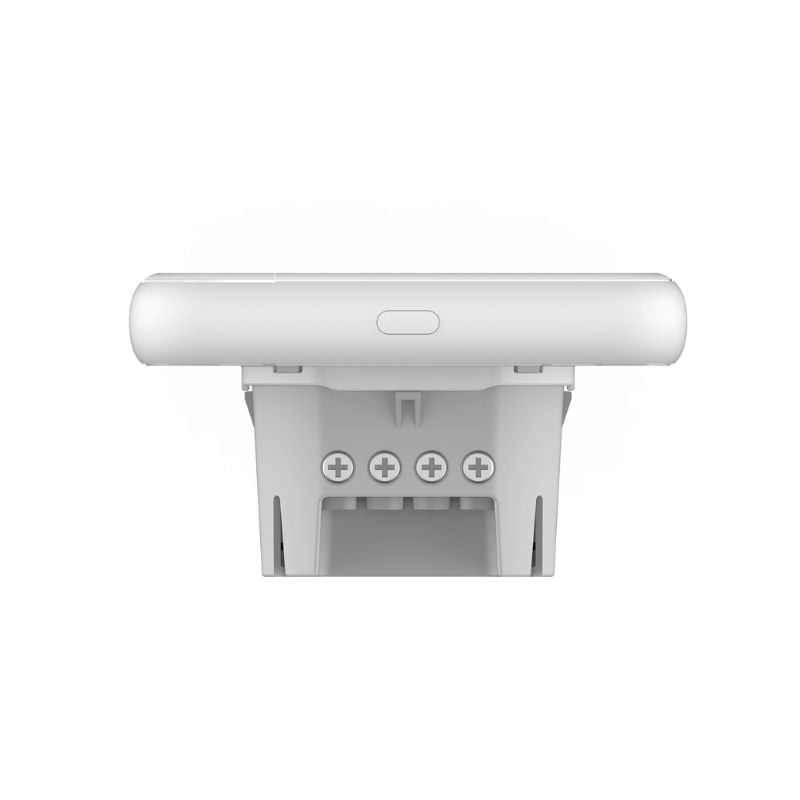

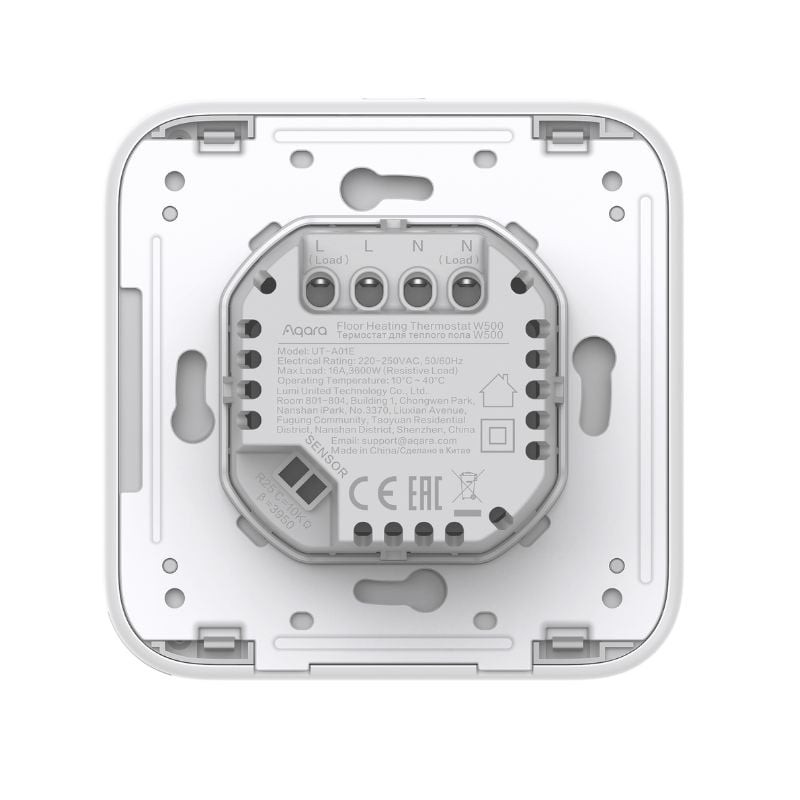

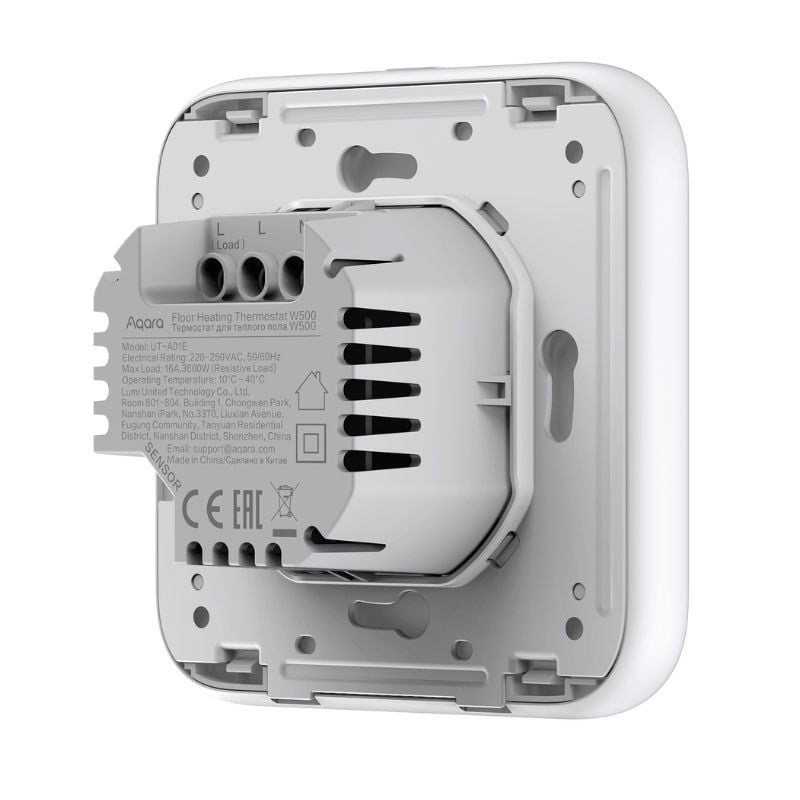

- Connection ports: L, N, N (load), L (load), Sensor1, Sensor2
- Sampling rate: once per second, configurable

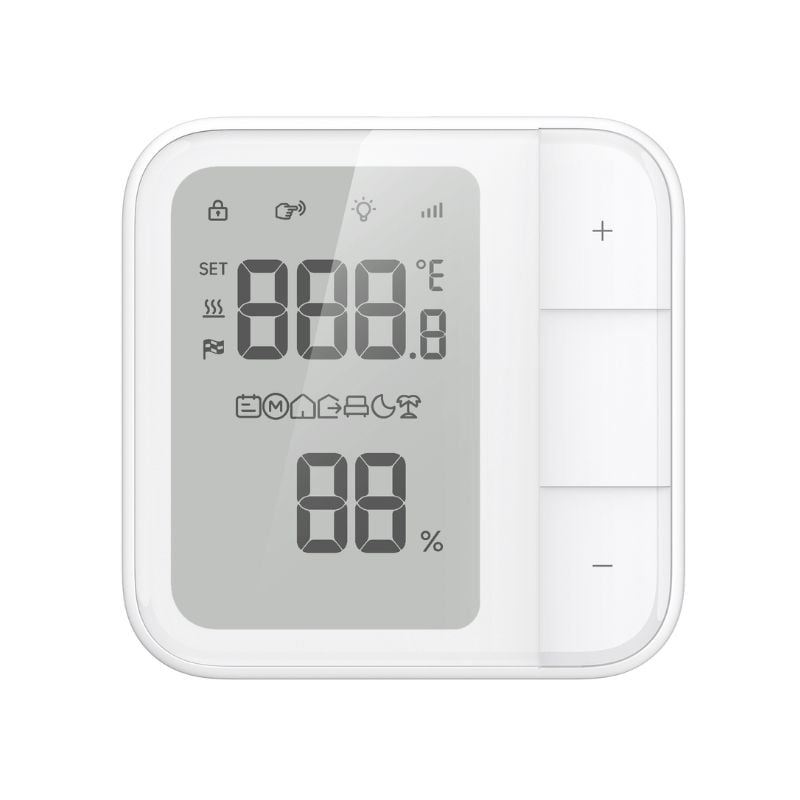

- Display: offline status, signal strength, remote control, child lock, sensor temperature and humidity, target temperature and humidity, floor sensor status, dehumidifier icon, approximate target temperature, modes (Home, Away, Sleep, Bed, Vacation)

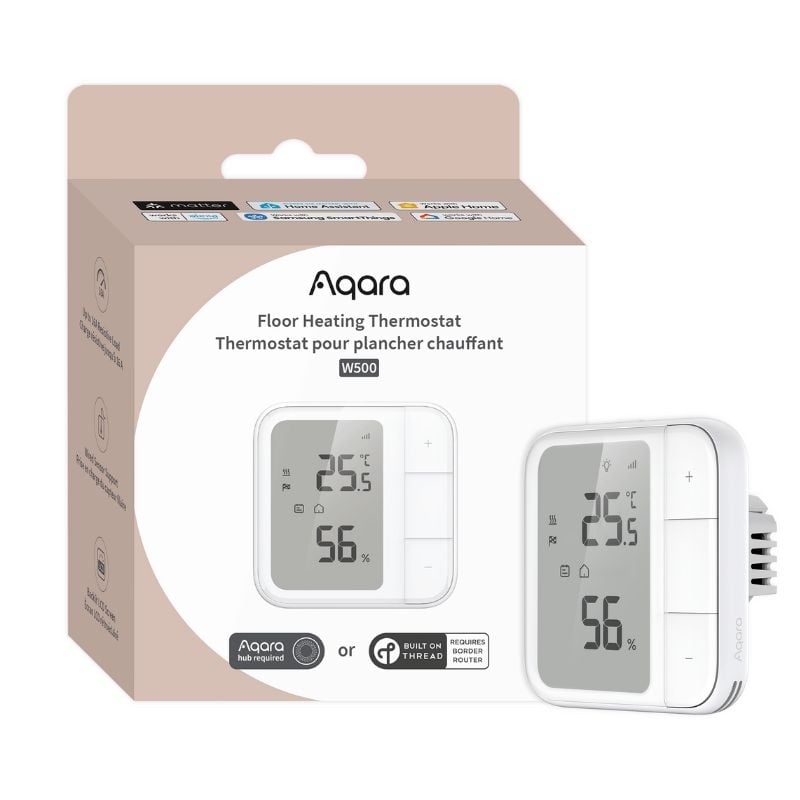

- Package contents: W500 floor heating thermostat, user manual, declaration of conformity, set of screws, NTC sensor
Specifications
| Protocol | Thread Zigbee |
|---|---|
| Type | Sensor Thermostat (Flush-mounted) |
| Function | Actuator Humidity Temperature |
| Use | Heating Management |
-
