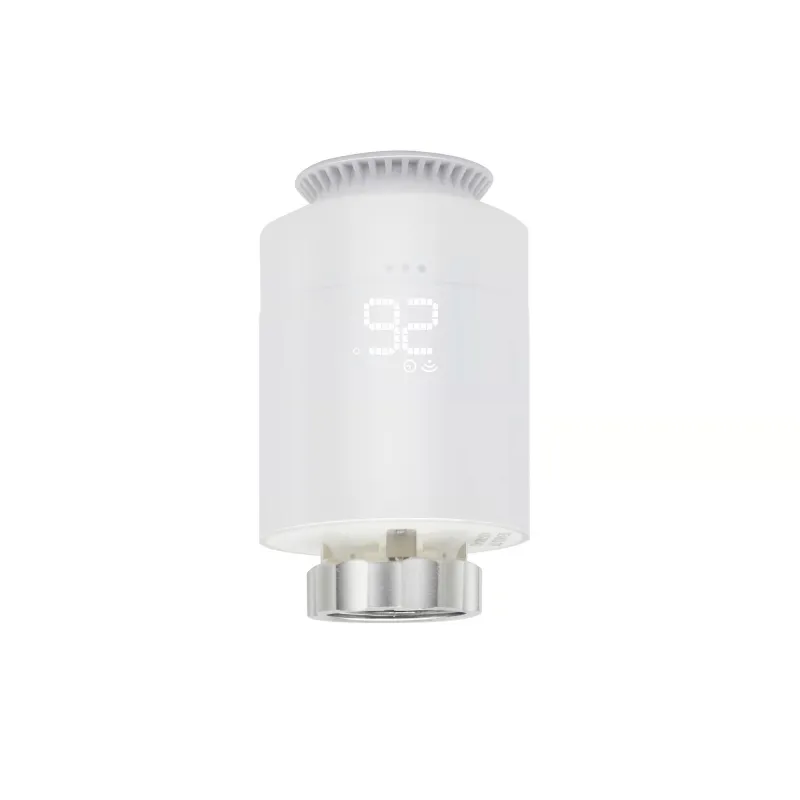

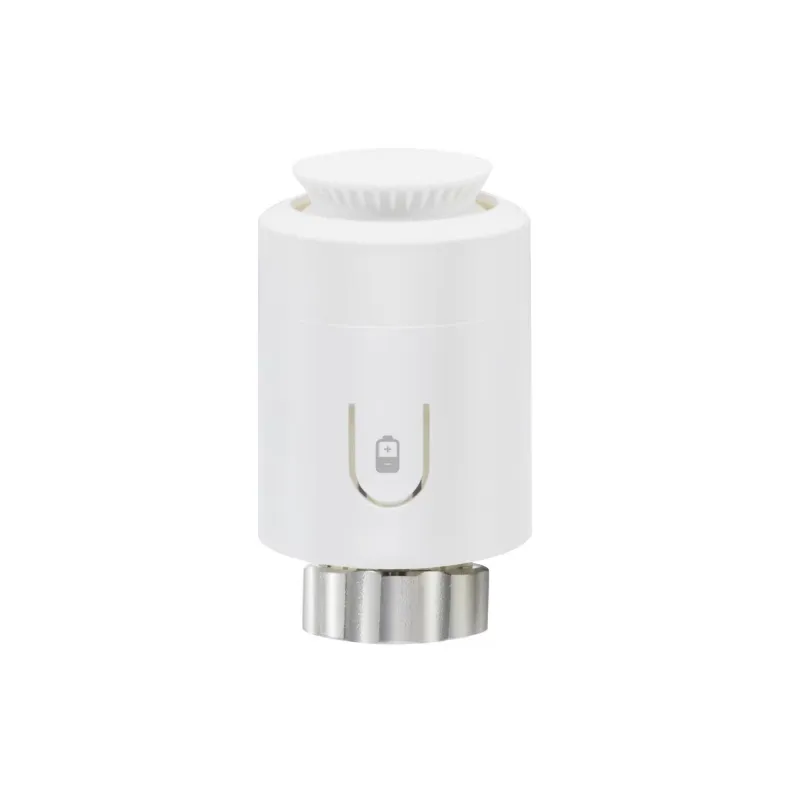

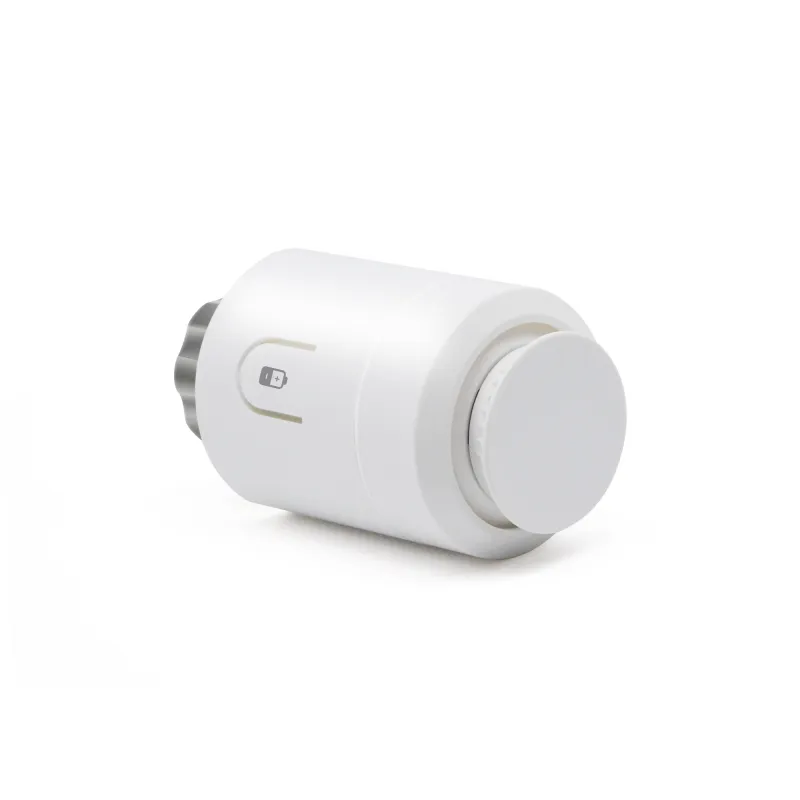

Reconditioned - Zvidar - Z-Wave+ 700 thermostatic head

Controlled return

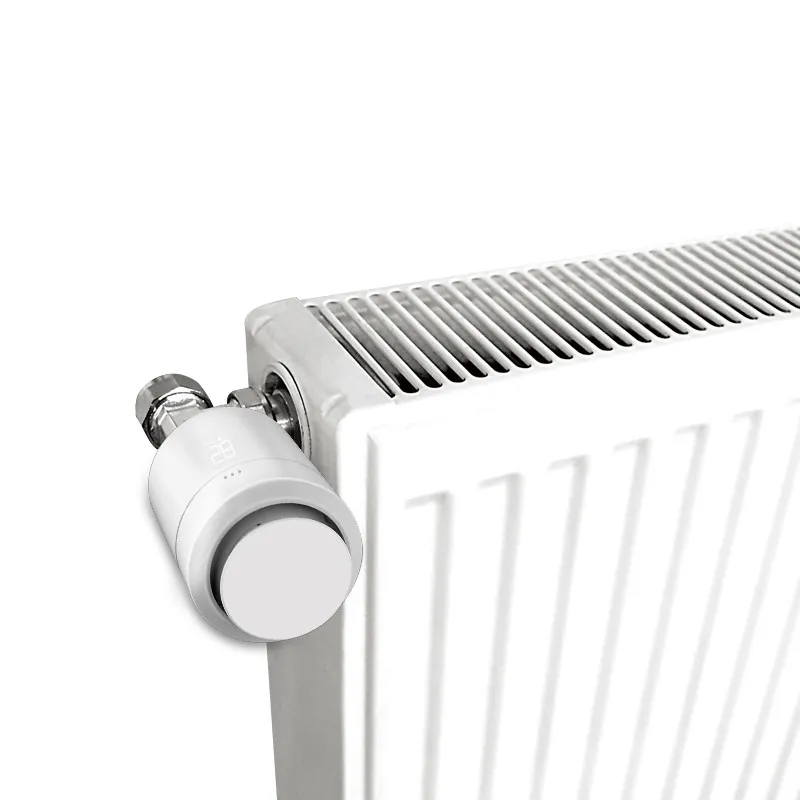

The smart radiator thermostatic valve is designed to provide individual, room-by-room heating control. By working in conjunction or not with a central thermostat you will be able to create a heating system by zone. You can then easily manage your heating via an application for smartphones, tablets or computers remotely thanks to your Z-Wave-compatible home automation solution.

The smart radiator thermostatic valve can be included and used in a Z-Wave network with other Z-Wave certified devices from other manufacturers and/or other applications. All non-battery powered devices within the network will act as repeaters regardless of the supplier to increase network reliability.

The Smart Radiator Thermostatic Valve is a Z-Wave (S0/S2) safety device, so a controller supporting these safety levels is required to take full advantage of all the features of the thermostatic valve.

DUTIES

• Radiator thermostat
• Manual or Z-Wave heating control with instant status update
• Z-Wave 700 series chip for better range and faster control
• SmartStart and S2 Security for a more secure network
• Window opening function
• Anti-limescale function
• Child lock function
• Antifreeze function
• RA, Caleffi and Giacomini adapters Danfoss included
• Easy installation

SPECIFICATIONS

• Power supply: 3V ⎓ (2 × 1.5V AA not included)
• Battery life: 2 years
• Operating current: ~20mA
• Standby current: ~30uA
• Communication protocol: Z-Wave
• Radio frequency: 868.42 MHz (EU)
• Wireless range: up to 100 meters in open field
• Temperature adjustment accuracy: 0.5°C
• Ambient temperature display range: 0-50°C
• Operating temperature range: 5-30°C
• Operating humidity: up to 85% non-condensing
• Threaded connection: M30 × 1.5mm ( Danfoss RA, Caleffi and Giacomini adapters included)
