Reyee - 48-Port Managed Gigabit PoE+ Switch 370W + 4 SFP RG-NBS3100-48GT4SFP-P
New
CHF1,065.00
Tax included
- Reyee Cloud Layer 2 PoE Switch
- 48 Gigabit PoE Ports + 4 Gigabit SFP
- 30W per port 802.3af/at / Maximum 370W
- Static LAG/DHCP Snoop/IGMP Snoop/Port Mirror
- VLAN/port isolation/STP/RSTP/ACL/QoS/LACP/SNMP
- Rack-mountable
In stock. Ordered before 5pm, delivered on the next business day

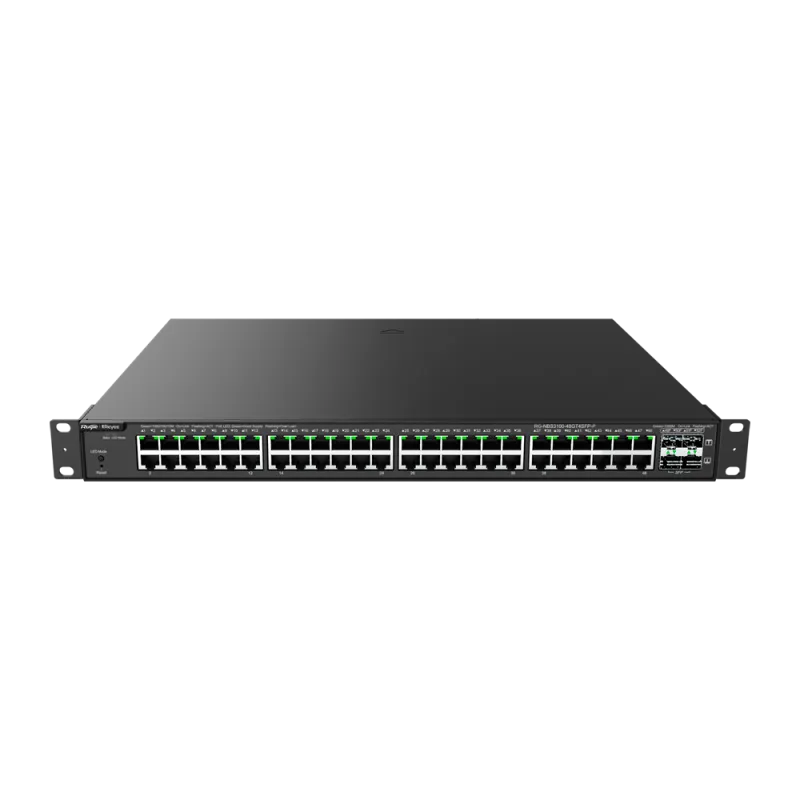

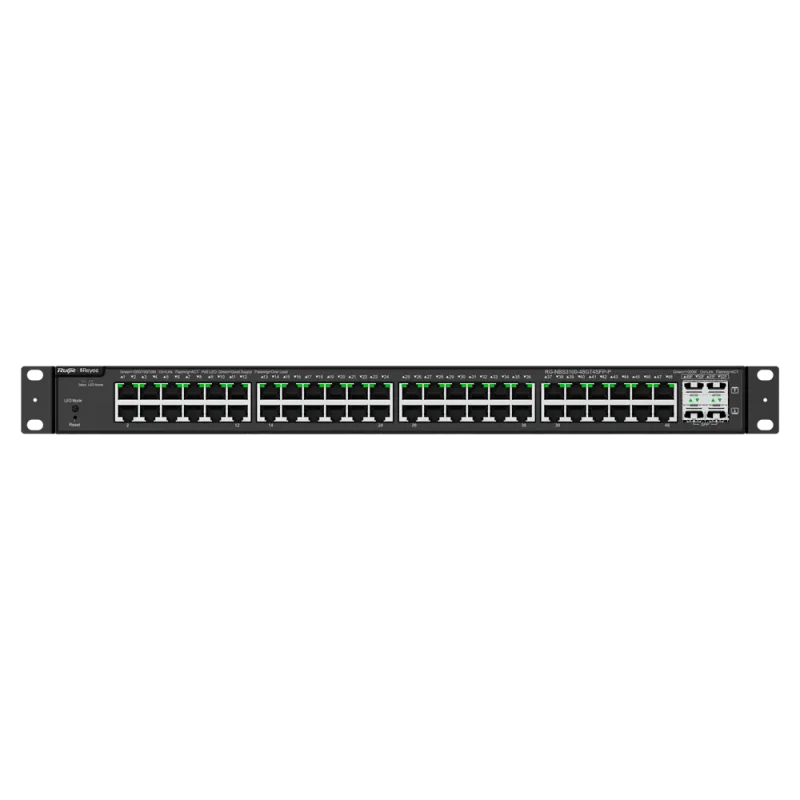

Reyee RG-NBS3100-48GT4SFP-P Managed PoE+ Switch
Overview
The Reyee RG-NBS3100-48GT4SFP-P is a Layer 2 managed switch designed for demanding professional networks. Equipped with 48 Gigabit RJ45 ports and 4 SFP ports, it offers a complete solution for PoE equipment deployment with a total power capacity of 370W.
Key Features
- 48 Gigabit RJ45 ports with PoE/PoE+ support
- 4 SFP ports for fiber optic connections
- 370W total PoE power
- Up to 30W per port
- IEEE802.3af/at standards support
- Management via Web/Cloud/App/SNMP
- Rack mountable
Technical Specifications
| Interface | 48 RJ45 10/100/1000 Mbps ports + 4 SFP ports |
| Port Speed | 48x 10/100/1000 Mbps - 4 x SFP 10/100/1000 Mbps |
| PoE | Ports 1~48 802.3af/at |
| Power Source | Up to 30W per port (370W for entire device) |
| PoE Features | Compliant with IEEE 802.3at PoE+ / IEEE 802.3af PoE |
| VLAN | Up to 4094 Voice VLAN |
| Redundancy Control | Spanning Tree (STP, RTSP) |
| Network Protocols and Technologies | LLDP/LLDP-MED IGMP Snooping v1/v2 CPU Protect Policy, Energy Efficient Ethernet ACL Jumbo Frame 9216 Static LAG LACP 802.1X |
| Management Protocols | Web/Cloud/App/SNMP |
| Installation | Rack |
| Power Supply | AC 100 V - 240 V |
| Operating Temperature | 0° C - 50° C |
| Dimensions | 357.6 (D) x 43.6 (H) x 440 (W) mm |
| Weight | 5.4 Kg (with packaging) |
Specifications
| Garantie | 5 years |
|---|---|
| 10/100/1000Base-T ports | 48 |
| SFP ports | 4 |
| PoE/PoE+ ports | 48 |
| Max. PoE budget | 370 W |
| Max. power consumption | 448 W |
| Power supply | 100 V CA to 240 V CA, 7,0 A |
| Cloud-Management | Yes |
| Switching Layer | Layer 2 |
-
