Reyee - 24-Port Unmanaged PoE+ 10/100Mbps Switch RG-ES126FGS-P
New
CHF388.00
Tax included
- Reyee Desktop PoE Switch
- 24 RJ45 Ports + 1 RJ45 Uplink + 1 SFP Combo
- 24 10/100Mbps Ports + 2 10/100/1000Mbps Ports
- 24 PoE+ Ports 802.3af/at | Total Power 370W
- Port Isolation / Flow Control / PoE Monitoring
- Plug and Play
In the process of replenishment

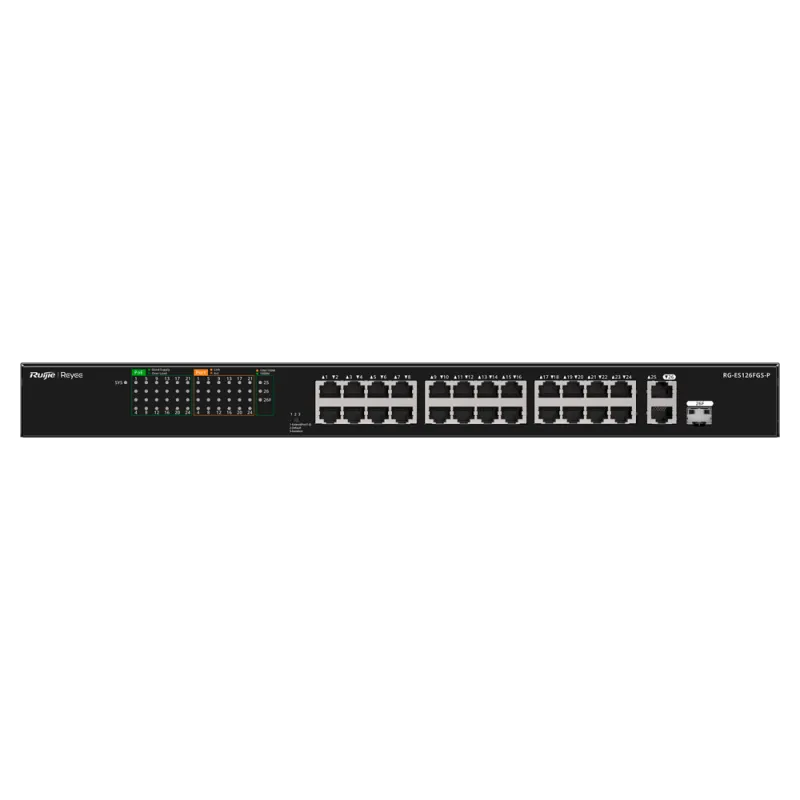

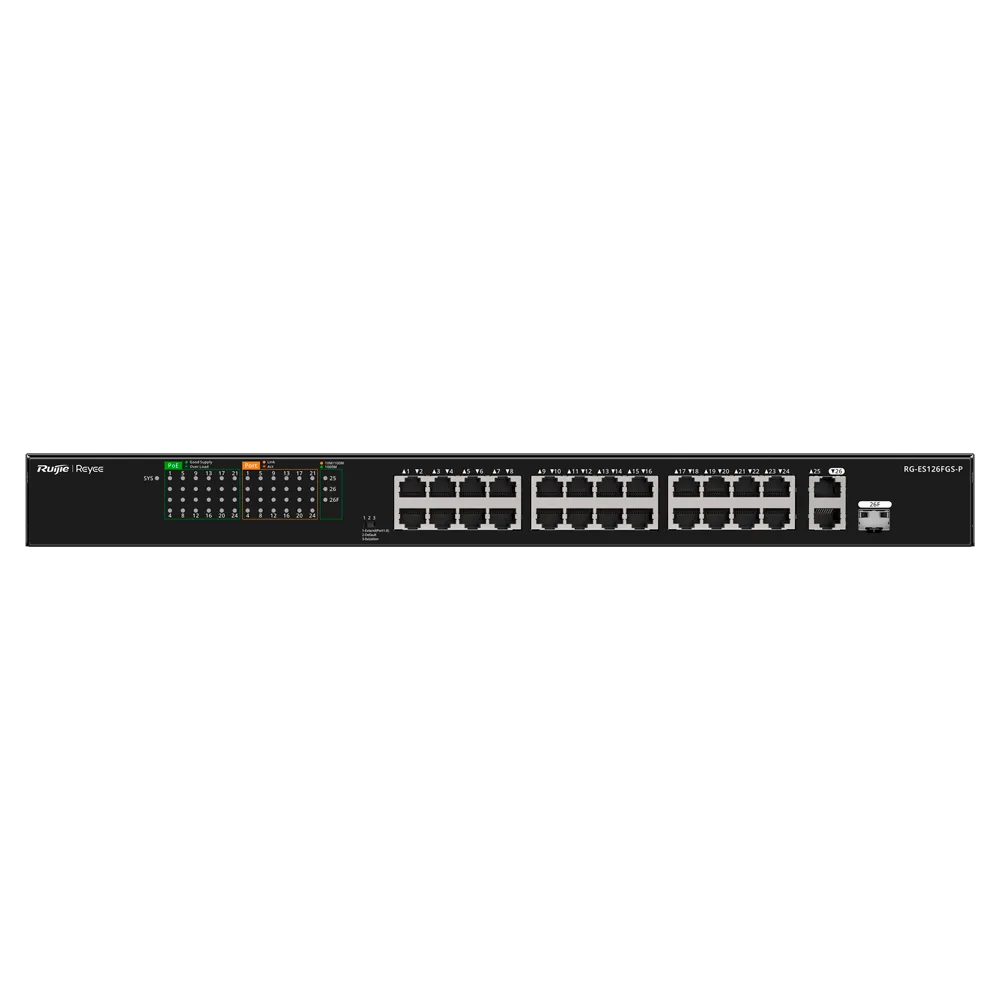

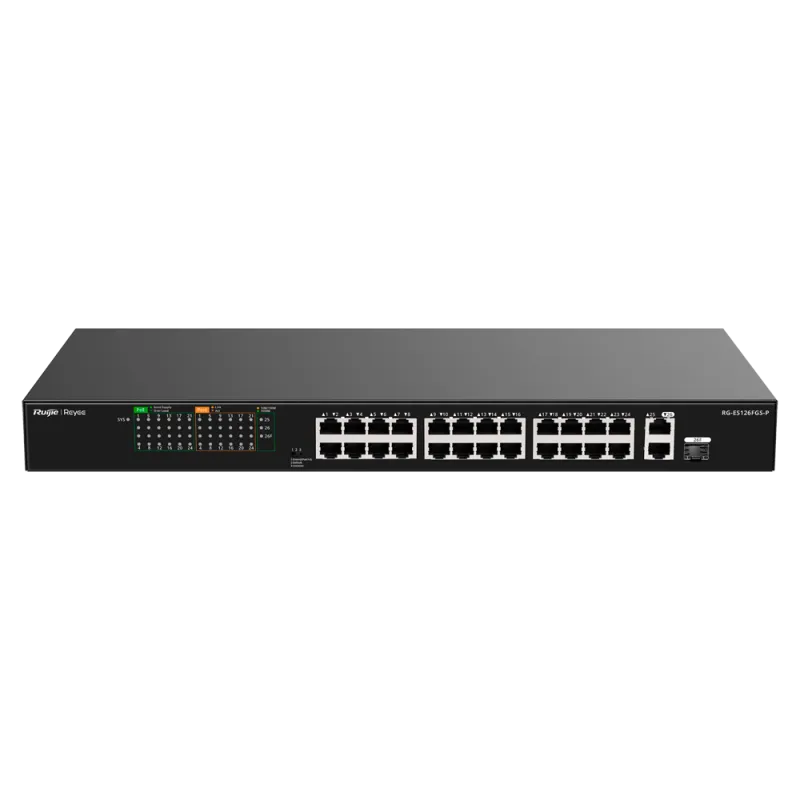

Reyee RG-ES126FGS-P Switch
Overview
The Reyee RG-ES126FGS-P switch is a high-performance unmanaged network switch designed for professional environments. Equipped with 24 PoE+ ports and a total power capacity of 370W, it offers a reliable solution for connecting and powering your network equipment.
Key Features
- 24 RJ45 10/100Mbps ports with PoE+ (802.3af/at)
- Total PoE power of 370W with up to 30W per port
- 1 Gigabit RJ45 Uplink port and 1 SFP combo port
- Robust metal housing with adjustable speed fan
- Advanced features: port isolation, PoE Watchdog, extended PoE
- Compatible with Ruijie Cloud
- Plug and Play installation
Technical Specifications
| Brand | Reyee |
| Interface | 24 RJ45 10/100Mbps Ports 1 RJ45 10/100/1000Mbps Port 1 SFP/RJ45 Combo Port (either SFP or RJ45 port can be used, but not both simultaneously) |
| PoE Features | 24 802.3af/at PoE+ Ports Up to 30W per port Total PoE power of 370W |
| Functions | Isolated ports, PoE watchdog, Extended PoE |
| Management | Unmanaged, but visible from Ruijie Cloud if there is at least one manageable switch in the installation. |
| Bandwidth | 8.8Gbps |
| Packet Forwarding Rate | 6.55Mbps |
| MAC Table | 8K |
| Supported Technologies | Auto-negotiation Mode / Auto MDI/MDIX |
| Power Supply | 100V to 240V AC 6.0A |
| Maximum Power Consumption | < 370W |
| Operating Temperature | 0º C ~ 45º C |
| Dimensions | 440 x 214.9 x 44 mm |
| Weight | 3.78 Kg |
Specifications
| Garantie | 3 years |
|---|---|
| Downlink ports | 24 x 10/100BASE-T |
| Uplinks ports | 2x 10/100/1000Base-T + 1x combo |
| PoE/PoE+ ports | 24 |
| Max. PoE budget | 370 W |
| Power consumption | Without PoE: < 20 W / Full load POE: < 370 W |
| Power supply | 100 V CA to 240 V CA, 6,0 A |
| Cloud-Management | No |
| Switching Layer | Unamaged |
-
