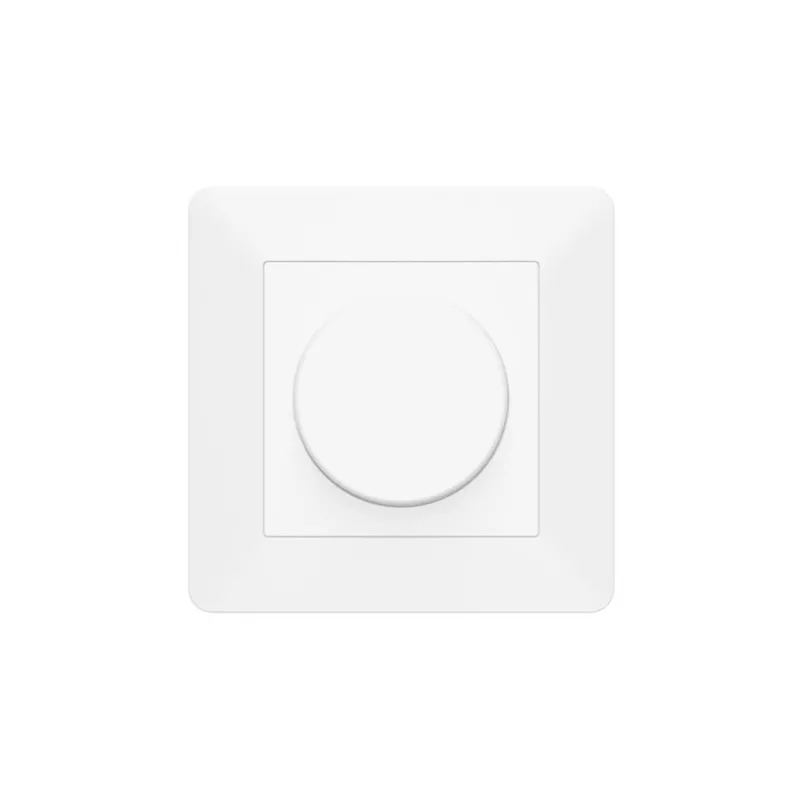

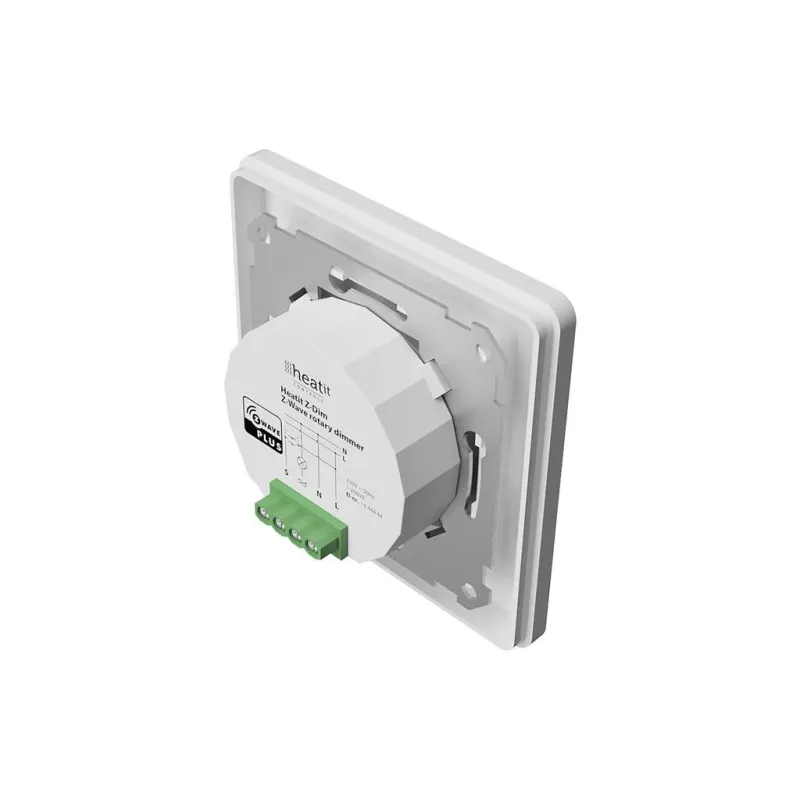

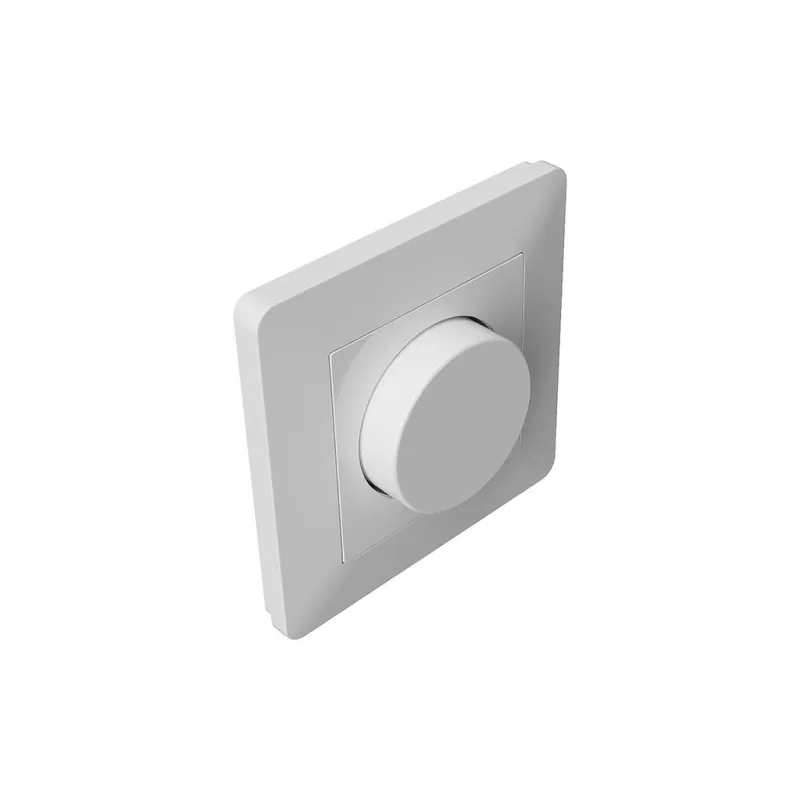

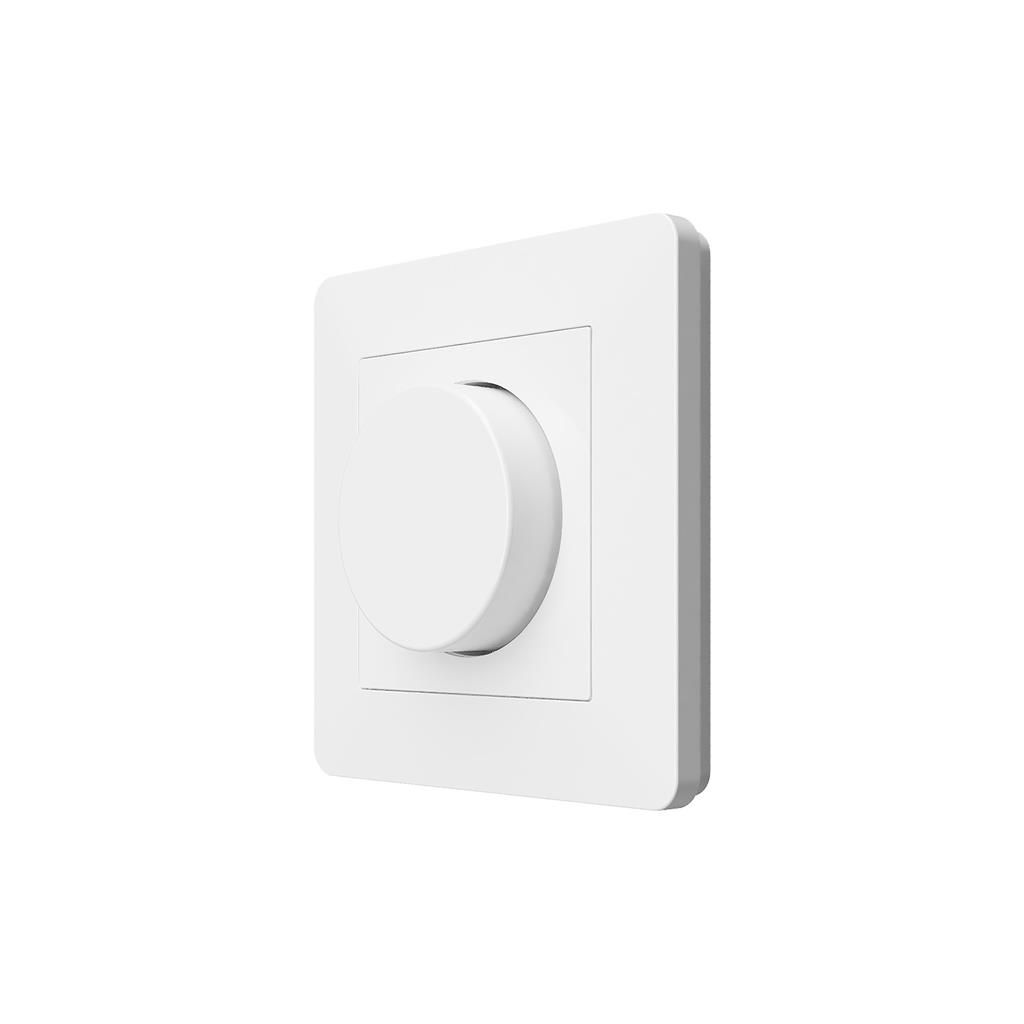

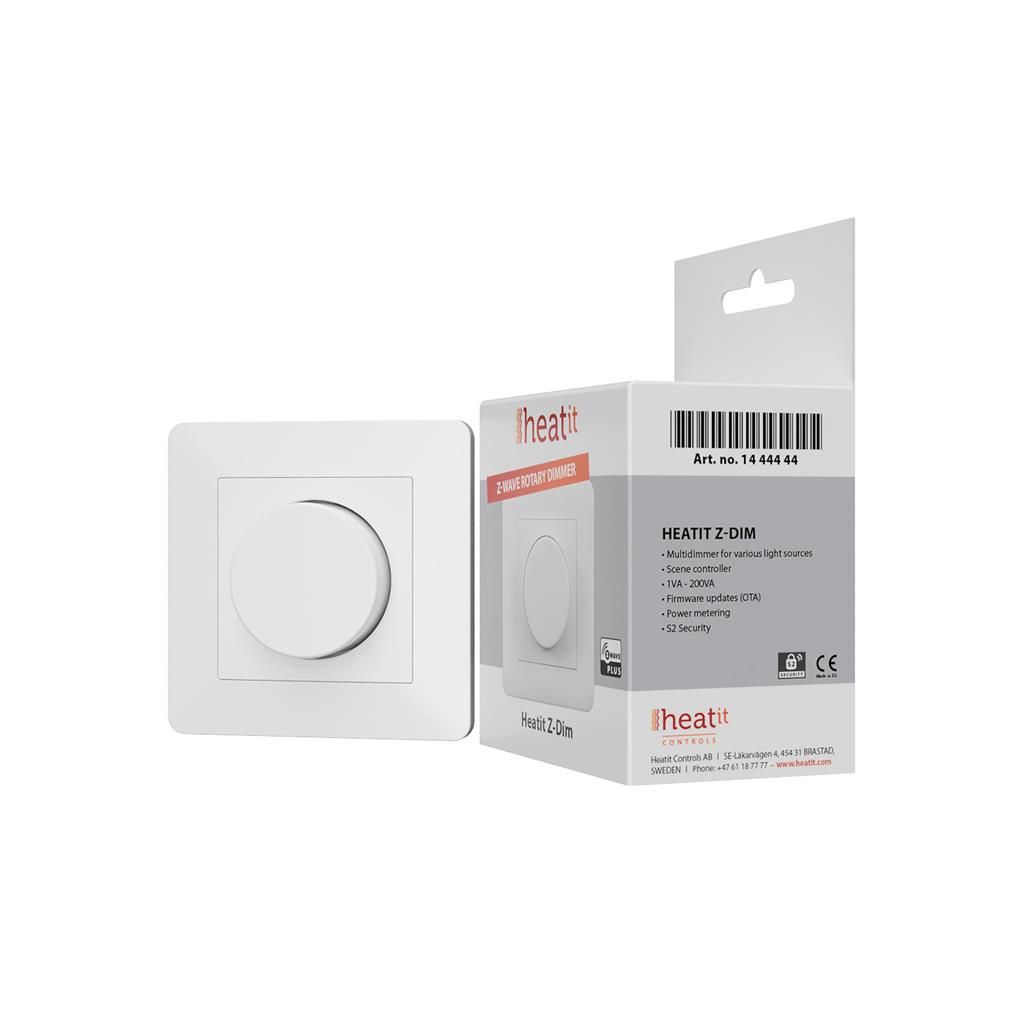

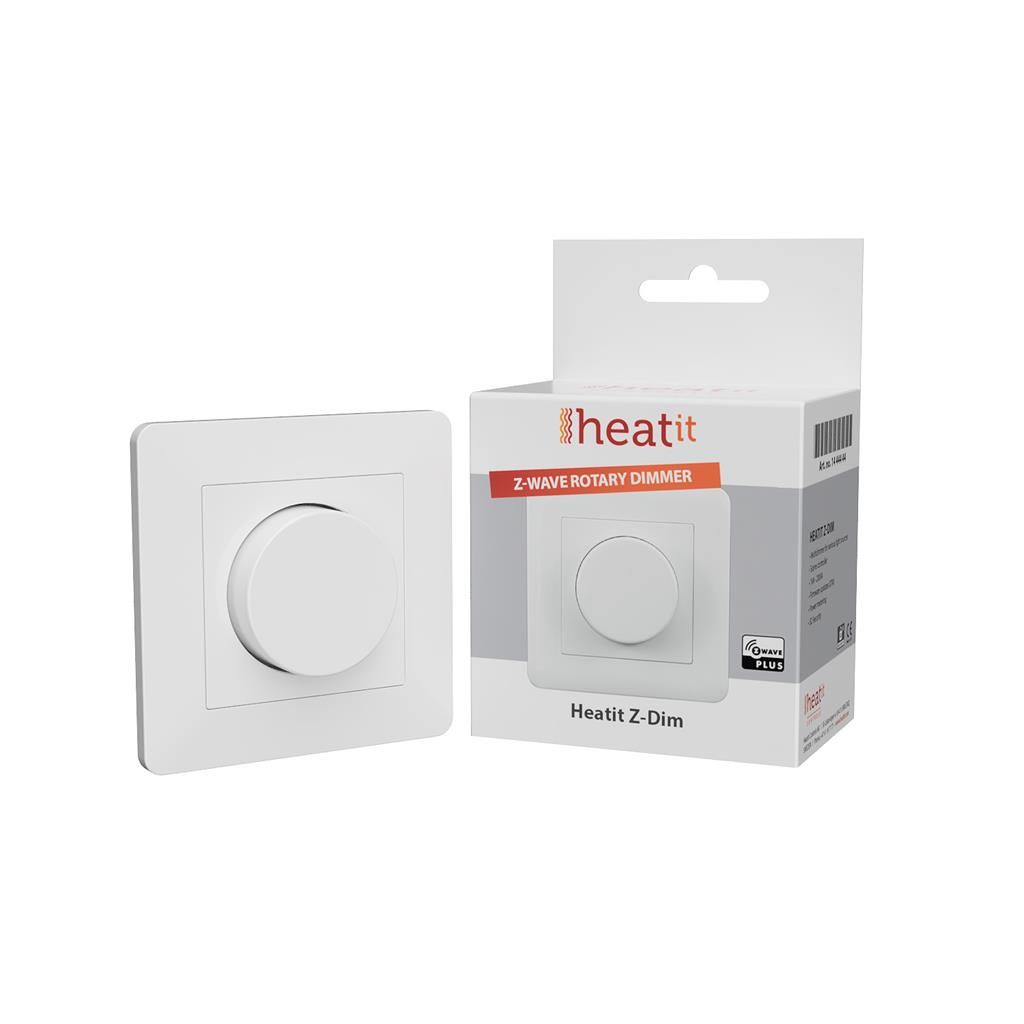

Thermofloor - Z-Wave+ rotary dimmer Heatit Z-Dim

PRESENTATION

The Heatit Z-Dim is a Z-wave+ rotary dimmer that can control different types of light sources. It allows you to control your lights remotely via your home automation controller or your Z-Wave software.

It even works on low loads without causing the lights to flicker. It dims LED bulbs from 1-200 VA, 230 V halogen and incandescent bulbs, LED drivers, and electronic transformers.

The Heatit Z-Dim is equipped with a multiway switching option. This allows you to turn on and dim a light source from one Z-Dim and then turn it off from another Z-Dim. Very convenient for stairwells, long corridors, etc.

The Z-Dim dimmer is able to monitor the power consumption of the connected device. It also has a double-click function, which allows you to use it as a scene controller for example.

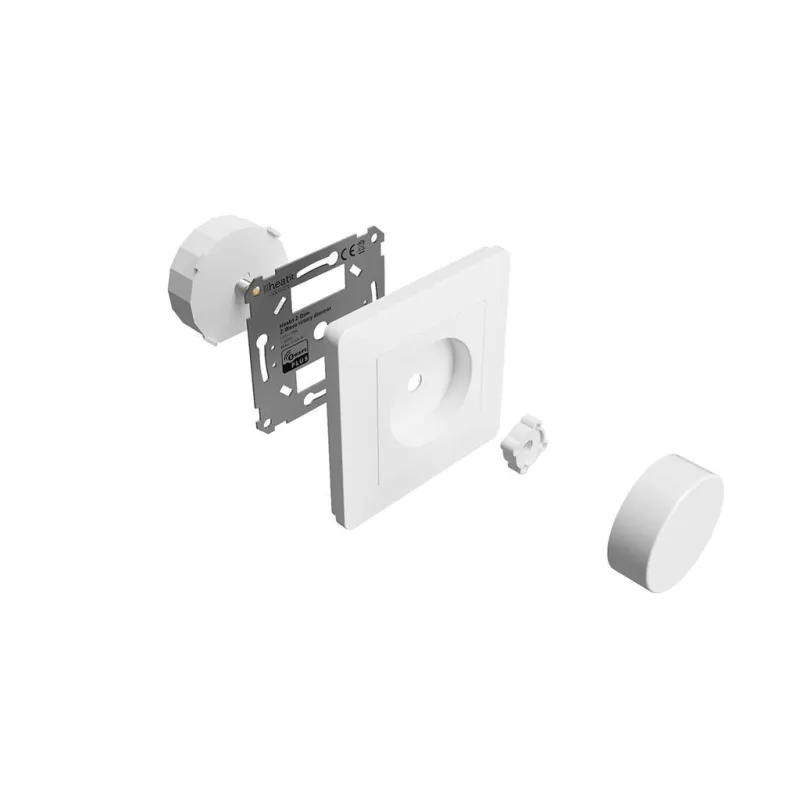

The Heatit Z-Dim fits into standard Gira System 55, Elko, or Schneider Exxact frame systems. It supports S2 security and uses AES 128-bit encryption.

FEATURES

• Rotary dimmer to control your lights
• Rotate to dim and click to turn ON/OFF
• Can be used in Diagram 3 (back and forth)
• Power consumption monitoring
• Displays the status of the relay
• Multi Channel Associations support
• Over-the-air (OTA) firmware updates
• S2 Framework support
• 500 series chip (Z-Wave+)
• 8 associations
• "Trailing Edge" variation
• Overheating protection

TECHNICAL DATA

• Z-Wave protocol
• Chip: 500 series
• Power supply: 230 V - 50 Hz
• Input current: 0.9 V
• Maximum power: 200 VA

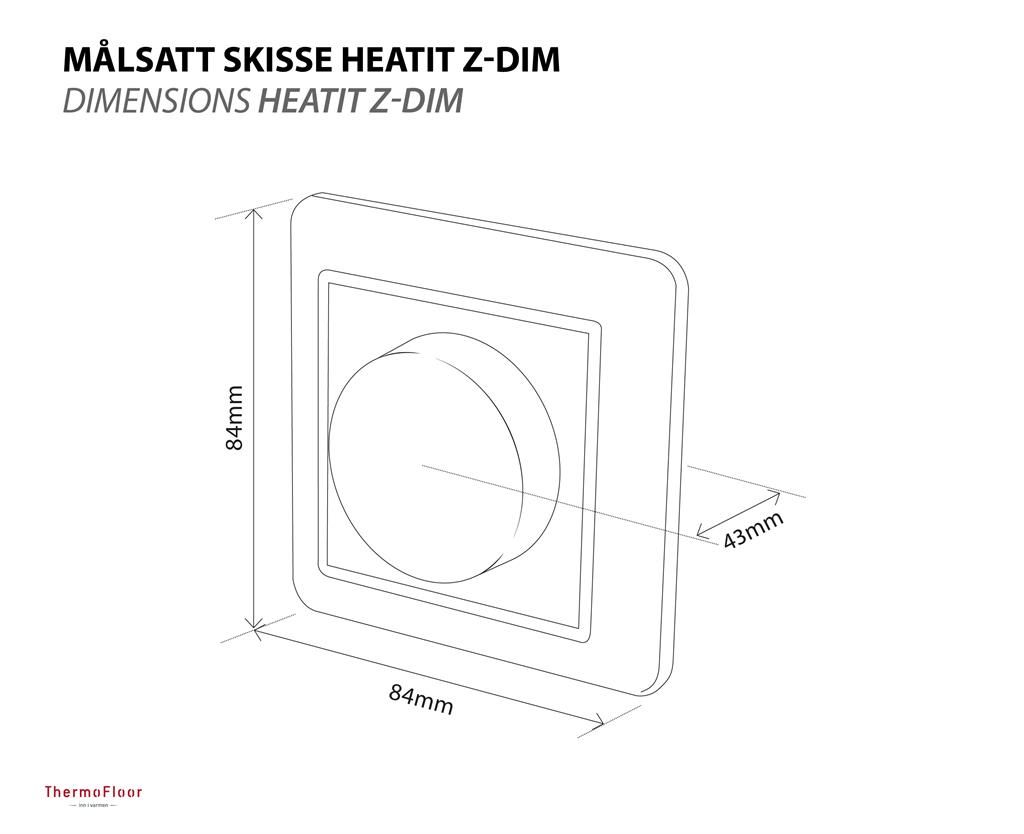

• Size (L x W x H): 84 x 84 x 43 mm
• Operating temperature: -20°C / +40°C
• IP Code: IP20
