Meross - Smart Wi-Fi Roller Shutter Belt Winder

Introduction

The WiFi Matter MRS200MA-EU roller shutter strap winder from MEROSS allows you to easily automate your strap-operated roller shutters without modifying your existing installation. Compatible with the Matter protocol, it perfectly integrates with Apple HomeKit, Google Home, Alexa, and SmartThings ecosystems via a Matter hub. With its automatic calibration of upper and lower positions, integrated sensors, and quiet motor, it ensures precise, secure, and comfortable control of roller shutters, with a maximum traction of 45 kg.

Key Features

• Automation of strap-operated roller shutters without complex wiring.

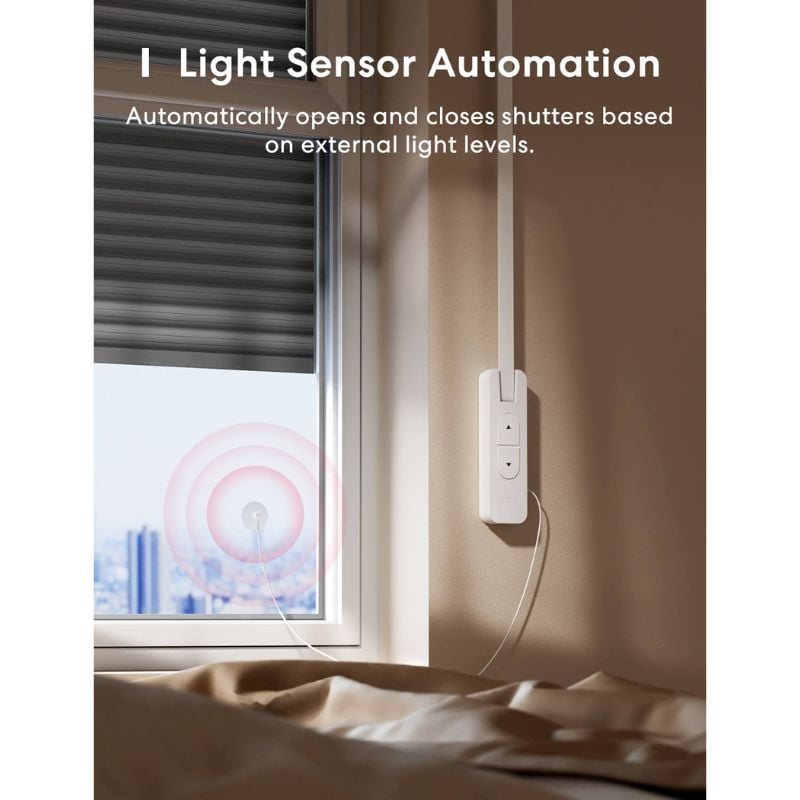

• Automatic opening and closing based on ambient light.

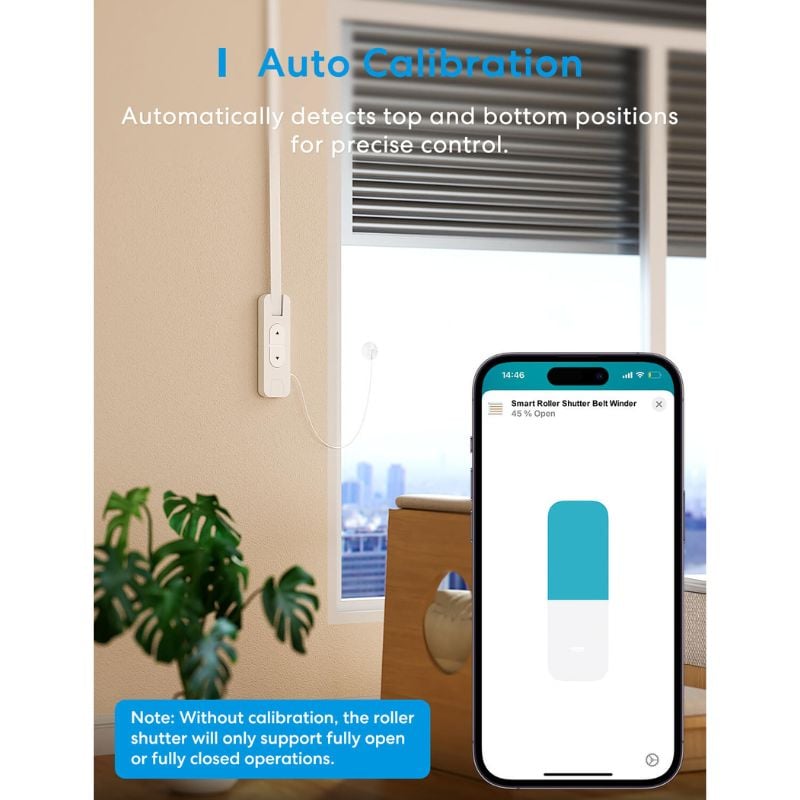

• Automatic calibration of upper and lower positions.
• Remote control or voice command via compatible apps.

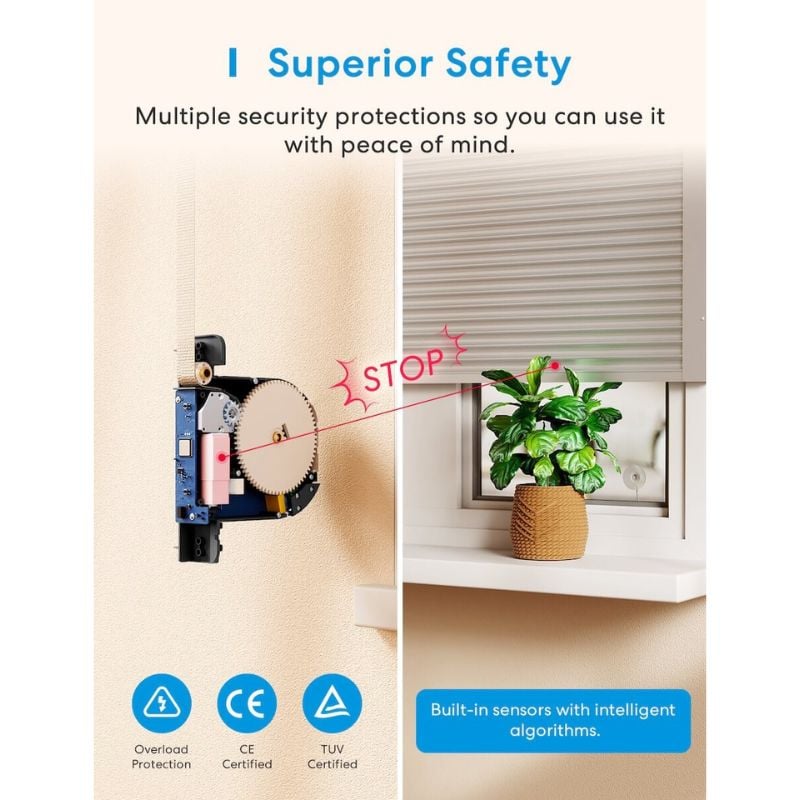

• Enhanced security with intelligent detection and encrypted Matter protocol protection.
• Discreet recessed installation in a wall.
• Compatibilities: Apple HomeKit (via HomePod mini), Google Home (via Nest Hub), Amazon Alexa (via Echo Dot), SmartThings Hub.

Technical Specifications

• Power Supply: 230V~, 50/60Hz.
• Nominal Power: 70 W.
• Standby Consumption:
• Nominal Torque: 10 Nm.
• Maximum Speed: 36 rpm.

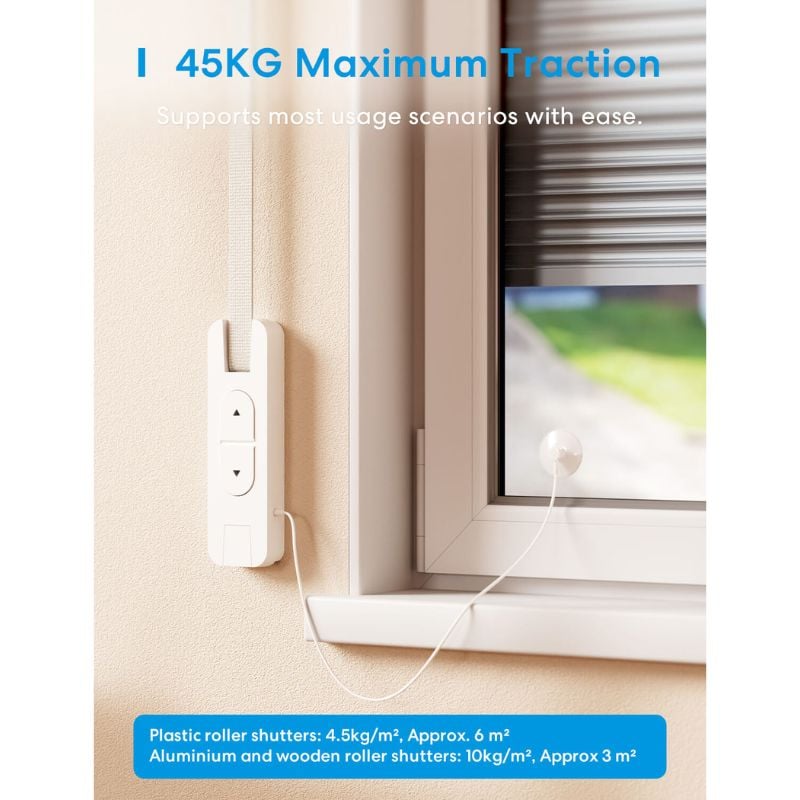

• Maximum Traction Force: 45 kg.
• Sound Level: ≤ 70 dB(A).
• Protection Class: II.
• Protection Rating: IP20 (indoor dry use only).
• Dimensions: 61 × 164 × 210 mm (excluding cable).
• Power Cable Length: 2 m.
• Light Sensor Cable Length: 1.5 m.

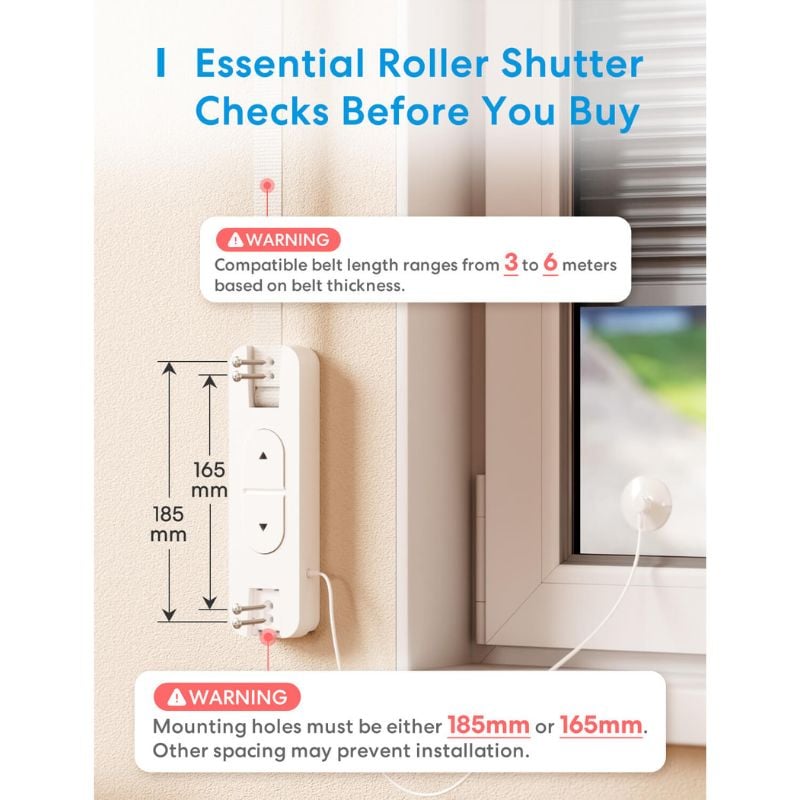

• Mounting: recessed, hole spacing: 165/185 mm.
• Protocol: WiFi 2.4 GHz (IEEE 802.11 b/g/n).
• Network Security: WPA/WPA2, WEP (excluding enterprise WiFi).
• OS Compatibility: iOS 16.1+ / Android 10.0+.
• Operating Temperature: 0°C to 40°C.
• Operating Humidity: 10% to 90% (non-condensing).
• Certifications: CE, RoHS, WEEE.
• Package Contents: 1 WiFi winder, 1 light sensor, 1 2 m cable, 1 mounting bracket, 5 screws, 1 compartment cover, 1 cable cover, 1 user guide.
