Controlled return
The Ecodevice RT allows you to monitor your water, electricity and gas consumption. A multitude of options and extensions complete the system.
Consumption tracking
Track your consumption of electricity, water, gas, fuel oil as well as the production of your photovoltaic panels, with ease and with 1 device. Control your heating, optimize the production of hot water, reduce energy-consuming stations and save money!
Standalone and subscription-free

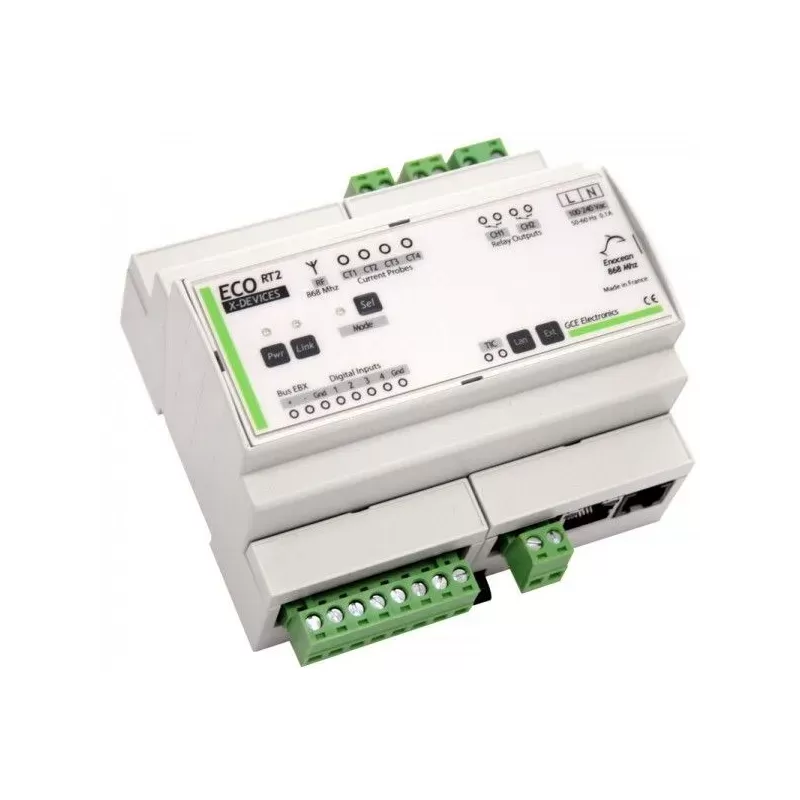

The Ecodevices RT2 is a 100% standalone IP power manager (no remote server or subscription). It has a powerful scenario engine to accurately manage up to 64 consumption stations according to events such as price change, indoor or outdoor temperature, power overrun (load shedding) etc..
Simple and intuitive graphical interface
Just use the browser of your smartphone, PC, tablet to connect to the Ecodevices RT2. Its 100% responsive graphical interface adapts to all screens.
Enocean IP and Radio Technology
It is equipped with Enocean technology and can communicate easily via the Internet with remote servers, home automation boxes or any device with Enocean Radio technology.
GSM Options, Wire Driver, I/O
A multitude of options and extensions already available make it possible to extend the possibilities of the Ecodevices RT.
GSM communication alerts and control by sms, heating management by pilot wire 6 orders, additions of additional inputs / outputs, temperature sensors, humidity, brightness ...
Statistics and History
The Ecodevices RT2 records consumption indices for 4 years. A graphics engine allows you to visualize the different consumption curves. The data is exportable in .csv format.
Continuous evolution
Like all our products the Ecodevices RT2 is constantly evolving. Thanks to the active participation of our user community we regularly add new functions and make patches to improve the product based on user experience feedback.
Included: 2 current clamps offered (Within the limits of available stocks)
duties

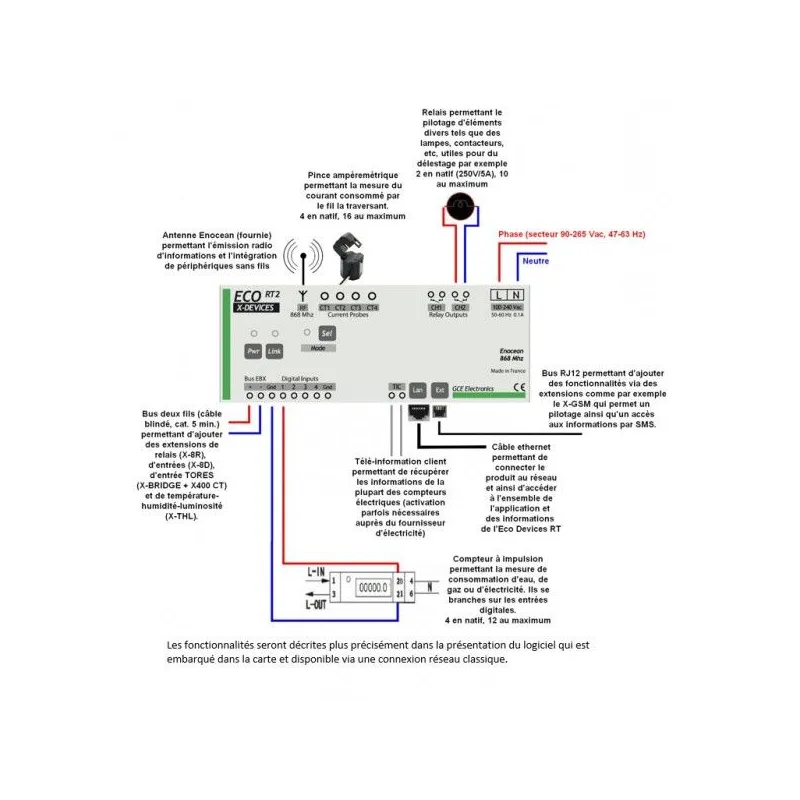

- 1 Input teleinformation compatible classic counter or Linky
- 4 Tory inputs for amperemeter clamps (expandable to 16)
- 4 Digital inputs for dry contact or open collector
- 2 Relay outputs 250V / 10A (Resistive). (Expandable to 10)
- 1 RJ12 expansion port for X-GSM and x-bridge
- 1 Fieldbus to add X-4FP, X-8R, X-8D extensions etc...
- 256 Programmable clocks (weekly or on specific dates).
- 256 personalisable scenarios. GX© scenario engine. FUNCTION AND, OR, NOT
- 128 Tcp/ip notifications on power overrun, price change etc...
- 128 secure email alerts with customizable message to 4 recipients
- Storing the status of relays in the event of a power outage
- Configurable pre-delay and post-delay pulse durations (Ta and Tb) for each relay and virtual outputs
- Adjustable threshold on all analog data (TORE input, Tele-information, meter, etc.)
- Enocean transmitter, EEP A5-12- 00 or A5-12- 10, 16 transferable channels
- Enocean receiver (24 Actuators, 24 Switches and 24 analog sensors)
- Secure access by authentication
- Compatible with any browser (optimized for Firefox, Google Chrome and Safari), iPhone, iPad, Android
- HTTP/JSON and M2M API (TCP/IP control) protected by a password for compatibility with other connected objects (home automation box type)
- Automatic time setting. Summer/winter time management. Internal clock
- Advanced network configuration (DHCP, static IP, port, etc.) and DynDns support
- Din rail case for a simple integration in your installation
Technical Specifications
- Power supply: 90-265 VAC, 47-63 Hz
- Consumption: 3.5W
- Network: 10/100Mbbits, HP Auto-MDIX, cable diagnostics, IEEE 802.3az.
- Weight: 230g
- Dimensions: 106 x 90 x 63 cm
- Operating temperature: -10 to +60 °c @ 50% humidity
- Protection Rating: IP20
- Insulation: Class 2
- Standard: CE
Specifications
| Protocol | EnOcean IP |
|---|---|
| Type | Controller |
