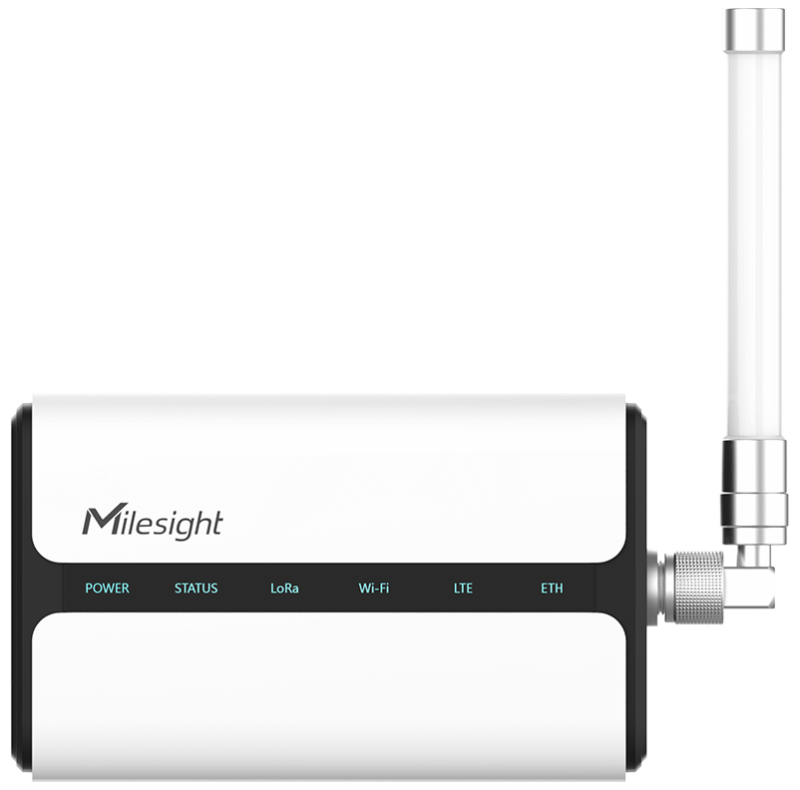

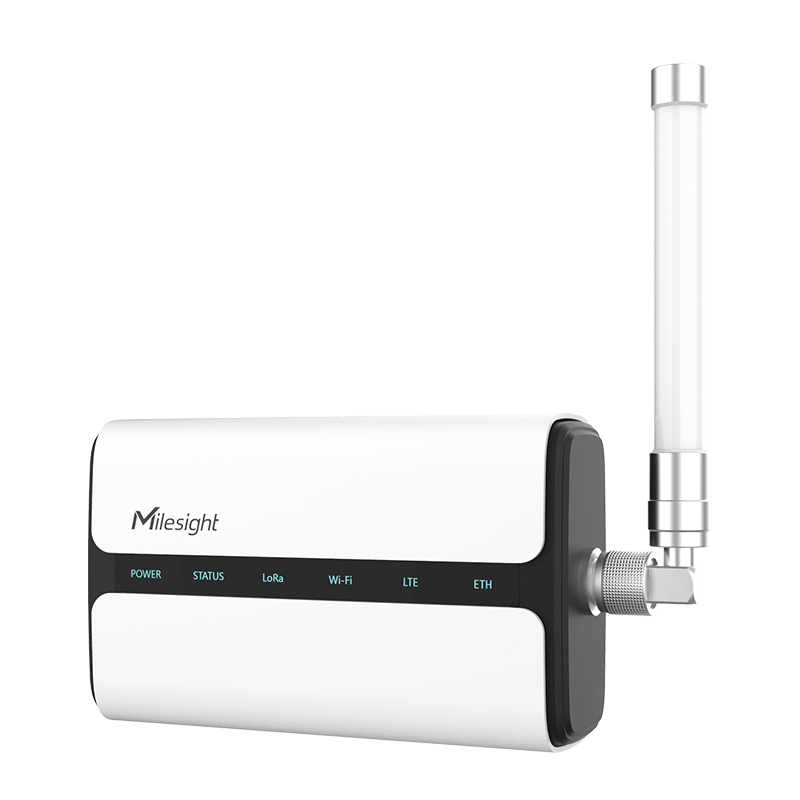

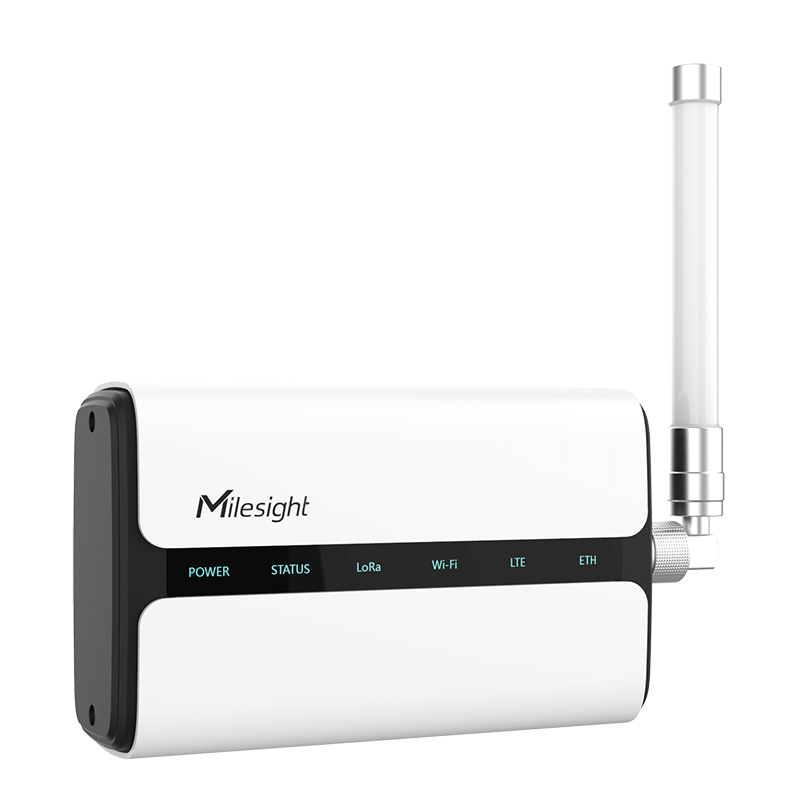

Milesight IOT - Indoor LoRaWAN Gateway (with 4G)

Description

Outstanding performance

The LoRaWAN gateway from Milesight receives data from 8 end devices and supports up to 2000 end devices simultaneously. The total capacity of the gateway will depend on the frequency with which end devices signal uplinks and receive downlinks. The LoRaWAN gateway is equipped with a 64-bit NXP quad-core processor, 2 GB DDR4 RAM and 29 GB eMMC flash memory, giving it exceptional performance. Multiple connectivity capabilities let you stay connected via Ethernet, cellular or Wi-Fi, to deliver encrypted data any time of day or night.

Deep signal penetration

The UG65 gateway covers up to 12 km² (2 km radius) in urban areas, and offers good signal penetration in locations such as basements, multi-storey buildings and other deep indoor locations (spaces covered by several walls). The signal is extremely resistant to industrial interference in urban environments. Basic dust and waterproofing capabilities make the LoRaWAN UG65 gateway more versatile, even in industrial environments.

High compatibility

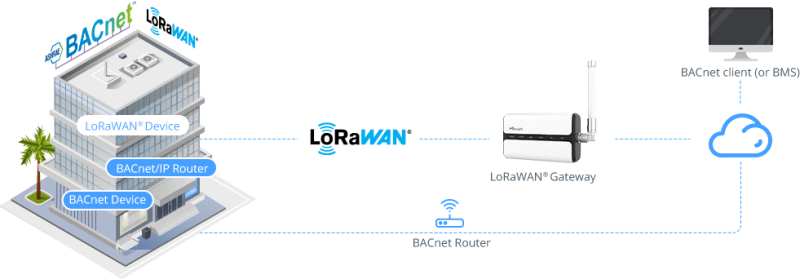

With the integrated network server, the UG65 also supports Semtech's latest packet forwarder, and is compatible with multiple network server platforms such as AWS, TTN, ChirpStack, and Loriot, which offers a wide range of options for data processing. With Milesight IoT Cloud, you can store, manage and analyze all your data in just a few clicks. Android & iOS versions let you manage devices quickly, easily and conveniently.

Flexible installation

The gateway can be mounted in three different ways. You can place the gateway on a table, fix it to the wall or mount it on a pole.

Technical specifications

Hardware system

• CPU: Quad-core 1.5 GHz, 64-bit ARM Cortex-A53
• Memory: 512 MB DDR4 RAM
• Flash memory: 8 GB eMMC

LoRaWAN

• Antenna: Fully integrated internal antenna (optional: 1 × 50 Ω N-Female external antenna connector)
• Channel: 8
• Frequency band: CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923
• Sensitivity: -140dBm Sensitivity @292bps
• Output power: 27dBm Max
• Protocol: V1.0 Class A/Class B/Class C and V1.0.2 Class A/Class B/Class C

Ethernet interface

• Port: 1 × RJ45 (PoE PD support)
• Physical layer: 10/100/1000 Base-T (IEEE 802.3)
• Data rate : 10/100/1000 Mbps (automatic detection)
• Interface: Auto MDI/MDIX
• Mode: Full-duplex or half-duplex (automatic detection)

Wi-Fi

• Antenna: Fully integrated, internal antenna
• Standards: IEEE 802.11 b/g/n
• Tx power: 802.11b: 18 dBm +/-2.0 dBm (11 Mbps)
• 802.11g: 15 dBm +/-2.0 dBm (6 Mbps)
• 802.11g: 15 dBm +/-2.0 dBm (54 Mbps)
• [email protected] GHz: 14 dBm +/-2.0 dBm (MCS0_HT20)
• [email protected] GHz: 14 dBm +/-2.0 dBm (MCS7_HT20)
• [email protected] GHz: 13 dBm +/-2.0 dBm (MCS0_HT40)
• [email protected] GHz: 13 dBm +/-2.0 dBm (MCS7_HT40)

Cellular interface

• Network: 4G LTE
• Transmitter power: Class 3 (23 dBm ±2 dB)
• SIM slot: 1 (mini SIM-2FF)

Software

• Network protocols: PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS, HTTP, HTTPS, DNS, ARP, SNTP, Telnet, SSH, MQTT, etc.
• VPN tunnel: OpenVPN/IPsec/PPTP/L2TP/GRE/DMVPN
• Access authentication: CHAP/PAP/MS-CHAP/MS-CHAPV2
• Firewall: ACL/DMZ/Port Mapping/MAC Binding/URL Filter
• Management: Web, CLI, SMS, dial-on-demand, DeviceHub, Milesight IoT Cloud
• Reliability: WAN failover

Power supply and consumption

• Power supply: DC jack connector for 9-24 VDC power supply, 1 × 802.3 af PoE input.
• Power consumption: ≤ 4.2W

Physical features

• Ingress protection: IP65 protection
• Dimensions: 180 x 110 x 56.5 mm
• Mounting: Table, wall or pole mounting

Other features

• Reset button: 1 × RST
• Console port: 1 × Type-C port
• LED indicators: 1 × POWER, 1 × STATUS, 1 × LoRa, 1 × Wi-Fi, 1 × LTE, 1 × ETH
• Integrated: watchdog, PSTN, timer
• Certification: CE, FCC

Environment

• Operating temperature : -40°C to +70°C (-40℉ to +158℉), reduced cellular performance above 60°C.
• Storage temperature: -40°C to +85°C (-40℉ to +185℉)
• Ethernet isolation: 1.5 kV RMS
• Relative humidity: 0% to 95% (non-condensing) at 25°C/77℉
