Sunricher SR-ZG2836D5 - Universal Zigbee 3.0 Smart Remote Control

Introduction

The Sunricher The SR-ZG2836D5 is a stylish circular design Zigbee 3.0 universal smart remote control, designed to remotely manage your connected lighting and motorized roller shutters or blinds. With its intuitive rotary wheel, multifunctional central button, and 4 programmable scenes, this remote offers complete and tactile control of your home automation system. Its compact size of 58 mm in diameter and compatibility with different wall mounts (European standard, American, or desk) allow for flexible installation in any room. Powered by a CR2450 button cell battery, it operates without wiring and communicates via Zigbee 3.0 with a range of up to 30 meters, compatible with all universal Zigbee coordinators and gateways.

Main features

Ergonomic and intuitive design

• Compact circular format: diameter 58 mm, height 20 mm
• Central rotary knob for precise tactile control
• Clickable central button with integrated LED indicator (red/green)
• 4 programmable scene buttons on the periphery
• Simple and clean interface for daily use

Dual control mode

• Lighting mode (Red LED): control of connected lighting fixtures
• Curtain/Shutter mode (Green LED): control of motorized blinds and curtains
• Instant switching between the two modes using a key combination
• LED visual indicator for quick identification of the active mode

Smart lighting control

• Compatible with all types of Zigbee lighting: monochrome, variable white (CCT), RGB, RGBW, RGB+CCT
• Center button: instant on/off with one click
• Rotary dial: gradual variation of light intensity
• Triple function of the scroll wheel (switchable by double-click):
  • DIM Mode : intensity variation (LED blinks red once)
  • CCT Mode : change of color temperature warm white/cold (LED blinks red twice)
  • RGB mode : RGB color selection (LED blinks red 3 times)
• Simultaneous control of up to 30 lighting devices in the same group
• Direct pairing with luminaires via Touchlink without requiring a coordinator

Curtain and roller shutter control

• Complete support for all types of motorization: roller blinds, shutter blinds, drapes.
• Rotary knob: gradual opening/closing or precise positioning
• Proportional control for stopping at any position
• Compatible with Zigbee motorization modules Sunricher and other brands

Customizable scene system

• 4 memorable scenes via peripheral buttons
• Scene backup : hold a stage button down until confirmation
• Scene recall : simple click on the scene button
• Memorize the complete state: on/off, intensity, color, color temperature
• Instant activation of preconfigured settings (reading, dining, cinema, rest, etc.)

Zigbee 3.0 standard protocol

• Zigbee 3.0 universal protocol for maximum compatibility
• Compatible with all certified Zigbee gateways and coordinators
• Advanced Touchlink function for direct pairing without a coordinator
• Reset and removal of devices via Touchlink
• Transmission range: 30 meters in open field
• Frequency: 2.4 GHz standard

Simplified Touchlink pairing

• Direct pairing with Zigbee devices within 10 cm (without a coordinator)
• Deletion of paired devices via Touchlink
• Factory reset of Zigbee devices via Touchlink
• LED indicator for visual confirmation of each operation
• Ideal for quick setup and local control

Autonomous and economical power supply

• Powered by a CR2450 button cell battery (3V DC)
• Low energy consumption for extended autonomy
• Low battery indicator
• Simple and quick battery replacement without tools
• No wiring required for installation

Flexible installation

• 3 types of supports provided or available separately:
  • Desktop stand Magnetic for placing on a table or shelf

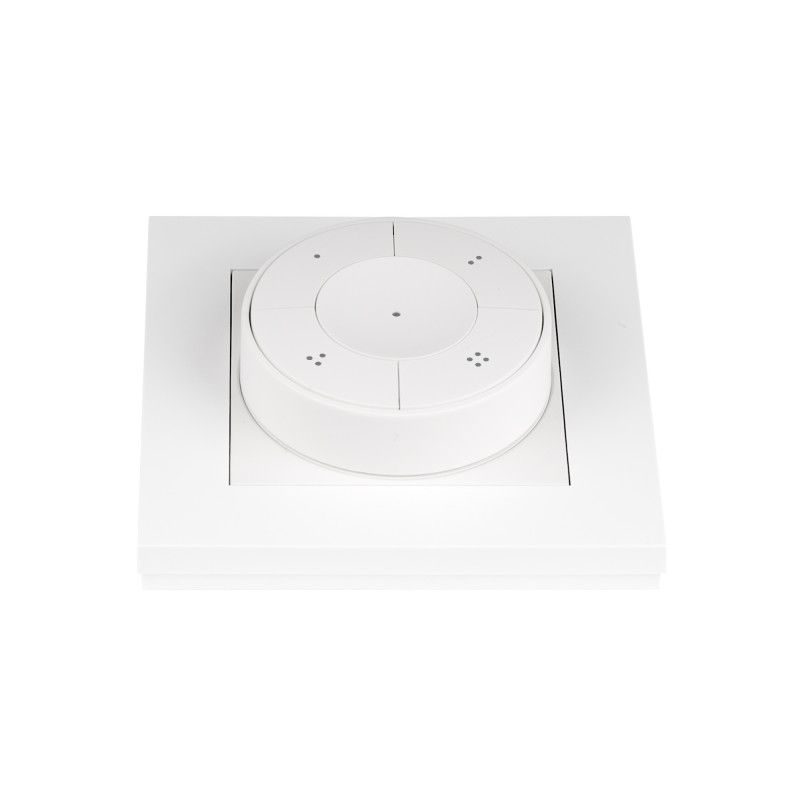

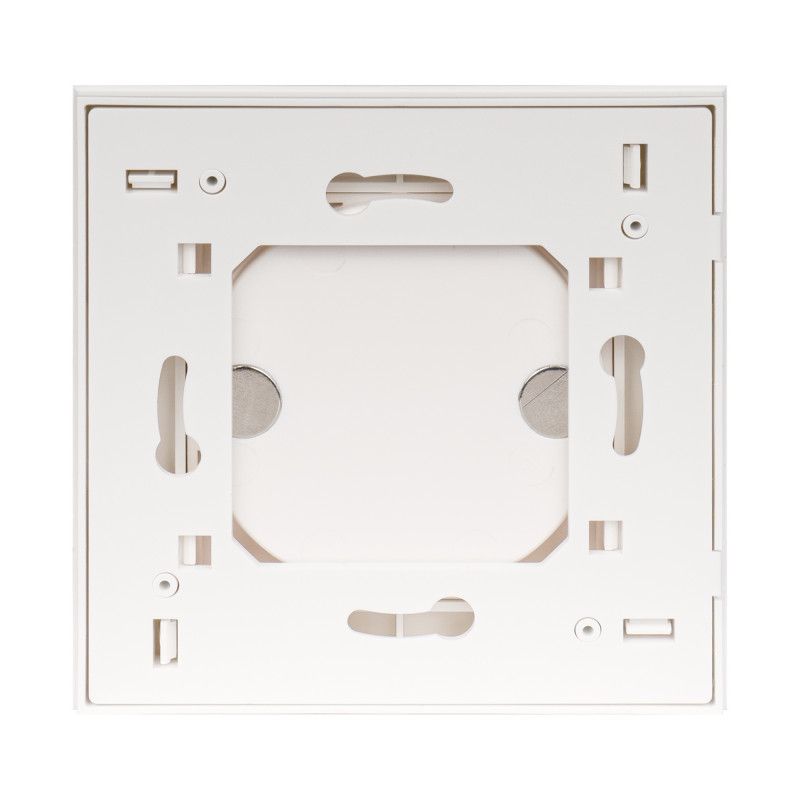

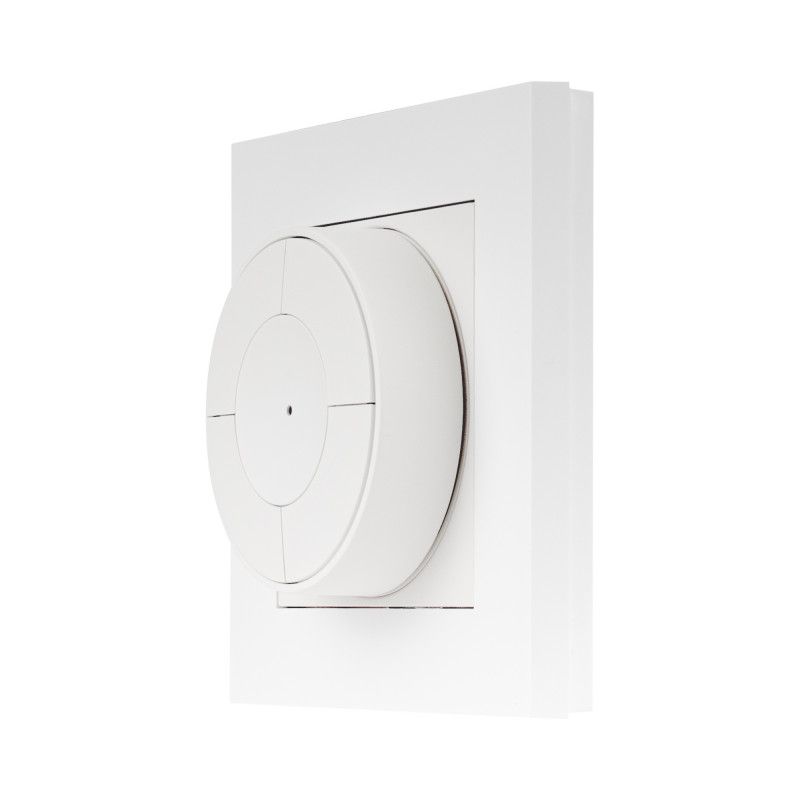

  • European standard wall mount (86×86 mm) for recessed boxes
  • American standard wall mount support (dimensions US)
• Attachment with 3M double-sided adhesive (provided) or screws
• Magnetic support for easy detachment of the remote control
• Installation without drilling possible with adhesive
• IP20 protection rating for indoor use

Technical specifications

Protocol and connectivity

• Protocol: Zigbee 3.0 standard
• Transmission frequency: 2.4 GHz
• Range: 30 meters in open field (ideal conditions)
• Device type: Zigbee Remote Control (end device)
• Touchlink function: Yes, for direct pairing without a coordinator

Food

• Battery type: CR2450 (lithium button cell)
• Voltage: 3V DC
• Battery life: Not specified (depends on usage frequency)
• Consumption: Optimized low energy consumption

Dimensions and weight

• Diameter: 58 mm
• Height: 20 mm
• Shape: Circular/disk
• Weight: Ultra-light (unspecified weight)

Construction

• Protection rating: IP20 (indoor use only)
• Materials: Quality plastic
• Finish: Smooth and pleasant to the touch surface
• Color: Not specified in manual (usually white or gray)

User interface

• Central rotary knob: Variation/selection
• Clickable center button: On/Off and functions
• 4 scene buttons: Memorization and recall
• 2 mode toggle buttons: Lighting/Curtains
• Central LED indicator: Red (lighting), Green (curtains)

Control capabilities

• Lighting devices per group: Up to 30
• Number of memorable scenes: 4
• Supported lighting types: Monochrome, CCT, RGB, RGBW, RGB+CCT
• Supported motor types: roller blinds, shutters, curtains

Mounting brackets

• Magnetic desk stand : Φ61.88 mm, height 44.67 mm
• EU wall support : 86×86×10.4 mm
• US wall support : 125.5×83.5×6.5 mm

Terms of use

• Usage: Indoor only (IP20)
• Operating temperature: Not specified (standard domestic use)
• Humidity: Normal indoor use
