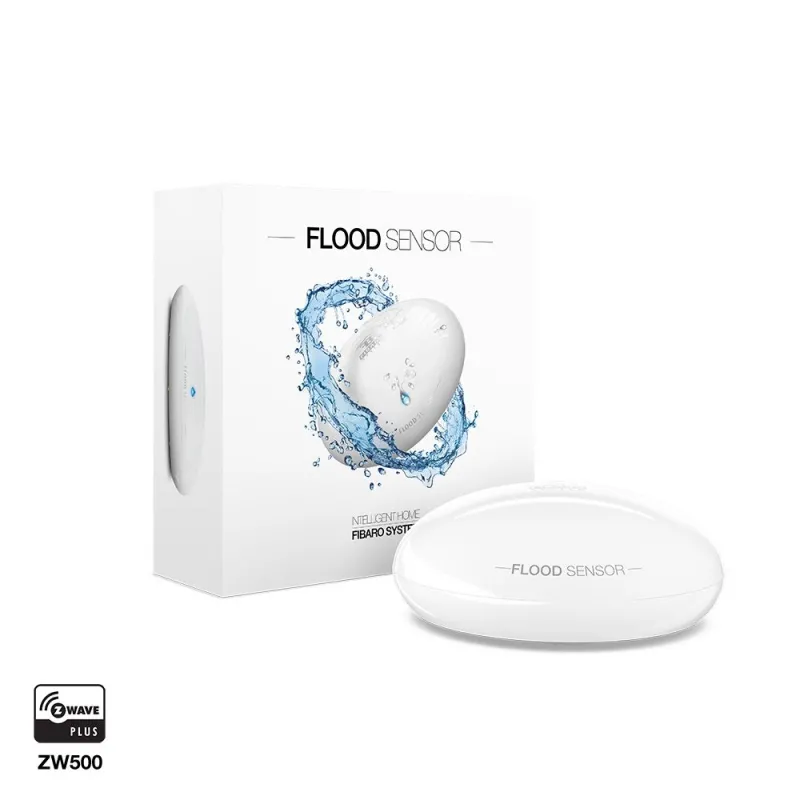

Reconditioned - FIBARO - Z-Wave+ FGFS-101-ZW5 flood detector (FIBARO Flood Sensor)

Controlled return

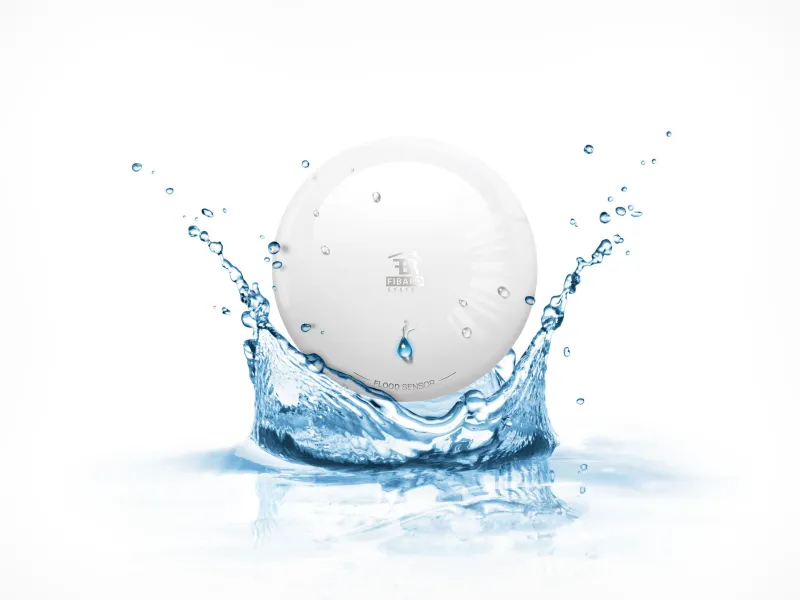

The FGFS-101-ZW5 from FIBARO is a design flood sensor that also measures temperature

FIBARO is constantly innovating by offering Z-Wave devices with an exemplary design and advanced features. This flood detector is no exception to the rule.

It will warn you in case of flooding or when the temperature rises or falls rapidly. Its neat design and compact size will allow it to easily find its place in your home to ensure the safety of the whole family.

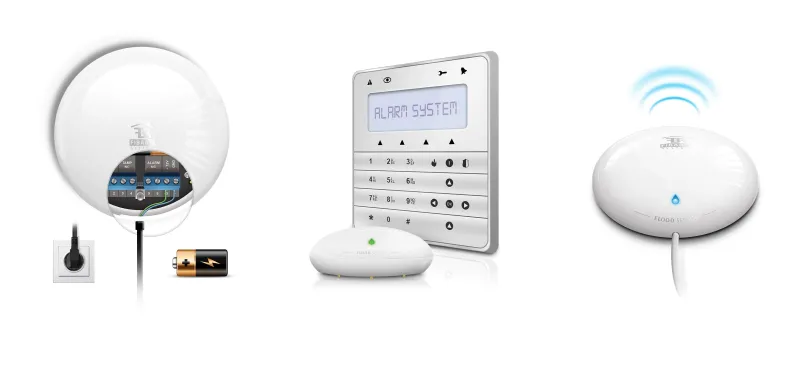

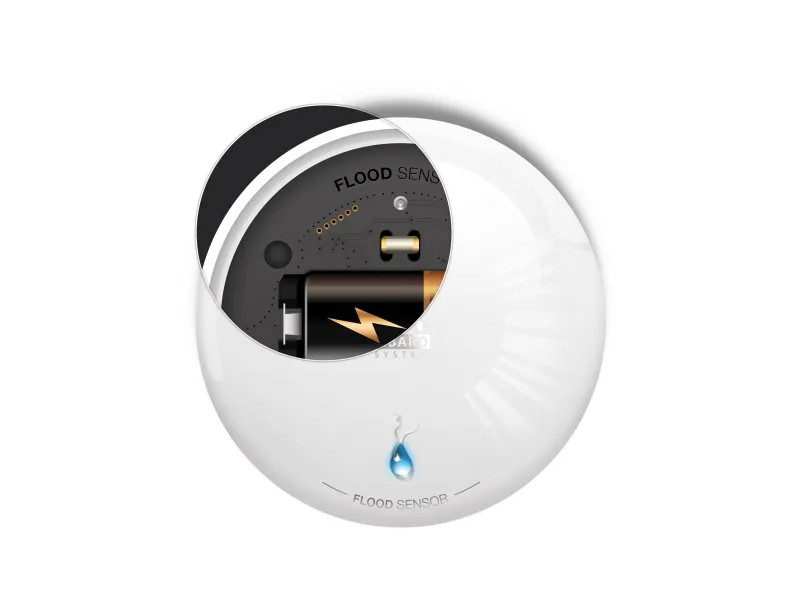

This detector can be powered by battery or by an external power supply 12 or 24 VDC. When powered by an external source, the battery serves as a backup power supply. In this configuration, the detector also acts as a Z-Wave signal repeater.

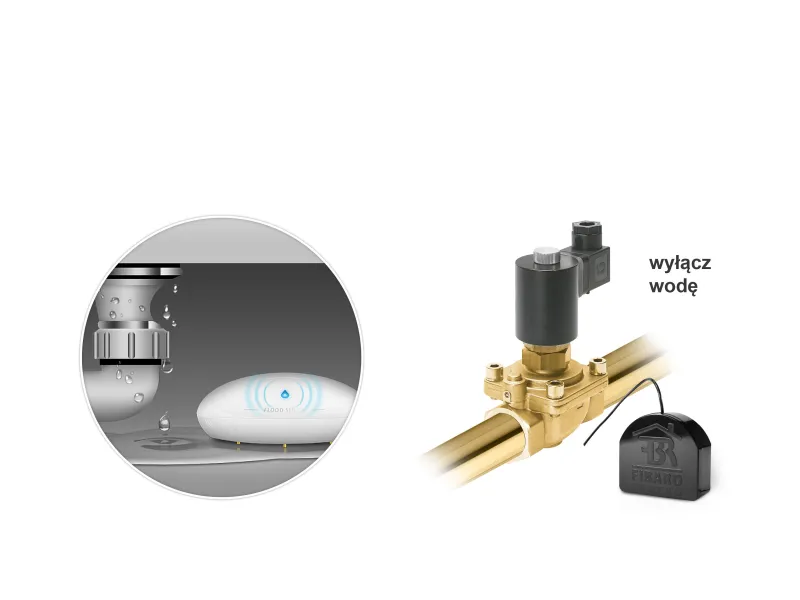

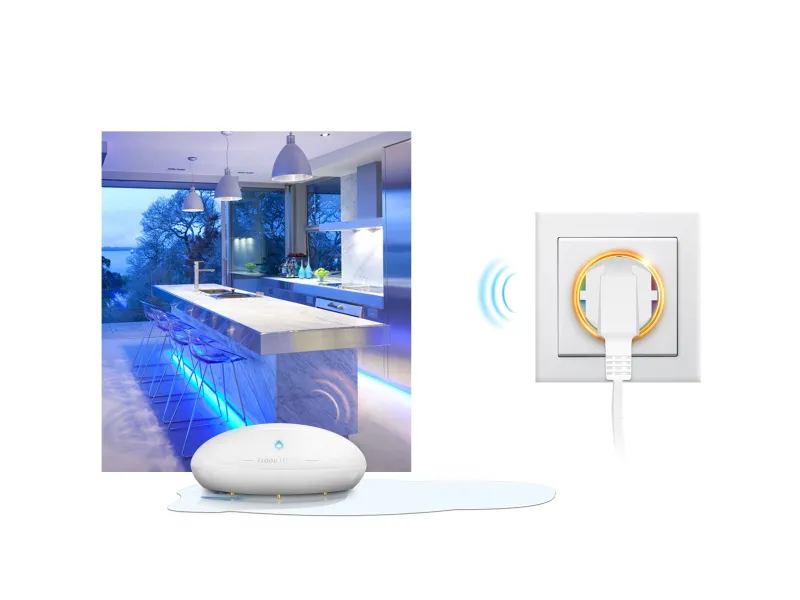

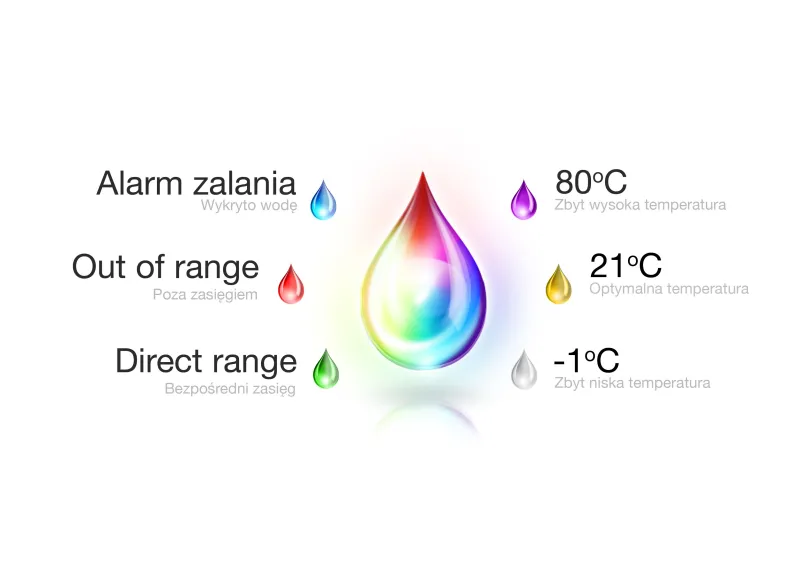

Any abnormal event will be transmitted to the equipment of your Z-Wave network, or to any wired alarm system, via its NF dry contact output. The built-in acoustic alarm and the LED light of the detector will inform you in a simple and quick way in case of an anomaly. The LED indicator also provides a visual indication of the quality of the Z-Wave network.

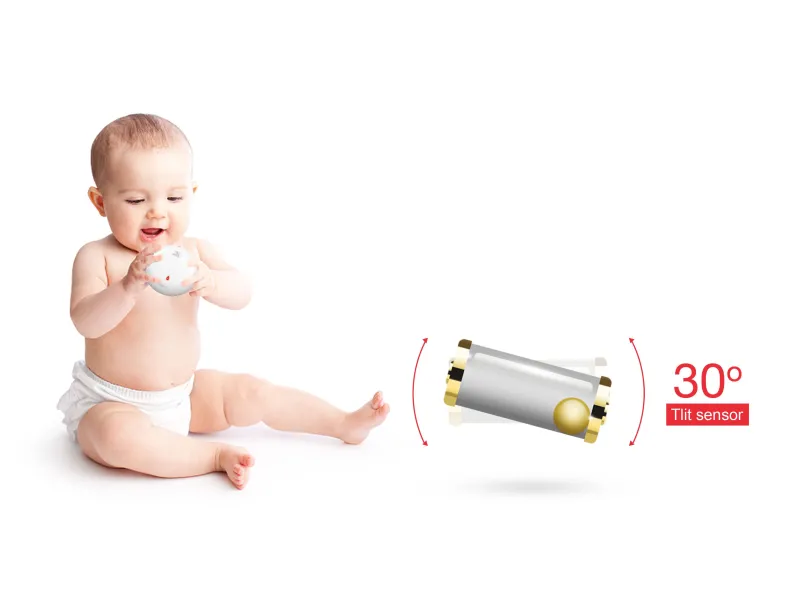

But that's not all, the flood detector of FIBARO has a tilt sensor to inform you if the sensor is moved.

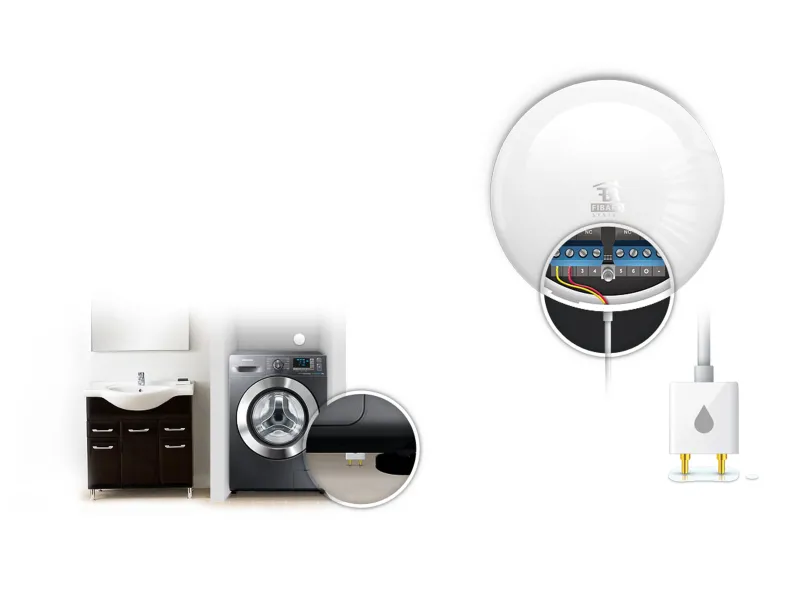

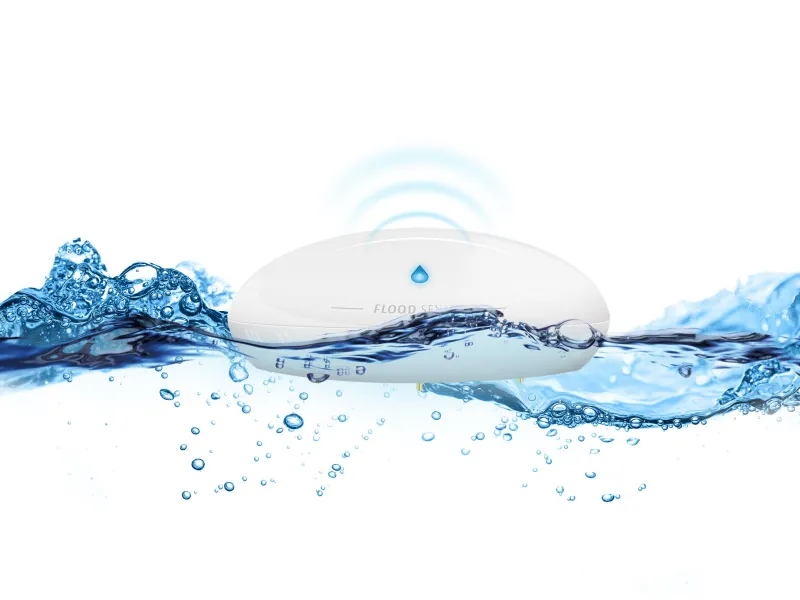

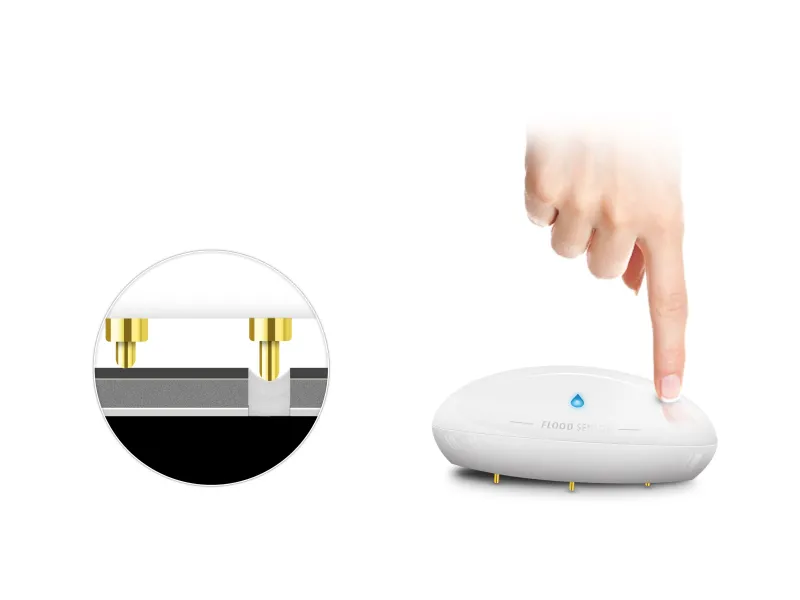

The FGFS-101-zw5 is waterproof and floats on the surface of the water. It can be placed on the floor, but can also be installed on a wall using a wired probe.

Features

• Z-Wave+ flood and temperature detector
• Can be connected to wired alarm systems via potential free output terminal
• Can be installed on the floor or on a wall (via the optional probe)
• Powered by battery or external power supply
• Theft protection (tilt reporting)
• Can be used as a flood detector and temperature sensor, or only as a temperature sensor
• Integrated Z-Wave Network Coverage Tester
• Wireless update with the FIBARO Home Center 2 box
• Very simple installation

Technical Specifications

• Module type: Z-Wave+ transmitter
• Power supply: 12 - 24 VDC
• Battery type: CR123A
• Battery life: 2 years
• Power consumption on external power supply: 0.4W

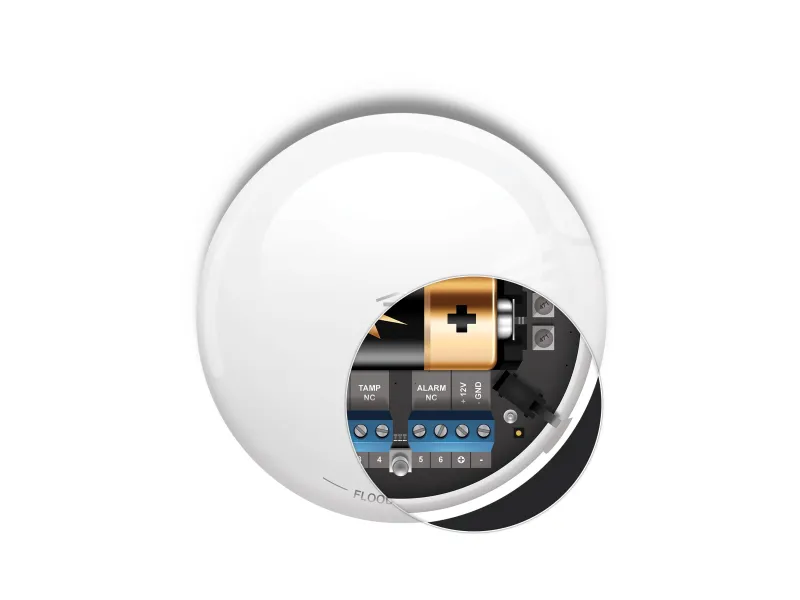

• Maximum output supported current (ALARM NC, TAMP NC): 25mA
• Maximum voltage supported at the output: 40V (AC or DC)
• Frequency: 868.42 MHz
• Transmission distance: 50m free field, 30m indoors
• Dimensions: 72 x 28 mm (diameter x height)
• Operating temperature: 0-40°C (-20°C to 70°C if external power supply)
• Temperature measurement range: -20 to 100°C
• Measurement accuracy: 0.5°C (in a range of 0 to 40°C)
• Standards: EMC 2004/108/EC and R&TTE 199/5/WE
