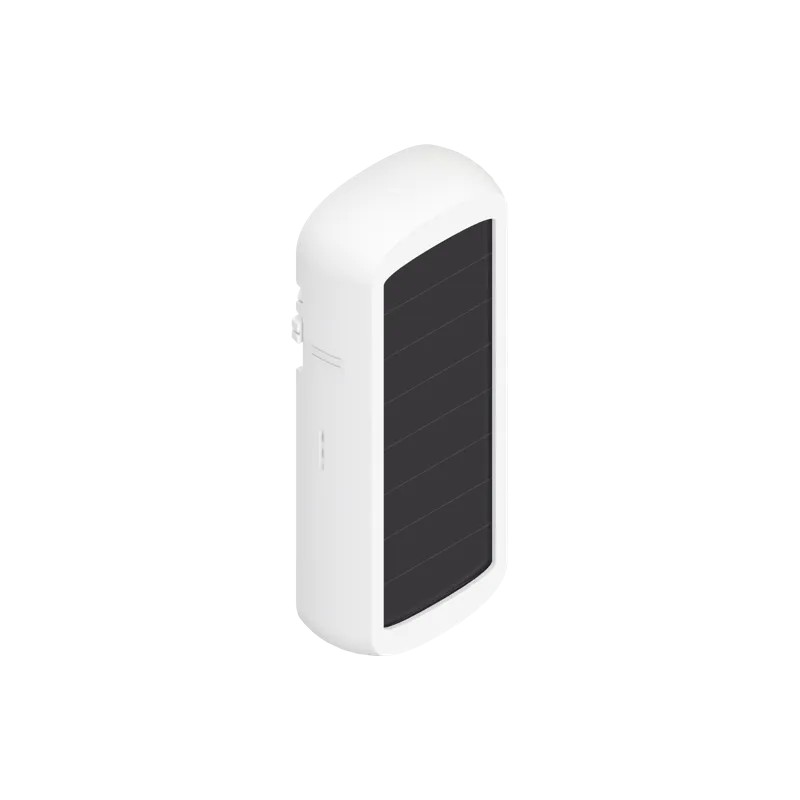

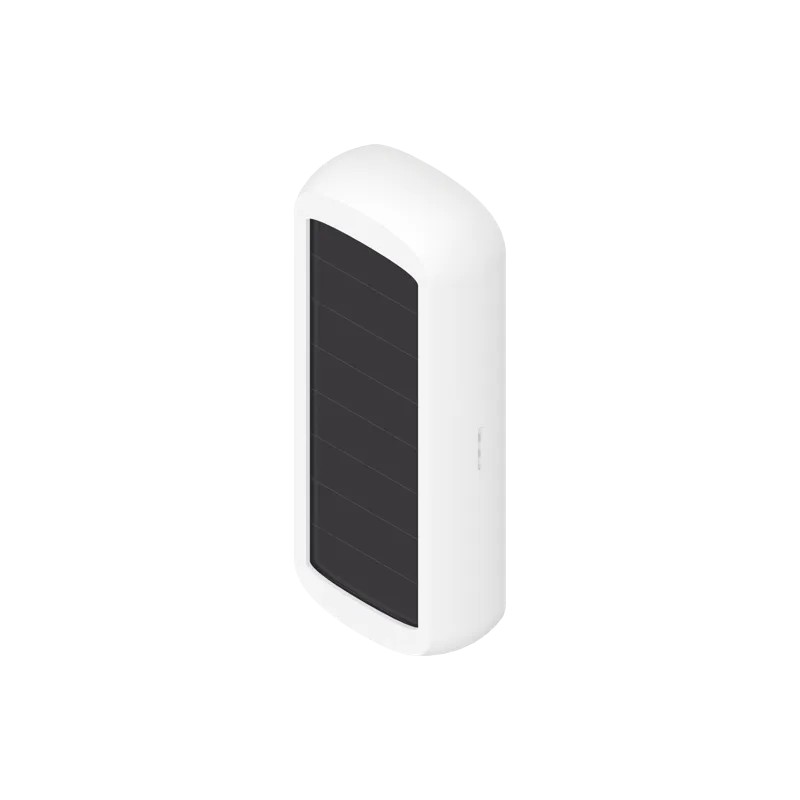

NodOn - Zigbee temperature and humidity sensor STPH-4-1-00

Zigbee Temperature and Humidity Sensor Wireless, battery-free, 100% autonomous

Transform your indoor environment into an intelligent, eco-responsible space with the Zigbee temperature and humidity sensor. Designed with cutting-edge technology, this innovative device integrates seamlessly into your home automation ecosystem to provide precise, reliable monitoring of climatic variations in your spaces. Versatile and intuitive, it meets the needs of individuals concerned with their daily comfort, as well as the requirements of professionals looking for optimal control of ambient conditions.

This sensor revolutionizes the home automation market thanks to its battery-free operation. Powered mainly by a photovoltaic cell, it is designed to operate autonomously using ambient light, thus reducing its environmental impact.
An optional CR2032 battery ensures continuity of use in prolonged low-light conditions, with a lifespan of up to three years.

The Zigbee sensor's installation has been designed to adapt to all environments. Thanks to its wireless design, it's easy to attach using double-sided adhesive tape or screws, as you prefer. Once installed, it integrates seamlessly into your home automation network via the Zigbee 3.0 protocol, ensuring compatibility with many home automation control units.
The OTA (Over-The-Air) update function also guarantees quick and easy access to the latest functionalities, without complex intervention

Highlights

• 100% autonomous: battery-free operation thanks to an integrated photovoltaic cell
• Easy installation: mounted using double-sided adhesive tape (included) or screws (not included)
• Extensive compatibility: Zigbee 3.0, compatible with Jeedom, Home Assistant, Zigbee2MQTT, Alexa, Tuya, Domoticz, Edalso, Energeasy Connect
• Measurement accuracy: detection of variations of 0.5°C and ±2% humidity
• OTA updates: support for Over-The-Air updates for continuous software enhancements



Technical specifications

• Brand: Nodon
• Part number: STPH-4-1-00
• Power supply: photovoltaic cell energy recovery
• Battery (optional): CR2032 (3 years)
• Measurements: Temperature and Humidity. Direct feedback upon detection of variation of 0.5°C or +/- 2% humidity
• Operating temperature : -5 / +45°C
• Frequency band used: Zigbee 2.4GHz
• Maximum radio power: 7dBm/5mW
• Radio protocol: Zigbee 3.0
• Zigbee profile: 0x0302: Temperature Sensor
• Range: 30m indoors
• Dimensions: 34mm (W) x 85mm (L) x15mm (H)
• Protection rating: IP20
• Weight: 30g
• Compatible with Jeedom home Assistant, Zigbee2mqtt
