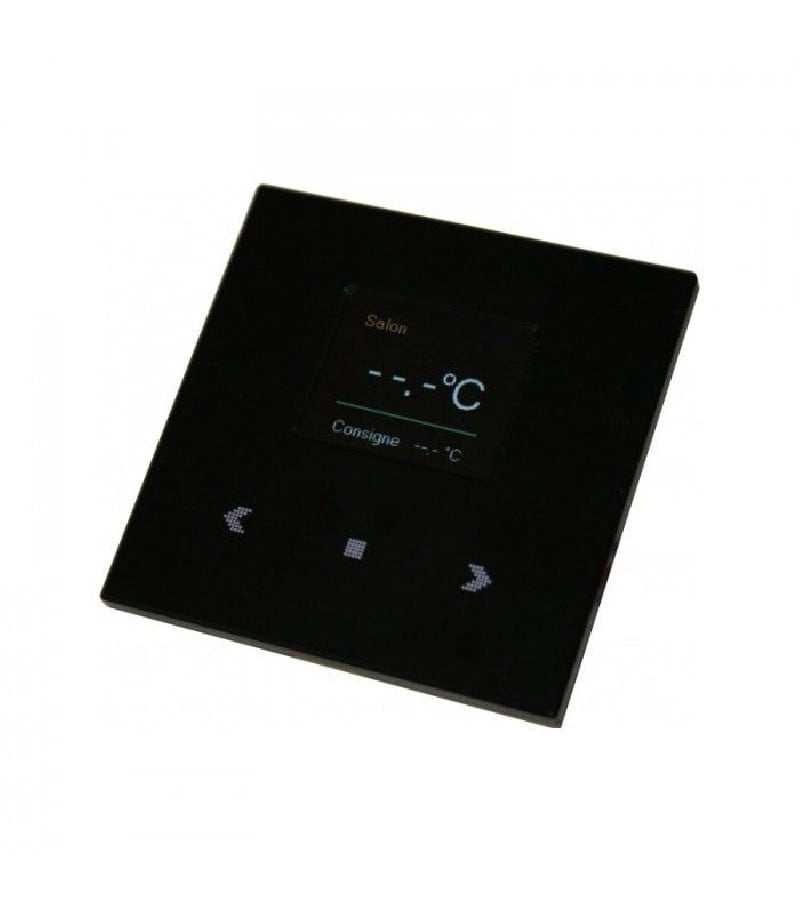

GCE Electronics - X-Display multi-function control screen (Black)
CHF69.90
Tax included
The X-DISPLAY is a multi-function control screen. It enables you to control your lighting, heating, roller shutters, etc with a range of modes that offer an even wider choice of different actions from a single point.
In stock. Ordered before 5pm, delivered the next business day.
X-DISPLAY multifunction control screen for IPX800 V4
The X-DISPLAY replaces a switch on a standard embedded junction box.
It requires 2 shielded pairs for connection to the IPX800 V4.
You can install up to 6 X-Displays for a single IPX800 V4.
It has several modes allowing a large number of different actions from a single point.
- Switch mode
- Thermostat mode
- Roller shutter mode
- Sleep mode
- Temperature indicator
- Humidity indicator
- Light level indicator
- House ON / House OFF function
- Date and time of day display
You can accumulate from 1 to 32 control screens per X-Display.
Takes just a few minutes to install:
- Connect the X-Display to the IPX800 V4’s EBX BUS.
- Connect the module to a 12V DC power supply.
- Enter the X-DISPLAY unique identifier number into the IPX800 v4 (version 4.00.34 and above).
- The X-DISPLAY is automatically recognized and operational.
- Check the calibration of the 3 touch buttons.
- Configure the control screens
TECHNICAL SPECIFICATIONS:
- Power supply 12 V DC
- Extension bus EBX (+ and - pair) connect to IPX800 V4
- Power consumption 0.5W
- Up to 32 simultaneous screens can be configured
- Automatic screen power off (1 to 60 min)
- Thermostat, switch, House, Roller shutter, time, sleep, temperature, humidity, luminosity
- Real-time reporting
- Available in White or Black
- Made in France
- 2 year warranty
Specifications
| Type | Sensor |
|---|---|
| Function | Humidity Luminosity Temperature |
| Use | Temperature/Humidity/CO2 Monitoring |
-
