Aqara Presence Multi-Sensor FP300

Visit Aqara Presence Multi-Sensor FP300 is a wireless, battery-powered presence sensor that revolutionizes occupancy detection in your smart home. Thanks to the combination of millimeter-wave radar, infrared detection and artificial intelligence algorithms fromAqara, this sensor accurately detects human presence, even when occupants remain motionless, exceeding the limits of conventional PIR sensors.

Featuring automatic spatial learning and adaptive sensitivity, the FP300 intelligently adjusts to its environment while simultaneously monitoring temperature, humidity and ambient light. Compatible with Thread and Zigbee protocols, it integrates perfectly into the Aqara Home or any Matter-compatible platform, offering versatile intelligent home control.

This innovative 5-in-1 sensor uses energy-efficient "dual-sensing" technology, combining an infrared sensor with a high-frequency 60 GHz mmWave radar. This intelligent approach delivers up to 3 years of autonomy in Zigbee mode and up to 2 years in Thread mode with two replaceable CR2450 batteries. Its compact design (42 × 42 × 50 mm) and multi-axis mounting allow flexible installation on walls, ceilings, magnetic surfaces or even in tight corners, guaranteeing optimum detection coverage in any room.

Key functions

AI-powered Precise Presence Detection

• Advanced dual sensor technology combination of infrared (PIR) and high-frequency 60 GHz mmWave radar
• Detects even subtle movements such as breathing, avoiding false "absence" alarms when you're sitting still
• Wide field of vision 120° with a detection range of up to 6 metres, easily covering entire rooms
• AI learning intelligent filtering of common interference (curtains, fans, small pets)
• Continuous improvement : gradually fine-tunes sensitivity and performance over time, reducing false alarms

5-in-1 Multi-Function Sensor

• PIR presence sensor infrared motion detection
• MmWave radar sensor millimeter-wave detection to capture subtle movements
• Brightness sensor ambient light measurement
• Temperature sensor room temperature monitoring
• Humidity sensor humidity measurement
• Eliminates the need to buy several separate devices, saving space and money
•

Dual Thread/Zigbee protocol compatibility

• The world's first presence sensor thread and Zigbee compatible
• Thread mode direct connection to Matter platforms (Apple Home, Google Home, SmartThings, Home Assistant) without a hub Aqara
• Zigbee mode access to exclusive features Aqara, compatible with hubs Aqara classics
• Change of protocol switch between protocols to suit your needs

Exceptional autonomy

• Energy-optimized design with "dual detection" mode
• Up to 3 years of autonomy in Zigbee mode with 2 CR2450 batteries
• Up to 2 years of autonomy in Thread mode
• Some sensors can be deactivated to further extend battery life

Flexible, wireless installation

• Completely wireless, no wiring required
• Multi-axis support for installation on :
  • Walls
  • Ceilings
  • Magnetic surfaces
  • Tight corners
• Installation by adhesive, magnetic fastener or expansion screw
• Compact, discreet design blends harmoniously into any environment
•

Exclusive features Aqara Home (Zigbee mode)

• Customizable radar detection range precise adjustment in 0.25-metre increments
• Configuration of non-continuous ranges to exclude specific zones
• Adjustable absence delay minimizes nuisance tripping
• Spatial learning AI intelligent analysis of the environment to filter out interference (large glass surfaces, metal objects, mirrors)
• Selective activation/deactivation of sensors according to scenarios
• Advanced settings for experienced users

Complete automations

The sensor can be used to create sophisticated automations based on :

• Presence detected / Absence detected
• Presence for a fixed period
• Absence for a fixed period
• Infrared motion detected/not detected
• Brightness thresholds (above/below a set level)
• Temperature thresholds (above/below a set temperature)
• Humidity thresholds (above/below a set level)

Examples of automation :

• Lights on when presence is detected
• Turn off lights or air conditioning after a certain length of absence
• Turn on lights only if presence detected AND brightness insufficient
• Activate cooling mode at 24°C if presence AND high temperature detected

Technical specifications

General information

• Model : PS-S04E / PS-S04D
• Dimensions size: 42 × 42 × 50 mm (1.65 × 1.65 × 1.97 inches)
• Weight not specified

Connectivity

• Wireless protocols thread, Zigbee, BLE (Bluetooth Low Energy)
• Compatibility :
  • Apple Home (via Thread/Matter)
  • Google Home (via Thread/Matter)
  • Amazon Alexa (via Thread/Matter)
  • SmartThings (via Thread/Matter)
  • Home Assistant (via Thread/Matter)
  • Aqara Home (Zigbee)

Sensors

• MmWave radar sensor 60 GHz high frequency
• Detection angle : 120°
• Maximum detection range : 6 meters
• Infrared sensor (PIR)
• Brightness sensor
• Temperature sensor
• Humidity sensor

Power supply

• Battery type 2× CR2450 (replaceable)
• Battery life :
  • Zigbee mode: up to 3 years
  • Thread mode: up to 2 years

Operating conditions

• Operating temperature 10°C to 50°C (14°F to 122°F) / -10°C to 55°C depending on source
• Operating humidity 0 to 95% RH, non-condensing

Certifications

• FCC ID : 2AKIT-PSS04
• IC : 22635-PSS04
• KC rC-LUt-PSS04

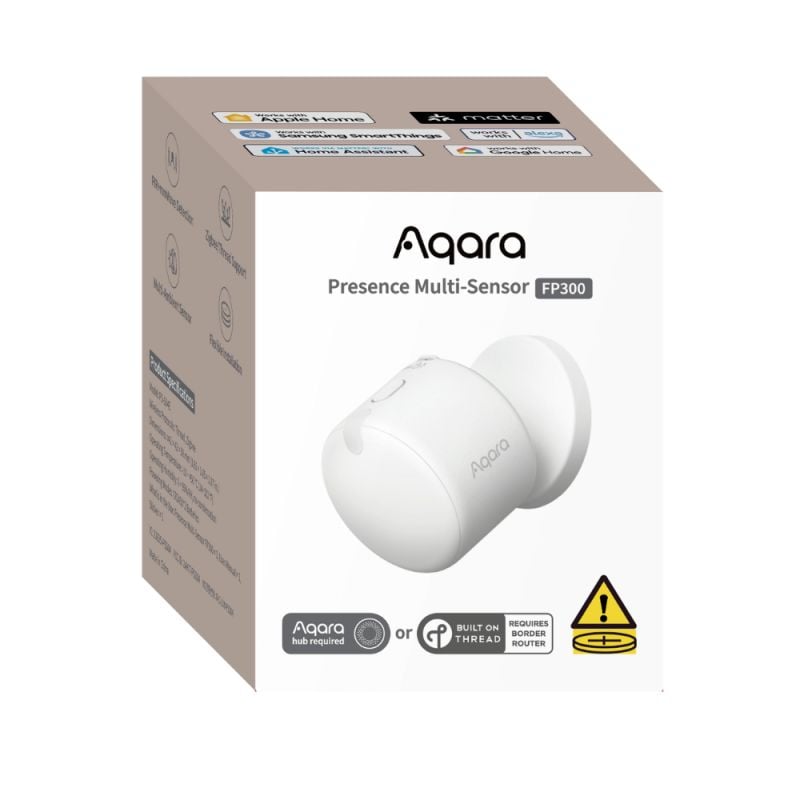

Box Contents

• 1× Presence Multi-Sensor FP300
• 1× User manual
• 1× Metal plate
• 1× Screw kit (only available with PS-S04D model)

Installation recommendations

• Recommended installation height :
  • Approx. 2 metres to cover a large detection area, with a slight downward inclination
  • 1.4 to 1.8 meters for lateral installation (wall or corner), for detection in standing and sitting positions
• Corner installation recommended for minimizing blind spots, with the front of the sensor pointing towards the center line of the corner
• Mandatory screw fixing for all installations over 2 metres high
• Avoid close to large metal, glass or reflective surfaces, air-conditioning outlets, air purifiers, fans, etc

LED indicator

• Blue light lED: device status indication
  • Single flash: press reset button
  • 3 flashes: power up, restart or factory reset
  • Continuous slow flashing: pairing mode
  • Rapid continuous flashing: reset in progress
  • Lit for 1 second: successful pairing

Reset

• Network reset press and hold the reset button for 5 seconds
• Factory reset press the reset button 10 times quickly
