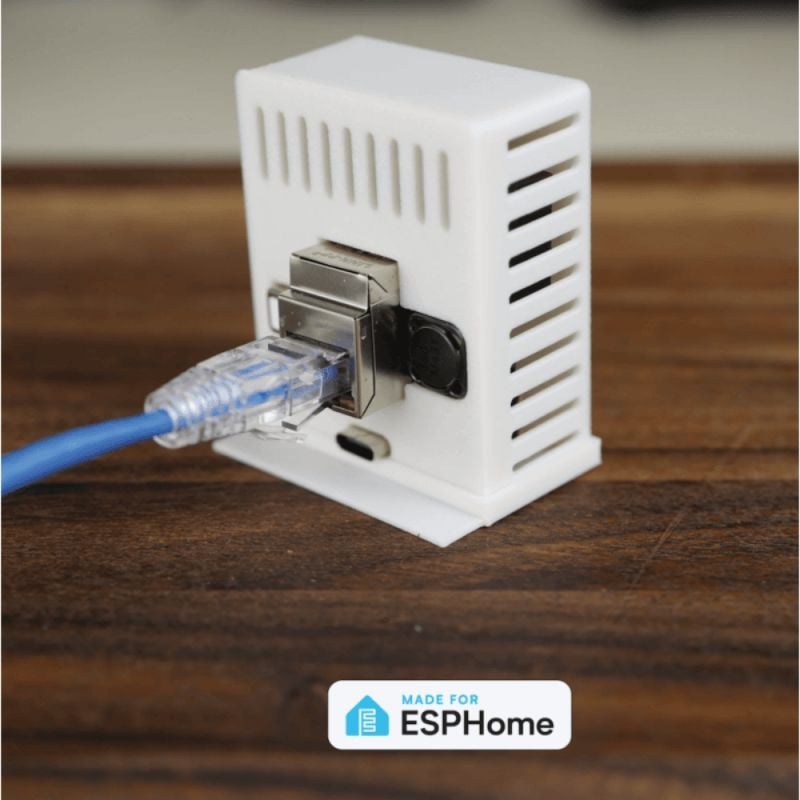

Apollo - mmWave PoE R PRO-1 multisensor sensor

Introduction

The Apollo Automation R PRO-1 multisensor is a compact, powerful sensor based on mmWave technology. It is designed to detect motion, monitor the indoor environment and integrate seamlessly into the connected home, thanks to its Wi-Fi, Bluetooth and PoE (802.3) connectivity. It integrates the LD2450 radar and, as an option, the LD2412 for more precise detection of motionless presence.

Thanks to its modular format and advanced features (RGB LED, buzzer, UV detection, LUX, optional CO₂), the R PRO-1 is perfect for intelligent automation, visual and audible alerts, and air quality monitoring. ESPHome-compatible, it is totally open source and operates locally, without a cloud.

Key features

• High-precision motion detection with mmWave LD2450 radar
• Motionless presence detection with LD2412 module (optional)
• Configurable multi-zone detection
• Environmental monitoring with UV, LUX, CO₂ sensors (SCD40 option)
• RGB LEDs for customizable visual notifications
• Piezoelectric buzzer for audible alerts
• Intelligent lighting control based on presence and brightness
• Power supply via PoE (802.3) or USB-C

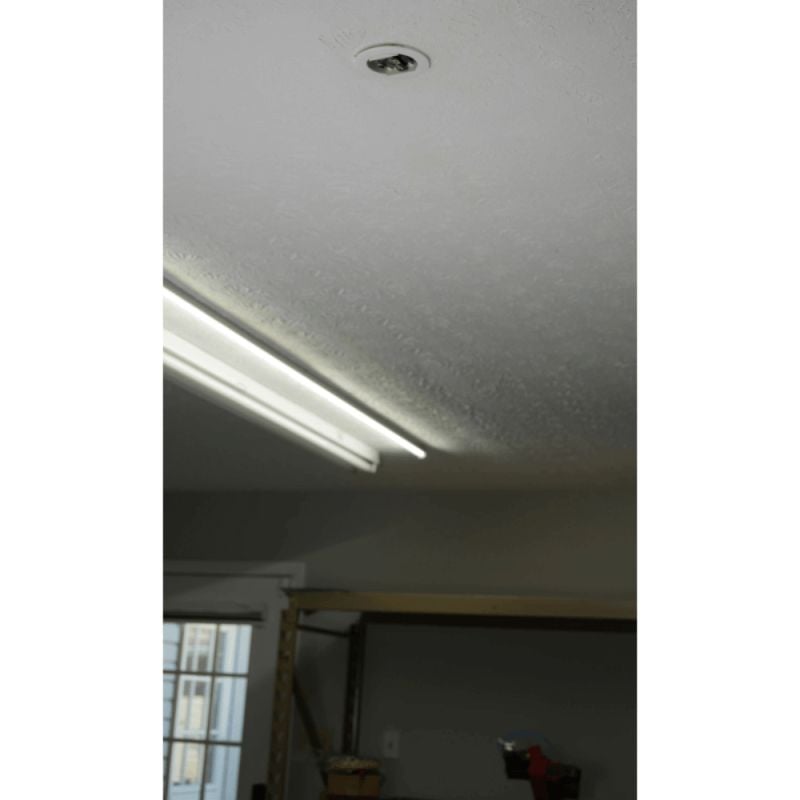

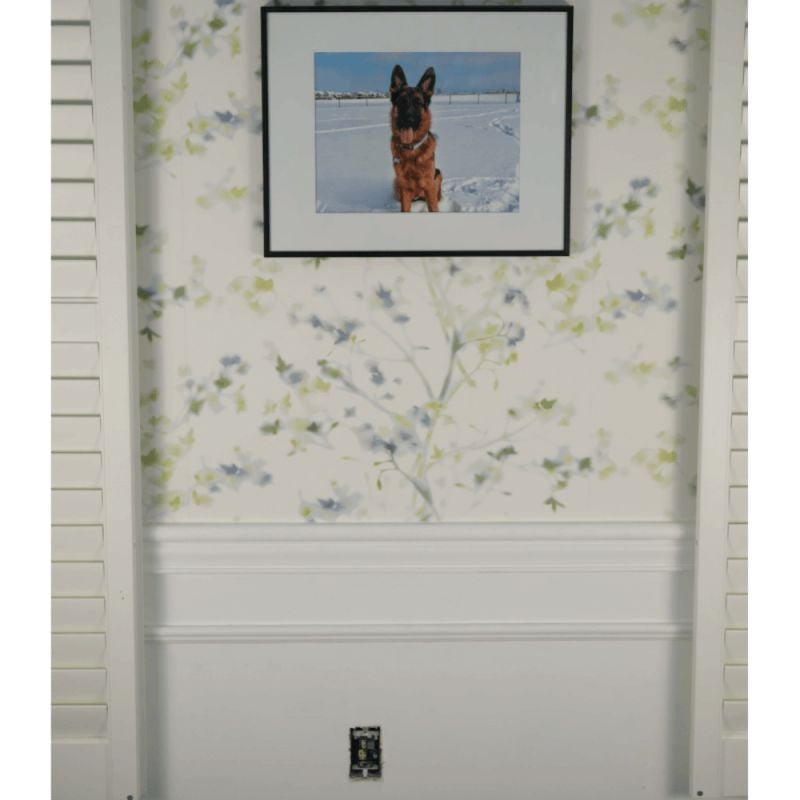

• Wall, ceiling or under-bed installation for advanced automation
• Operates locally, without cloud or subscription

Technical specifications - Apollo Automation R PRO-1

• Brand: Apollo Automation
• Reference: R PRO-1
• Technology: mmWave radar (LD2450 included, LD2412 optional)
• Connectivity: Wi-Fi, Bluetooth
• Power supply: PoE (IEEE 802.3) or USB-C
• Dimensions: approx. 57 x 45 mm
• Integrated sensors
  • UV sensor: LTR390
  • Brightness sensor: LTR390 (LUX)
  • CO₂ NDIR sensor (SCD40 option)
• LEDs: 2 addressable RGB LEDs
• Audio: integrated piezoelectric buzzer
• Mezzanine port for add-on modules
• Firmware: ESPHome compatible (Wi-Fi or PoE)

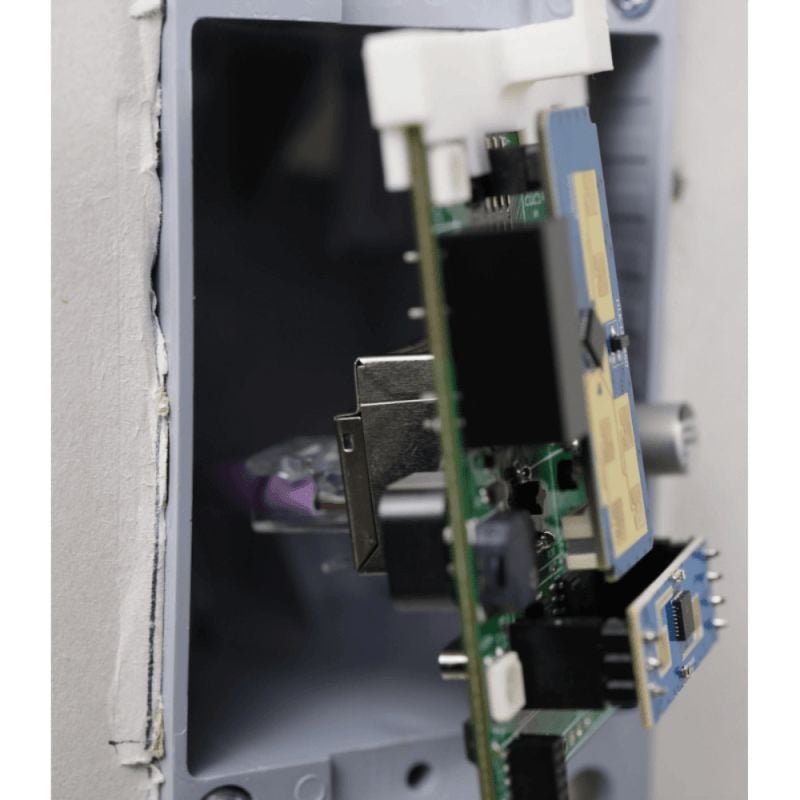

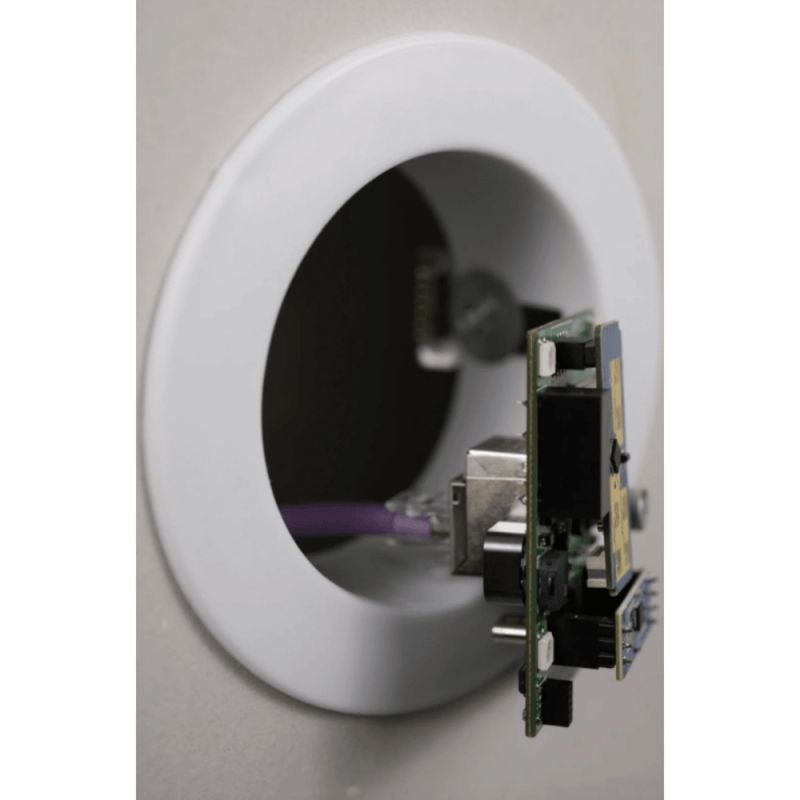

• Installation: wall, ceiling or box mounting

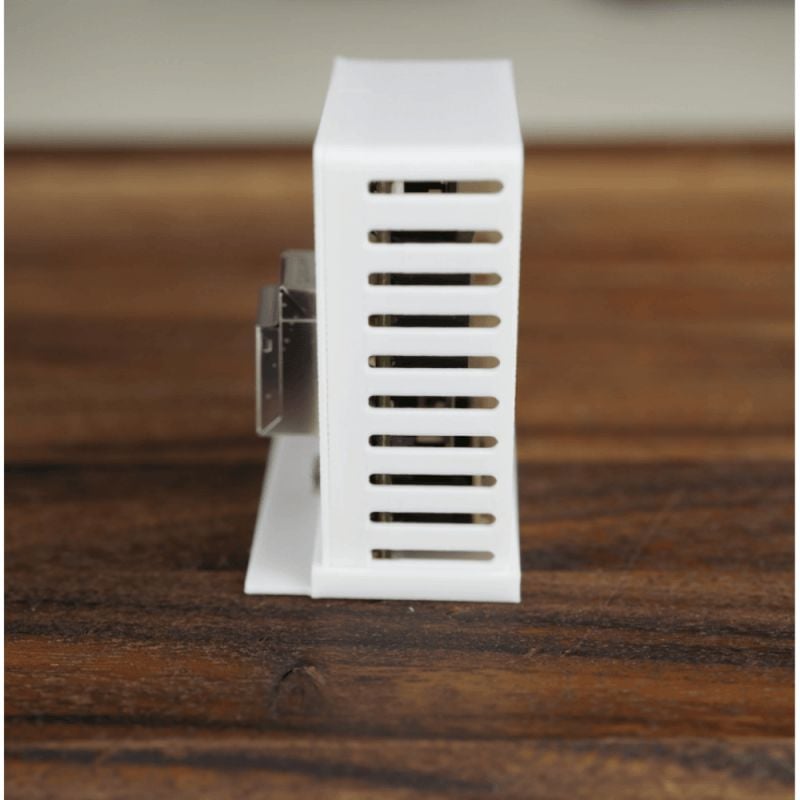

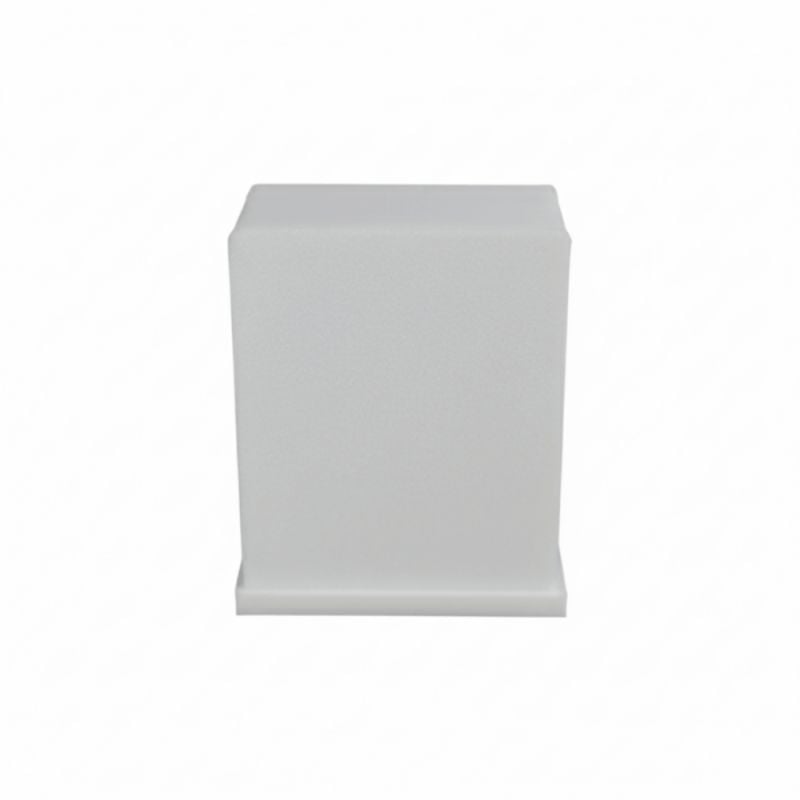

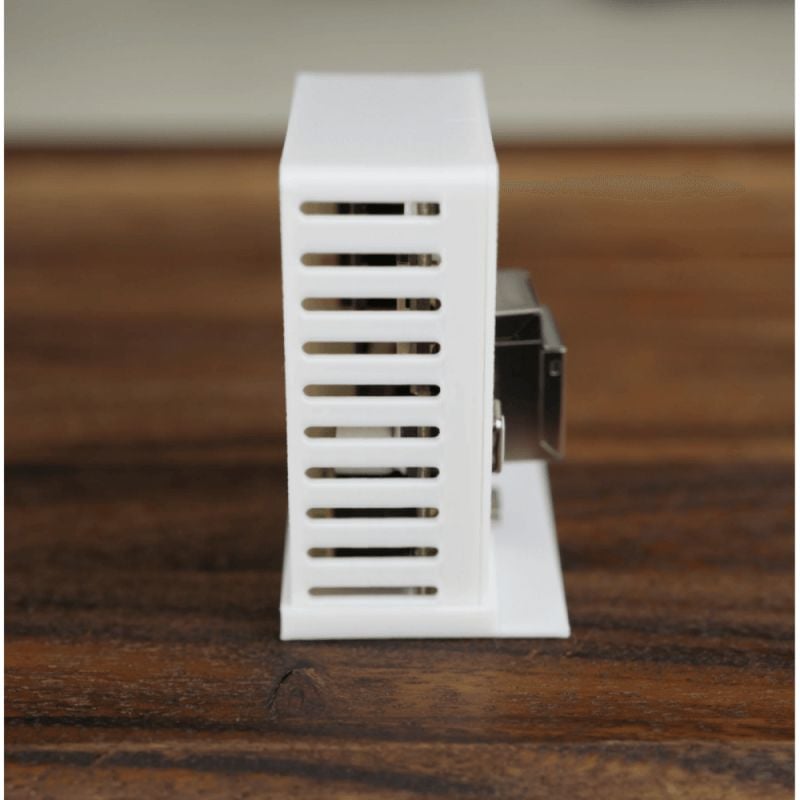

• Housing supplied, ready for installation

Compatibility:

• ESPHome
• Home Assistant

Compatible applications:

• Tuya Smart Life (via integration or bridge)
• Google Home (via Home Assistant)
