Aeotec Home Energy Meter 8 (ZWA046-C) - Smart 3-Phase Energy Monitor

Introduction

The Aeotec Home Energy Meter 8 smart energy monitor is the perfect solution for monitoring and optimizing your home's energy consumption in real-time. Specifically designed for 3-phase installations and solar systems, this next-generation Z-Wave 800 device allows you to take complete control of your electrical consumption and solar production. With SmartThings compatibility and exceptional 99.9% accuracy, it represents a smart investment for all households focused on energy efficiency and sustainable savings.

Key Functions

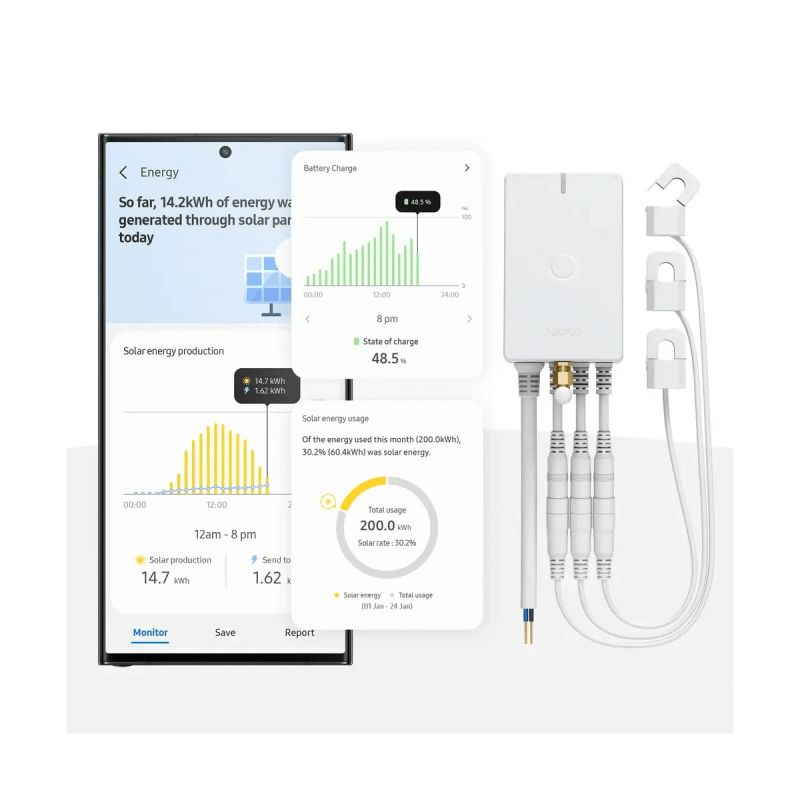

• Real-time monitoring - Simultaneous monitoring of electrical consumption and solar production with instant data
• Smart solar optimization - Maximizes the use of self-generated energy to reduce your electricity bills
• Remote control - Complete access via SmartThings app to monitor and manage your consumption from anywhere
• Advanced automation - Programming of smart scenarios to automatically optimize your energy consumption
• Detailed analysis - Complete reports on your consumption habits to identify potential savings
• Enhanced security - AES-128 encrypted communication and S2 security protocol for optimal data protection
• Universal installation - Compatible with all types of homes, from smart homes to classic installations

Technical Specifications

Connectivity and Performance

• Z-Wave 800 Series technology (868 MHz EU)
• Extended wireless range up to 300 meters outdoors
• Integrated repeater function to extend the network
• Z-Wave Plus certification for maximum compatibility
• Chipset EFR32ZG23A010F512IM32-BR

Measurements and Precision

• Measurement accuracy ≥ 99.9% (if current ≥ 0.05A)
• 3 high-precision current clamps included (60A)
• Measurable voltage range: 180V~ to 260V~ (EU 1P/3P4)
• Measurable current range: 0A to 200A
• Reactive power measurement support (1, 2 and 3 phases)

Electrical Specifications

• Input voltage: 230V~, 50Hz, 10mA (EU version)
• Power supply by direct wiring (EU version)
• Neutral wire required

Operating Conditions

• Operating temperature: -15°C to 40°C
• Operating humidity: 8% to 95%
• IP44 protection rating - weatherproof, suitable for outdoor installation
• Type of use: indoor and outdoor

Controller Compatibility

• SmartThings (native integration)
• FIBARO Home Center 2 and HC Lite
• Vera Plus and Vera Edge
• Zipabox, Razberry, POPP
• Piper (not tested)

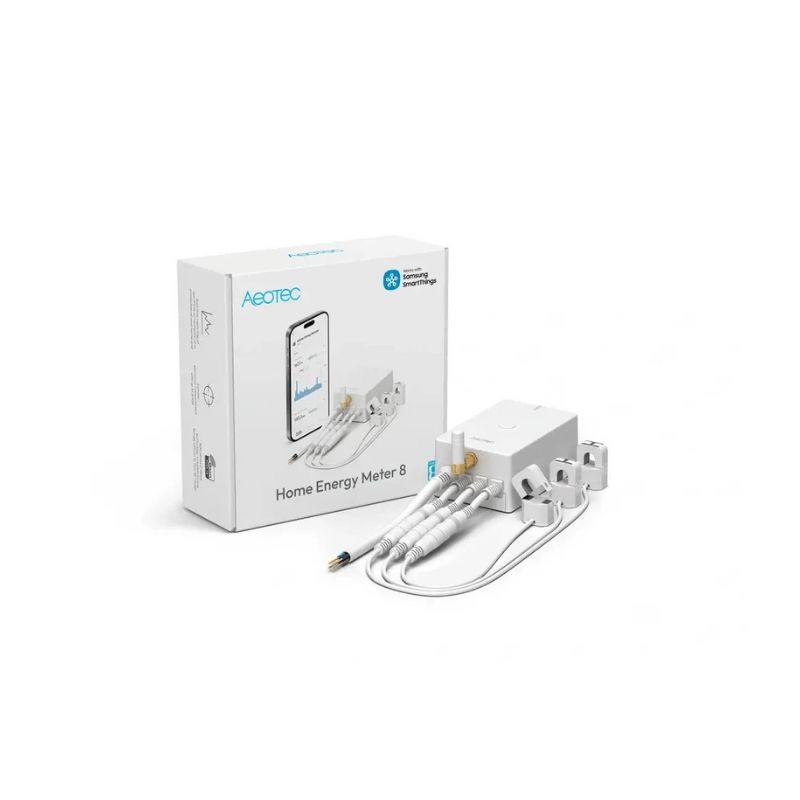

Package Contents

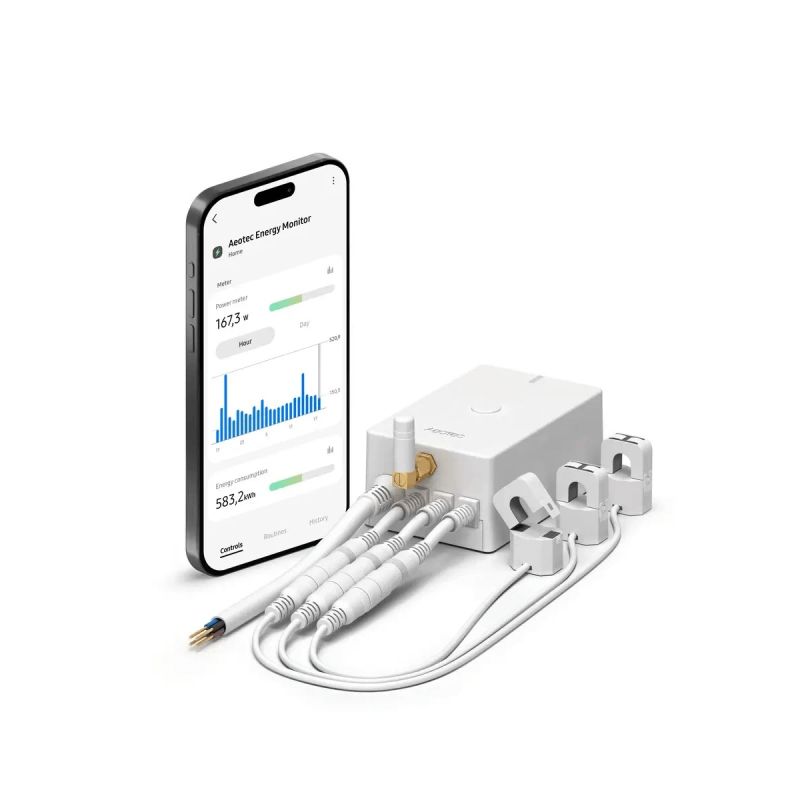

• 1x Aeotec Home Energy Meter 8 energy monitor
• 3x High-precision current clamps
• Mounting accessories
• User manual
