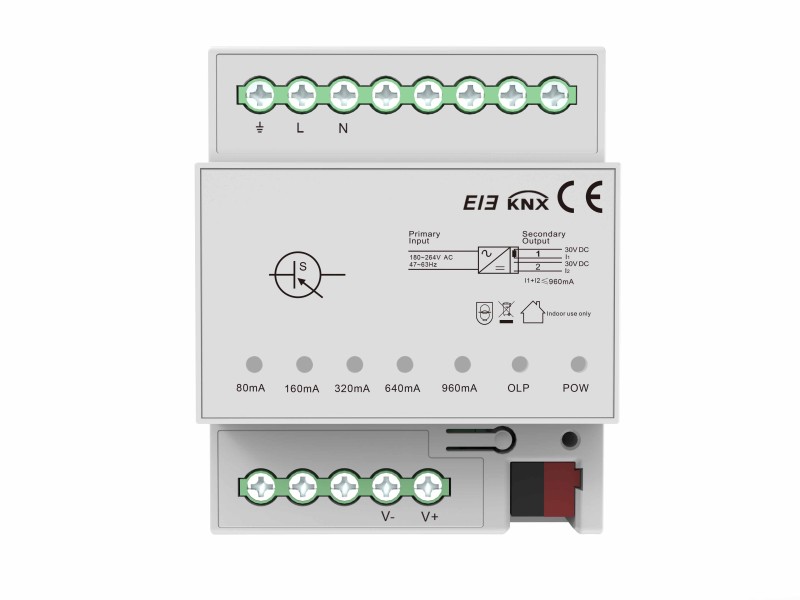

Akuvox - 960mA Power Module KNX (LY/D0960412J)
CHF229.00
Tax included
The 960mA Power Module is a premium add-on for EIB/KNX systems, providing stable power supply and signal transmission with easy installation and wide voltage range support.
In stock. Ordered before 5pm, delivered the next working day
As an official Akuvox provider, we offer you a 3-year warranty extension on this item. Thus, the warranty covers 5 years instead of 2.
Premium Add-on device for your home
The EIB/KNX power module is designed to supply and monitor the voltage for the EIB/KNX system. The output has two connection terminals, one for EIB bus power supply and signal transmission, and another for auxiliary power, which can provide a 30VDC power supply voltage to the terminal devices, thereby ensuring the system's flawless operation.
Features
- Utilizes the standard EIB/KNX protocol
- Wide voltage range supply
- Power supply stability and signal transmission reliability are guaranteed
- Operates efficiently within a temperature range of -5 to 45°C
- Simple in terms of wiring and operation
Technical specifications
- Model Number: LY/D0960412J
- Power Supply: 180 ~ 264VAC, 47·63Hz
- Working Temperature: -5 ~ 45℃
- Working Humidity: 10 ~ 95%RH
- Connections: EIB/KNX
- Product Size: 72×90×64mm
- Weight: Approximately 0.3 kg
- Output Voltage: 30VDC (Featuring dual channels: one for the signal bus and the other for auxiliary power supply)
- Output Current: The combined total of the two channels is less than or equal to 960mA
- Number Of Channels: 2 channels
- Installation Method: Standard 35mm DIN rail mounting
-
