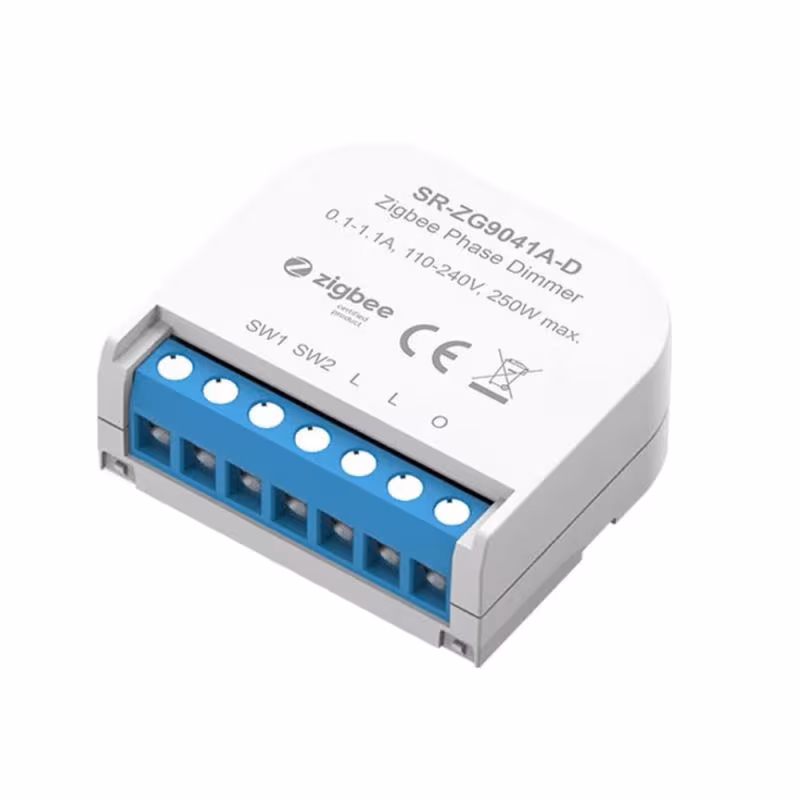

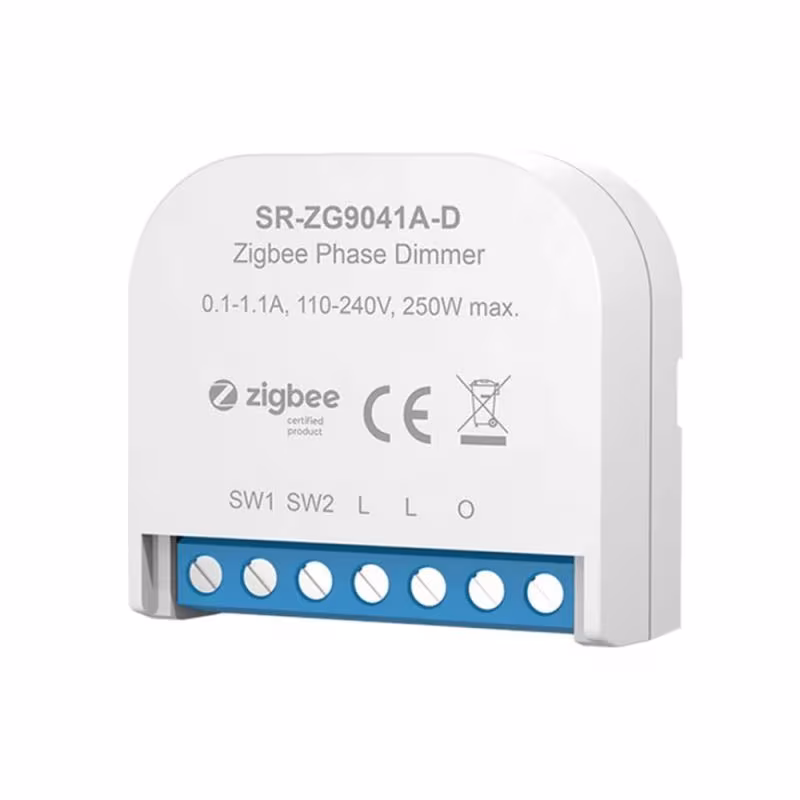

Sunricher SR-ZG9041A-D - Zigbee 3.0 Smart Micro-Dimmer

Introduction

The Sunricher SR-ZG9041A-D is an ultra-compact smart micro-dimmer based on the Zigbee 3.0 protocol, designed to transform your traditional lighting into remotely controllable connected fixtures. With its miniature dimensions of only 42×38×16 mm, this module discreetly fits into any standard wall box, even the most compact ones. Equipped with an advanced microprocessor and intelligent load detection algorithms, it offers exceptional compatibility with a wide range of light sources: dimmable LEDs, halogen bulbs, electronic transformers, and incandescent sources. Its installation flexibility with or without a neutral wire, combined with its power consumption measurement function, makes it the ideal solution for modernizing your existing lighting without major work.

Main features

Ultra-compact and universal

• Miniature dimensions: 42×38×16 mm for installation in standard flush-mounted boxes 86×86 mm
• Flexible installation: works with or without a neutral wire (2-wire or 3-wire connection)
• Wide voltage range: 100-240V AC input and output
• Maximum power: up to 250W @ 230V (125W @ 110V)
• Integrates into existing electrical installations without major modification

Advanced Zigbee 3.0 Protocol

• Based on the latest Zigbee 3.0 protocol for maximum compatibility
• Compatible with all universal Zigbee coordinators and gateways
• TouchLink function for direct pairing with Zigbee remotes (without coordinator)
• Support for battery-free Zigbee Green Power remotes
• Automatic firmware update via OTA (Over-The-Air)

Extended compatibility with light sources

• Dimmable LED bulbs (with power factor > 0.5)
• Dimmable LED drivers (up to 200W @ 230V)
• Traditional incandescent lighting (up to 250W @ 230V)
• High voltage halogen lamps (up to 250W @ 230V)
• Low voltage halogen lamps with electronic ELV transformers (up to 200W @ 230V)
• Halogen lamps with magnetic low-voltage (MLV) transformers
• Dimmable compact fluorescent tubes (CFL)

Intelligent modes of variation

• Default trailing edge variation (descending phase) for resistive and capacitive loads
• Leading-edge variation (rising phase) available for inductive loads (factory preset)
• Automatic intelligent detection of the type of connected load
• Soft start function to protect bulbs and prevent current surges
• Advanced load management algorithm for optimal performance

Simplified installation without neutral

• Operates in 2-wire connection (without neutral) or 3-wire connection (with neutral)
• Minimum required load without neutral: 20W @ 240V AC
• Bypass Module available separately for loads under 20W
• Ideal for renovating existing installations without a neutral wire available

Advanced customization features

• Minimum brightness setting: sets the lowest dimming level (prevents flickering)
• Startup brightness setting: sets the initial ignition level (1-50%)
• Avoid low-intensity LED driver startup issues
• Dedicated buttons for simple and quick configuration
• Saving settings in permanent memory

Electricity consumption measurement

• Real-time active power measurement function
• Monitoring energy consumption for optimization and savings
• Data accessible via application or Zigbee coordinator
• Allows for precise monitoring of your lighting consumption

Control flexibility

• Compatible with momentary switches (push buttons)
• Compatible with traditional toggle switches
• Compatible with three-way switches
• Short press: on/off
• Long press: gradual variation of light intensity
• Memory function: recalls the last intensity used

Simplified pairing and configuration

• Classic pairing via a Zigbee coordinator or gateway
• Quick TouchLink: direct pairing with Zigbee remotes in less than 10 cm
• Learning with up to 20 kinetic Zigbee Green Power remote controls
• Simple factory reset (5 presses or 5 power-ons)
• Visual indication by blinking of the connected lamp

Technical specifications

Food and power

• Input voltage: 100-240V AC, 50/60 Hz
• Output voltage: 100-240V AC
• Output current: 0.1-1.1A
• Maximum power according to load:
  • Dimmable LED bulbs: 200W @ 230V / 100W @ 110V
  • Dimmable LED drivers: 200W @ 230V / 100W @ 110V
  • Incandescence and halogen HT: 250W @ 230V / 125W @ 110V
  • Halogen BT with electronic transformer: 200W @ 230V / 100W @ 110V

Dimensions and installation

• Dimensions: 42×38×16 mm (L×W×H)
• Weight: Ultra-light (unspecified weight)
• Installation: Standard 86×86 mm flush-mounted box or round box
• Connections: Secure screw terminals
• DIN rail mounting: Optional support available separately
• Cable cover: Optional accessory for a neat finish

Zigbee Protocol

• Protocol: Zigbee 3.0
• Device type: End device (terminal device)
• TouchLink function: Yes, for direct pairing with remote controls
• Zigbee clusters for input: 0x0000 (Basic), 0x0003 (Identify), 0x0004 (Groups), 0x0005 (Scenes), 0x0006 (On/Off), 0x0008 (Level Control), 0x0702 (Simple Metering), 0x0b04 (Electrical Measurement), 0x0b05 (Diagnostics)
• Zigbee output clusters: 0x0019 (OTA)

Modes of variation

• Default mode: Trailing edge (descending phase)
• Optional mode: Leading edge (rising phase) - factory preset
• Method: Semiconductor electronic switching

Advanced functions

• Automatic intelligent detection of load type
• Active power and energy measurement
• Soft start function for gradual ignition
• Minimum and startup brightness setting
• Automatic OTA update (every 10 minutes)

Switch compatibility

• Momentary switches (push buttons)
• Toggle switches
• Three-way switches
• All types of standard switches

Terms of use

• Operating temperature: Not specified in the manual (standard indoor use)
• Installation: Inside wall-mounted enclosures compliant with regulations
• Protection: To be installed in an appropriate protective enclosure

Delivery content

• 1× micro-controller SR-ZG9041A-D
• User documentation

Optional accessories (sold separately)

• Bypass Module for Loads
• Wire cover for aesthetic finish
• DIN rail mounting support
