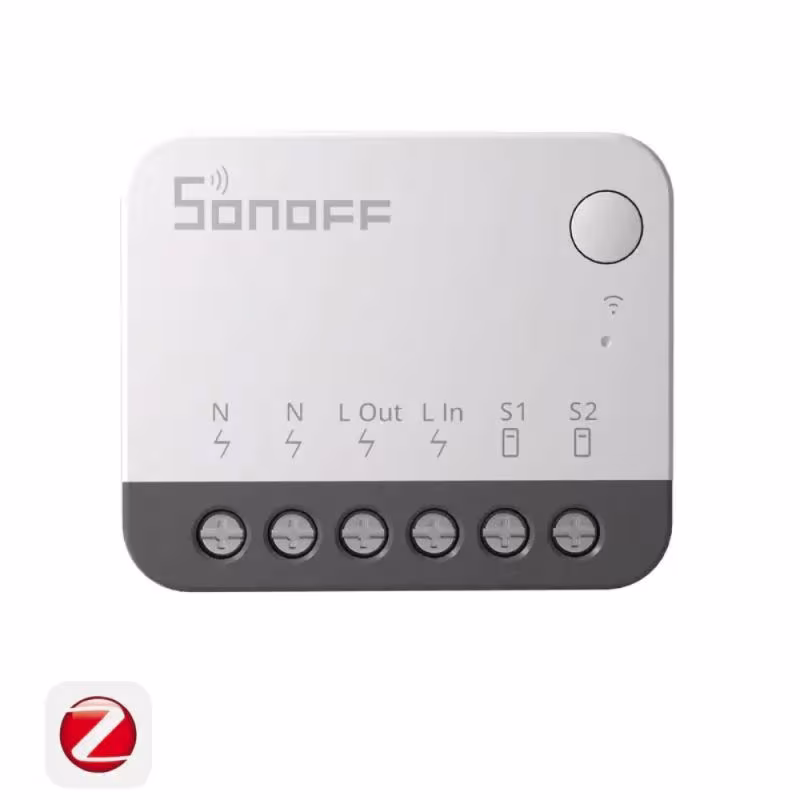

SONOFF ZBMINIR2 Extreme - 10A Zigbee switch module

Introduction

The SONOFF ZBMINIR2 is an extremely compact Zigbee 3.0 smart switch, designed to fit behind a traditional wall switch. With only a neutral wire required, it transforms a conventional switch into a "smart" switch, while remaining discreet in your installation. Compatible with most Zigbee home automation systems, it offers a simple solution for automating lighting or other electrical loads in your home.

Key functions

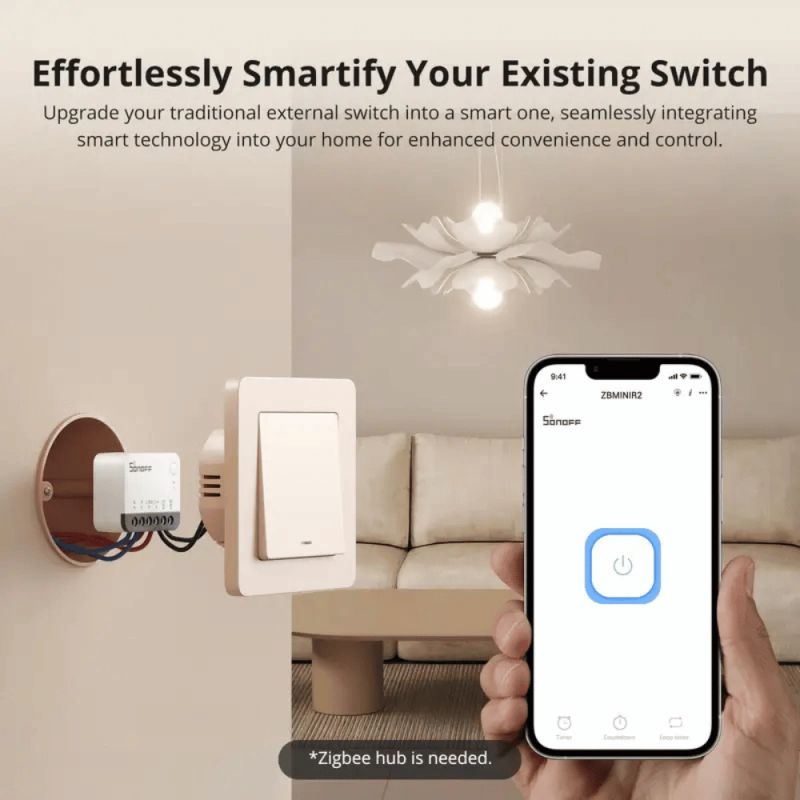

• Transforms a traditional switch into a Zigbee smart switch 3.0.
• Maximum load of 10 A (i.e. up to 2400 W at 240 V), suitable for lamps, small appliances and domestic circuits.
• Detached Relay Mode" function: external switch can be switched off while smart devices remain connected.

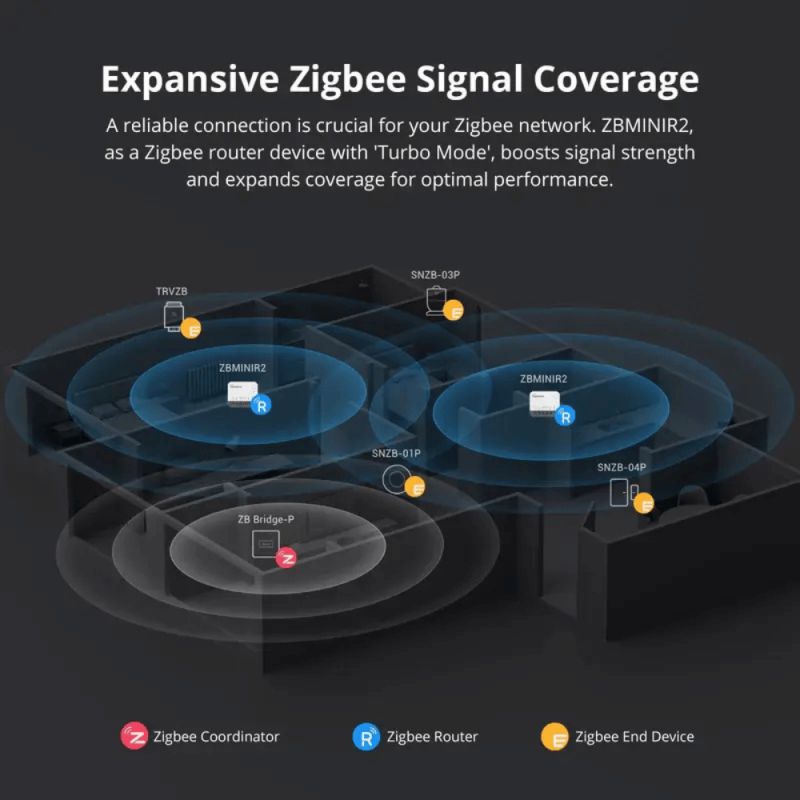

• Zigbee router/repeater function: strengthens your Zigbee network by supporting up to 64 end devices, improving the range and stability of your mesh.
• Broad compatibility with many Zigbee hubs - eWeLink, SONOFF ZBBridge devices, compatible Zigbee bridges, open source platforms such as Zigbee2MQTT or Home Assistant (ZHA), as well as voice assistants and home automation platforms.

Technical specifications

• Model: ZBMINIR2.
• Power supply: 100-240 V ~, 50/60 Hz.
• Maximum load: 10 A (i.e. 2400 W @ 240 V).
• Wireless connectivity: Zigbee 3.0.

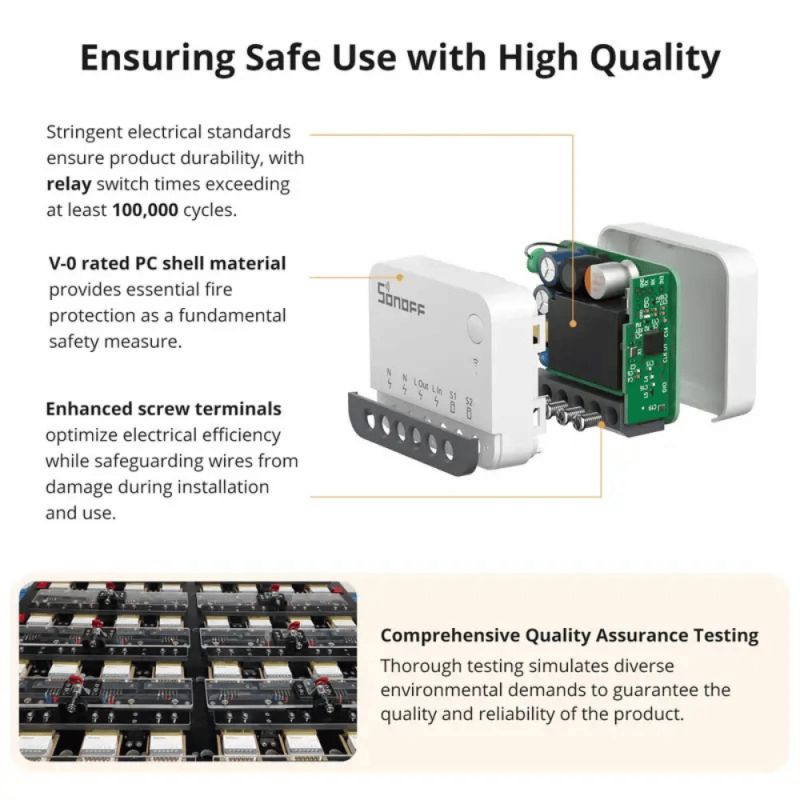

• Housing material: PC V0 (flame-retardant plastic).
• Net weight: 26.7 g.
• Dimensions: 39.5 × 33 × 16.8 mm.
• Use: indoors only.
• Operating temperature: -10°C to 40°C.
• Operating humidity: 5% to 95% RH (non-condensing).
• Compliance: CE / FCC / RoHS / EN 60669-2-1.
