SONOFF MINI-D - Smart WiFi dry contact module with Matter

Introduction

The SONOFF MINI-D is a revolutionary smart WiFi module with a dry contact output, the first of its kind to support the Matter protocol. Designed to transform your existing electrical installations into smart systems, it stands out with its dual AC/DC power supply and configurable NO/NC dry contact output. Ultra-compact like all modules in the MINI series, it allows remote control of garage doors, boilers, access systems, solenoid valves, or small DC motors up to 8W. Matter-compatible, it integrates seamlessly with Apple Home, Google Home, Alexa, Home Assistant, and all Matter-certified ecosystems for truly unified home automation.

Main Features

Matter Protocol for Total Interoperability

• First SONOFF dry contact module certified Matter
• Compatible with Apple Home, Google Home, Amazon Alexa, Home Assistant, SmartThings
• Seamless integration with devices from different brands
• Unified ecosystem without multiplying apps
• Cross-platform control from any Matter interface
• Future-proof: scalability guaranteed by the Matter standard

Dual AC/DC Power Supply

• AC Power Supply: 100-240V~ 50/60Hz, max 0.1A
• DC Power Supply: 12-48V⎓, max 1A
• Maximum flexibility according to installation environment
• Residential, industrial, or automotive installation
• IMPORTANT: Never connect AC and DC simultaneously

NO/NC Dry Contact Output

• Isolated dry contact relay
• Normally Open (NO) and Normally Closed (NC) configurations
• 2A nominal relay current
• DC Output Only: 24V⎓ 2A max (resistive load) OR 12/24V⎓ 8W max
• No AC Output: never connect AC load to output
• Galvanic isolation between power supply and load

Specially Designed for Low Power DC Motors (max 8W)

• Optimized for DC solenoid valves and small motors
• Maximum power: 8 Watts at 12V or 24V DC
• Applications: automatic irrigation, motorized curtains, gates
• Precise control without thermal overload
• Ideal for secure low voltage systems

Control via Contactor for High Loads

• Interface with industrial contactors
• Low power control circuit (2A) safely drives high loads
• Applications: industrial equipment, HVAC units, pumps
• Enhanced safety without direct user intervention
• Reduced control circuit consumption
• Precise intelligent control over significant loads

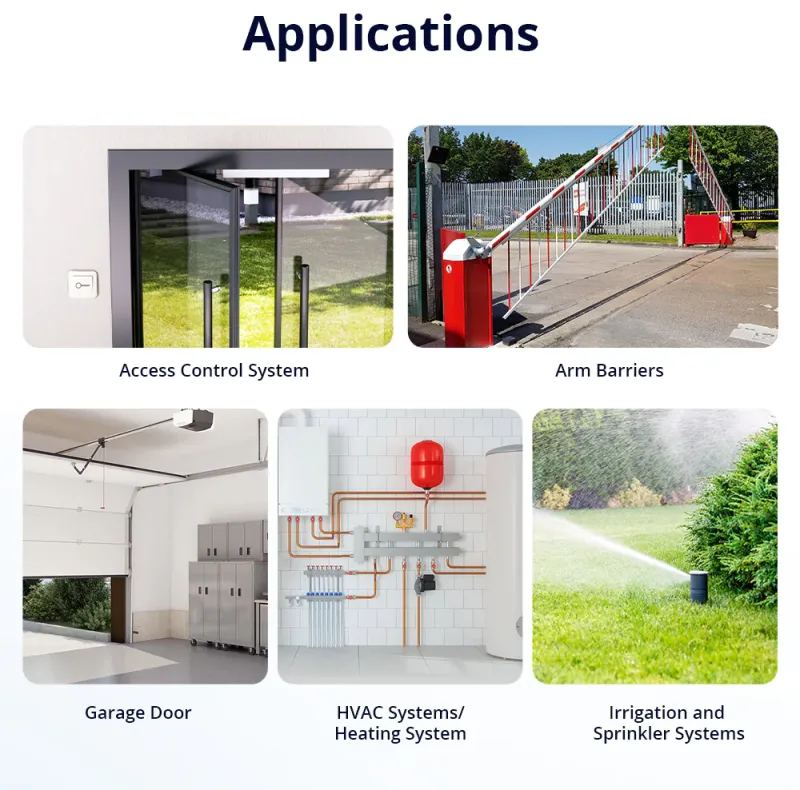

Control Devices with Dry Contact Input

• Compatible with devices triggered by dry contact signal
• Applications: garage door motors, boilers, temperature systems
• Integration of intelligent control into traditional systems
• Replacement of mechanical switches with WiFi control
• Suitable for access control panels, electric locks, gates

Ultra-Compact MINI Series Module

• Miniature design for standard recessed box installation
• Compact dimensions (similar to other MINI series)
• Weight: 34.5 grams
• Invisible installation behind existing devices
• Perfect for renovations without major modifications

2.4 GHz WiFi Connectivity

• WiFi IEEE 802.11 b/g/n 2.4 GHz
• ESP32-D0WDR2 microcontroller
• Standard WiFi range for domestic use
• Local and remote control via the Internet

Control Button and LED

• Multifunction physical button
• Blue LED indicator (eWeLink mode):
  • Solid On: device online
  • 2 short + 1 long: pairing mode
  • 3 flashes: switch type changed successfully
• Blue LED (Matter mode): similar states
• Single press: ON/OFF
• Hold for 5s: pairing mode (10 minutes)
• Triple quick click: change external switch type

eWeLink App with Advanced Features

• Free iOS/Android app
• eWeLink Remote Gateway: MINI-D acts as a gateway for eWeLink Remote devices (R5, S-MATE2)
• Configurable Power-On State: behavior after power cut (ON/OFF/delay)
• Schedule programming and scenarios
• Integration with eWeLink ecosystem
• Voice control via compatible assistants

Supported External Switches

• Compatible with momentary and toggle switches
• Switch type change via triple click
• Preservation of existing wall switches
• Simultaneous local and app control

Technical Specifications

General

• Model: MINI-D
• Microcontroller: ESP32-D0WDR2
• Net weight: 34.5 grams
• Casing material: PC (Polycarbonate)

Power Supply (do not connect simultaneously)

• AC: 100-240V~ 50/60Hz, max 0.1A
• DC: 12-48V⎓, max 1A

Output (DC only)

• Isolated dry contact
• Configurations: NO (Normally Open) and NC (Normally Closed)
• Nominal relay current: 2A
• Resistive Load: 24V⎓ 2A max
• DC Motor/Solenoid Valve: 12/24V⎓ 8W max
• No AC Output: DC only

Connectivity

• WiFi: IEEE 802.11 b/g/n, 2.4 GHz only
• Protocol: Matter certified

Certifications

• Matter certification
• CE, RoHS, WEEE
• EU Directive: 2014/53/EU
• Declaration of conformity available

Matter Compatibility

• Apple Home (via Matter hub)
• Google Home (via Matter hub)
• Amazon Alexa (via Matter hub)
• Home Assistant
• SmartThings
• Other Matter-certified platforms

Delivery Contents

• 1× SONOFF MINI-D Module
• 1× Quick Guide with Matter QR code
• Multilingual user documentation
