SONOFF MINI-2GS MINI DUO - Matter Wi-Fi Dual Channel Smart Switch 16A

SONOFF MINI-2GS MINI DUO - Dual Channel Connected Switch Matter Wi-Fi 16A

GENERAL OVERVIEW

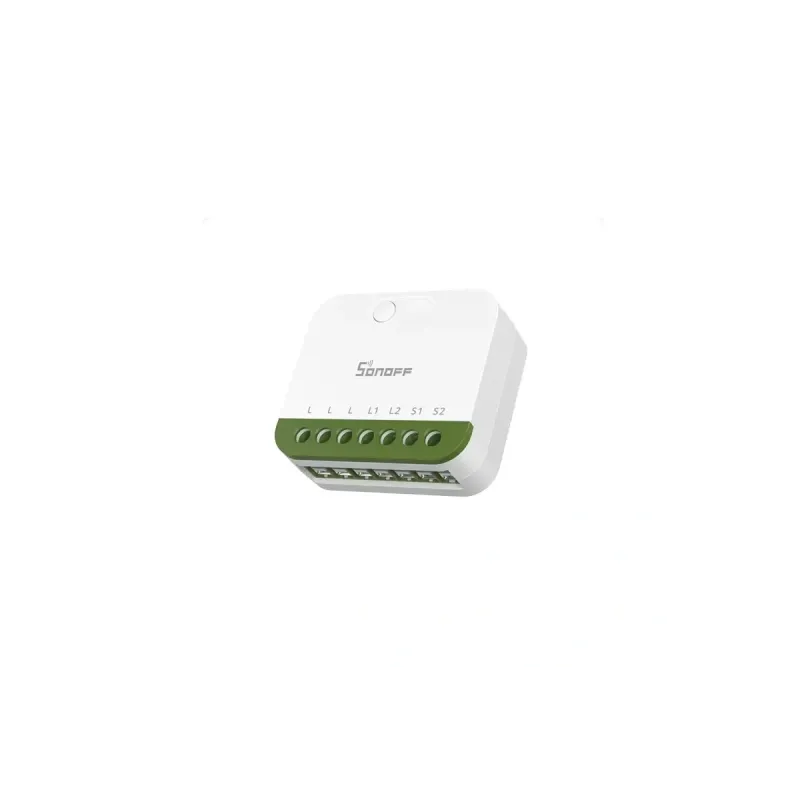

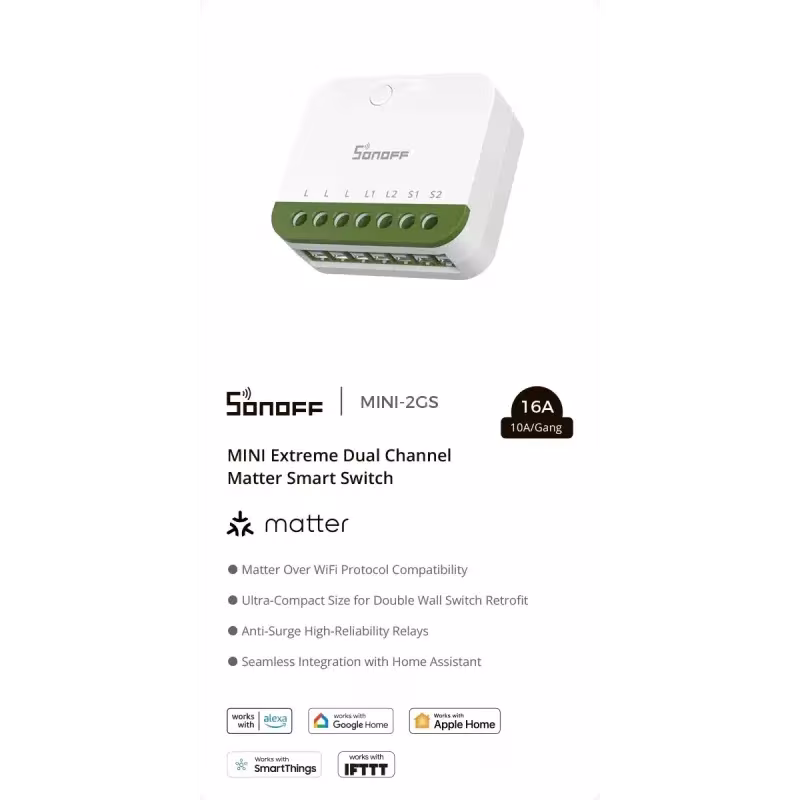

The MINI DUO (MINI-2GS) is an ultra-compact dual channel smart switch from the SONOFF MINI Extreme series. With its reduced dimensions of only 45×39.4×16.8mm and weighing 36.5g, this micro-module easily fits into any standard flush-mounted box, even the most compact ones.

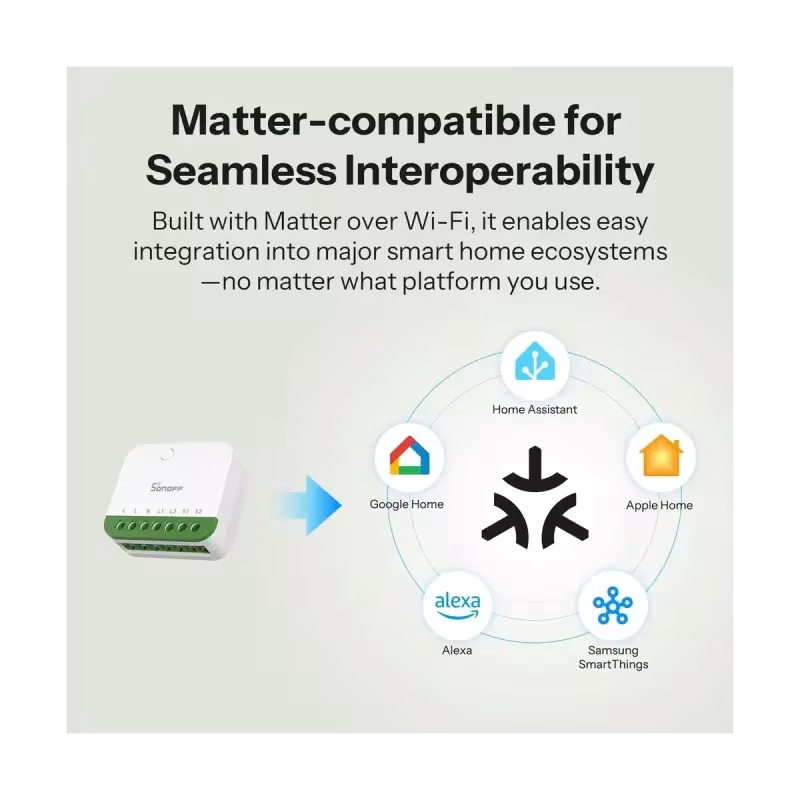

Based on the Matter over Wi-Fi protocol, this switch offers universal compatibility with all major home automation ecosystems on the market: Apple Home, Google Home, Amazon Alexa, Samsung SmartThings, Home Assistant, and any Matter certified platform. This interoperability ensures seamless integration into your existing setup, regardless of your preferred platform.

The MINI-2GS manages two independent switching channels with a capacity of 10A per channel and a total maximum load of 16A. Each channel can be controlled separately via the eWeLink app, by voice command, or locally via external switches (toggle or push button). The ESP32-C3FH4X microcontroller from Espressif ensures reliable performance and stable 2.4GHz Wi-Fi connectivity.

Important note: this model requires a neutral wire to operate. Installation must be carried out by a qualified electrician and protected upstream by a circuit breaker or RCBO with a maximum of 16A.

KEY FEATURES

• Guaranteed universal Matter compatibility: The adoption of the Matter protocol ensures seamless integration with all current and future home automation ecosystems. Control your two channels simultaneously via Apple Home on iPhone/iPad, Google Home on Android, Alexa on Echo, or SmartThings on Samsung. Create complex multi-brand routines mixing SONOFF, Philips Hue, Eve, Aqara, and other devices without platform limitation.
• High-capacity independent dual channel: Each of the two outputs switches up to 10A (2400W at 240V), with a cumulative maximum of 16A to ensure installation safety. Ideal for controlling two separate lighting zones in the same room (ceiling light + wall lights), two bedside lamps, or lighting + fan combinations. Each channel remembers its last state after a power outage to automatically restore its configuration.
• Preserved local control via existing switches: Inputs S1 and S2 accept both traditional toggle switches and modern push buttons. The switch type can be easily changed with a triple press on the configuration button without any disassembly. This flexibility allows you to maintain the aesthetics and ergonomics of your existing wall switches while adding smart connectivity.
• Ultra-compact professional installation: With its 45×39.4×16.8mm size, the MINI-2GS fits into absolutely all standard European flush-mounted boxes, even the oldest or shallowest ones. The 16-14AWG automatic terminals directly accommodate solid or stranded copper conductors without requiring additional connectors. Perfect for renovating existing installations without modifying wall wiring.
• Advanced Matter automations and smart scenes: Schedule personalized weekly timings for each channel independently. Create scenes combining your two channels with other Matter devices: "Good night" gradually turns off the ceiling light (channel 1), keeps the nightlight on (channel 2), and locks the connected door. Automations synchronize across all your compatible Matter platforms.
• Native Home Assistant integration: Automatic recognition via Matter integration in Home Assistant without manual configuration. Full exposure of both switch entities with state, consumption, and diagnostic attributes. Compatible with complex YAML automations, community blueprints, and customized Lovelace dashboards. Also works with Node-RED for advanced visual automation flows.

TECHNICAL SPECIFICATIONS

Product Identification

• Trade Name: MINI DUO
• Model Reference: MINI-2GS
• Product Series: MINI Extreme series
• Product Type: 2-Gang Matter Over WiFi Smart Switch
• Manufacturer: Shenzhen Sonoff Technologies Co., Ltd.

Protocols and Connectivity

• Primary Protocol: Matter over Wi-Fi
• Secondary Protocol: Bluetooth Low Energy (BLE)
• Wi-Fi: IEEE 802.11b/g/n 2.4 GHz only
  • 20 MHz Channels: 2412–2472 MHz (channels 1-13)
  • 40 MHz Channels: 2422–2462 MHz
• Bluetooth: 2402–2480 MHz
• Maximum Emission Power (EU):
  • Wi-Fi 2.4 GHz: ≤20 dBm
  • BLE: ≤10 dBm
• Matter Compatible Platforms:
  • Apple Home (iOS 16.1+, iPadOS 16.1+, macOS 13+, tvOS 16.1+, HomePod 16.1+)
  • Google Home (Android/iOS app)
  • Amazon Alexa (Echo 4th gen+, Echo Show 10 3rd gen+, Echo Studio, etc.)
  • Samsung SmartThings (Hub v3, Station, SmartThings Family Hub, etc.)
  • Home Assistant (2022.12+)
  • Homey Pro (2023 Early Access)
  • Any Matter certified compatible platform
• Control App: eWeLink (iOS and Android)
• Pairing: Scan Matter QR code or manual pairing
• Pairing Mode Duration: 10 minutes

Hardware and Microcontroller

• Microcontroller (MCU): ESP32-C3FH4X (Espressif Systems)
• Architecture: RISC-V 32-bit
• CPU Frequency: Up to 160 MHz
• Flash Memory: 4 MB
• RAM: 400 KB SRAM

Electrical Characteristics

• Power Supply Voltage: 110–240V~ 50/60Hz single-phase only
• Load per Channel:
  • Maximum per channel: 10A (2400W at 240V~)
  • Total cumulative maximum: 16A (3840W at 240V~)
  • Load Type: Resistive only
• Mandatory Upstream Protection: Circuit Breaker (MCB) or RCBO 16A
• Neutral Wire: REQUIRED (installation impossible without neutral)
• Conductor Type: 16-14 AWG (1.5-2.5 mm²) SOL/STR copper only
• Connection Terminals: Spring-loaded automatic terminals

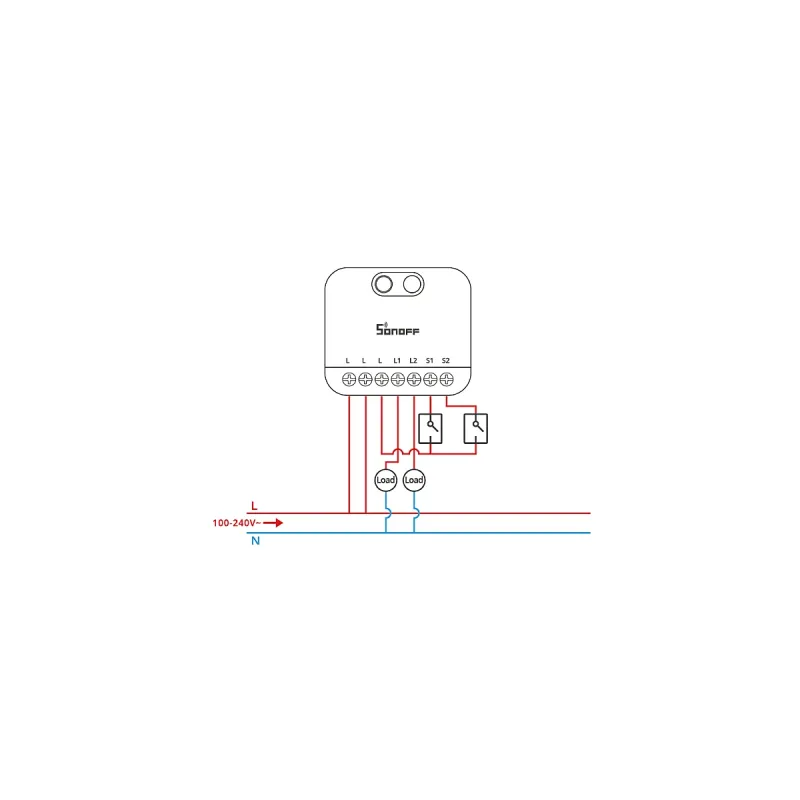

Wiring Diagram

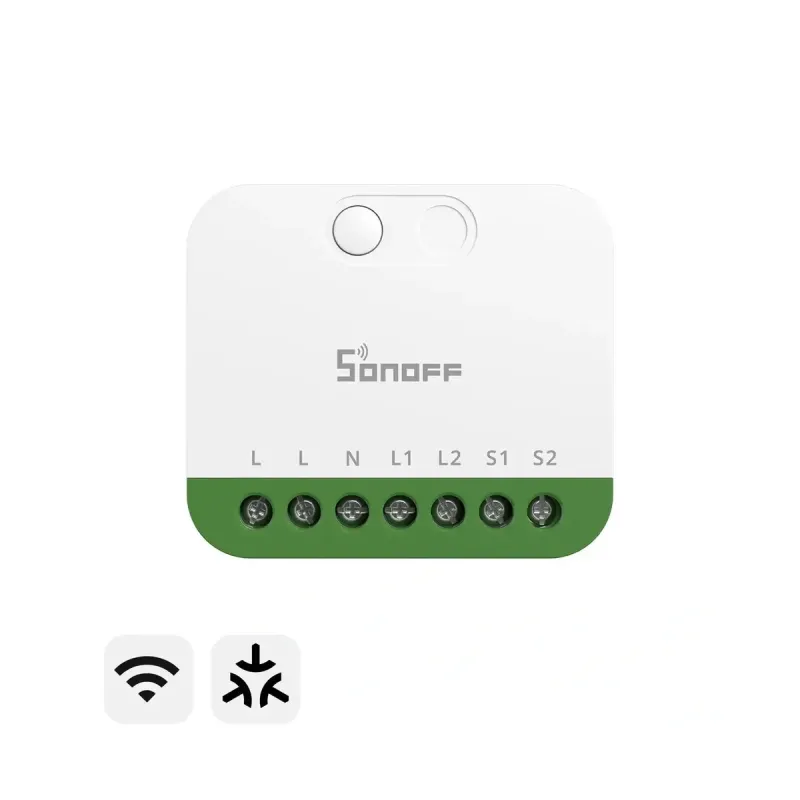

• Available Terminals:
  • L: Line input 110-240V~
  • N: Neutral input (MANDATORY)
  • L1: Line output channel 1 (110-240V~)
  • L2: Line output channel 2 (110-240V~)
  • S1: External switch input channel 1
  • S2: External switch input channel 2

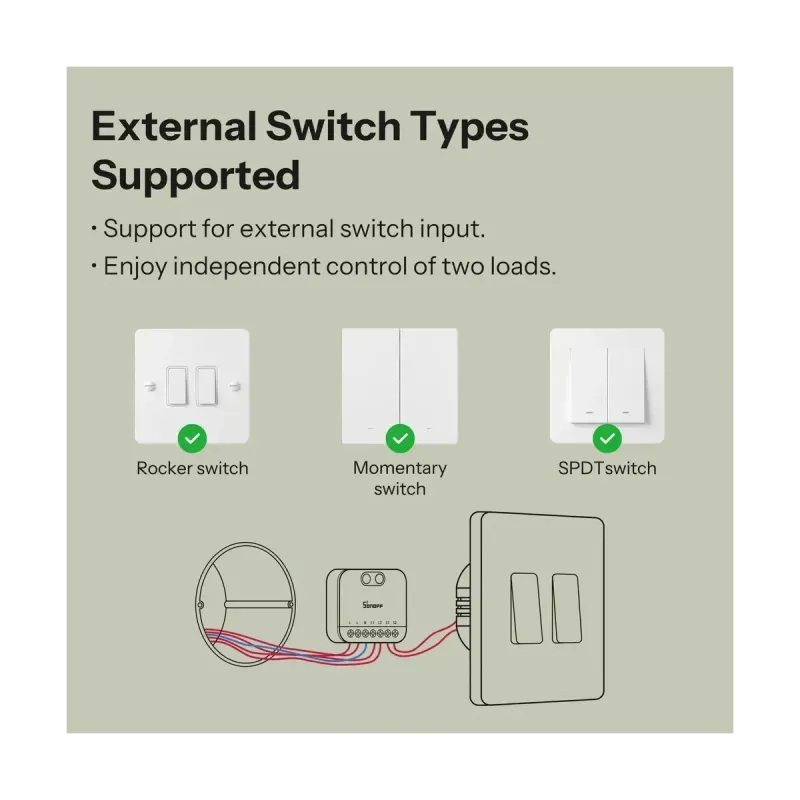

• Compatible External Switches:
  • Rocker switch - factory default
  • Push button
• Switch Type Change: Triple press button → LED blinks 3× → Type modified
• CRITICAL WARNING: NEVER connect S1 or S2 to neutral or ground → Guaranteed device destruction

User Interface

• Physical Buttons: 2 touch buttons on the top of the device
• LED Indicator: Multifunction blue LED
  • eWeLink Mode:
    • Blinking "two short + one long": Active pairing mode
    • Solid on: Device online
    • One blink: Offline
    • Two blinks: Connected to router but not to cloud
  • Matter Mode:
    • Blinking "two short + one long": Active pairing mode
    • Solid on: Device online
    • One blink: Offline
• Main Button Functions:
  • Long press 5 seconds: Activate pairing mode
  • Triple quick press: Change type of external switch
  • Long press 10 seconds: Complete factory reset

Dimensions and Weight

• Device Dimensions: 45 × 39.4 × 16.8 mm (L × W × H)
• Net Weight: 36.5 g
• Format: Ultra-compact rectangular
• Thickness: 16.8 mm (among the most compact on the market)

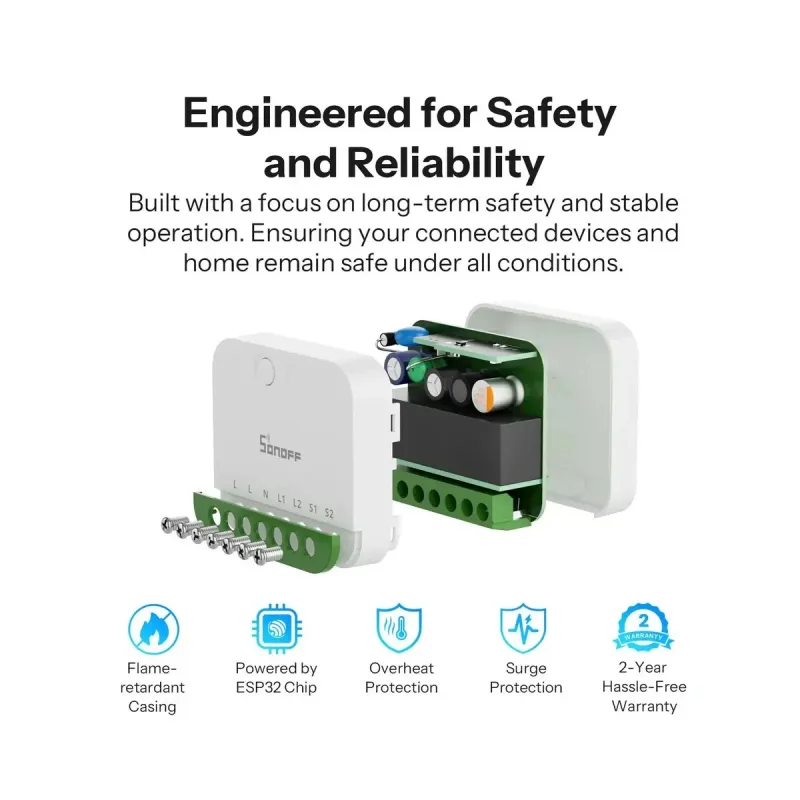

Construction and Materials

• Casing Material: Flame-retardant PC (Polycarbonate)
• Color: White
• Finish: Matte
• Protection Rating: Indoor use only (no IP rating)
• Fire Resistance: Complies with V0

Environmental Conditions

• Usage Location: Indoor only
• Operating Temperature: -10°C to +40°C
• Storage Temperature: -20°C to +70°C
• Relative Humidity: 5 to 95% RH (non-condensing)
• Maximum Altitude: 2000 meters

Certifications and Compliance

• European Certifications: CE
• North American Certifications: FCC
• Environmental Compliance: RoHS
• FCC ID: 2APN5-MINI2GS
• RED Directive: 2014/53/EU
• Matter Certification: Yes (CSA-IOT, Matter 1.0+)
• WEEE Compliance: Yes (mandatory recycling)

Supported Matter Functions

• Device Type: On/Off Light Switch (0x0103)
• Supported Clusters:
  • On/Off (0x0006) - On/off state
  • Level Control (0x0008) - Not supported (switching only)
  • Groups (0x0004) - Group control
  • Scenes (0x0005) - Scene management
• Commissioning: Wi-Fi + BLE
• Fabric Support: Multi-fabric (up to 16 simultaneous controllers)
• Thread: Not supported (Wi-Fi only)

Smart Functions

• Remote Control: Via eWeLink app or native Matter app
• Voice Control: Compatible with Siri, Google Assistant, Alexa
• Scheduling: Weekly schedules per channel
• Smart Scenes: Creation of multi-device scenes
• Groups: Logical grouping of multiple devices
• Device Sharing: Multi-user sharing
• State Memory: Channel states remembered after power outage
• Power-On State: Configurable (last state/always ON/always OFF)

Installation and Mounting

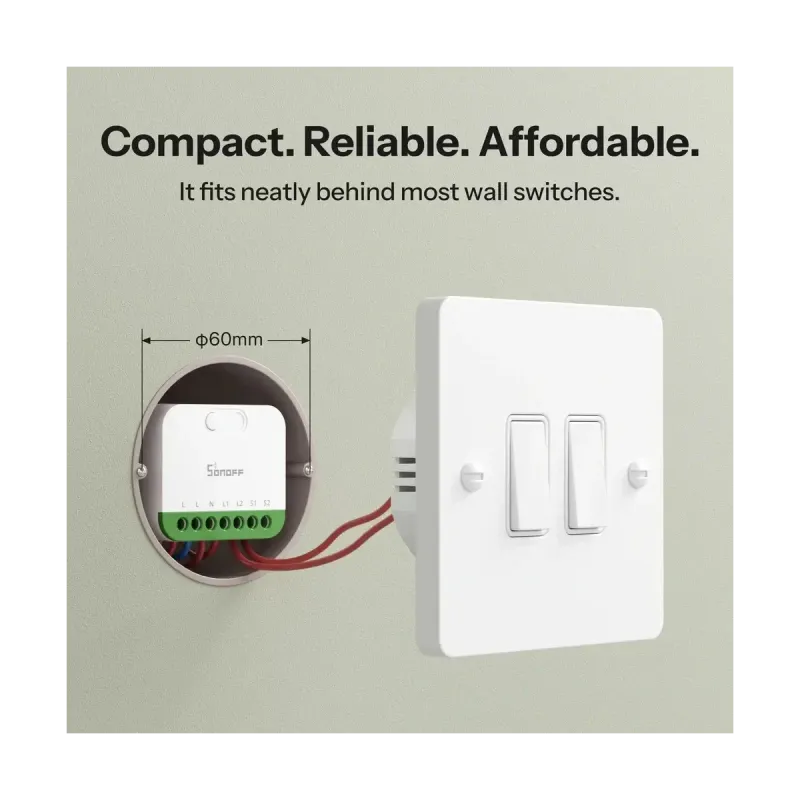

• Installation Type: Flush-mounted in standard wall box
• Compatible Boxes: All standard European flush-mounted boxes (≥40mm depth)
• Required Space: Minimum 40mm × 40mm × 40mm
• Mounting: Screws or clips depending on the box
• Required Wiring: Line + Neutral + 2× outputs + 2× external switches
• Necessary Tools: Flathead/Phillips screwdriver, voltage tester, wire stripper
• Installer Qualification: Qualified electrician recommended

Package Contents

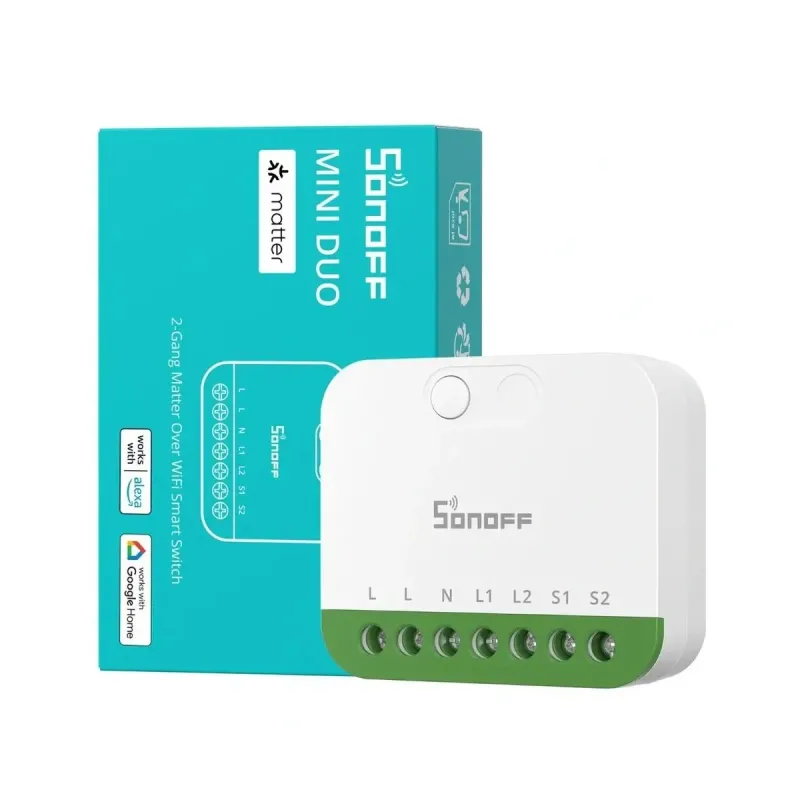

• 1× SONOFF MINI-2GS MINI DUO (main device)
• 1× Multilingual Quick Start Guide with Matter QR code
• 1× User Manual (EN/FR/DE/IT/ES)
