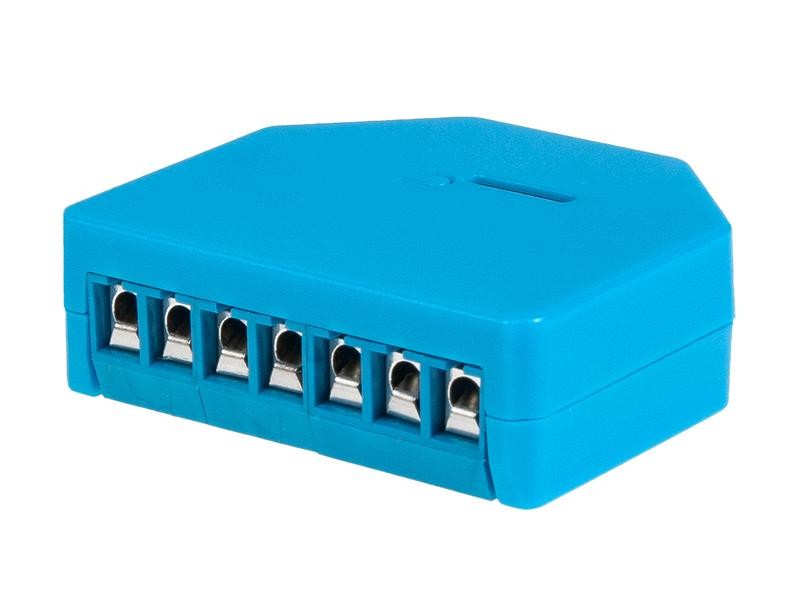

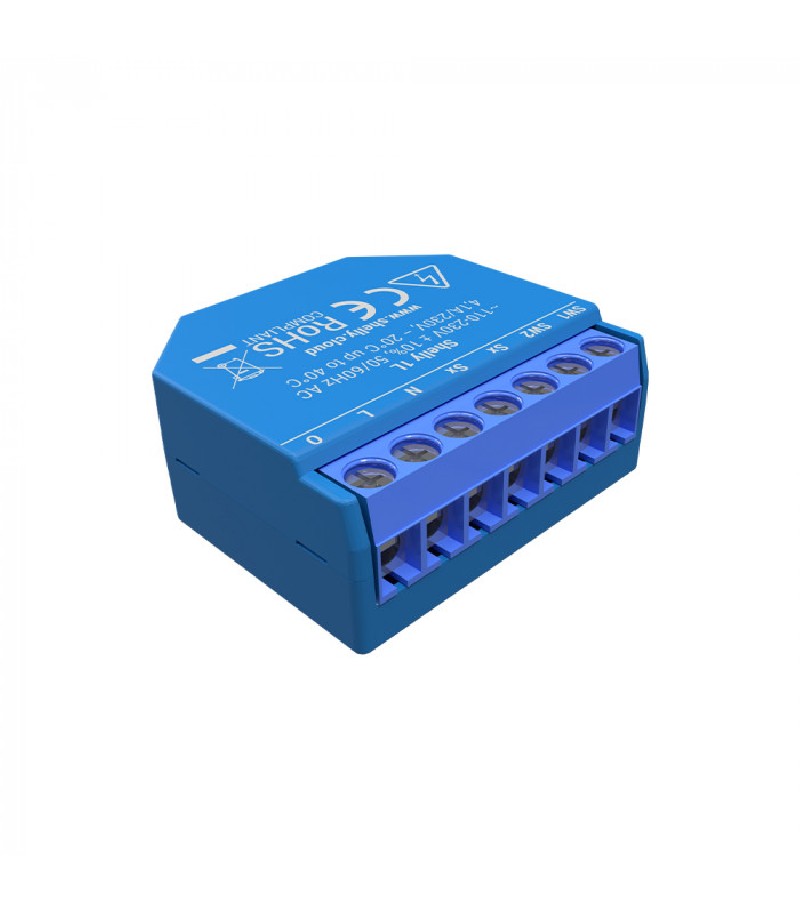

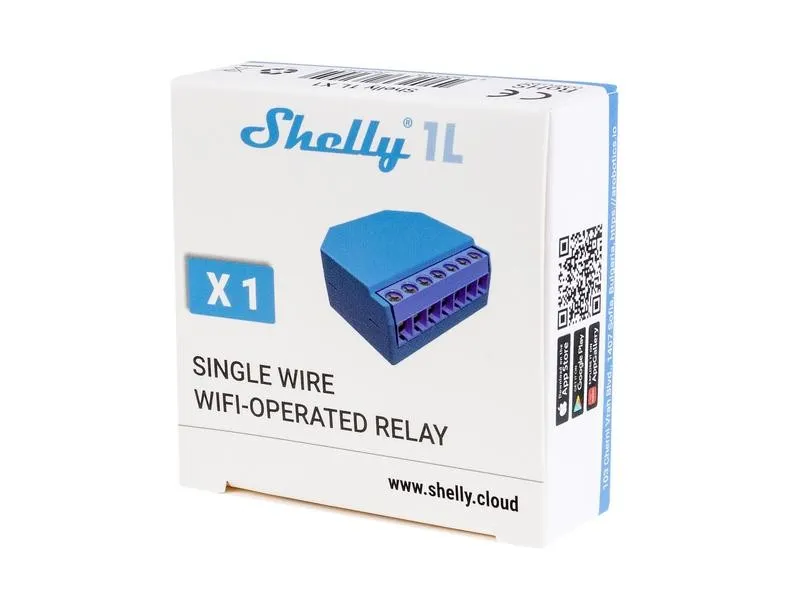

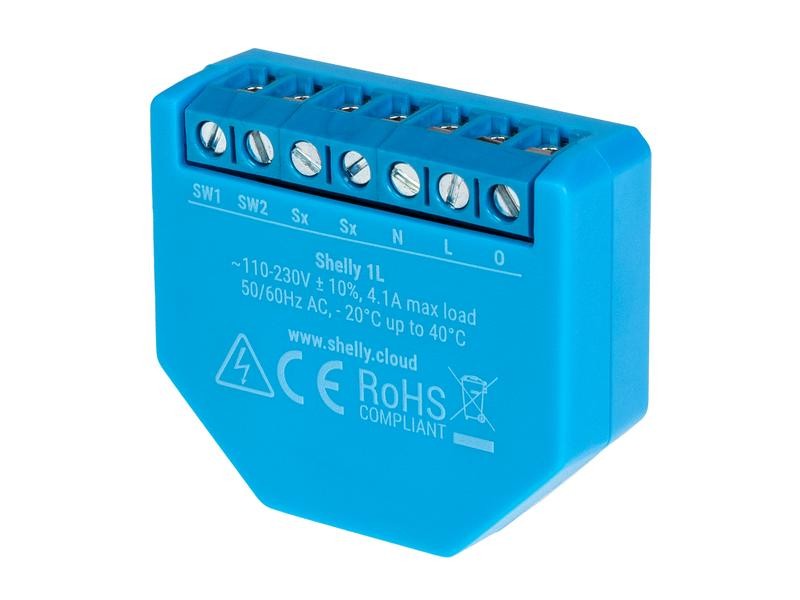

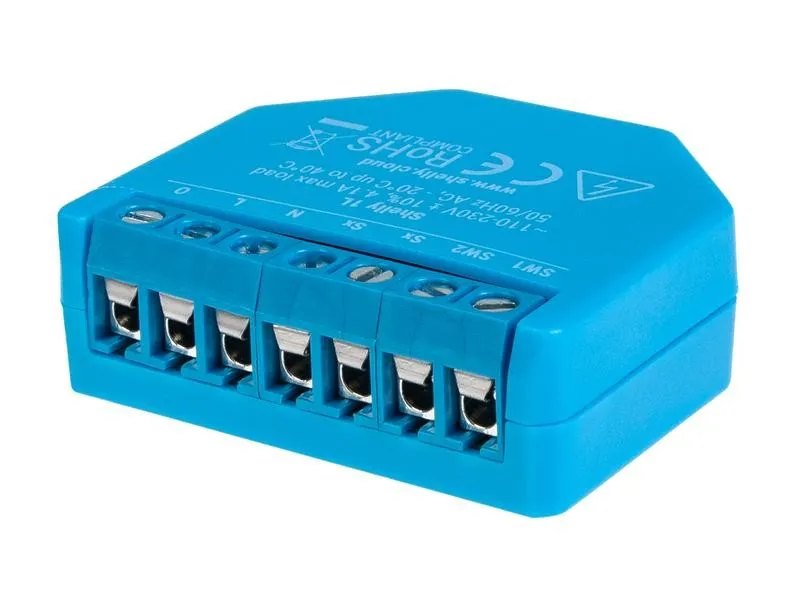

SHELLY - ON/OFF module a Wi-Fi-free relay (Shelly 1L)

Convert any existing wall switch into a smart switch without changing the wiring or using new cables with Shelly 1L. The world's first device capable of automating even wired devices without any neutral. Thanks to its small size, it is a real innovation!.

No neutral wires required

Power your module and control your light or devices directly through the phase. No neutral wires are required.

Control of a relay.

With your 1L Shelly , you can fly an on/OFF aircraft. The module supports loads of up to 4.1A (1x 943W).

Wireless

Doesn't require a home control - just connect the module to your Wi-Fi.

Remote control

Control your lamps and appliances, no matter where you are. Never forget your lights on again and never go home in the dark again.

Highly compatible

Compatible Android, iOS, API Rest, Amazon Alexa and Google Assistant.

Support from 110 to 230 V 50/60 Hz

The Shelly 1L is compatible with international power standards

Sunrise and sunset

Your Shelly modules can control your lamps according to sunrise and sunset, but of course also thanks to different customizable scenarios.

Weekly planning

Choose the time and date and your lights fly on their own.

Protection from overheating

An internal temperature sensor protects your Shelly module from overheating.

Also thought for developers

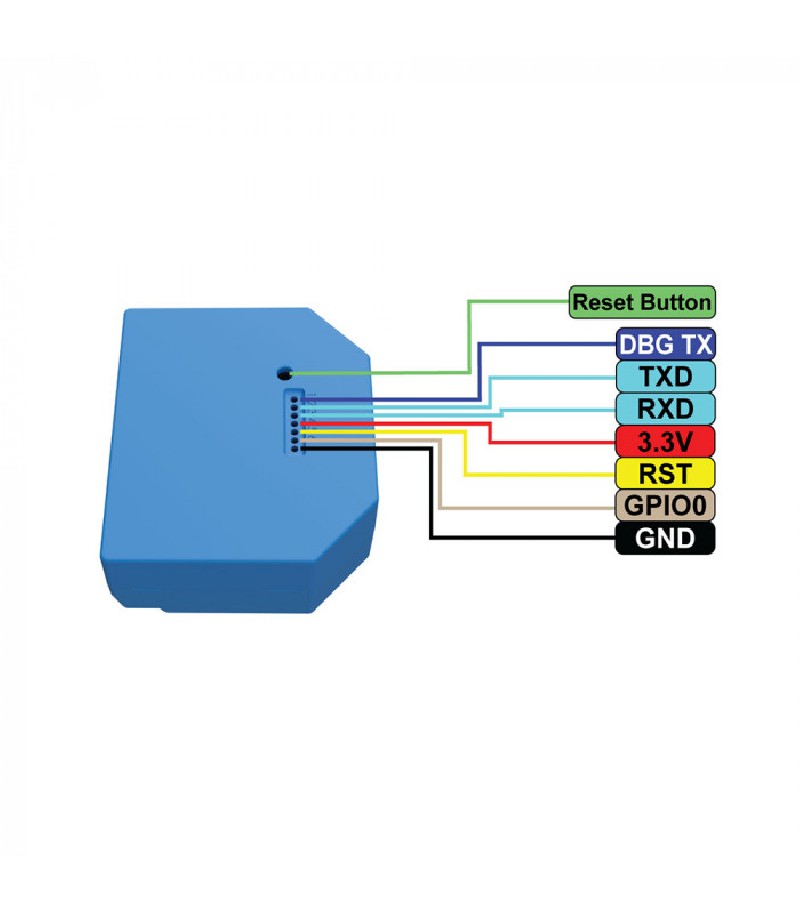

The Shelly modules allow you to install alternative firmwares. In addition, the modules have a Rest API that allows modules to be controlled directly locally, without the need for the cloud.

Functions

• WiFi control from a mobile phone, computer, automation system or any other device that supports HTTP and/or UDP protocols
• Microprocessor management

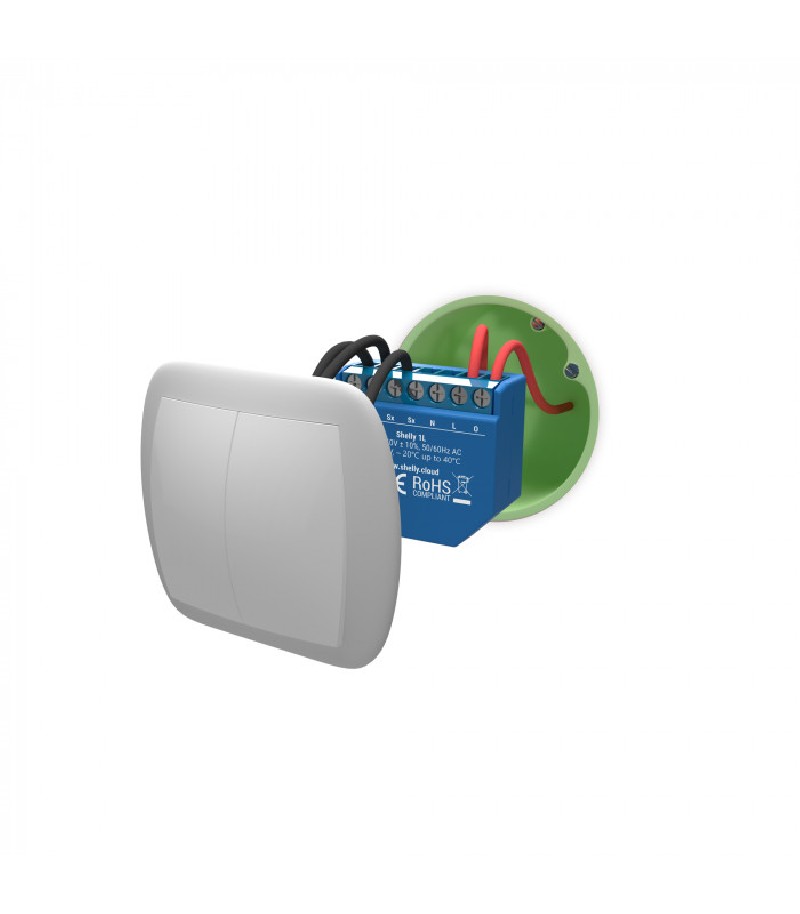

• Designed to be installed in a limited space, such as behind a wall switch
• Can work as a standalone device, as an accessory to a home control, or it can be used as a component of another automation system

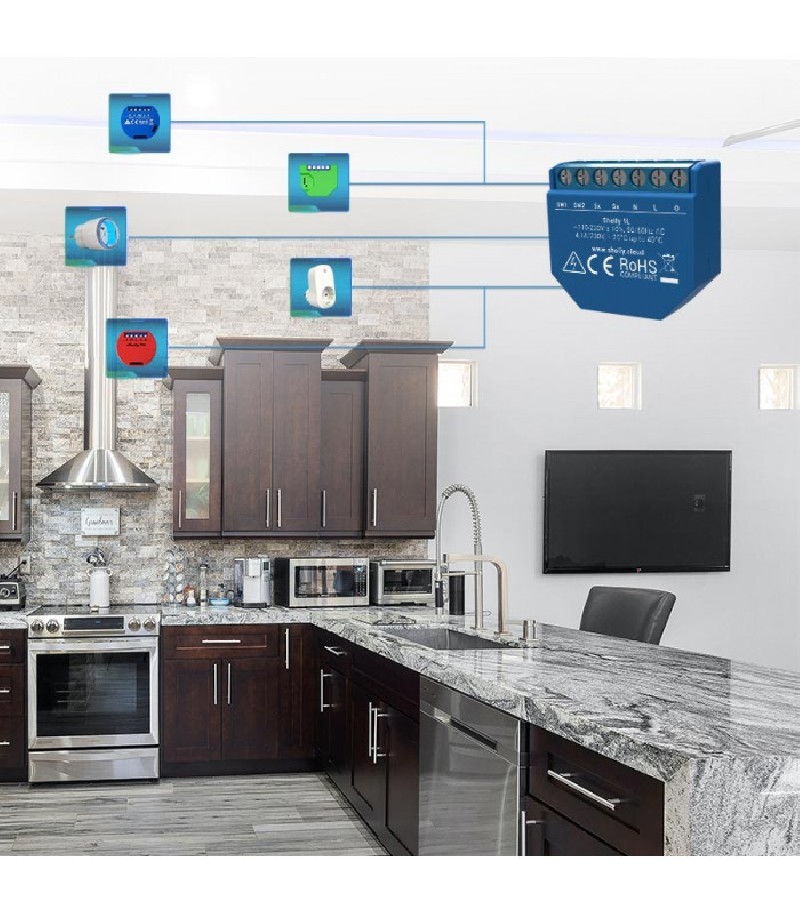

• Can control any other Wi-Fi device in your home
• Protection from overheating
• Controlled elements: 1 circuits / electrical appliances
• Control elements: 1 relay
• Neutral wire not required
• A wide variety of supported load and lighting types
• Can be controlled by an external button/switch
• Compatible with Google Home and Amazon Echo

TECHNICAL FEATURES

• Food: 110-230V ± 10%, 50 / 60Hz
• Maximum load: 4.1 A (5 A for short operation)
• Minimum charge (no neutral connected, no bypass): 20W resistive charge
• Electrical consumption: '1 W'
• Radio signal power: 1mW
• Wireless/WiFi protocol: 802.11 b/g/n (2.4 GHz)
• Frequency: 2400 - 2500 MHz
• Operating range (depending on local construction):
  • up to 50m outdoors
  • up to 30m inside
• Operating temperature: 0 - 40 C
• Dimensions (Hxlxp): 42 x 36 x 14 mm
• Compliant with EU standards:
  • RE Directive 2014/53/EU
  • LVD 2014/35/EU
  • 2004/108/WE EMC
  • RoHS2 2011/65/EU
